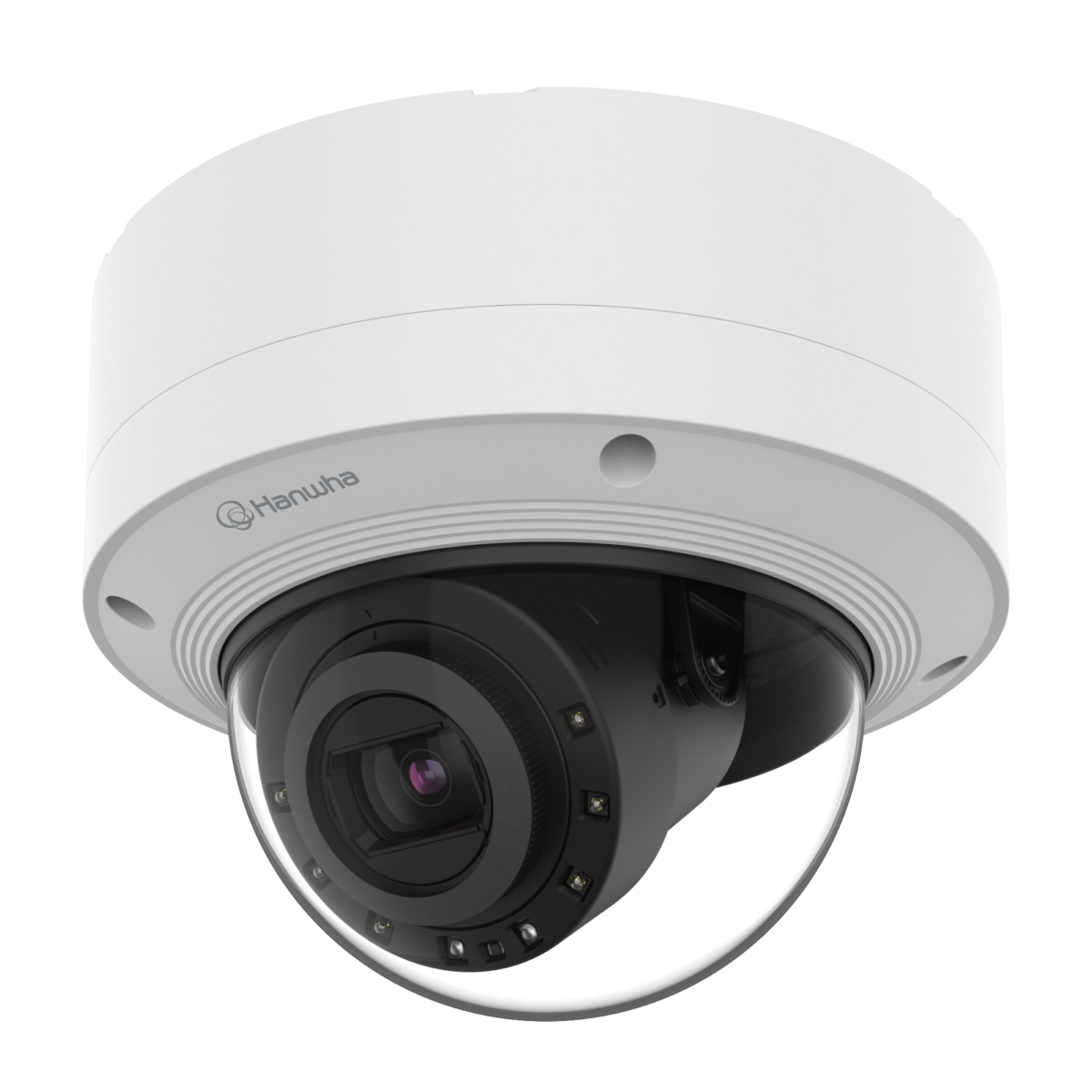

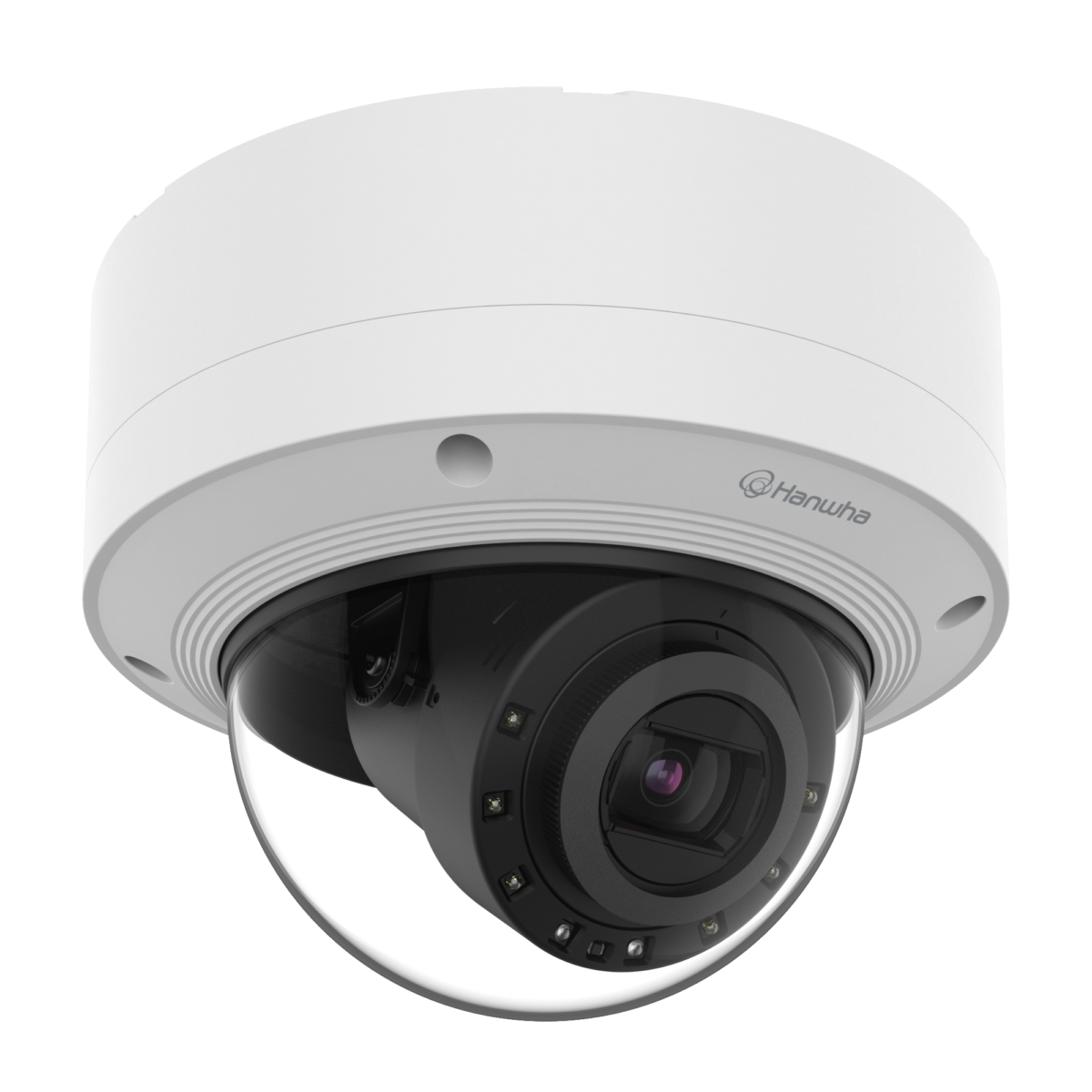

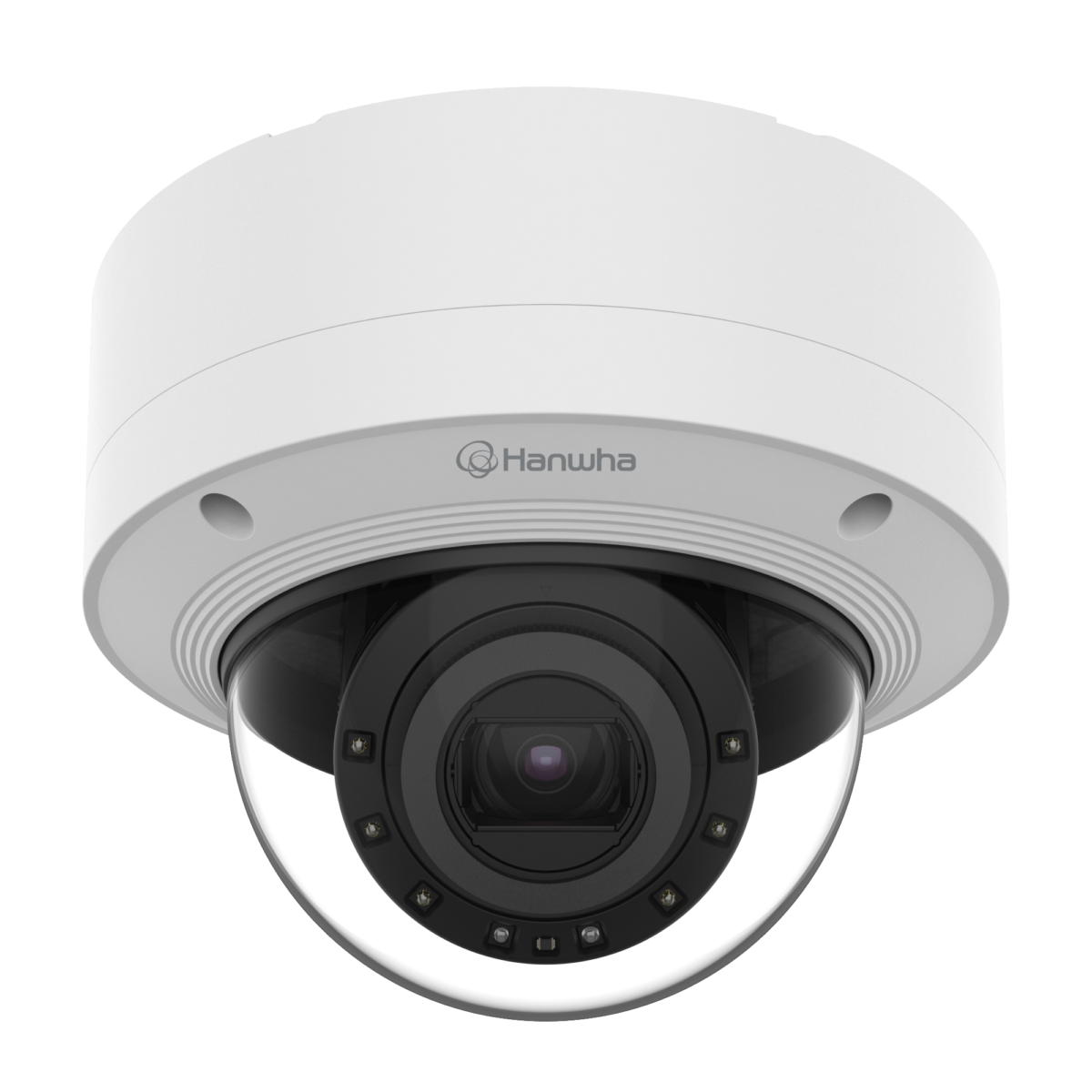

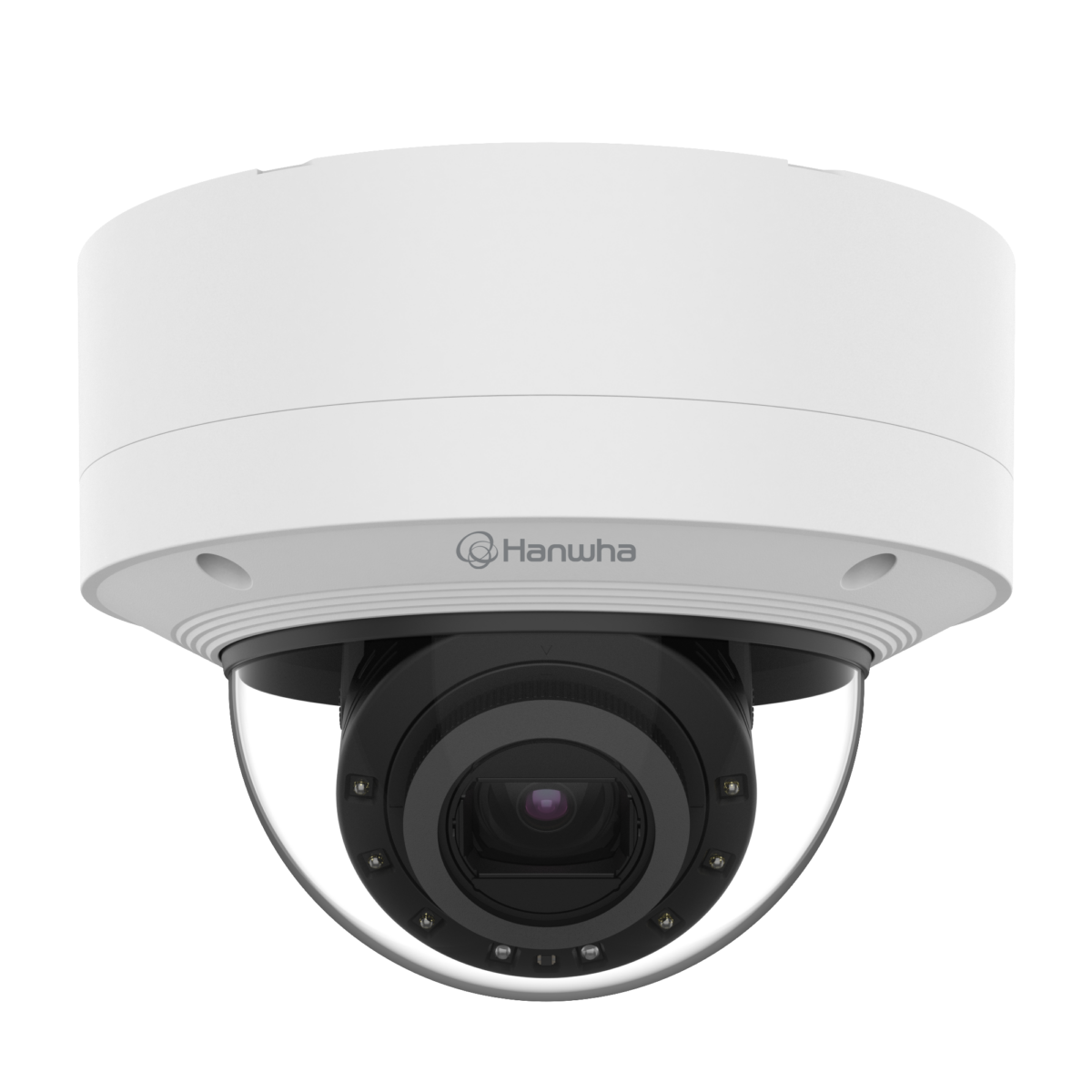

XNV-6123R
2MP AI IR Vandal Dome Camera
• 0.03Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Day & Night (ICR), WDR (150dB)
• Hallway View, WiseNRⅡ(Based on AI engine), WiseStreamⅢ(Based on AI engine) Support
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• PoE, 12VDC
• IP66/IP67/IP6K9K, NEMA4X, IK10+
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.
Learn more
Reducing False alarm based on AI
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. The cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.


AI-based object detection for operational efficiency
Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.


Powerful 12x optical zoom

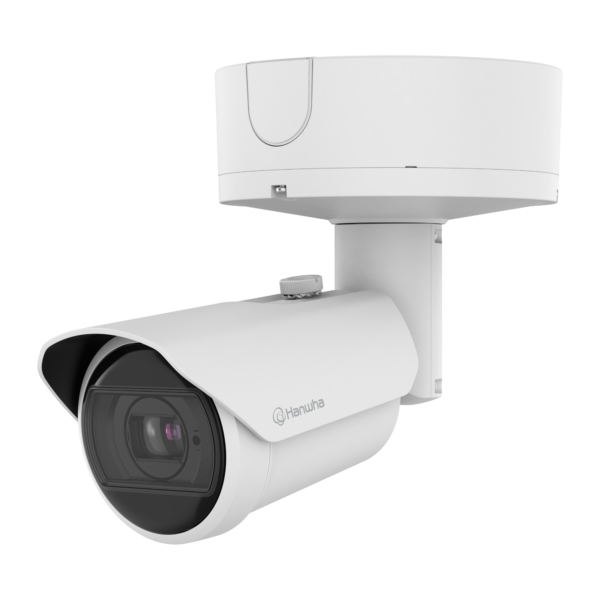

Equipped with powerful 12x optical zoom capabilities in real-time using AI-based object detection, it can help to provide further enhanced security. In certain preset areas, XNO-6123R and XNV-6123R can detect and capture clear images of person, face, vehicle, and license plate by zooming in up to 12x (5.2~62.4mm). With the collaboration of 12x optical zoom and AI, it can offer improved security for entering/exit door areas, chemical factories, or corrections facilities.

Product Specification
Video | |
---|---|
Imaging Device | 1/2.8" CMOS |
Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
Max. Framerate | H.265/H.264: Max. 120fps/100fps(60Hz/50Hz)(WDR off) Max. 60fps/50fps(60Hz/50Hz)(WDR on) MJPEG: Max. 30fps |
Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec, 30IRE) BW: 0.003Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Color: 0.06Lux(F1.6, 1/60sec, 30IRE) BW: 0.006Lux(F1.6, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps Color: 0.12Lux(F1.6, 1/120sec, 30IRE) BW: 0.012Lux(F1.6, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
Lens | |
Focal Length (Zoom Ratio) | 5.2~62.4mm(12x) zoom(digital 32x, total 384x zoom) |
Max. Aperture Ratio | F1.6(Wide)~F3.0(Tele) |
Angular Field of View | H: 55˚(Wide)~5˚(Tele) V: 33˚(Wide)~3˚(Tele) D: 62˚(Wide)~6˚(Tele) |
Min. Object Distance | 2.1m(6.89ft) |
Focus Control | Oneshot AF, Focus save |
Lens Type | DC auto iris |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0°~360° / 0°~80° / 0°~355° |
Sequence | Preset(300ea) |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, HLC, WDR, SSDR |
Wide Dynamic Range | extremeWDR(150dB) |
Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
Digital Image Stabilization | Support(built-in gyro sensor) |
Defog | Support |
Motion Detection | 8ea, 8point Polygonal zones |
Privacy Masking | 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic |
Gain Control | Off / Max Gain / Manual |
White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
LDC | Support(Fill/stretch mode) |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control(Based on AI engine) |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Analytics | Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events - Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP/SFTP - File upload(video clip): FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
Audio In | Selectable(mic in/line in) |
Audio Out | Line out |
IR Viewable Length | WiseIR 90m(295.28ft) |
Network | |
Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
Security | |
OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
User authentication | Digest Authenticaton, Prevent brute-force attacks |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
Access Control | IP-based access control |
Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
Audit | Access / System / Event Log management |
Device ID | Device certificate(Hanwha Vision Root CA) |
Secure Storage | TPM, HTPM(Hanwha trusted platform module), SDcard partition encrypt |
Security Certificate | TPM with FIPS 140-2 level 2 |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
Memory | 2GB RAM, 512MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) * Start up should be done at above -30°C 0~100% RH(condensing) Humidity control /w AIR vent |
Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
Certification | IP66/IP67/IP6K9K, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9), IK10+ |
Input Voltage | PoE+(IEEE802.3at type2, Class4), 12VDC |
Power Consumption | PoE+: Max 19.5W, typical 15.5W 12VDC: Max 16.5W, typical 13.1W Power redundancy failover |
Mechanical | |
Color / Material | White / Aluminum Bubble: Hard-coated dome |
RAL Code | RAL9003 |
Product Dimensions / Weight | ø180x138mm(ø7.09x5.43"), 2130g(4.70 lb) |
Compatible Conduit hole / Gangbox | 19.1mm(3/4")(M25) single, double, 4" octagon, 4" square |
Hanging Mount (Dome) | SBP-180HMW1 |
Backbox | SBV-180BW/WW |
Ceiling Mount (Assy) | SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS |
Wall Mount | SBP-300WMW/WMW1, SBP-390WMW2 |
Pole Mount | SBD-180PMW, SBP-300PMW2 |
In-ceiling Mount | SHD-1370FPW |
Parapet Mount | SBP-300LMW, SBP-156LMW1 |
Corner Mount | SBP-300KMW1 |
Cabinet | SBP-300NBW |
Certifications & Standards | |
EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, ISO 20653 IP6K9K, IEC/EN 62262 IK10+ NEMA TS 2-2013(2.2.8, 2.2.9) NEMA 250 type 4X |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | Wide: 73.8m(242.01ft) / Tele: 879.5m(2885.51ft) |
Observe (63PPM/ 19PPF) | Wide: 29.5m(96.81ft) / Tele: 351.8m(1154.21ft) |
Recognize (125PPM/ 38PPF) | Wide: 14.8m(48.40ft) / Tele: 175.9m(577.10ft) |
Identify (250PPM/ 76PPF) | Wide: 7.4m(24.20ft) / Tele: 88.0m(288.55ft) |
