XNO-6010R
2M H.265 IR Bullet Camera
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover
• Dual SD slots(Max. 512GB), WiseStream II support
• IP67/IP66, NEMA 4X, IK10
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom

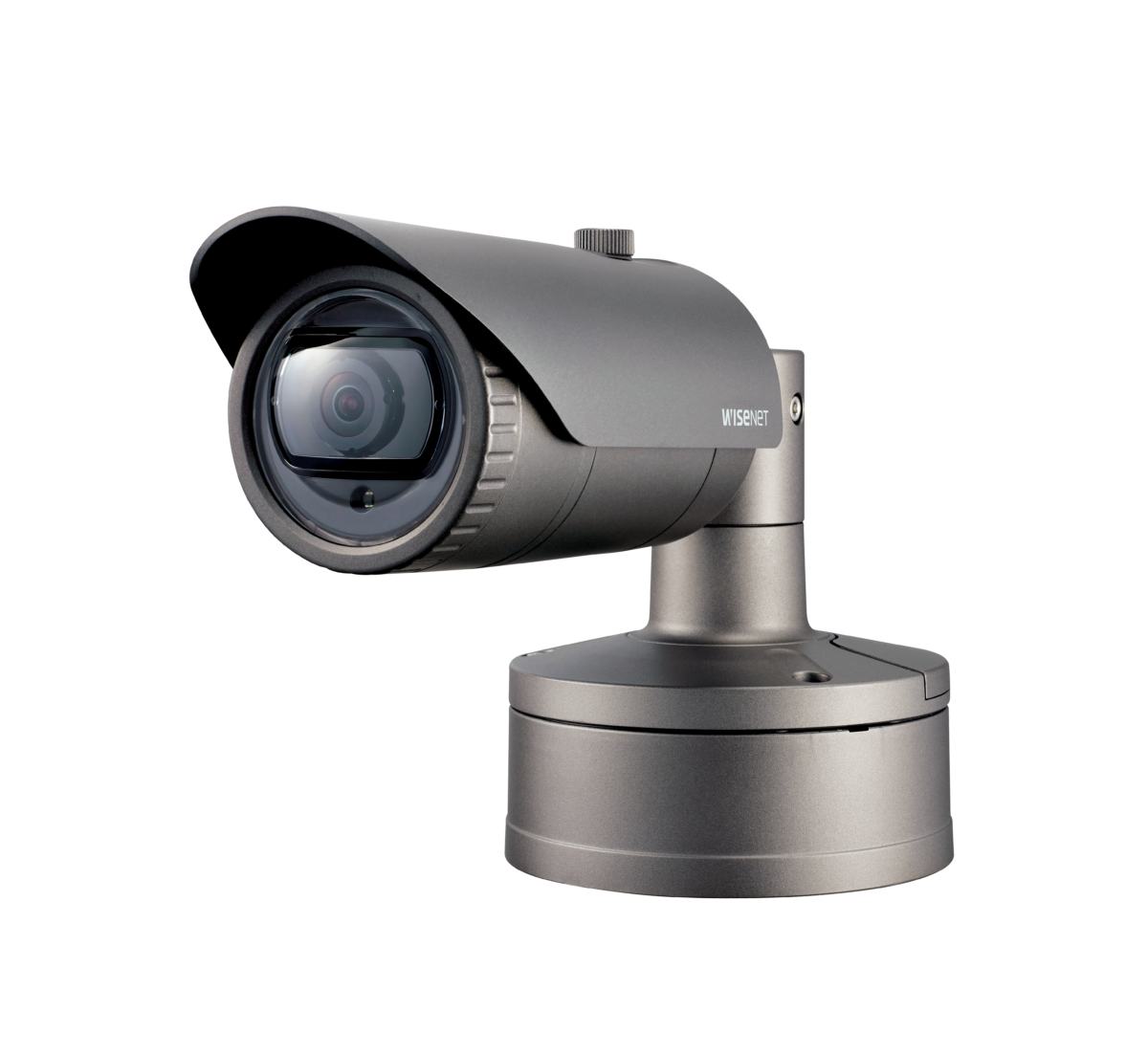

XNO-6010R
2M H.265 IR Bullet Camera
• Built-in 2.4mm fixed lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover
• Dual SD slots(Max. 512GB), WiseStream II support
• IP67/IP66, NEMA 4X, IK10
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device 1/2.8" 2MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.055lux(F2.0, 1/30sec)
B/W: 0 Lux (IR LED On)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
USB: Micro USB Type B, 1280x720, for installationLens Focal Length (Zoom Ratio) 2.4mm fixed focal Max. Aperture Ratio F2.0 Angular Field of View H: 139°, V:73°, D: 167° Min. Object Distance 0.5m(1.64ft) Focus Control Fixed Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, DWDR, SSDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Business Intelligence People counting, Queue management, Heatmap Serial Interface Not support Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and E-Mail
Notification via E-Mail
SD/SDHC/SDXC or NAS recording at Event Triggers
Alarm output
HandoverAudio In Selectable(Mic in/Line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max. output level: 1Vrms IR Viewable Length 20m(65.62ft) Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC : 48Kbps at 16KHzSmart Codec Manual(5ea area)
WiseStreamⅡBitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -20°CStorage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP67/IP66/NEMA4X, IK10 Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE: Max 9.7W
12VDC: Max 8.8WMechanical Color / Material Dark grey / Aluminum Product Dimensions / Weight Ø70x296mm(Ø2.76"x11.65"), 1220g(2.69 lb) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
