XND-6085
2M H.265 Camera (extraLUX)
• H.265, H.264, MJPEG codec Supported, Multiple streaming
• 4.1 ~ 16.4mm (4x) motorized varifocal lens
• 0.004 Lux@F0.94 (Color), 0.0004 Lux@F0.94 (B/W)
• Day & Night (ICR), WDR (150dB), Defog
• Loitering, Directional, Fog detection, Audio detection
• Digital auto tracking, Sound classification, Tampering
• SD / SDHC / SDXC memory slot (Max. 512GB)
• Hallway View, WiseStreamII Support
• LDC, PoE / 24V AC / 12V DC, Bi-directional audio
• Remote controlled PTRZ (PAN / TILT / ROTATE / ZOOM) maximizes angle adjustment convenience
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom

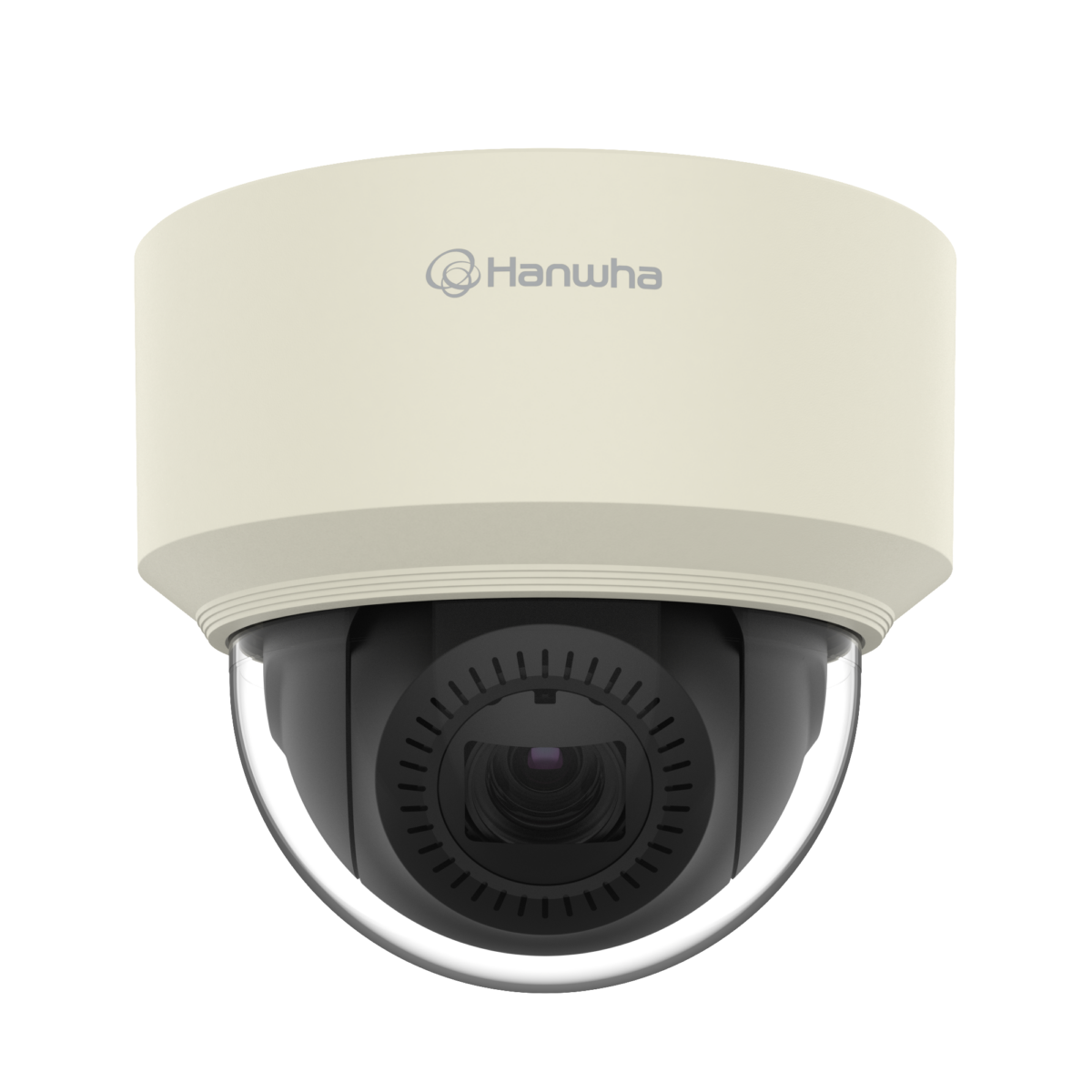

XND-6085
2M H.265 Camera (extraLUX)
• Max. 2Megapixel (1920 x 1080) resolution
• H.265, H.264, MJPEG codec Supported, Multiple streaming
• 4.1 ~ 16.4mm (4x) motorized varifocal lens
• 0.004 Lux@F0.94 (Color), 0.0004 Lux@F0.94 (B/W)
• Day & Night (ICR), WDR (150dB), Defog
• Loitering, Directional, Fog detection, Audio detection
• Digital auto tracking, Sound classification, Tampering
• SD / SDHC / SDXC memory slot (Max. 512GB)
• Hallway View, WiseStreamII Support
• LDC, PoE / 24V AC / 12V DC, Bi-directional audio
• Remote controlled PTRZ (PAN / TILT / ROTATE / ZOOM) maximizes angle adjustment convenience
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device 1/2" 2MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.004Lux(F0.94, 1/30sec)
BW: 0.0004Lux(F0.94, 1/30sec)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 4.1~16.4mm(4x) motorized varifocal Max. Aperture Ratio F0.94(Wide)~F2.4(Tele) Angular Field of View H: 100.0°(Wide)~26.2°(Tele) / V: 54°(Wide)~14.8°(Tele) / D: 116.0°(Wide)~30.0°(Tele) Min. Object Distance 0.7m(2.30ft) Focus Control Simple focus Lens Type DC auto iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
-175°~175° / -73°~73° / -175°~175°Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
DPTZ presetAudio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°CStorage Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Certification IK08 Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE : Max 10.2W
12VDC : Max. 8.6WMechanical Color / Material Ivory / Plastic Product Dimensions / Weight Ø160x140.0mm(6.3"x5.51"), 1.10kg(2.43 lb)
-
