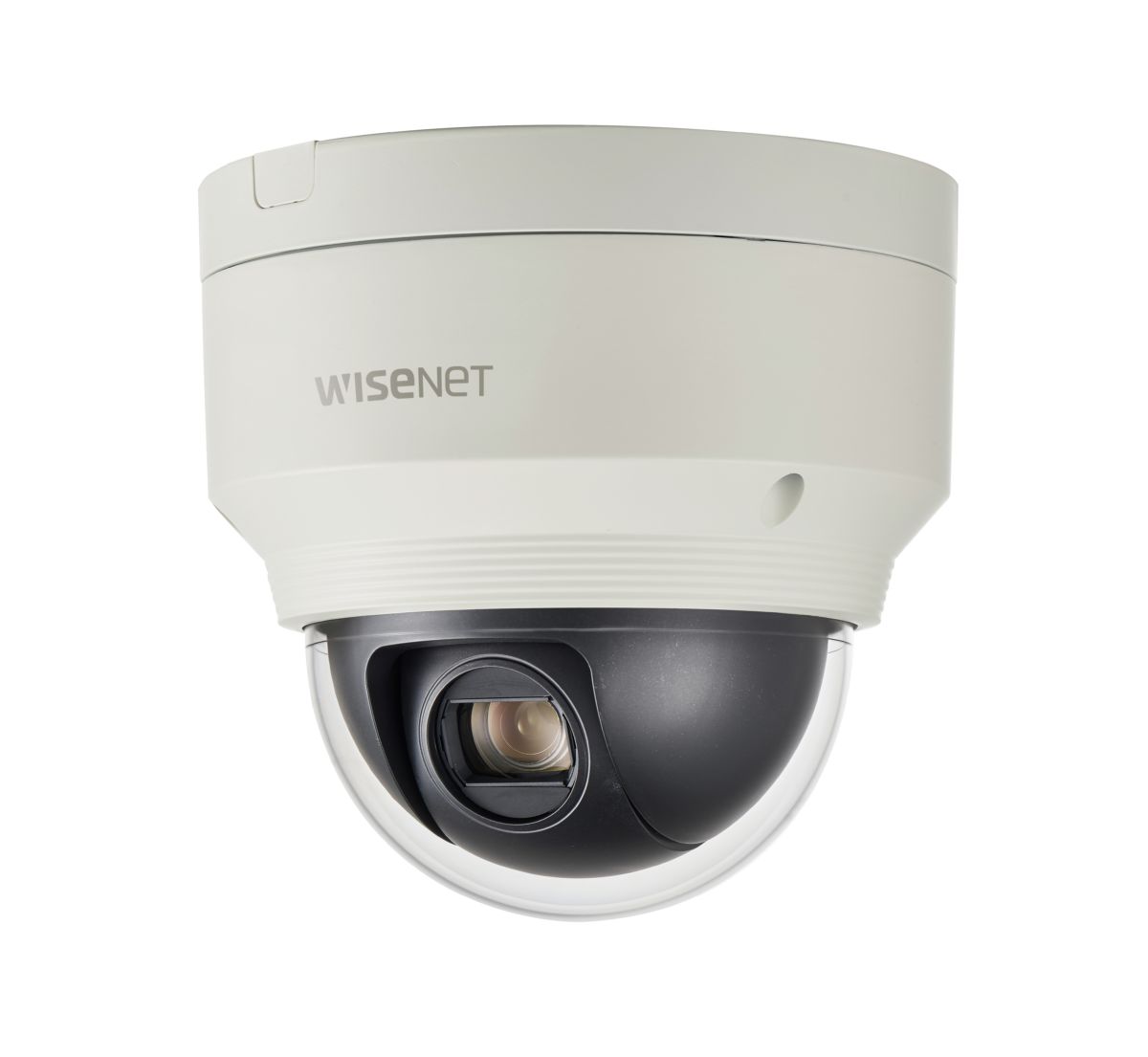

XNP-6120H
2M H.265 12x PTZ Camera
Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 16 : 9 Full HD (1080p) resolution support
• 5.2 ~ 62.4mm (12x) optical zoom, 32x digital zoom
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day & Night (ICR), WDR (150dB), Intelligent video analytics
• SD/SDHC/SDXC memory slot (Max.512GB)
• IP66, IK10, Bi-directional audio support
• 16 : 9 Full HD (1080p) resolution support
• 5.2 ~ 62.4mm (12x) optical zoom, 32x digital zoom
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day & Night (ICR), WDR (150dB), Intelligent video analytics
• SD/SDHC/SDXC memory slot (Max.512GB)
• IP66, IK10, Bi-directional audio support
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
XNP-6120H
2M H.265 12x PTZ Camera
Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 16 : 9 Full HD (1080p) resolution support
• 5.2 ~ 62.4mm (12x) optical zoom, 32x digital zoom
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day & Night (ICR), WDR (150dB), Intelligent video analytics
• SD/SDHC/SDXC memory slot (Max.512GB)
• IP66, IK10, Bi-directional audio support
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" 2.16MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps at all resolutions
Motion JPEG: Max. 30fps at all resolutionsMin. Illumination Color: 0.05 Lux (1/30sec, F1.6, 50IRE)
B/W: 0.005 Lux (1/30sec, F1.6, 50IRE)
Color: 0.03 Lux (1/30sec, F1.6, 30IRE)
B/W: 0.003 Lux (1/30sec, F1.6, 30IRE)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 5.2~62.4mm(12x) zoom Max. Aperture Ratio F1.6(Wide)~F3.0(Tele) Angular Field of View H: 54.58˚(Wide) ~ 5.30˚(Tele) / V: 32.19˚(Wide) ~ 3.00˚(Tele) Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) Focus Control Auto / Manual / One Shot AF Lens Type DC auto iris Pan / Tilt / Rotate Pan Range 360˚ Endless Pan Speed Preset: 350˚/sec, Manual: 0.024˚/sec ~ 200˚/sec Tilt Range 190˚(-5˚ ~ 185˚) Tilt Speed Preset: 350˚/sec, Manual: 0.024˚/sec ~200˚/sec Sequence Preset (300 ea), Swing, Group (6 ea), Trace, Tour (1 ea), Auto Run, Schedule Preset Accuracy ±0.2˚ Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support(built-in gyro sensor) Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ PresetAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Auto Tracking Support Network Ethernet RJ-45 (10/100BASE-T) Video Compression H.265, H.264, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast (128 user)
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP, NTCIP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C~+55°C (-22°F~+131°F) / Less than 90% RH Storage Temperature / Humidity -30°C~+60°C (-22°F~+140°F) / Less than 90% RH Certification IP66, IK10 Input Voltage DC12V, PoE(IEEE802.3af, Class3) Power Consumption Max 12W Mechanical Color / Material Ivory / Aluminum Product Dimensions / Weight ø168 x 161.5mm(6.61 x 6.36"), 1.9kg(4.19 lb) DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 74.4m(244.2ft) / Tele: 829.7m(2722ft) Observe (63PPM/ 19PPF) Wide: 29.8m(97.7ft) / Tele: 331.9m(1088.8ft) Recognize (125PPM/ 38PPF) Wide: 14.9m(48.8ft) / Tele: 165.9m(544.4ft) Identify (250PPM/ 76PPF) Wide: 7.4m(24.4ft) / Tele: 83.0m(272.2ft) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
