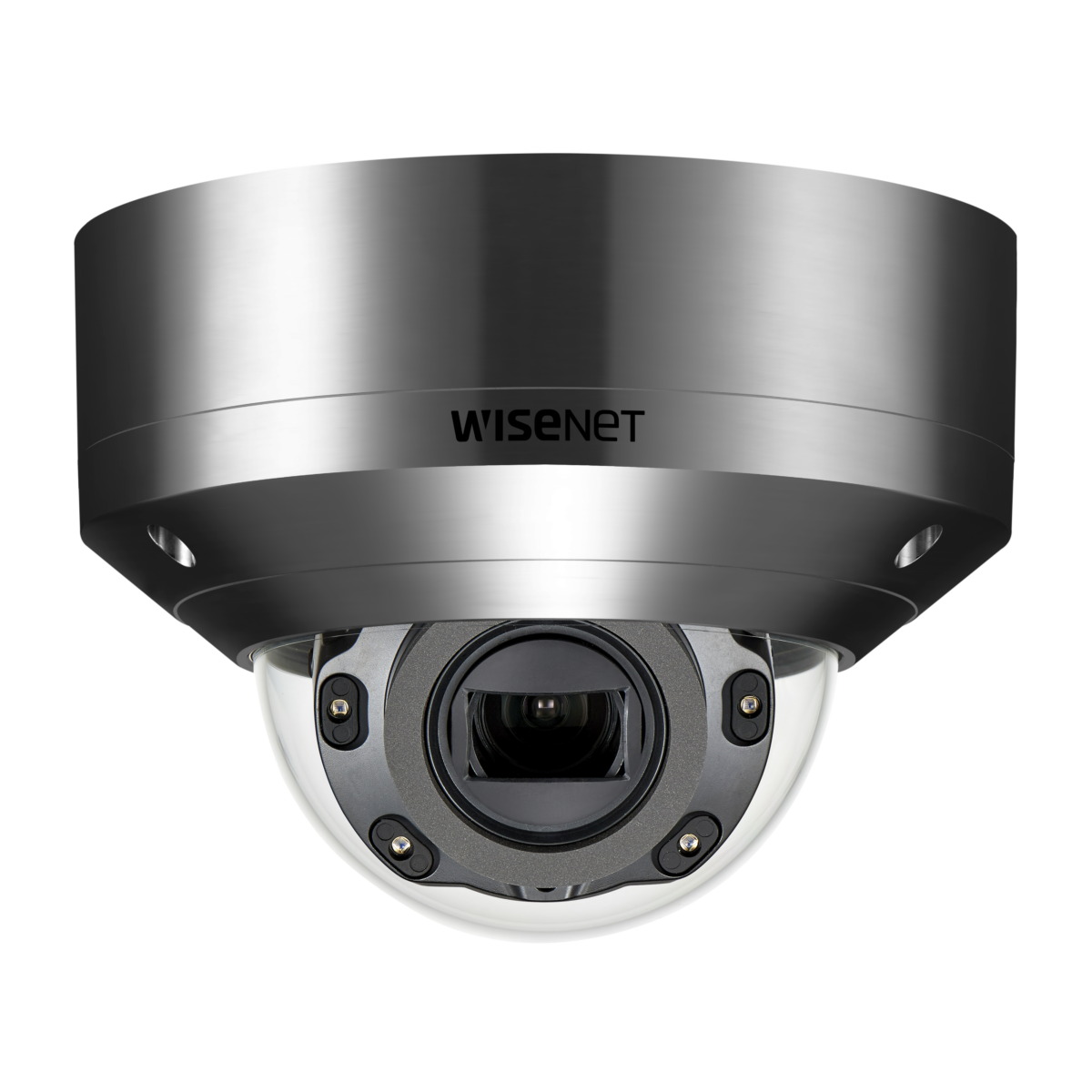

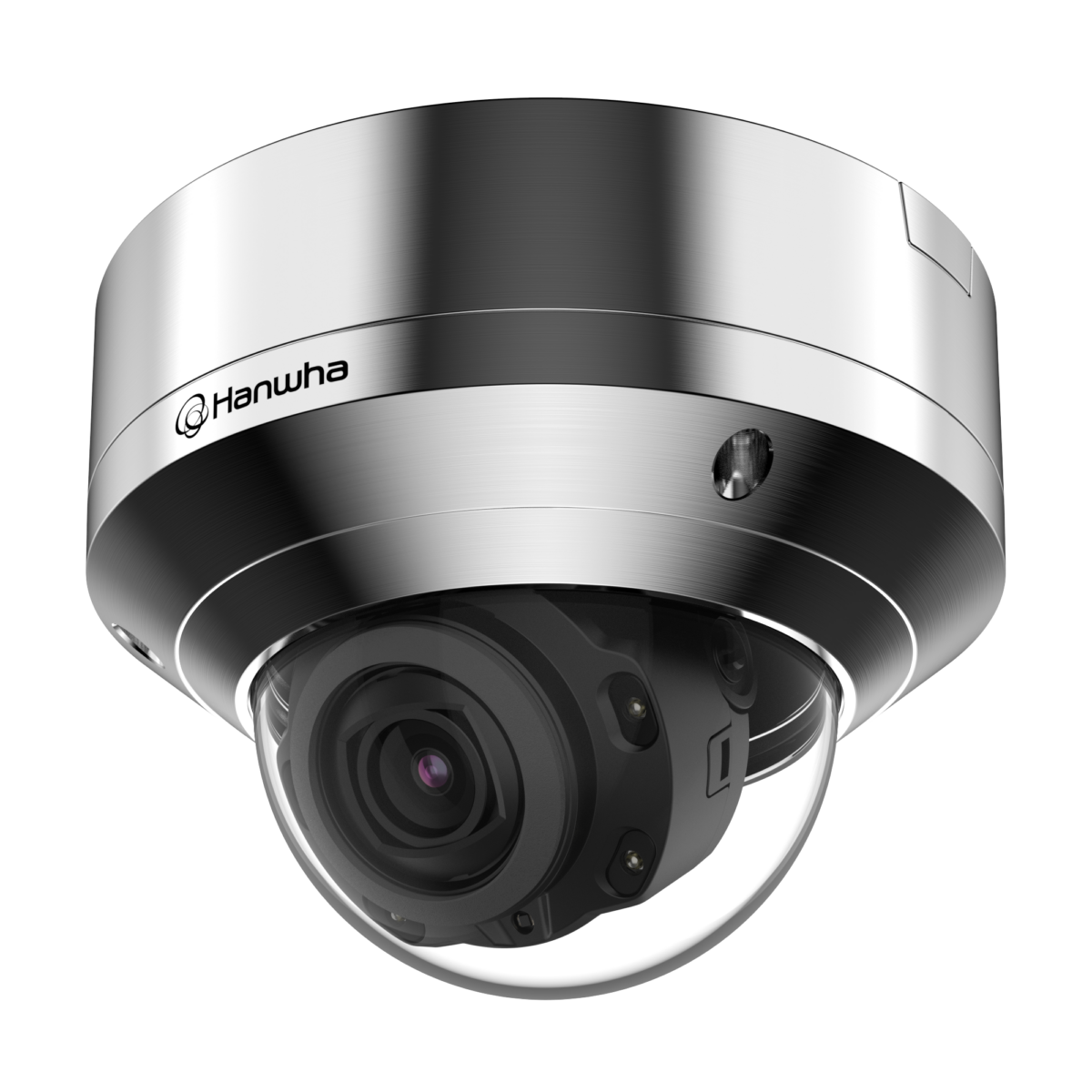

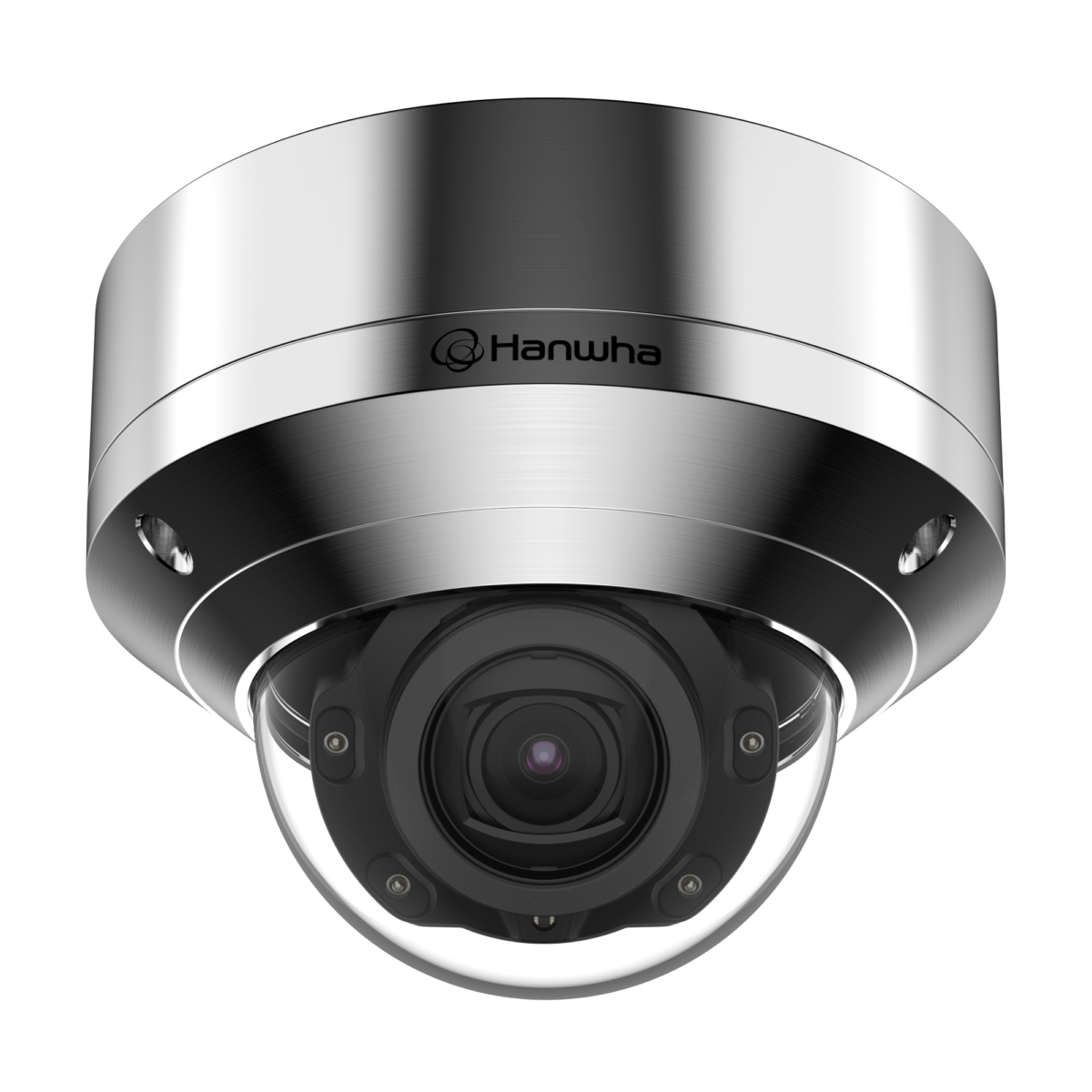

XNV-6080RSA
2MP Stainless IR Dome Camera
Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (150dB), Defog
• Loitering, Directional detection, Tampering, Audio detection, Digital auto tracking, Fog detection, Sound classification
• Motion detection, Handover
• SD/SDHC/SDXC memory 2slots (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 50m
• IP66, IP6K9K, IK10+, NEMA4X
• NSF/ANSI 169-2016: Special purpose food equipment and devices
• LDC, PoE support
• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (150dB), Defog
• Loitering, Directional detection, Tampering, Audio detection, Digital auto tracking, Fog detection, Sound classification
• Motion detection, Handover
• SD/SDHC/SDXC memory 2slots (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 50m
• IP66, IP6K9K, IK10+, NEMA4X
• NSF/ANSI 169-2016: Special purpose food equipment and devices
• LDC, PoE support
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
XNV-6080RSA
2MP Stainless IR Dome Camera
Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (150dB), Defog
• Loitering, Directional detection, Tampering, Audio detection, Digital auto tracking, Fog detection, Sound classification
• Motion detection, Handover
• SD/SDHC/SDXC memory 2slots (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 50m
• IP66, IP6K9K, IK10+, NEMA4X
• NSF/ANSI 169-2016: Special purpose food equipment and devices
• LDC, PoE support
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
- Certifications & Standards
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8” CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 60fps/50fps(60Hz/50Hz)Min. Illumination Color: 0.015Lux(F1.4, 1/30sec)
BW: 0Lux(IR LED on)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele) Angular Field of View H: 120°(Wide) ~ 27°(Tele)
V: 63°(Wide) ~ 15°(Tele)
D: 143°(Wide) ~ 32°(Tele)Min. Object Distance 0.5m(1.64ft) Focus Control Simple focus Lens Type DC Auto Iris, P iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0˚~354˚ / 0˚~67˚ / 0˚~355˚ Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point Polygonal zones Privacy Masking 32ea, 4point polygonal zones
- Color : Gray, Green, Red, Blue, Black, White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90˚/270˚) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
HandoverAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms IR Viewable Length 50m(164.04ft) Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 512MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66, IP6K9K, NEMA4X, IK10+ Input Voltage PoE(IEEE802.3af), 12VDC, 24VAC Power Consumption PoE: Max 12.95W
12VDC: Max 11.5W
24VAC: Max 14WMechanical Color / Material Silver / Stainless(SUS316L) Product Dimensions / Weight Ø162x120.5mm(Ø6.38x4.74") / 2.8kg(6.17lb) Certifications & Standards EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835Safety UL 60950-1, CAN/CSA C22.2 NO. 60950-1
IEC/EN 62471Environment IEC/EN 63000
IEC/EN 60529 IP66, ISO 20653 IP6K9K, IEC/EN 62262 IK10+
NEMA 250 type 4X
NSF/ANSI 169-2016: Special purpose food equipment and devicesDORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 22.2m(72.74ft) / Tele: 159.9m(524.76ft) Observe (63PPM/ 19PPF) Wide: 8.9m(29.09ft) / Tele: 64.0m(209.90ft) Recognize (125PPM/ 38PPF) Wide: 4.4m(14.55ft) / Tele: 32.0m(104.95ft) Identify (250PPM/ 76PPF) Wide: 2.2m(7.27ft) / Tele: 16.0m(52.48ft) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
Related Products

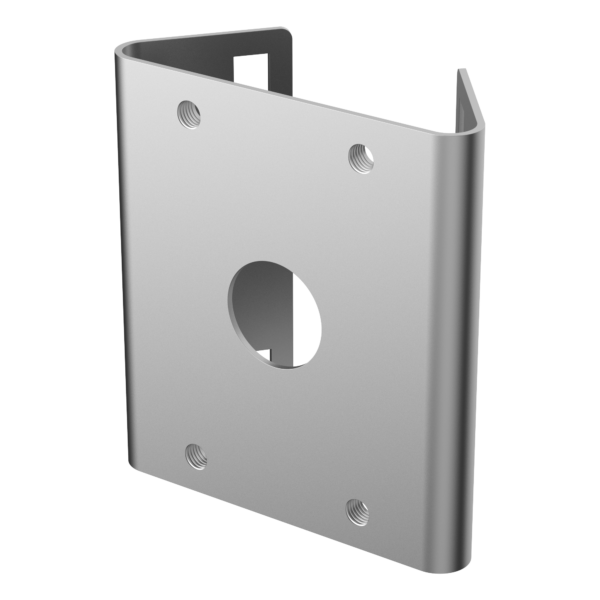

| Accessory
←
→
