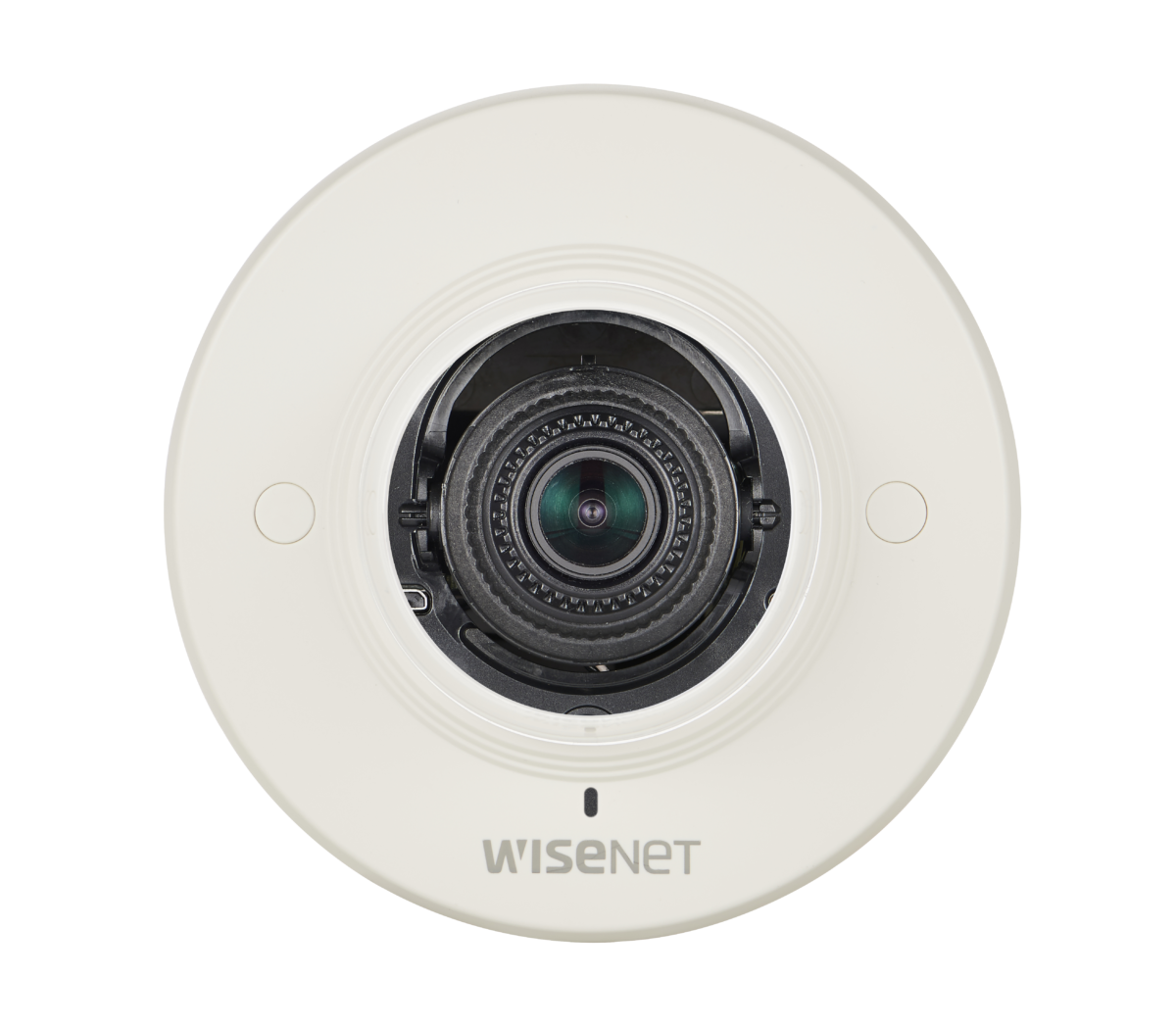

XND-6011F
2M H.265 Dome Camera
Key Features
• Built-in 2.8mm fixed lens
• Max. 60fps@all resolutions (H.265 / H.264)
• WDR (150dB), Defog
• Loitering, Directional detection, Fog detection
• Audio detection, Digital auto tracking, Sound classification
• Heatmap, People counting, Queue management
• Motion detection, Handover, Tampering
• Memory slot (Max. 256GB), PoE
• Hallway View, WiseStreamII Support
• LDC Support (Lens distortion correction)
• Max. 60fps@all resolutions (H.265 / H.264)
• WDR (150dB), Defog
• Loitering, Directional detection, Fog detection
• Audio detection, Digital auto tracking, Sound classification
• Heatmap, People counting, Queue management
• Motion detection, Handover, Tampering
• Memory slot (Max. 256GB), PoE
• Hallway View, WiseStreamII Support
• LDC Support (Lens distortion correction)
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
XND-6011F
2M H.265 Dome Camera
Key Features
• Built-in 2.8mm fixed lens
• Max. 60fps@all resolutions (H.265 / H.264)
• WDR (150dB), Defog
• Loitering, Directional detection, Fog detection
• Audio detection, Digital auto tracking, Sound classification
• Heatmap, People counting, Queue management
• Motion detection, Handover, Tampering
• Memory slot (Max. 256GB), PoE
• Hallway View, WiseStreamII Support
• LDC Support (Lens distortion correction)
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device 1/2.8" 2MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.55Lux(F2.0, 1/30sec)
BW: 0.55Lux(F2.0, 1/30sec)Video Out USB: Micro USB Type B, 1280x720 for installation Lens Focal Length (Zoom Ratio) 2.8mm fixed focal Max. Aperture Ratio F2.0 Angular Field of View H: 107.4°, V: 62.2°, D: 122° Min. Object Distance 0.2m(0.66ft) Lens Type Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~355° / 0°~47° / 0°~353° Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Business Intelligence People counting, Queue management, Heatmap Alarm Triggers Analytics, Network disconnect Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggersAudio In Built-in mic Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 1slot 256GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -10°C~+55°C(14°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Input Voltage PoE(IEEE802.3af, Class3) Power Consumption PoE : Max 4.7W Mechanical Color / Material Ivory / Plastic Product Dimensions / Weight Ø98.9x129.1mm(3.9"x5.1"), 275g(0.6 lb) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
