Dome

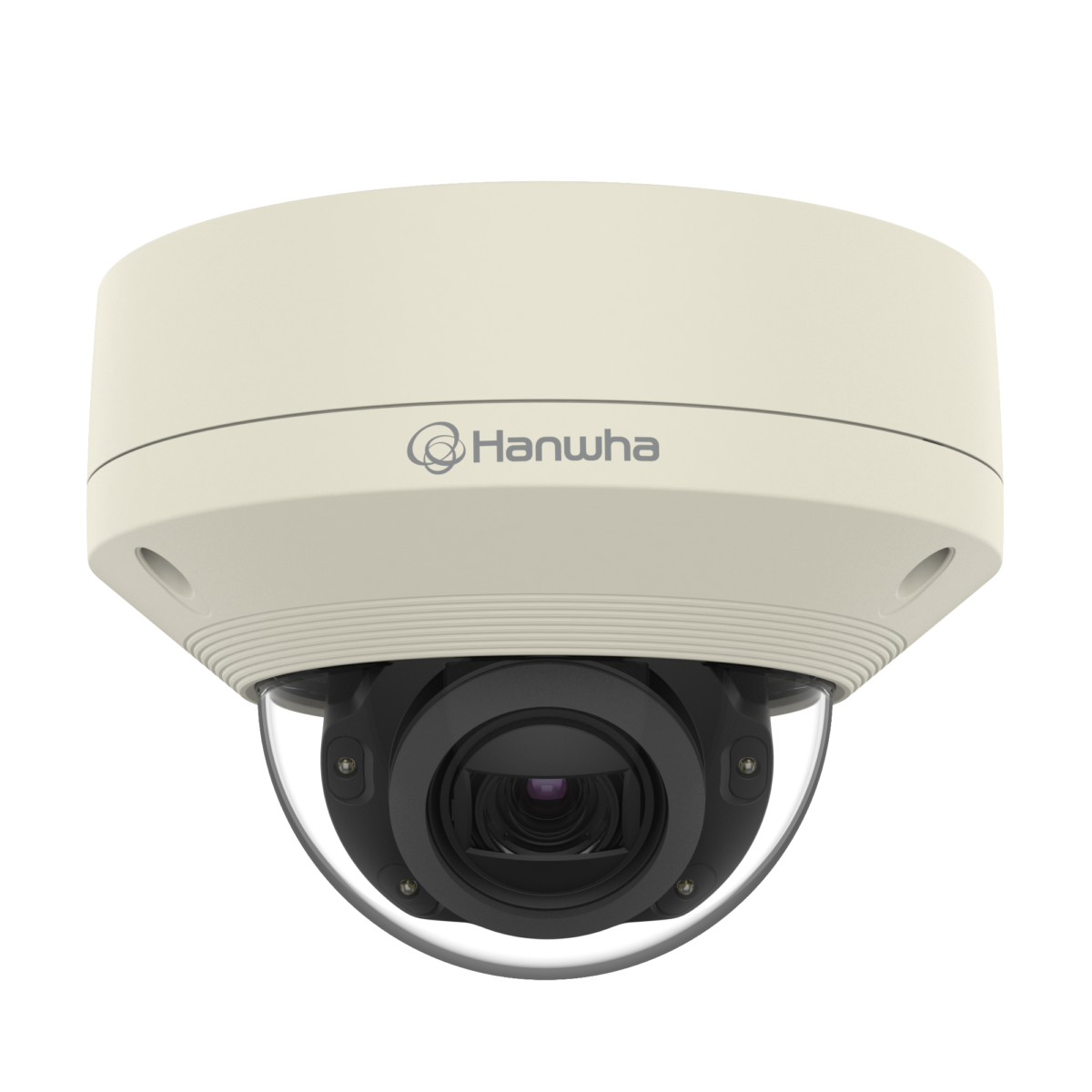

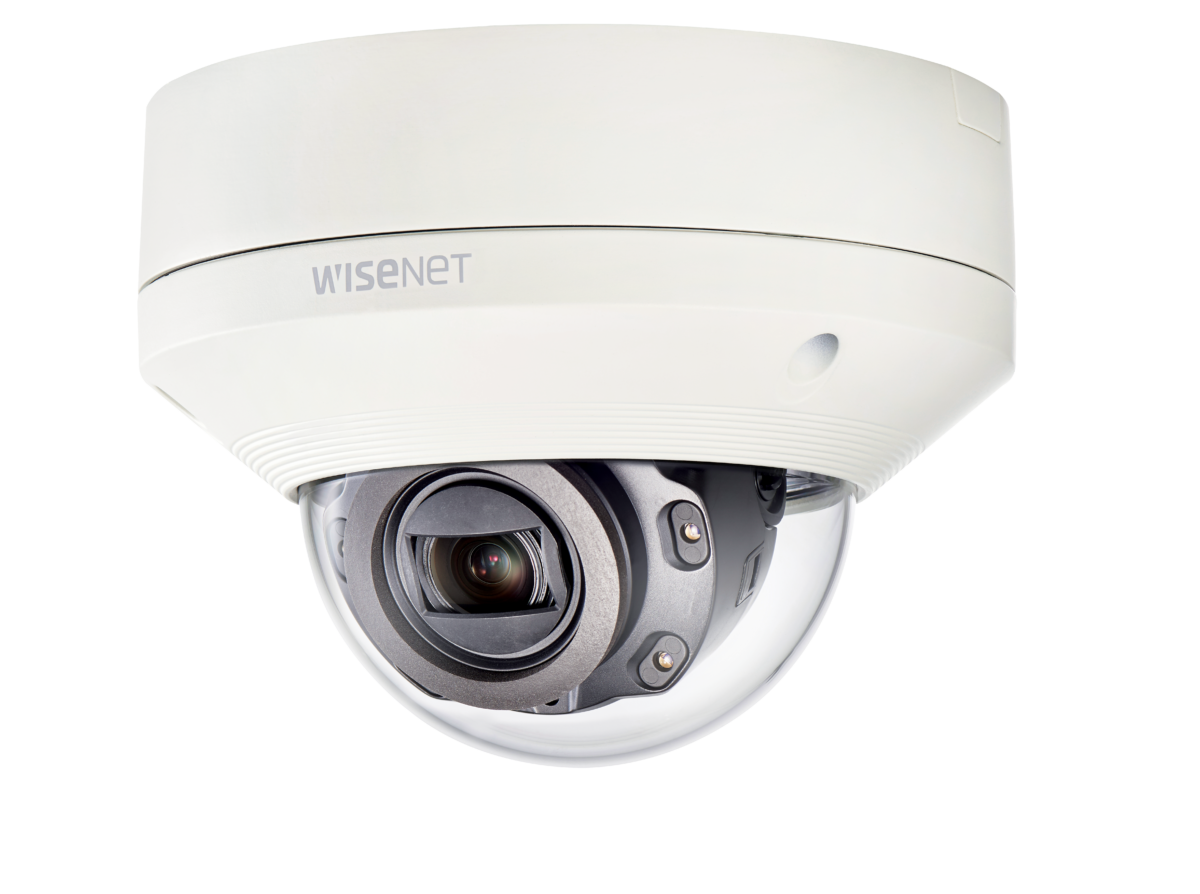

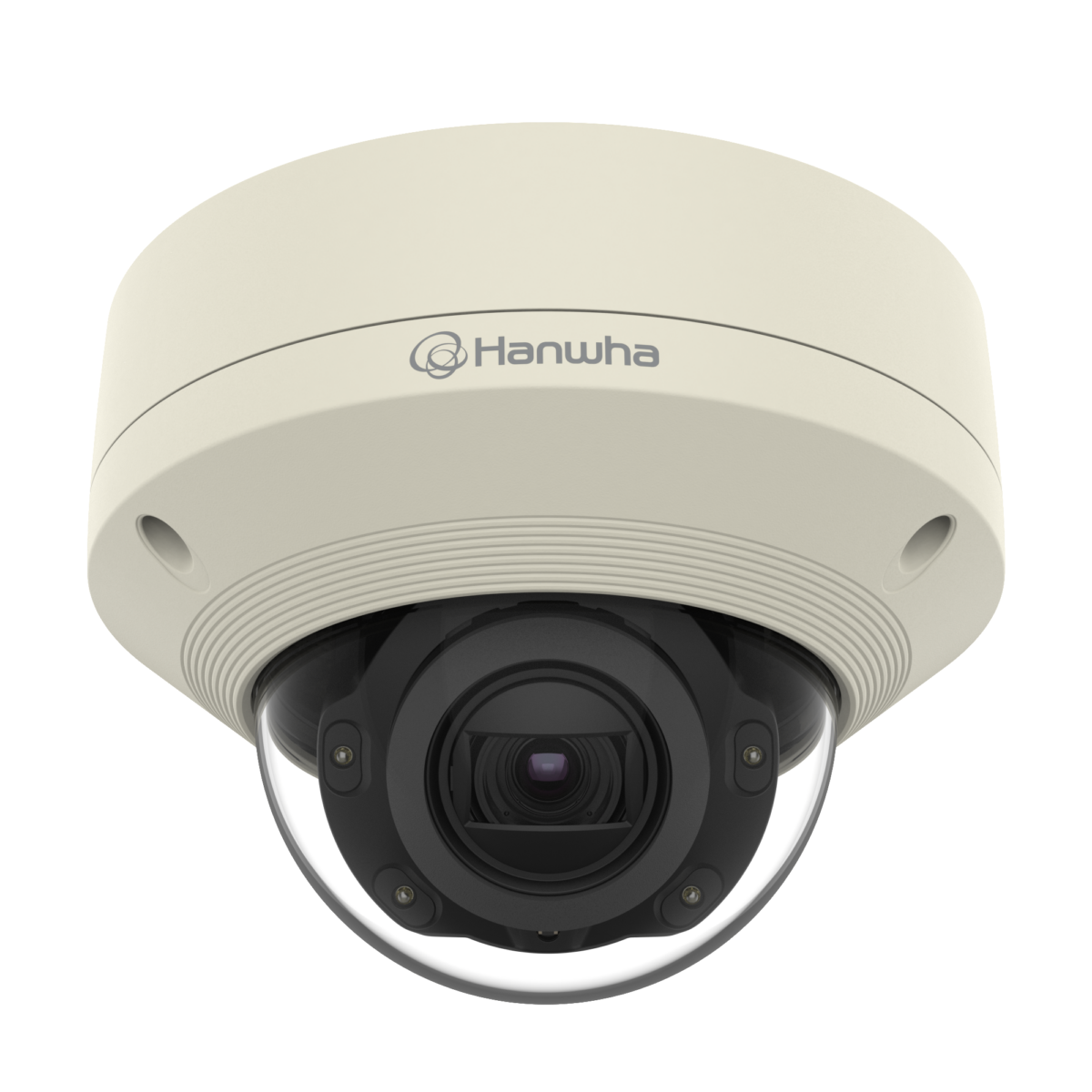

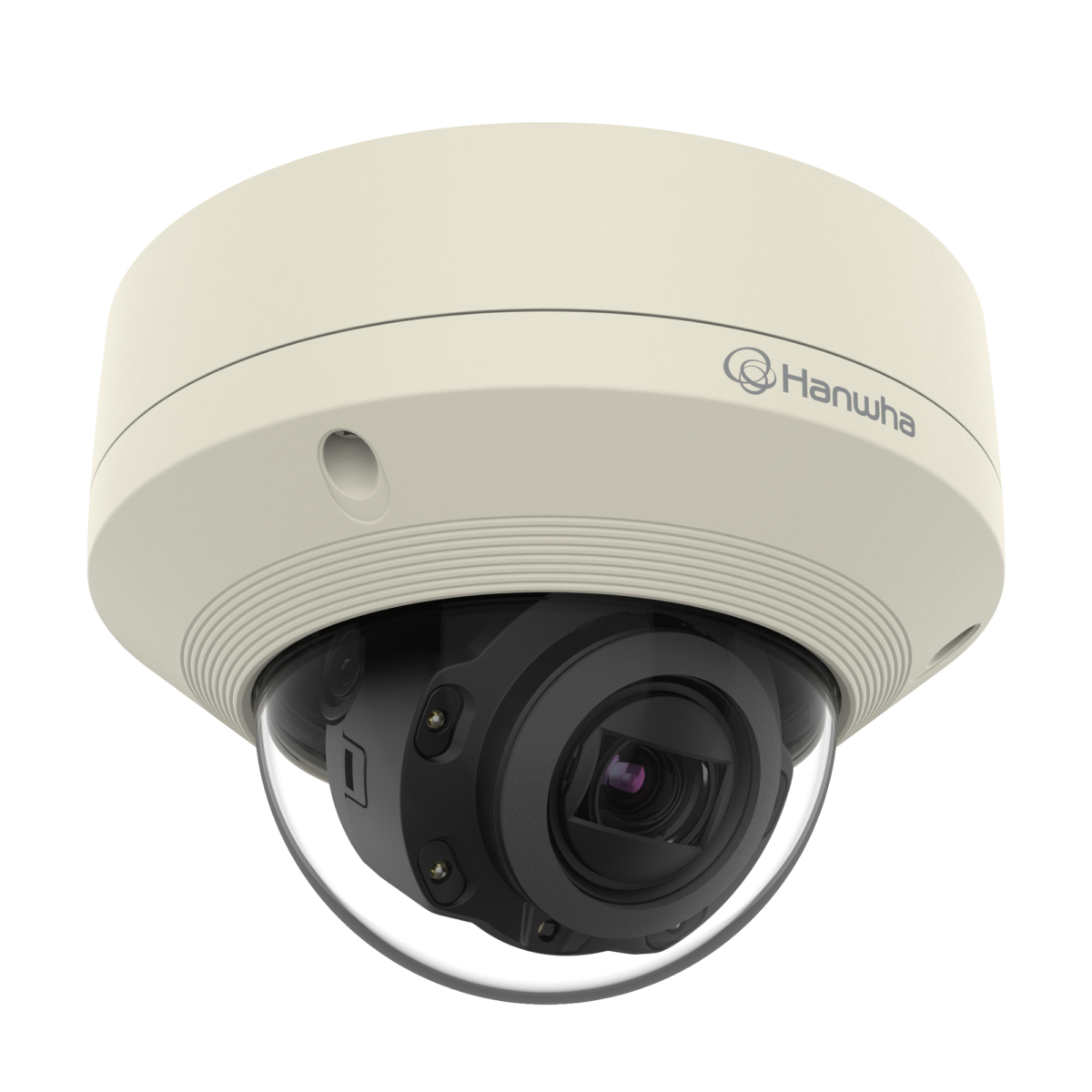

XNV-6080R

2M H.265 IR Dome Camera

Key Features

• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 50m, IP67/IP66, NEMA 4X, IK10

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

e, High
Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.015
BW(1/30sec, 30IRE)0.0015
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
Lens
Focal Length (mm)2.8~12
Zoom RatioOptical4.3x
Max Aperture Ratio (F number)Wide1.4
Angular Field of ViewHorizontal119.5°~27.9°
Vertical62.8°~15.7°
Diagonal142.1°~32.0°
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeDC auto iris(IR corrected), P iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~354°
Tilt0°~67°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, DWDR, SSDR
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR50m(164.04ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalDefocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
Application ProerfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 2slot(Total 512GB)
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power ConsumptionPoEMax. 12.95W
12VDCMax. 11.5W
24VACMax. 14W
Mechanical
ColorIvory
MaterialAluminum
Product Dimensionsø160x118.5mm(ø6.30x4.67")
Product Weight995g(2.19lb)
Compatible Conduit Hole12.7mm(1/2")(M20)
Certifications & Standards
EnvironmentIEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
