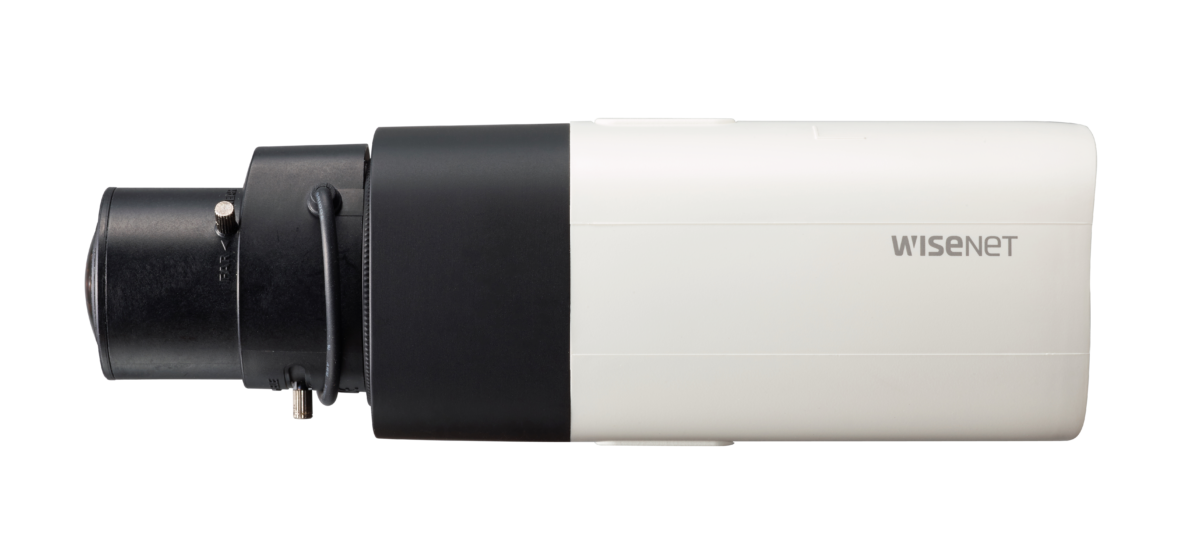

XNB-6005
2M H.265 Box Camera (extraLUX)
Key Features
• 0.006 Lux@F1.2 (Color), 0.0006 Lux@F1.2 (B/W)
• Max. 60fps@all resolutions (H.265 / H.264)
• Day & Night (ICR), WDR (150dB), Defog
• Digital image stabilization with built-in Gyro sensor
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, , Audio detection, Handover
• Memory slot (Max. 512GB, Hallway View, WiseStreamII
• PoE / 24V AC, 12V DC, Bi-directional audio Support
• Max. 60fps@all resolutions (H.265 / H.264)
• Day & Night (ICR), WDR (150dB), Defog
• Digital image stabilization with built-in Gyro sensor
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, , Audio detection, Handover
• Memory slot (Max. 512GB, Hallway View, WiseStreamII
• PoE / 24V AC, 12V DC, Bi-directional audio Support
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
XNB-6005
2M H.265 Box Camera (extraLUX)
Key Features
• 0.006 Lux@F1.2 (Color), 0.0006 Lux@F1.2 (B/W)
• Max. 60fps@all resolutions (H.265 / H.264)
• Day & Night (ICR), WDR (150dB), Defog
• Digital image stabilization with built-in Gyro sensor
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, , Audio detection, Handover
• Memory slot (Max. 512GB, Hallway View, WiseStreamII
• PoE / 24V AC, 12V DC, Bi-directional audio Support
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device 1/2" CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination color: 0.006Lux(F1.2, 1/30sec, 30IRE)
BW: 0.0006Lux(F1.2 1/30sec, 30IRE)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focus Control Simple Remote Control focus via network, manual Lens Type DC auto iris, P iris Mount Type C mount, CS mount Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support(built-in gyro sensor) Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90˚/270˚) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
DPTZ presetAudio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming (Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(Unicast) Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -10°C~+55°C (-14°F~+131°F) / Less than 90% RH Storage Temperature / Humidity -30°C~+60°C (-22°F~+140°F) / Less than 90% RH Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC Power Consumption PoE: Max. 8.5W
12VDC: Max. 8W
24VAC: Max. 9WMechanical Color / Material Black, Ivory / Plastic Product Dimensions / Weight 73.1(W)x66.6(H)x147.8(D)mm(2.88x2.62x5.82"), 420g(0.93 lb) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
