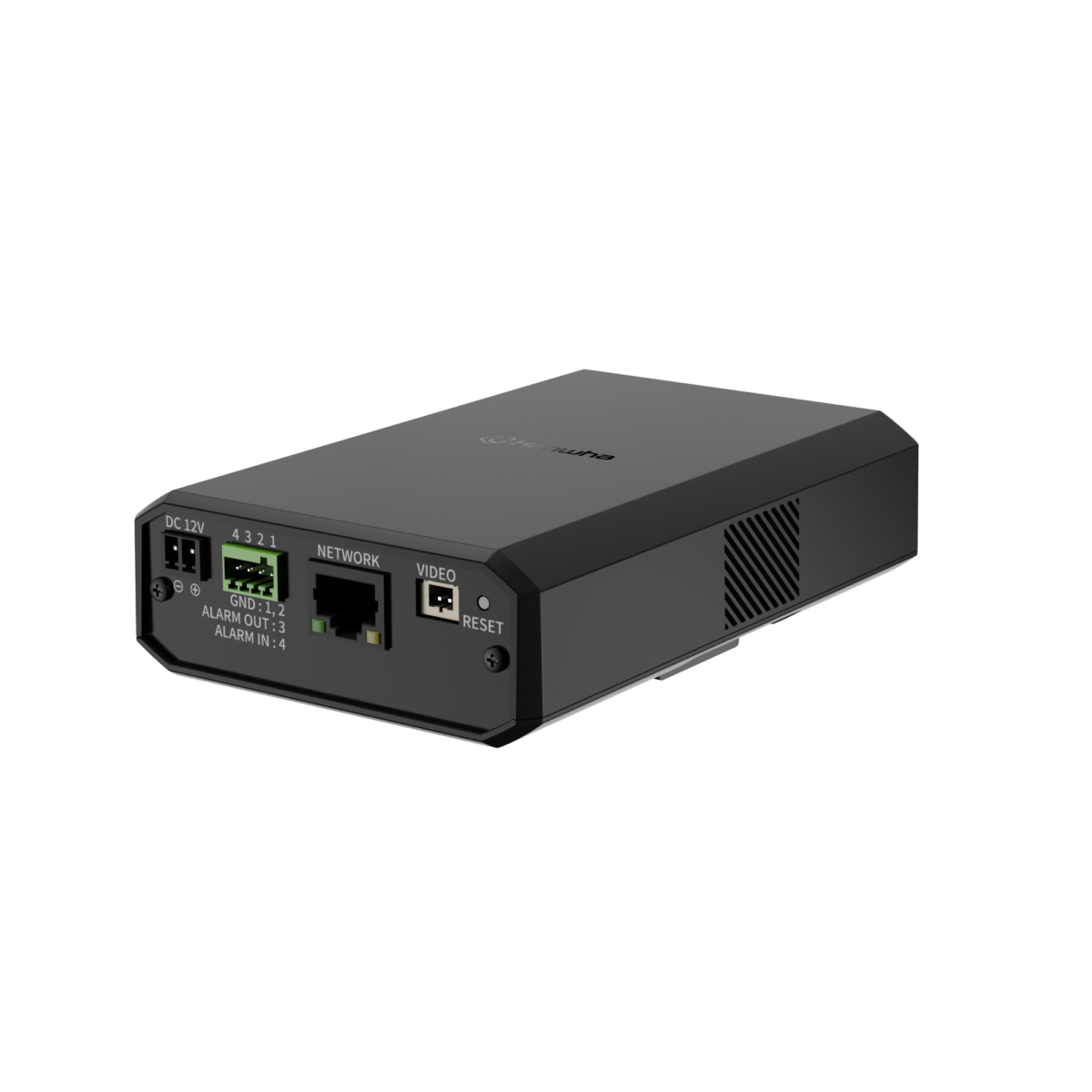

XNB-6002

2MP Remote Head Camera & Lens Modules

Key Features

• Max. 2 Megapixel (1920 x 1080) resolution
• H.265, H.264, MJPEG codec support, Multiple streaming
• extremeWDR (120dB), Defog, DIS, WiseStreamII
• Tampering, Loitering, Directional detection, Fog detection
• Audio detection, Heatmap, Sound classification
• Queue management, Face detection, People counting
• Compatible lens: SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA

Contact Sales Datasheet

["camera","network","box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
Lens
Optional LensSLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA
Operational
Day & NightAuto(Electrical)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNR, SSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDCSupport(Not support for fisheye lens)
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control
Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Analytics
Analytics EventsNormalDefocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
Business IntelligenceNormalPeople counting, Queue management, Heatmap
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageTPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
Security CertificateTPM 2.0 with FIPS 140-2 level2
General
MemoryRAM2GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 1TB x 1slot
Edge Storage(OnCloud)Micro SD/SDHC/SDXCMax. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating ConditionTemperature-10°C~+55°C(+14°F~+131°F)
Humidity0~95% RH(non-condensing)
Storage ConditionTemperature-30°C~+60°C(-22°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax 10.5W, typical 6.9W
12VDCMax 8.6W, typical 5.5W
Power Redundance FailoverSupport
Mechanical
ColorBlack
MaterialMetal, Plastic
RAL CodeRAL9005
Product Dimensions131.1(W)x33.5(H)x86(D)mm(5.16x1.32x3.39")
Product Weight420g(0.93lb)
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC/EN 63000

Compatible lenses

VideoSLA-T1080FASLA-T2480ASLA-T2480VASLA-T4680ASLA-T4680VA
Imaging DeviceSize1/2.8"1/2.8"1/2.8"1/2.8"1/2.8"
TypeCMOSCMOSCMOSCMOSCMOS
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.030.0450.0450.060.06
BW(1/30sec, 30IRE)0.030.0450.0450.060.06
LensSLA-T1080FASLA-T2480ASLA-T2480VASLA-T4680ASLA-T4680VA
Focal Length (mm)1.62.42.44.64.6
Max. Aperture Ratio (F number)Wide1.62.02.02.52.5
Tele1.62.02.52.5
Angular Field of ViewHorizontal187°138°138°73°73°
Vertical113.9°73°73°39°39°
Diagonal165°165°85°85°
Mount TypeRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unit
Focus ControlFixedFixedFixedFixedFixed
Environmental & ElectricalSLA-T1080FASLA-T2480ASLA-T2480VASLA-T4680ASLA-T4680VA
Operating ConditionTemperature-10°C ~ +55°C (+14°F ~ +131°F)-10°C ~ +55°C (+14°F ~ +131°F)-10°C ~ +55°C (+14°F ~ +131°F)-10°C ~ +55°C (+14°F ~ +131°F)
HumidityLess than 90% RHLess than 90% RHLess than 90% RHLess than 90% RH
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)
HumidityLess than 90% RHLess than 90% RHLess than 90% RHLess than 90% RH
MechanicalSLA-T1080FASLA-T2480ASLA-T2480VASLA-T4680ASLA-T4680VA
ColorBlackBlackBlackBlackBlack
MaterialMetalPlasticPlastic, MetalPlasticPlastic, Metal
Product DimensionsØ35xL68.9mmØ24xL49.8mmW30xH27.9xD45mmØ24xL49.8mmW30xH27.9xD45mm
Product Weight430g318g328g310g321g
Supported ProductsXNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004BXNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004BXNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004BXNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004BXNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B
