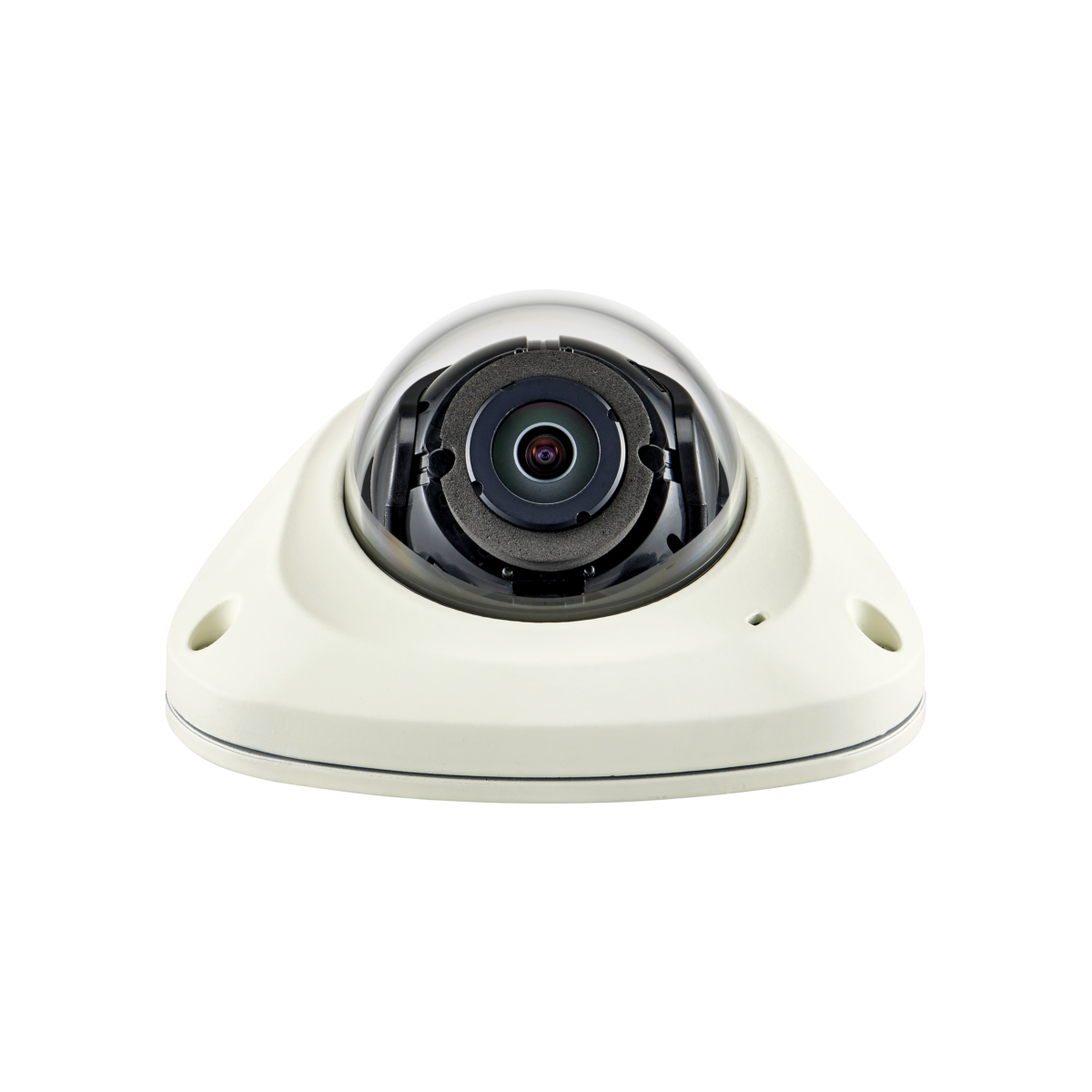

XNV-6012M

Copy a URL
Copy

2M H.265 Mobile Camera

Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• Max. 60fps@all resolutions (H.265 / H.264)
• 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
• Built-in 2.4mm fixed lens
• H.265, H.264, MJPEG codec supported
• Multiple streaming
• Day & Night, WDR (150dB)
• SD/SDHC/SDXC memory slot (Max. 256GB)
• IP66, IK10, NEMA4X
• Hallway view, PoE, LDC, M12 connector support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Mouse over image to zoom

Copy a URL
Copy

XNV-6012M

2M H.265 Mobile Camera

Key Features

• Max. 2Megapixel (1920 x 1080) resolution
• Max. 60fps@all resolutions (H.265 / H.264)
• 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
• Built-in 2.4mm fixed lens
• H.265, H.264, MJPEG codec supported
• Multiple streaming
• Day & Night, WDR (150dB)
• SD/SDHC/SDXC memory slot (Max. 256GB)
• IP66, IK10, NEMA4X
• Hallway view, PoE, LDC, M12 connector support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Imaging Device 1/2.8" 2MP CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720,
    1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max.60fps/50fps(60Hz/50Hz)
    MJPEG: Max.30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.04Lux(F2.0, 1/30sec)
    BW: 0.04Lux(F2.0, 1/30sec)
    Video Out USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 2.4mm fixed focal
    Max. Aperture Ratio F2.0
    Angular Field of View H: 135.4° / V: 71.2° / D: 161.6°
    Focus Control Manual
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range ±5° / 0°~67° / ±90°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(Electrical)
    Backlight Compensation BLC, HLC, WDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRV
    Digital Image Stabilization Support(built-in gyro sensor)
    Defog Support(built-in optical filter)
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification (w/ external MIC)
    Alarm Triggers Analytics, Network disconnect
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet M12
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access Log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
    Recommended Browser: Google Chrome
    Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP67, IK10, NEMA4X
    EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009,
    EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
    EN61000-4-6:2009, EN50155:2007
    Input Voltage PoE(IEEE802.3af, Class3)
    Power Consumption PoE: Max 6.50W
    Mechanical
    Color / Material Ivory / Aluminum
    Product Dimensions / Weight 98.9x52.0x100.0mm(3.89x2.05x3.94"), 295g(0.65 lb)
