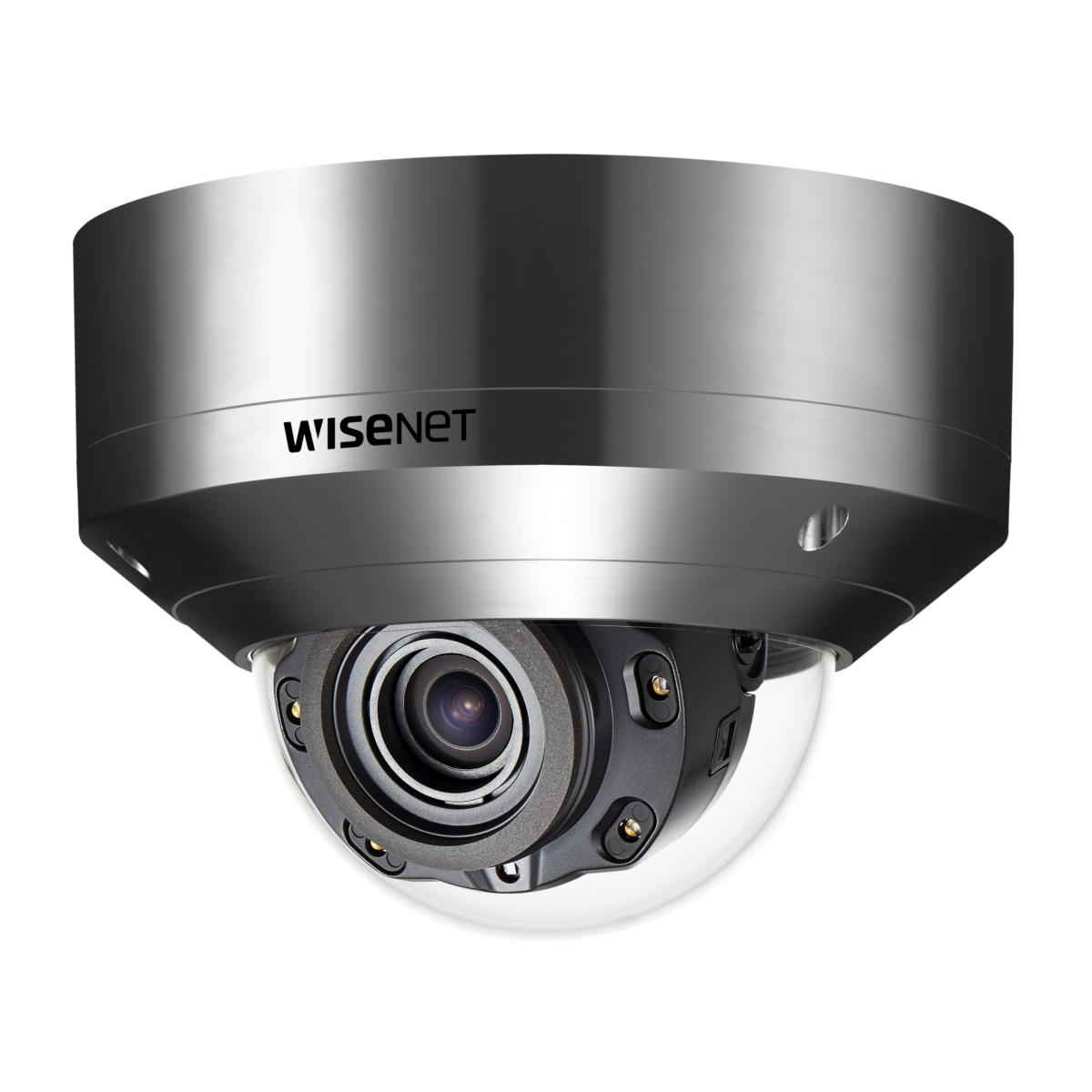

XNV-8080RSA
5MP Stainless IR Dome Camera
• Max. 5Megapixel (2560x1920) resolution
• 3.9 ~ 9.4mm (2.4x) motorized varifocal lens
• Max. 30fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Loitering, Directional detection, Tampering, Audio detection, Digital auto tracking, Fog detection, Sound classification
• Motion detection, Handover
• SD/SDHC/SDXC memory 2slots (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 50m
• IP66, IP6K9K, IK10+, NEMA4X
• LDC, PoE support
["camera","network","dome"]
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Thông số sản phẩm
Video | ||
---|---|---|
Imaging Device | Size | 1/1.8" |
Type | CMOS | |
Resolution | 720x480, 1280x960, 2560x1920, 320x240, 720x576, 640x360, 640x480, 800x600, 800x448, 2560x1440, 1600x1200, 1920x1080, 1024x768, 1280x720, 1280x1024 | |
Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
MJPEG | 30fps | |
Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.07 |
BW(1/30sec, 30IRE) | 0.007 | |
Video Out | USB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation | |
Lens | ||
Focal Length (mm) | 3.9~9.4 | |
Zoom Ratio | Optical | 2.4x |
Max Aperture Ratio (F number) | Wide | 1.3 |
Tele | 2.4 | |
Angular Field of View | Horizontal | 93°~38° |
Vertical | 68°~29° | |
Diagonal | 120°~48° | |
Min. Object Distance | 0.5m(1.64ft) | |
Focus Control | Simple focus | |
Lens Type | DC auto iris, P iris(IR corrected) | |
Pan / Tilt / Rotate | ||
Pan / Tilt / Rotate Range | Pan | 0°~354° |
Tilt | 0°~67° | |
Rotate | 0°~355° | |
Operational | ||
Day & Night | Auto(ICR) | |
Backlight Compensation | HLC, WDR, BLC | |
Wide Dynamic Range (dB) | 120 | |
Digital Noise Reduction | SSNRⅤ | |
Digital Image Stabilization | Support | |
Defog | Support | |
Motion Detection | Quantity | 8ea |
Shape | 8point Polygonal zones | |
Privacy Masking | Quantity | 32ea |
Shape | Polygonal zones | |
Color / Option | Mosaic, Gray, Green, Red, Blue, Black, White | |
Gain Control | Low, Middle, High | |
White Balance | AWC, Outdoor, Manual, Indoor, ATW | |
LDC | Support | |
Electronic Shutter | Mode | Anti flicker, Maximum, Minimum |
Speed Range | 2~1/12,000sec | |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
Alarm Interface | In/Out | Input 1ea, Output 1ea |
Alarm Triggers | Network disconnect, Alarm input, Analytics | |
Alarm Events When Alarm Trigger Occurred | Notification: e-mail, File upload(image): e-mail/FTP, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Recording: SD/SDHC/SDXC or NAS recording at event triggers | |
Audio In | Selectable(mic in/line in) | |
Audio Out | Line out | |
Light Type | IR LED | |
Light Viewable Length | IR | 50m(164.04ft) |
IR Wavelength | 850nm | |
Analytics | ||
Analytics Events | Normal | Fog detection, Sound classification, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Motion detection, Defocus detection, Digital auto tracking, Virtual line(Crossing, Direction) , Face detection, Audio detection |
Network | ||
Ethernet | RJ-45(10/100BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Audio Compression | G.726(ADPCM) 8KHz, G.711 8KHz, AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable | |
Smart Codec | WiseStreamⅡ, Manual | |
Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
Streaming | Unicast | Up to 20 users |
Multicast | Support | |
Multiple Streaming | Up to 10 profiles | |
Protocol | RTSP, TCP/IP, ARP, DHCP, IPv4, ICMP, UPnP, HTTP, RTCP, IPv6, HTTPS, PIM-SM, UDP/IP, Bonjour, FTP, NTP, RTP(UDP), DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP | |
Application Programming Interface | ONVIF | T, S, G |
Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
Security | ||
User authentication | Digest authentication | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
Secure Communication | HTTPS | |
Access Control | IP-based access control | |
Audit | Access / System / Event Log management | |
General | ||
Memory | RAM | 1GB |
Flash | 512MB | |
Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical | ||
Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
Humidity | 0~90% RH(non-condensing) | |
Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
Input Voltage | 24VAC, PoE(IEEE802.3af, Class3), 12VDC | |
Power Consumption | PoE | Max 12.95W |
12VDC | Max 11.5W | |
24VAC | Max 14W | |
Mechanical | ||
Color | Silver | |
Material | Stainless(STS316L) | |
Product Dimensions | Ø162x120.5mm(6.38x4.74") | |
Product Weight | 2.8kg(6.17lb) | |
Certifications & Standards | ||
EMC | KS C 9832 Class A, KS C 9835, VCCI CISPR 32 Class A, ICES-3(A)/NMB-3(A), FCC 47 CFR 15 Subpart B Class A, RCM AS-NZS CISPR 32 Class A, CE/UKCA - EN55032 Class A, EN 50130-4 | |
Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
Environment | ISO 20653 IP6K9K, NEMA 250 type 4X, NSF/ANSI Standard 169, IEC 62262 IK10+, IEC 60529 IP66, IEC/EN 63000 | |
DORI (EN62676-4 standard) | ||
Detect (25PPM/ 8PPF) | Wide | 48.6m(159.41ft) |
Tele | 148.7m(487.85ft) | |
Observe (63PPM/ 19PPF) | Wide | 19.4m(63.76ft) |
Tele | 59.5m(195.14ft) | |
Recognize (125PPM/ 38PPF) | Wide | 9.7m(31.88ft) |
Tele | 29.7m(97.57ft) | |
Identify (250PPM/ 76PPF) | Wide | 4.9m(15.94ft) |
Tele | 14.9m(48.78ft) |
