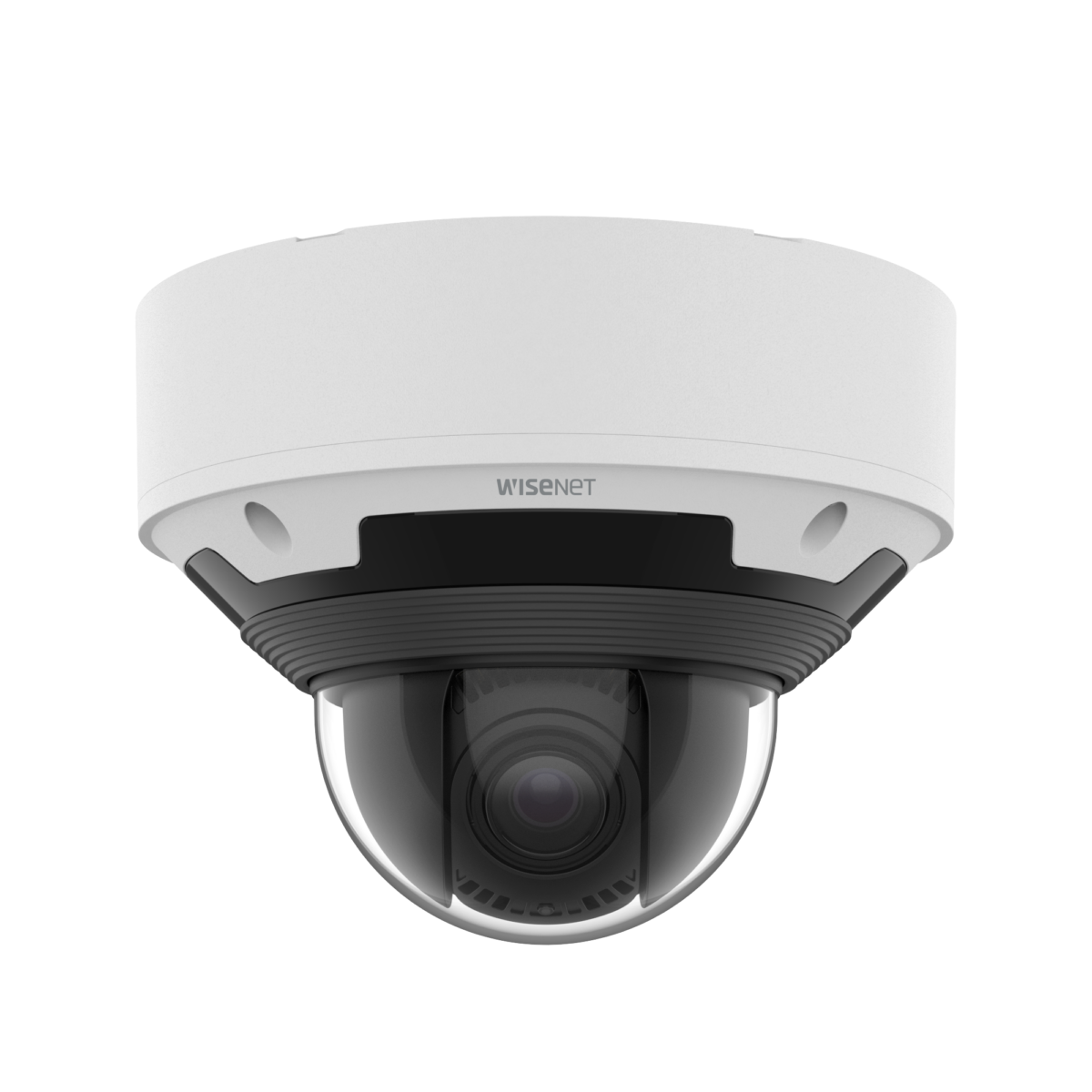

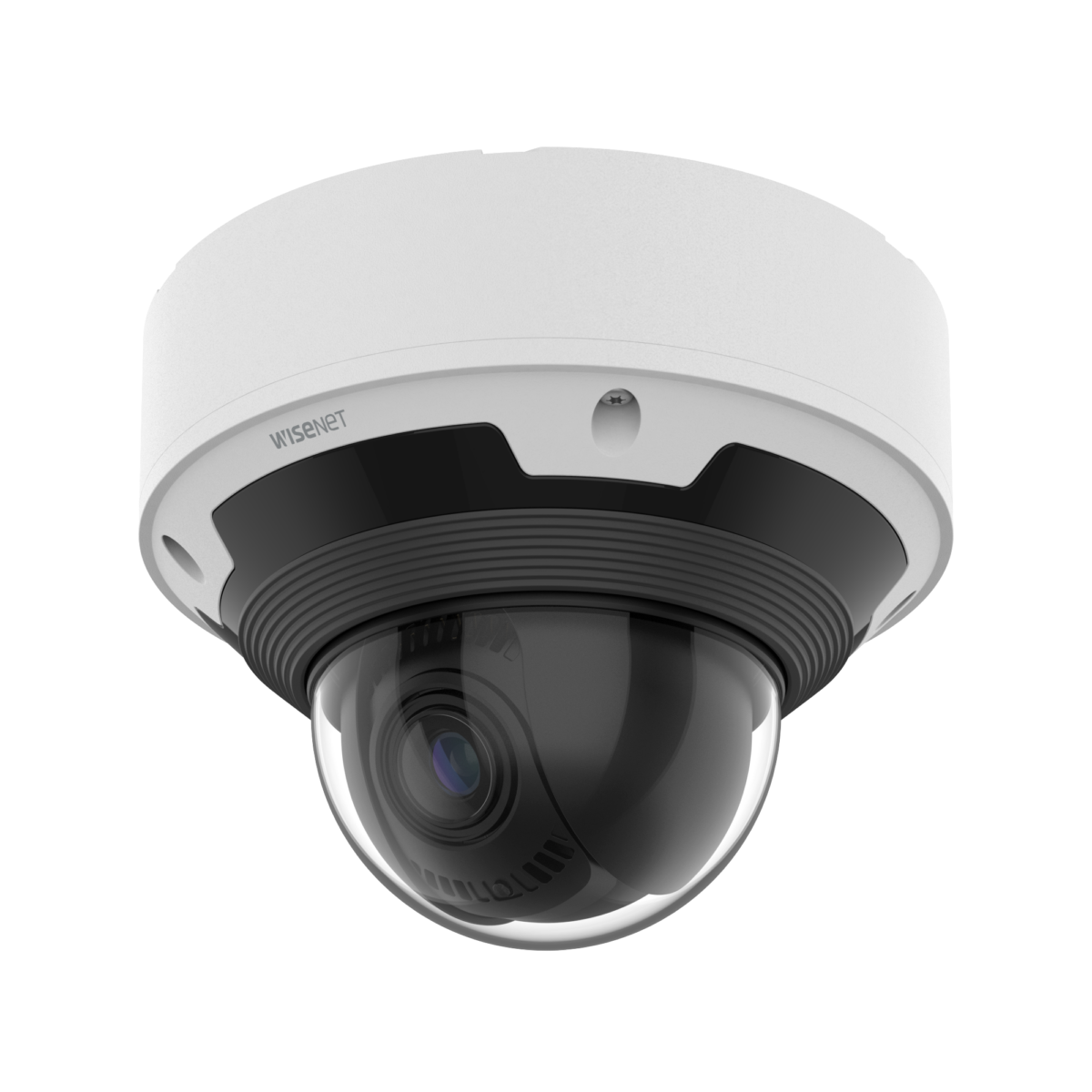

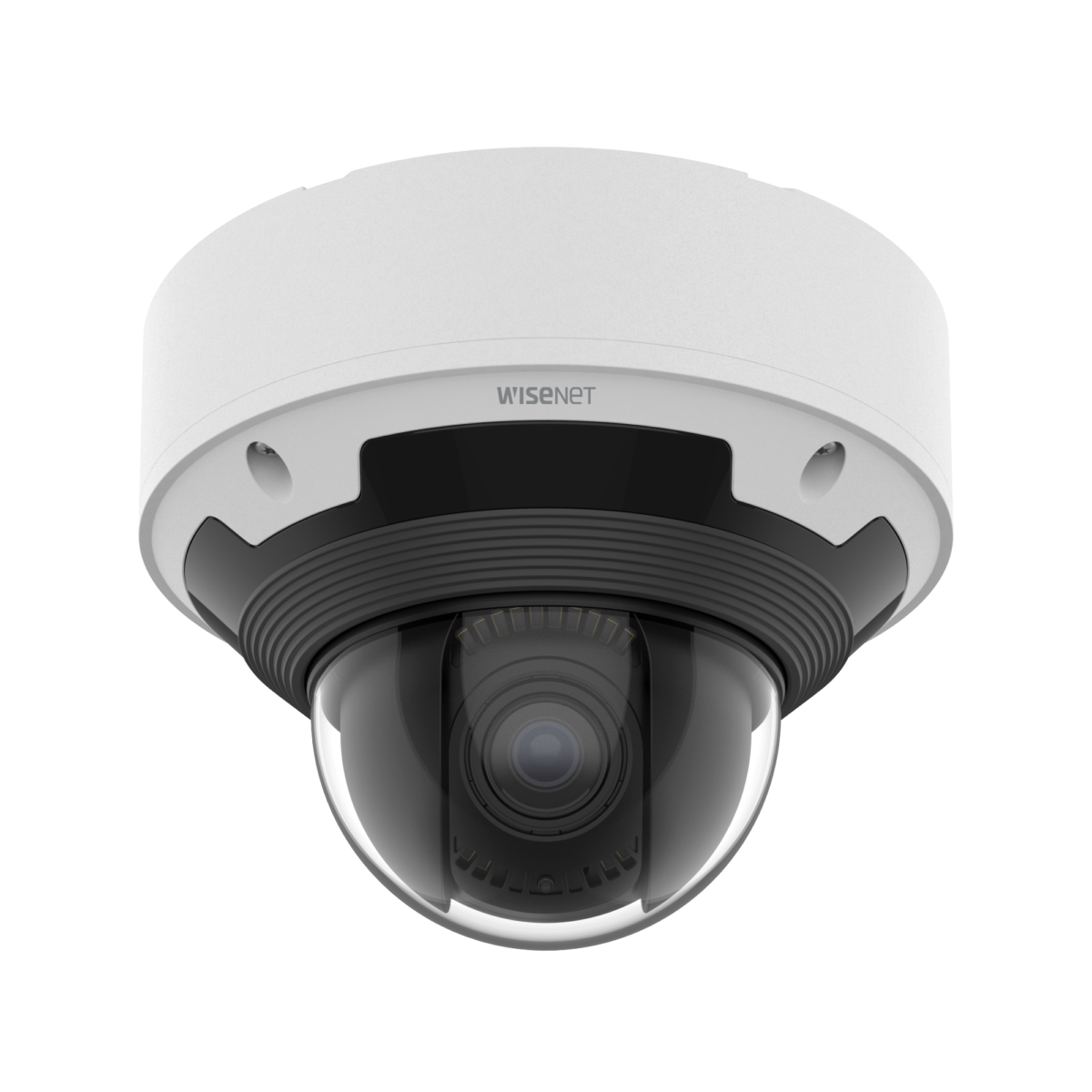

XNV-6083RZ

Copy a URL
Copy

2MP AI IR Vandal Dome Camera

Key Features
• 2MP resolution
• 2.8~12mm (4.3x) motorized varifocal
• Color: 0.01Lux(F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 120fps/100fps(60Hz/50Hz)(WDR off)
• IR viewable length: 15m(49.21ft), 30m(98.43ft) based on scene
• Day & Night (ICR), extremeWDR (150 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP66/IP67/IP6K9K, NEMA4X, IK10+

※ Product availability may vary by region.
       Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Nhấp Chuột lên hình để phóng to

Copy a URL
Copy

Tải hình ảnh Tổng số hình ảnh tải xuống

XNV-6083RZ

2MP AI IR Vandal Dome Camera

Key Features

• 2MP resolution
• 2.8~12mm (4.3x) motorized varifocal
• Color: 0.01Lux(F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 120fps/100fps(60Hz/50Hz)(WDR off)
• IR viewable length: 15m(49.21ft), 30m(98.43ft) based on scene
• Day & Night (ICR), extremeWDR (150 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP66/IP67/IP6K9K, NEMA4X, IK10+

※ Product availability may vary by region.
       Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
XNV-6083RZ
Datasheet
Contact Sales

Thông số sản phẩm

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Certifications & Standards
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/2.8" progressive CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 120fps/100fps(60Hz/50Hz)(WDR off)
    Max. 60fps/50fps(60Hz/50Hz)(WDR on)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.01Lux(F1.4, 1/30sec, 30IRE)
    B/W : 0.001Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps

    Color: 0.02Lux(F1.4, 1/60sec, 30IRE)
    B/W : 0.002Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps

    Color: 0.04Lux(F1.4, 1/120sec, 30IRE)
    B/W : 0.004Lux(F1.4, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps
    Lens
    Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
    Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
    Angular Field of View H: 120°(Wide) ~ 27°(Tele)
    V: 63°(Wide) ~ 15°(Tele)
    D: 143°(Wide) ~ 32°(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus, Manual
    Lens Type DC auto iris with hall sensor (IR corrected)
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range Remote adjustment(Max. 200cycles)
    0°~350° / 0°~85° / 0°~340°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range extremeWDR (150dB)
    Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point Polygonal zones
    Privacy Masking 32ea, 4point Quadrangle zones
    - Color : Gray, Green, Red, Blue, Black, White
    - Mosaic
    Gain Control Off / Max Gain / Manual
    White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
    LDC Support (Fill/stretch mode)
    Electronic Shutter Speed Minimum / Maximum / Prefer / Anti flicker (2~1/12,000sec)
    Auto Prefer shutter control(Based on AI engine)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Classified object type : Person/Face/Vehicle/License plate
    Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle)
    Support DetectionShot
    Analytics events based on AI engine
    - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
    Analytics events
    - Defocus detection, Motion detection, Tampering, Fog detection, Virtual area(Appear/Disappear)

    * Audio detection, Sound classification(with NW I/O box SPM-4210)
    Alarm Triggers Analytics, Network disconnect, App event, Time schedule
    * Alarm input(with NW I/O Box SPM-4210)
    Alarm Events When alarm trigger occurred
    - File upload(image) : e-mail/FTP
    - Notification : e-mail
    - Recording : SD/SDHC/SDXC or NAS recording at event triggers
    - Alarm output(with NW I/O box SPM-4210)
    - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
    IR Viewable Length 15m(49.21ft)
    30m(98.43ft) based on scene
    Network
    Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles, 3 virtual channel support)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
    ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
    Security TPM 2.0 (FIPS 140-2 level 2)
    HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
    Device Certificate(Hanwha Techwin Root CA, pre-installed)
    Secure by default certificate
    Secure OS/Boot/Storage, Verify firmware forgery
    Application Programming Interface ONVIF Profile S/G/T/M
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
    Edge Storage Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2)
    Memory 2GB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -50°C~+55°C(-58°F ~ +131°F)
    * Start up should be done at above -30°C
    0~95%RH(non-condensing)
    Humidity control /w AIR vent
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP66/IP67/IP6K9K, NEMA4X, IK10+
    Input Voltage PoE+(IEEE802.3at type 2, Class4)
    Power Consumption PoE+: Max 22.5W, typical 11.0W
    Mechanical
    Color / Material White / Aluminum
    Hard-coated dome bubble
    RAL Code RAL9003
    Product Dimensions / Weight Ø180x135mm(7.09x5.31"), 2000g(4.41 lb)
    Compatible Conduit hole / Gangbox 19.1mm(3/4")(M25)
    single, double, 4" octagon, 4" square
    耐衝撃ドーム SBP-187HMW
    Certifications & Standards
    EMC EN 50121-4
    FCC 47 CFR 15 Subpart B Class A
    ICES-3(A)/NMB-3(A)
    CE/UKCA
    - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
    VCCI CISPR 32 Class A
    RCM AS/NZS CISPR 32 Class A
    KS C 9832 Class A , KS C 9835
    Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
    IEC 62471
    Environment EN IEC 63000
    IEC 60529 IP66/IP67, ISO 20653 IP6K9K, IEC 62262 IK10+
    NEMA 250 type 4X
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 22.2m(72.74ft) / Tele: 159.9m(524.76ft)
    Observe (63PPM/ 19PPF) Wide: 8.9m(29.09ft) / Tele: 64.0m(209.90ft)
    Recognize (125PPM/ 38PPF) Wide: 4.4m(14.55ft) / Tele: 32.0m(104.95ft)
    Identify (250PPM/ 76PPF) Wide: 2.2m(7.27ft) / Tele: 16.0m(52.48ft)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
