DOME

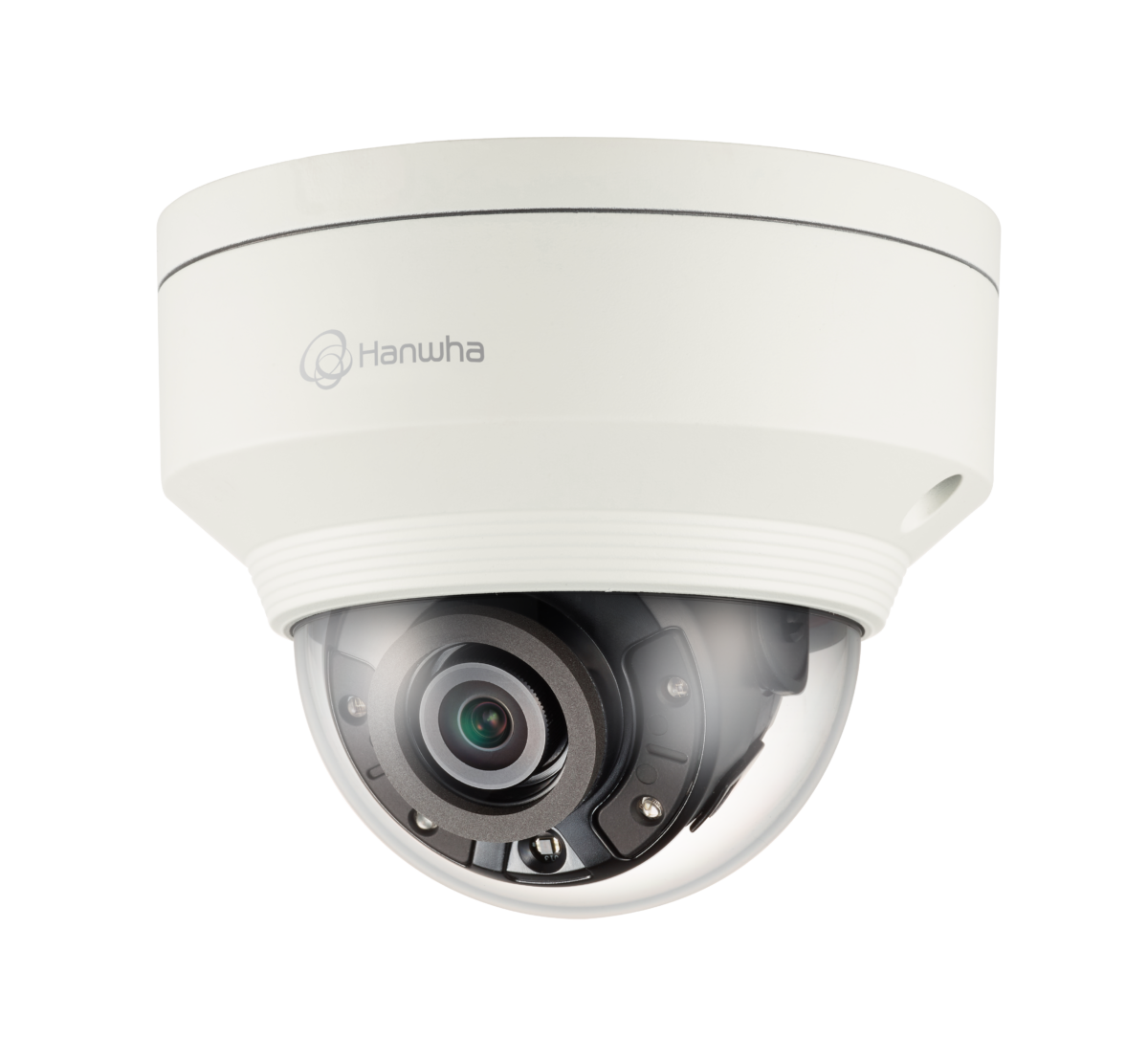

XNV-6020R

2M H.265 IR Dome Camera

Key Features

• Built-in 4mm fixed lens
• Max. 60fps@all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec, Multiple streaming
• Day & Night (ICR), WDR(150dB), Defog
• Loitering, Directional detection, Fog detection, Tampering
• Audio detection, Digital auto tracking, Sound classification
• Heatmap, People counting, Queue management
• Handover, microSD/SDHC/SDXC memory slot (Max. 512GB)
• Hallway view, WiseStream II support, IP67/IP66, IK10

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Thông số sản phẩm

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x600, 800x448, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.015
BW(1/30sec, 30IRE)0.0015
Video OutUSB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focal Length (mm)4
Max Aperture Ratio (F number)Wide1.4
Angular Field of ViewHorizontal88.6°
Vertical47.5°
Diagonal104.8°
Min. Object Distance0.4m(1.31ft)
Lens TypeFixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~354°
Tilt0°~67°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, SSDR, WDR, HLC
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionWhite, Mosaic, Black, Gray, Green, Red, Blue
Gain ControlHigh, Middle, Low
White BalanceIndoor, AWC, ATW, Manual, Outdoor
LDCSupport
Electronic ShutterModeAnti flicker, Maximum, Minimum
Speed Range2~1/12,000sec
Digital PTZSupport
Video RotationHallway view(90°/270°), Mirror, Flip
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersNetwork disconnect, Analytics, Alarm input
Alarm Events When Alarm Trigger OccurredAlarm output, Notification: e-mail, File upload(image): e-mail/FTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR30m(98.42ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalVirtual line(Crossing, Direction) , Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Digital auto tracking, Fog detection, Sound classification, Tampering, Motion detection, Face detection, Audio detection
Business IntelligenceNormalQueue management, People counting, Heatmap
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.726(ADPCM) 8KHz, G.711 8KHz, AAC-LC: 48Kbps at 16KHz, G.711 u-law /G.726 selectable, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolRTP(TCP), RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFG, S, T
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Security
OS / Firmware ProtectSigned firmware, Secure boot, Encrypted firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-30°C~+55°C(-22°F~+131°F)
Humidity0~90% RH(non-condensing)
OthersStart up should be done at above -20°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage12VDC, PoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax 9W
12VDCMax. 8W
Mechanical
ColorIvory
MaterialAluminum
Product DimensionsØ120x97.5mm(4.72x3.84")
Product Weight615g(1.36lb)
Certifications & Standards
EnvironmentIEC 62262 IK10, IEC 60529 IP66, IEC 60529 IP67
