Network Cameras

XND-6081REV

Copy a URL
Copy

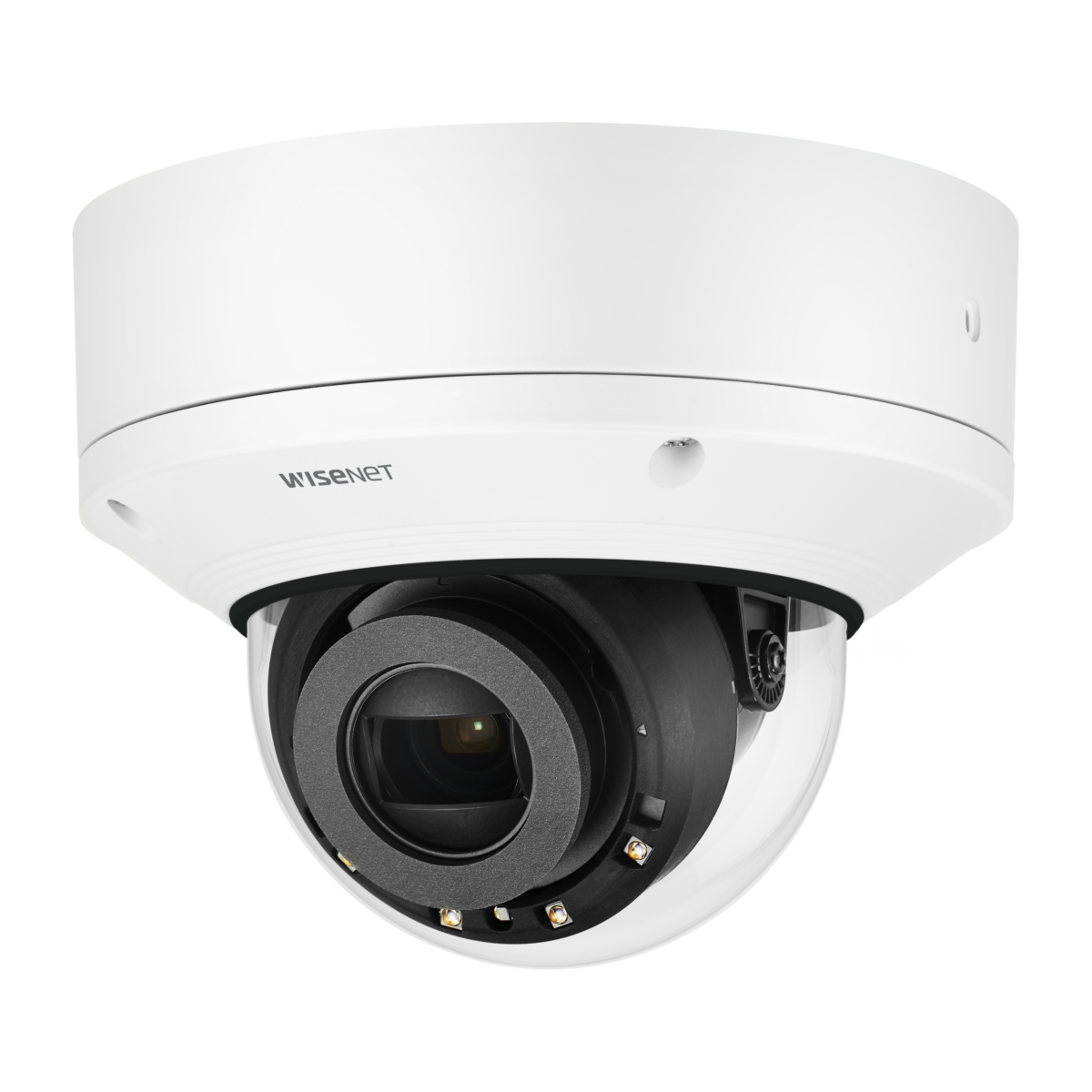

2MP IR PoE Extender Dome Camera

Key Features
• Max. 2MP resolution
• PoE Extender (Main cam, extension cam)
• PoE out :Max. 12.95W@80m
• 2.8~12mm(4.3x) motorized varifocal
• 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
• IR viewable length 50m
• Day & Night (ICR), WDR (150dB)
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• Business Intelligence(People counting, Queue management, Heatmap)
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE+ in/ PoE out
• IP52, IK10

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Nhấp Chuột lên hình để phóng to

Copy a URL
Copy

Tải hình ảnh Tổng số hình ảnh tải xuống

XND-6081REV

2MP IR PoE Extender Dome Camera

Key Features

• Max. 2MP resolution
• PoE Extender (Main cam, extension cam)
• PoE out :Max. 12.95W@80m
• 2.8~12mm(4.3x) motorized varifocal
• 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
• IR viewable length 50m
• Day & Night (ICR), WDR (150dB)
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• Business Intelligence(People counting, Queue management, Heatmap)
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE+ in/ PoE out
• IP52, IK10

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
XND-6081REV
Datasheet
Contact Sales
Allows two PoE cameras on a single cable run for cost and installation savings
Wisenet PoE extender cameras are designed to save integrators time and money when adding additional cameras to existing installations. For new installations, integrators can plan to run two PoE cameras per cable run, also saving on the number of ports and number switches required as well. For retrofit applications where an additional camera is needed, simply replace the old camera with a PoE extender camera, then install and connect a new PoE camera.

Thông số sản phẩm

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/2.8" 2MP CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.015Lux(F1.4, 1./30sec)
    BW: 0Lux(IR LED)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
    Max. Aperture Ratio F1.4(Wide)~F3.6(Tele)
    Angular Field of View H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Lens Type DC auto iris, P iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~360° / -45°~85° / 0°~355°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support(built-in gyro sensor)
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, rectangular zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear,
    Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
    Business Intelligence People counting, Queue management, Heatmap
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Handover
    Audio playback
    Audio In Selectable(Mic in/Line in/Built-in Mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max. output level: 1Vrms
    IR Viewable Length 50m(164.04ft)
    Network
    Ethernet Metal shielded RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP,
    DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech,
    Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -25°C~+60°C (-13°F~+140°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
    Certification IP52, IK10
    Input Voltage PoE+(IEEE802.3at, Class4)
    Power Consumption Max 25.5 W (Main CAM + Extension CAM)
    Typical 10.2W (Main CAM)
    * PoE Out: Max 12.95W at 80meters using CAT5/5E cable
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø160x125mm(6.30x4.92"), 1.45kg(3.20 lb)
    Compatible Conduit hole / Gangbox 3/4"
    Hanging Mount (Dome) SBP-167HM
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 22.4m(73.49ft) / Tele: 155m(508.53ft)
    Observe (63PPM/ 19PPF) Wide: 9.0m(29.53ft) / Tele: 62m(203.41ft)
    Recognize (125PPM/ 38PPF) Wide: 4.5m(14.76ft) / Tele: 31m(101.71ft)
    Identify (250PPM/ 76PPF) Wide: 2.2m(7.22ft) / Tele: 15m(49.21ft)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
