Dome

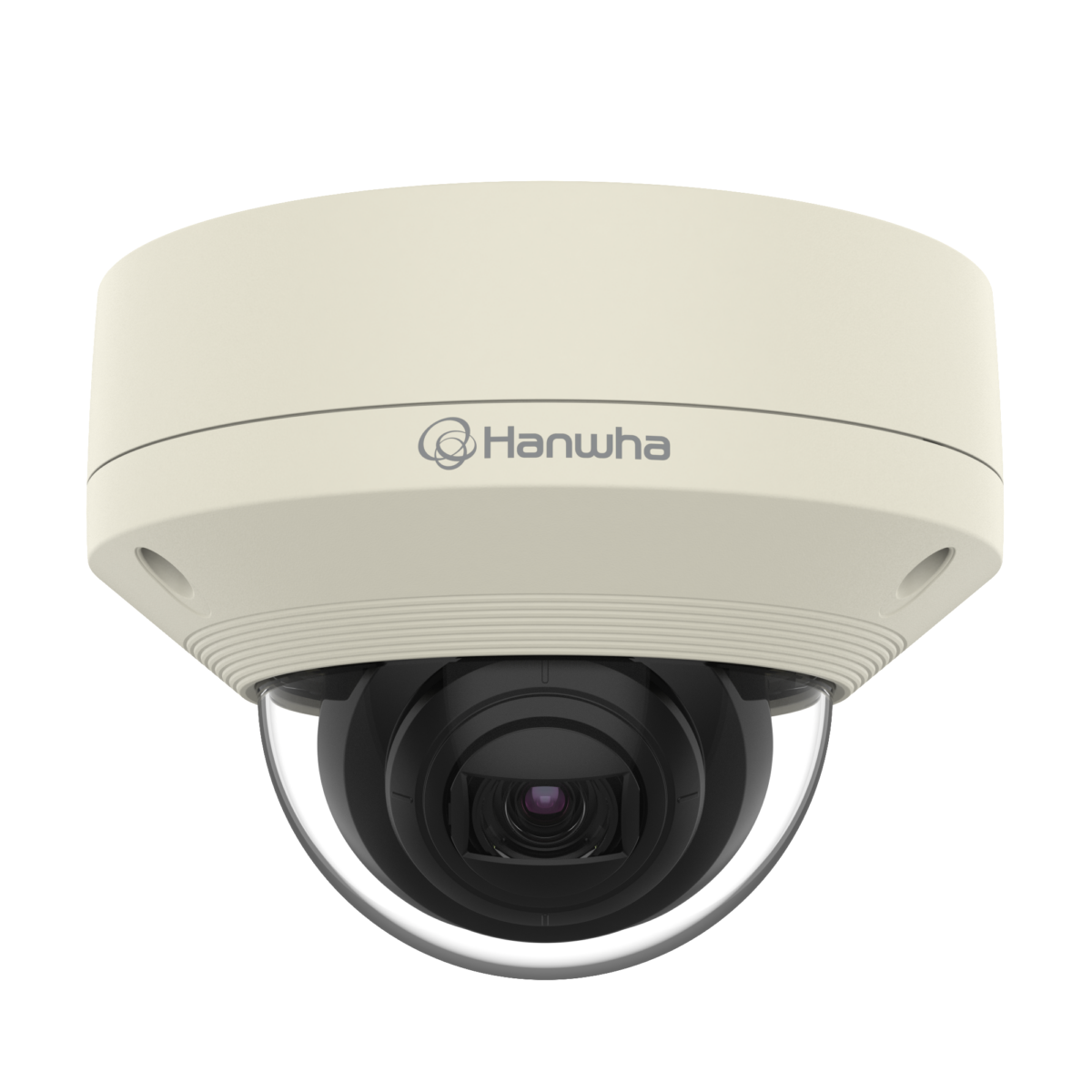

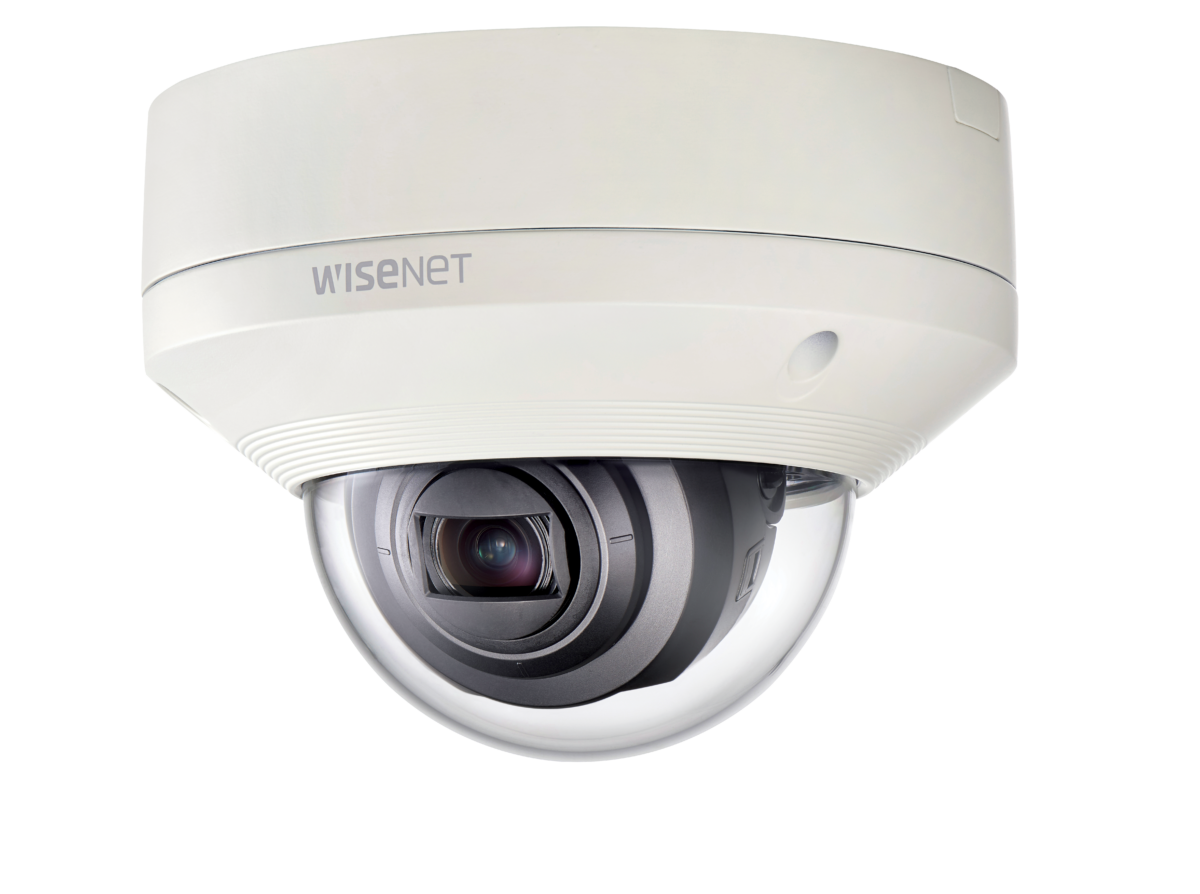

XNV-6080
2M H.265 Dome Camera
Key Features
• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, Handover, Hallway view
• Dual SD slots (Max. 512GB)
• WiseStream II support, IP67/IP66, NEMA 4X, IK10
["camera","network","dome"]
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
Video | ||
---|---|---|
Imaging Device | Size | 1/2.8" |
Type | CMOS | |
Resolution | 320x240, 1280x720, 1280x1024, 720x480, 1280x960, 800x448, 800x600, 1920x1080, 640x360, 640x480, 1024x768, 720x576 | |
Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
MJPEG | 30fps | |
Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
BW(1/30sec, 30IRE) | 0.0015 | |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B | |
Lens | ||
Focal Length (mm) | 2.8~12 | |
Zoom Ratio | Optical | 4.3x |
Max Aperture Ratio (F number) | Wide | 1.4 |
Tele | 3.6 | |
Angular Field of View | Horizontal | 119.5°~27.9° |
Vertical | 62.8°~15.7° | |
Diagonal | 142.1°~32.0° | |
Min. Object Distance | 0.5m(1.64ft) | |
Focus Control | Simple focus, Manual | |
Lens Type | P iris, DC auto iris | |
Pan / Tilt / Rotate | ||
Pan / Tilt / Rotate Range | Pan | 0°~354° |
Tilt | 0°~67° | |
Rotate | 0°~355° | |
Operational | ||
Day & Night | Auto(ICR) | |
Backlight Compensation | SSDR, HLC, BLC, DWDR, WDR | |
Wide Dynamic Range (dB) | 150 | |
Digital Noise Reduction | SSNRⅤ | |
Digital Image Stabilization | Support | |
Defog | Support | |
Motion Detection | Quantity | 8ea |
Shape | 8point Polygonal zones | |
Privacy Masking | Quantity | 32ea |
Shape | Polygonal zones | |
Color / Option | Red, Green, Mosaic, Blue, White, Black, Gray | |
Gain Control | High, Middle, Low | |
White Balance | Indoor, Manual, Outdoor, AWC, ATW | |
LDC | Support | |
Electronic Shutter | Mode | Anti flicker, Minimum, Maximum |
Speed Range | 2~1/12,000sec | |
Digital PTZ | Support | |
Video Rotation | Mirror, Hallway view(90°/270°), Flip | |
Alarm Interface | In/Out | Input 1ea, Output 1ea |
Alarm Triggers | Network disconnect, Analytics, Alarm input | |
Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Notification: e-mail, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
Audio In | Selectable(mic in/line in) | |
Audio Out | Line out | |
Analytics | ||
Analytics Events | Normal | Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Digital auto tracking, Virtual line(Crossing, Direction) , Fog detection, Sound classification, Tampering, Motion detection, Audio detection |
Network | ||
Ethernet | RJ-45(10/100BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Audio Compression | AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz | |
Smart Codec | WiseStreamⅡ, Manual | |
Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
Streaming | Unicast | Up to 20 users |
Multicast | Support | |
Multiple Streaming | Up to 10 profiles | |
Protocol | UPnP, RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, QoS, SMTP, DDNS, IGMP, HTTP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast), UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS | |
Application Programming Interface | ONVIF | S, G, T |
Others | Hanwha Vision Open Platform, SUNAPI(HTTP API) | |
Direct Cloud Connection | Optional (needs gateway) | |
Security | ||
OS / Firmware Protect | Signed firmware, Encrypted firmware, Secure boot | |
User authentication | Digest authentication | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
Access Control | IP-based access control | |
Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
Audit | Access / System / Event Log management | |
Secure Storage | SDcard partition encrypt(AES-256) | |
General | ||
Memory | RAM | 1GB |
Flash | 256MB | |
Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical | ||
Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
Humidity | 0~90% RH(non-condensing) | |
Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
Input Voltage | 24VAC, 12VDC, PoE(IEEE802.3af, Class3) | |
Power Consumption | PoE | Max 7.8W |
12VDC | Max 7W | |
24VAC | Max 8.2W | |
Mechanical | ||
Color | Ivory | |
Material | Aluminum | |
Certifications & Standards | ||
Environment | IEC 60529 IP66, NEMA 250 type 4X, IEC 60529 IP67, IEC 62262 IK10 |
