XNV-8093R

Copy a URL
Copy

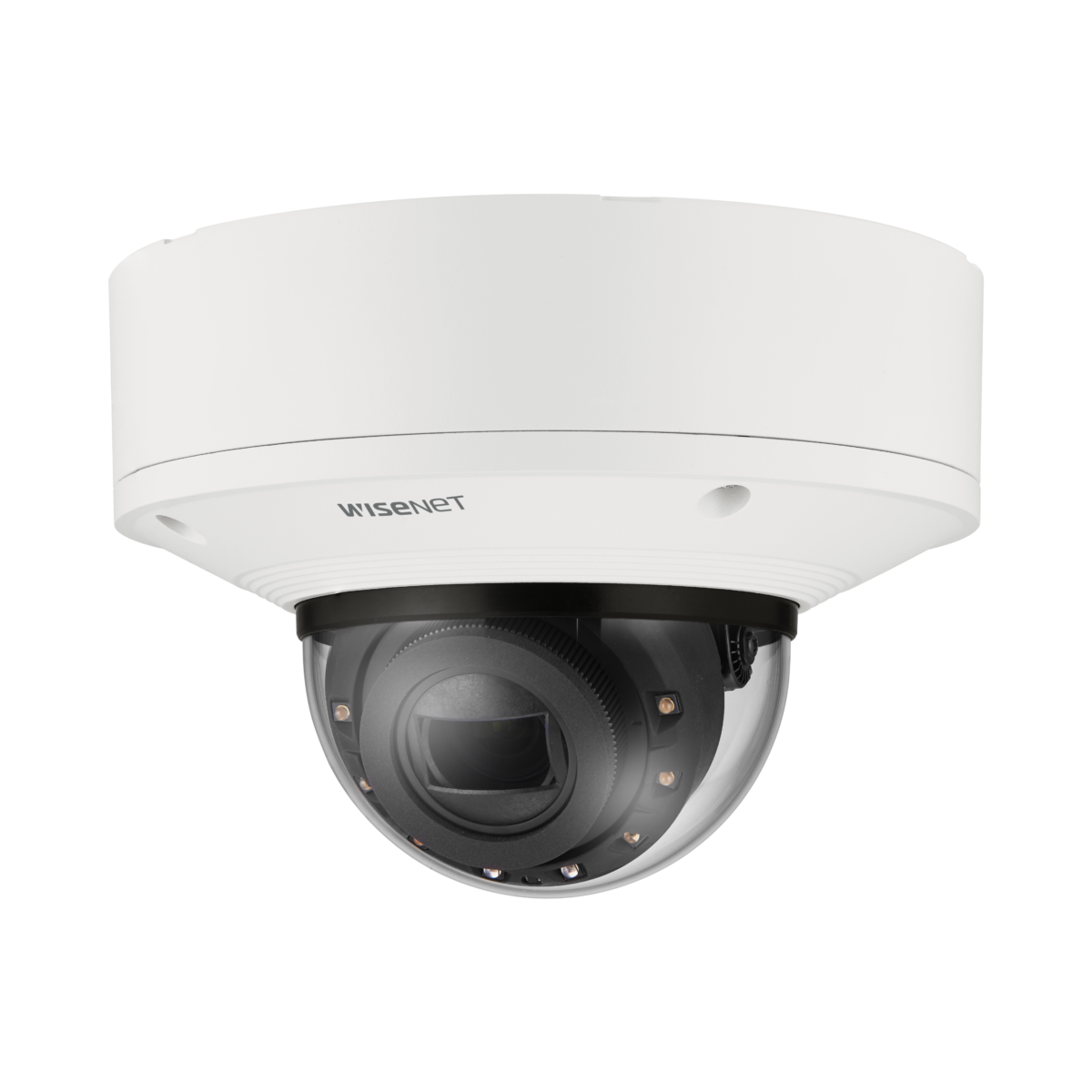

6MP AI IR Vandal Dome Camera

Key Features
• 6MP resolution
• 10.9~29mm (2.7x) motorized varifocal
• Color: 0.06 Lux (F1.7, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 30 fps (H.265/H.264)
• WiseIR: IR viewable length 70m(229.66ft)
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP66/IP67/IP6K9K, NEMA4X, IK10+

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Copy a URL
Copy

Image Download Total Image Download

XNV-8093R

6MP AI IR Vandal Dome Camera

Key Features

• 6MP resolution
• 10.9~29mm (2.7x) motorized varifocal
• Color: 0.06 Lux (F1.7, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 30 fps (H.265/H.264)
• WiseIR: IR viewable length 70m(229.66ft)
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP66/IP67/IP6K9K, NEMA4X, IK10+

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
XNV-8093R
Datasheet
Contact Sales
Reducing False alarm based on AI
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
AI-based object detection for operational efficiency
Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

AI-based WiseNRII and Prefer Shutter Control
WiseNRII is a new enhancement which utilizes AI to identify object movement and reduce blur in noisy, low light environments. AI-based Preferred Shutter technology automatically adjusts the shutter speed based on classified objects in motion and the lighting conditions in a scene to reduce motion blur and deliver the clearest images.

AI-based Image Optimization, WiseStreamⅢ
By utilizing the results of AI-based object detection, WiseStreamIII technology adjusts the video encoder to focus maximum video quality on the detected objects in a scene while scaling back encoding on the rest of the scene.



































Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Certifications & Standards
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/1.8" progressive CMOS
    Resolution 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps(@6MP Max. 5fps)
    Min. Illumination Color: 0.06Lux(F1.7, 1/30sec, 30IRE)
    BW: 0.006Lux(F1.7, 1/30sec, 30IRE), 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 10.9~29mm(2.7x) motorized varifocal
    Max. Aperture Ratio F1.7(Wide) ~ F1.73(Tele)
    Angular Field of View H : 42.0°(Wide)~15.0°(Tele)
    V : 22.8°(Wide)~8.4°(Tele)
    D : 48.7°(Wide)~17.1°(Tele)
    Min. Object Distance Wide : 2.5m(8.20ft), Tele : 6m(19.69ft)
    Focus Control Simple focus, Manual
    Lens Type DC auto iris with hall sensor
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~360° / -45°~85° / 0°~355°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range extremeWDR(120dB)
    Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
    Digital Image Stabilization Support(built-in gyro sensor)
    Defog Support
    Motion Detection 8ea, 8point Polygonal zones
    Privacy Masking 32ea, 4point Quadrangle zones
    - Color: Gray/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Off / Max Gain / Manual
    White Balance ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
    LDC Support(Fill/stretch mode)
    Electronic Shutter Speed Minimum / Maximum / Anti flicker(2~1/12,000sec)
    prefer shutter control(Based on AI engine)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Classified object type: Person/Face/Vehicle/License plate
    Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle)
    Support DetectionShot
    Analytics events based on AI engine
    - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
    Analytics events
    - Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
    Business Intelligence Based on AI engine: People counting, Queue management, Heatmap
    Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
    Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
    Alarm Events When alarm trigger occurred
    - File upload(image): e-mail/FTP
    - Notification: e-mail
    - Recording: SD/SDHC/SDXC or NAS recording at event triggers
    - Alarm output
    - Handover: PTZ preset, send message by HTTP/HTTPS/TCP
    - Audio clip playback
    - MQTT: publication
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length WiseIR 70m(229.66ft)
    Network
    Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles, 3 virtual channel support)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
    Security TPM 2.0(FIPS 140-2 level 2)
    HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
    Device Certificate(Hanwha Techwin Root CA, pre-installed)
    Secure by default certificate
    Secure OS/Boot/Storage, Verify firmware forgery
    Application Programming Interface ONVIF Profile S/G/T/M
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
    Edge Storage Micro SD/SDHC/SDXC 2slot Max. 1TB(512GB * 2)
    Memory 4GB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -50°C~+55°C(-58°F~+131°F)
    * Start up should be done at above -30°C
    0~95% RH(non-condensing)
    Humidity control /w AIR vent
    Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
    Certification IP66/IP67/IP6K9K, NEMA4X, IK10+
    Input Voltage PoE+(IEEE802.3at type2, Class4), 12VDC
    Power Consumption PoE+: Max 22.5W, typical 17.9W
    12VDC: Max 20.0W, typical 15.6W
    Power redundancy failover
    Mechanical
    Color / Material White / Aluminum
    Hard-coated dome bubble
    RAL Code RAL9003
    Product Dimensions / Weight ø180x125mm(ø7.09x4.92"), 1900g(4.19 lb)
    Compatible Conduit hole / Gangbox 19.1mm(3/4")(M25)
    single, double, 4" octagon, 4" square
    Hanging Mount (Dome) SBP-187HMW
    Certifications & Standards
    EMC FCC 47 CFR 15 Subpart B Class A
    ICES-3(A)/NMB-3(A)
    CE/UKCA
    - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
    VCCI CISPR 32 Class A
    RCM AS/NZS CISPR 32 Class A
    KS C 9832 Class A , KS C 9835
    Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
    IEC/EN 62471
    Environment IEC/EN 63000
    IEC/EN 60529 IP66/IP67, ISO 20653 IP6K9K, IEC/EN 62262 IK10+
    NEMA 250 type 4X
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 173.4m(568.88ft) / Tele: 505.6m(1,658.71ft)
    Observe (63PPM/ 19PPF) Wide: 69.4m(227.55ft) / Tele: 202.2m(663.48ft)
    Recognize (125PPM/ 38PPF) Wide: 34.7m(113.78ft) / Tele: 101.1m(331.74ft)
    Identify (250PPM/ 76PPF) Wide: 17.3m(56.89ft) / Tele: 50.6m(165.87ft)
