Multi-sensor

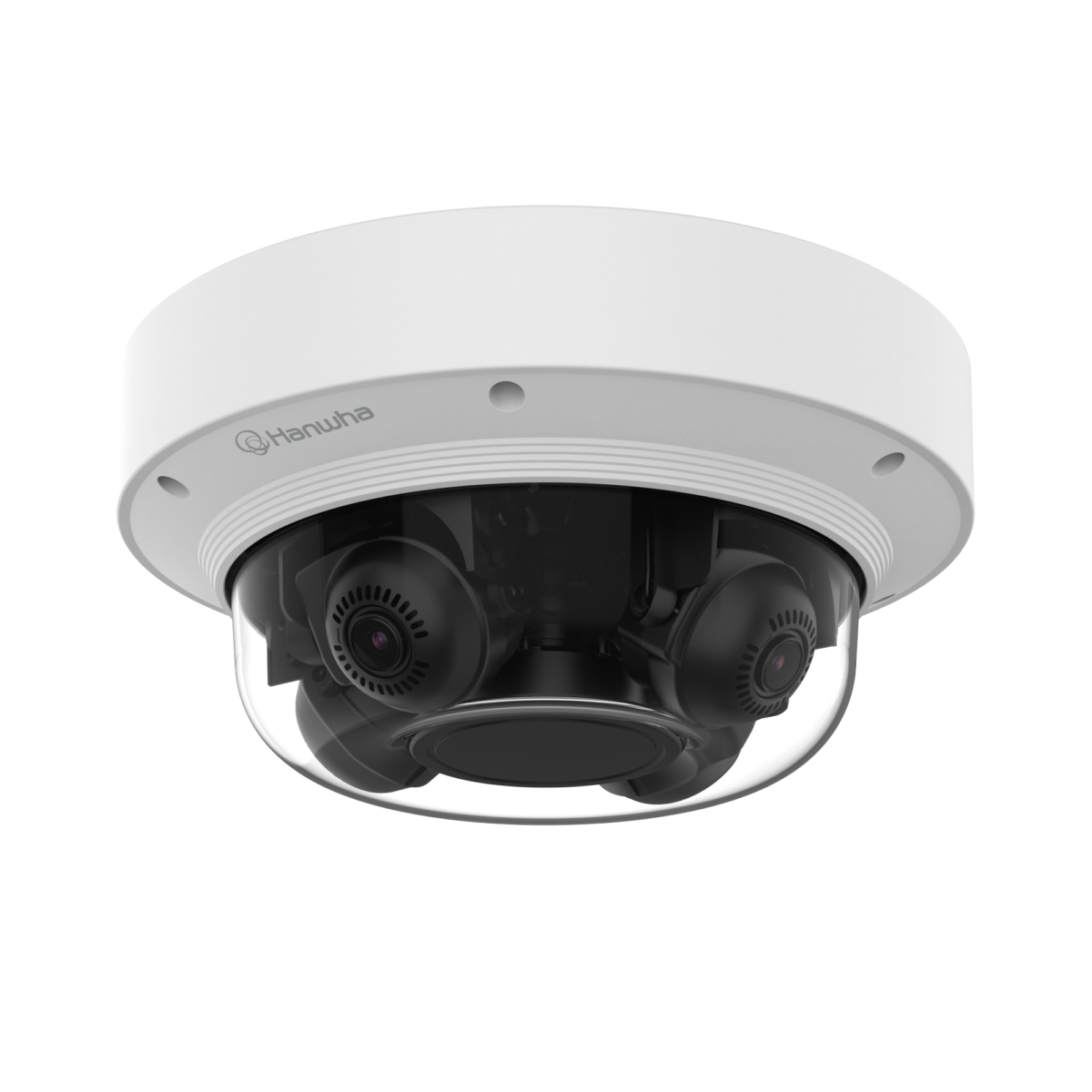

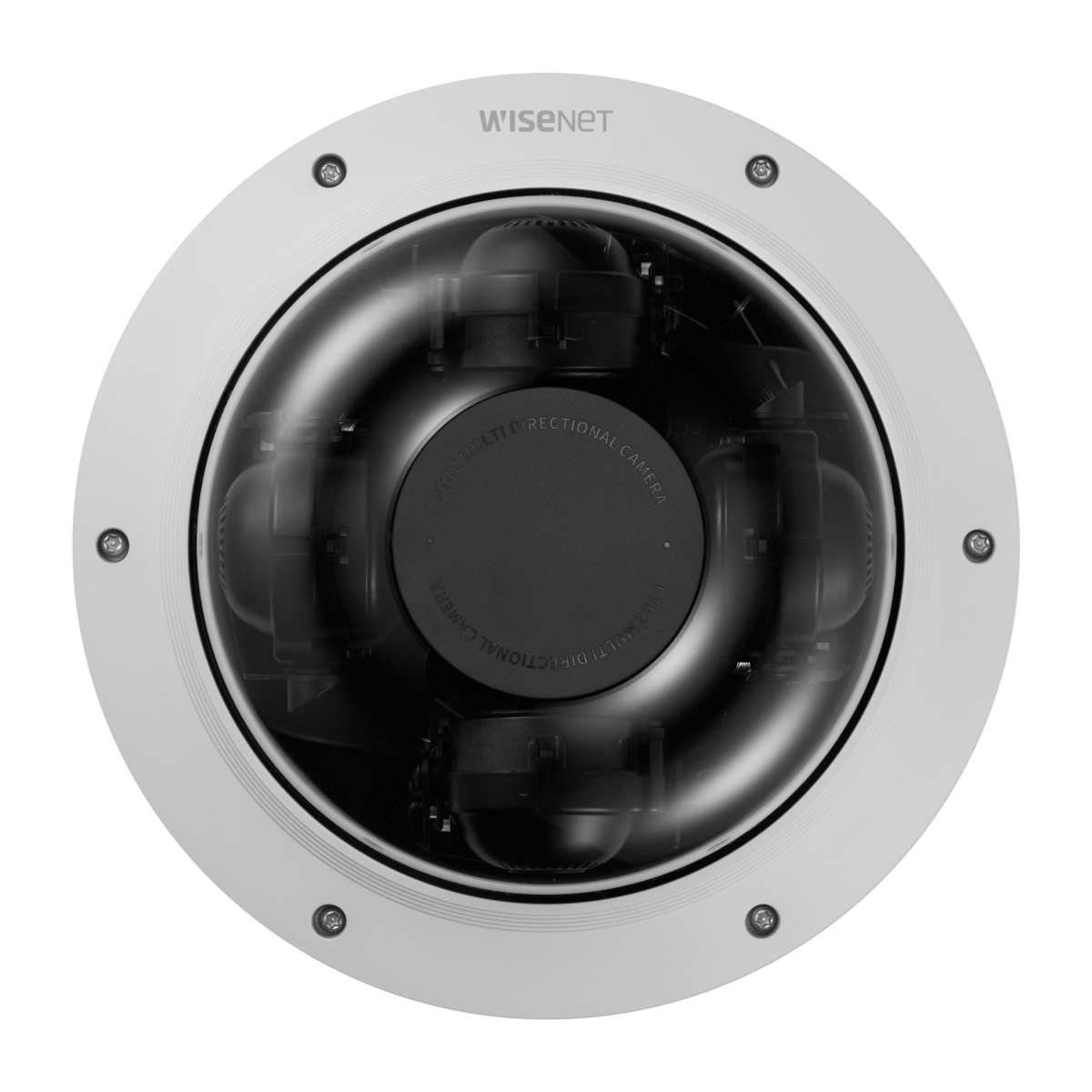

PNM-9084QZ1

2MP x 4CH PTRZ Multi-directional Camera

Key Features

• Motorized PTRZ support
• Maximum 60fps@2MP(H.265, H.264)
• 3~6mm(2x) motorized varifocal lens
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X

Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Tổng quan

Remote motorized PTRZ control for easy installation
The PNM-9084QZ1 has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ1 and PNM-9085RQZ1 support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting.

More compact and lighter camera
PNM-9084QZ1 became compact and lighter for easier installation. It’s cost-efficient four channel PTRZ camera.

Thông số sản phẩm

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution320x240, 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x600, 800x448
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.04
BW(1/30sec, 30IRE)0.004
Lens
Focal Length (mm)3~6
Zoom RatioOptical2x
Max Aperture Ratio (F number)Wide2.2
Tele3.1
Angular Field of ViewHorizontal107°~56.3°
Vertical57°~31.5°
Diagonal126°~64.3°
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeFixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~360°
Tilt0°~73°
Rotate 0°~90°
OthersRemote adjustment(Max. 200cycles)
Operational
Day & NightAuto(ICR)
Backlight CompensationWDR, SSDR, BLC, HLC
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionBlack, Mosaic, Gray, Green, Red, Blue, White
Gain ControlMiddle, Low, High
White BalanceATW, Manual, AWC, Outdoor, Indoor
LDCSupport
Electronic ShutterModeAnti flicker, Maximum, Minimum
Speed Range2~1/12,000sec
Video RotationFlip, Mirror
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, Recording: SD/SDHC/SDXC or NAS recording at event triggers
Audio InSelectable(mic in/line in)
Audio OutLine out
Analytics
Analytics EventsNormalAudio detection, Fog detection, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Motion detection, Virtual line(Crossing, Direction) , Face detection
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolLLDP, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, RTSP, ICMP, UDP/IP, Bonjour, DNS
Application Programming InterfaceONVIFS, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionOptional (needs gateway)
Security
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationHTTPS
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
General
MemoryRAM5GB
Flash1280MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 4slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~90% RH(non-condensing)
OthersStart up should be done at above -35°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltageHPoE(IEEE802.3bt type4, Class8)
Power ConsumptionPoEMax. 33W, typical 20W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø251x116.5mm(9.88x4.59")
Product Weight3,000g(6.61lb)
Compatible Conduit Hole19.1mm(3/4")(M25)
Compatible Gang BoxSquare, Double, Single, 4" Octagon
Certifications & Standards
EnvironmentIEC 62262 IK10, IEC 60529 IP66, NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide28.4m(11.18ft)
Tele71.8m(28.27ft)
Observe (63PPM/ 19PPF)Wide11.4m(4.49ft)
Tele28.7m(11.30ft)
Recognize (125PPM/ 38PPF)Wide 5.7m(2.24ft)
Tele14.4m(5.67ft)
Identify (250PPM/ 76PPF)Wide2.8m(1.10ft)
Tele7.8m(3.07ft)
