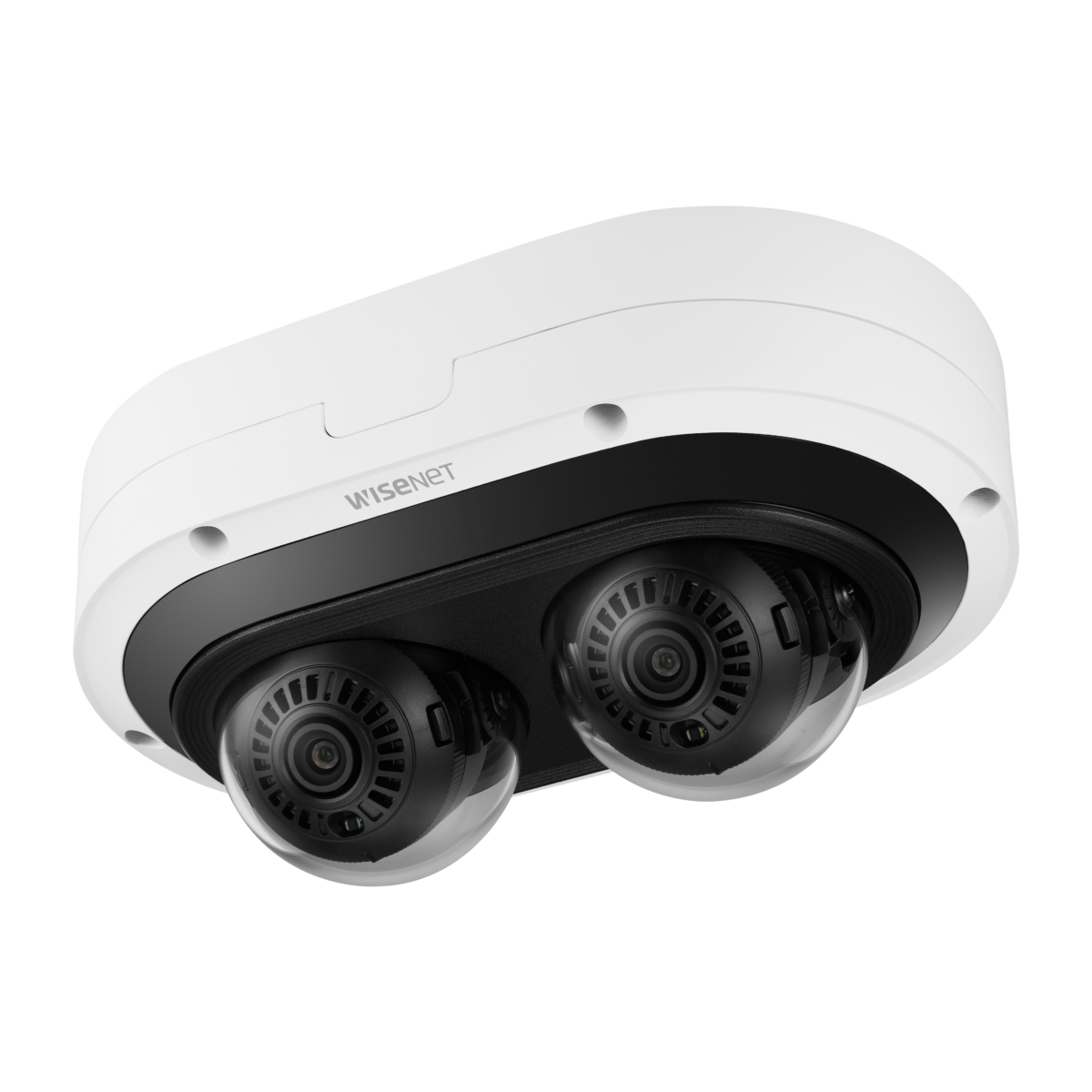

PNM-7082RVD
2MP x 2CH Multi-directional Camera
Key Features
• WiseNR, WiseStreamⅡ, extremeWDR (150dB)
• Maximum 1920x1080 resolution
• Maximum 30fps/25fps@2MP
• Color: 0.035lux(F2.2, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3~6mm(2x) motorized varifocal, 75° tilt angle
• IR viewable length: IR 25m(82ft)
• TPM 2.0(FIPS 140-2 certified)
• IP66, IK10, NEMA4X
• Maximum 1920x1080 resolution
• Maximum 30fps/25fps@2MP
• Color: 0.035lux(F2.2, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3~6mm(2x) motorized varifocal, 75° tilt angle
• IR viewable length: IR 25m(82ft)
• TPM 2.0(FIPS 140-2 certified)
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
PNM-7082RVD
2MP x 2CH Multi-directional Camera
Key Features
• WiseNR, WiseStreamⅡ, extremeWDR (150dB)
• Maximum 1920x1080 resolution
• Maximum 30fps/25fps@2MP
• Color: 0.035lux(F2.2, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3~6mm(2x) motorized varifocal, 75° tilt angle
• IR viewable length: IR 25m(82ft)
• TPM 2.0(FIPS 140-2 certified)
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
- Certifications & Standards
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" CMOS x 2CH Resolution 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.035lux(F2.2, 1/30sec, 30IRE)
BW: 0.0035lux(F2.2, 1/30sec, 30IRE), 0lux(IR LED on)Video Out USB: micro USB Type B, 1280x720 for installation Lens Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal Max. Aperture Ratio F2.2(Wide)~F3.1(Tele) Angular Field of View H: 107˚(Wide)~56˚(Tele)
V: 57˚(Wide)~31˚(Tele)
D: 126˚(Wide)~64˚(Tele)Min. Object Distance 0.5m(1.64ft) Focus Control Simple focus Lens Type Fixed IRIS Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0~355° / 0~78° / 0~180° Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range extremeWDR(120dB) Digital Noise Reduction WiseNR, SSNRⅤ Defog Support Motion Detection 8ea, 8point Polygonal zones Privacy Masking 32ea, 4point Quadrangle zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Off / Max gain / Manual White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~1/12,000sec) Video Rotation Flip, Mirror, Hallway view (90°/270°) Analytics Analytics events*
- Defocus detection, Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual area(Loitering/Enter/Exit)
* Support Audio detection, Sound classification via optional SPM-4210 I/O boxAlarm I/O * Support Alarm via optional SPM-4210 I/O box Alarm Triggers Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Alarm output via optional SPM-4210 I/O boxAudio In * Audio in via optional SPM-4210 I/O box Audio Out * Audio out via optional SPM-4210 I/O box IR Viewable Length 15m(49ft)
25m(82ft) based on sceneNetwork Ethernet Metal shielded RJ-45 (10/100/1000BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)Security TPM 2.0 (FIPS 140-2 level 2)
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure by default certificate
Secure OS/Boot/Storage, Verify firmware forgeryApplication Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian Edge Storage Micro SD/SDHC/SDXC 1slot Max. 512GB Memory 4GB RAM, 512MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
* Start up should be above at -35˚CStorage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing) Certification IP66/IP67, NEMA4X, IK10 Input Voltage PoE+(IEEE802.3at, Class4) Power Consumption PoE+: Max 17W, typical 12.5W Mechanical Color / Material White / Aluminum
Hard-coated dome bubbleRAL Code RAL9003 Product Dimensions / Weight 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 1330g Compatible Conduit hole / Gangbox 1/2" (M20)
single, double, 4" octagon, 4" squareHanging Mount (Dome) SBP-215HMW Certifications & Standards EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471Environment IEC/EN 63000
IEC/EN 60529 IP66/67, IEC/EN 62262 IK10
NEMA 250 type 4XDORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 28.4m(93.22ft) / Tele: 72.2m(236.94ft) Observe (63PPM/ 19PPF) Wide: 11.4m(37.29ft) / Tele: 28.9m(94.78ft) Recognize (125PPM/ 38PPF) Wide: 5.7m(18.64ft) / Tele: 14.4m(47.39ft) Identify (250PPM/ 76PPF) Wide: 2.8m(9.32ft) / Tele: 7.2m(23.69ft) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
