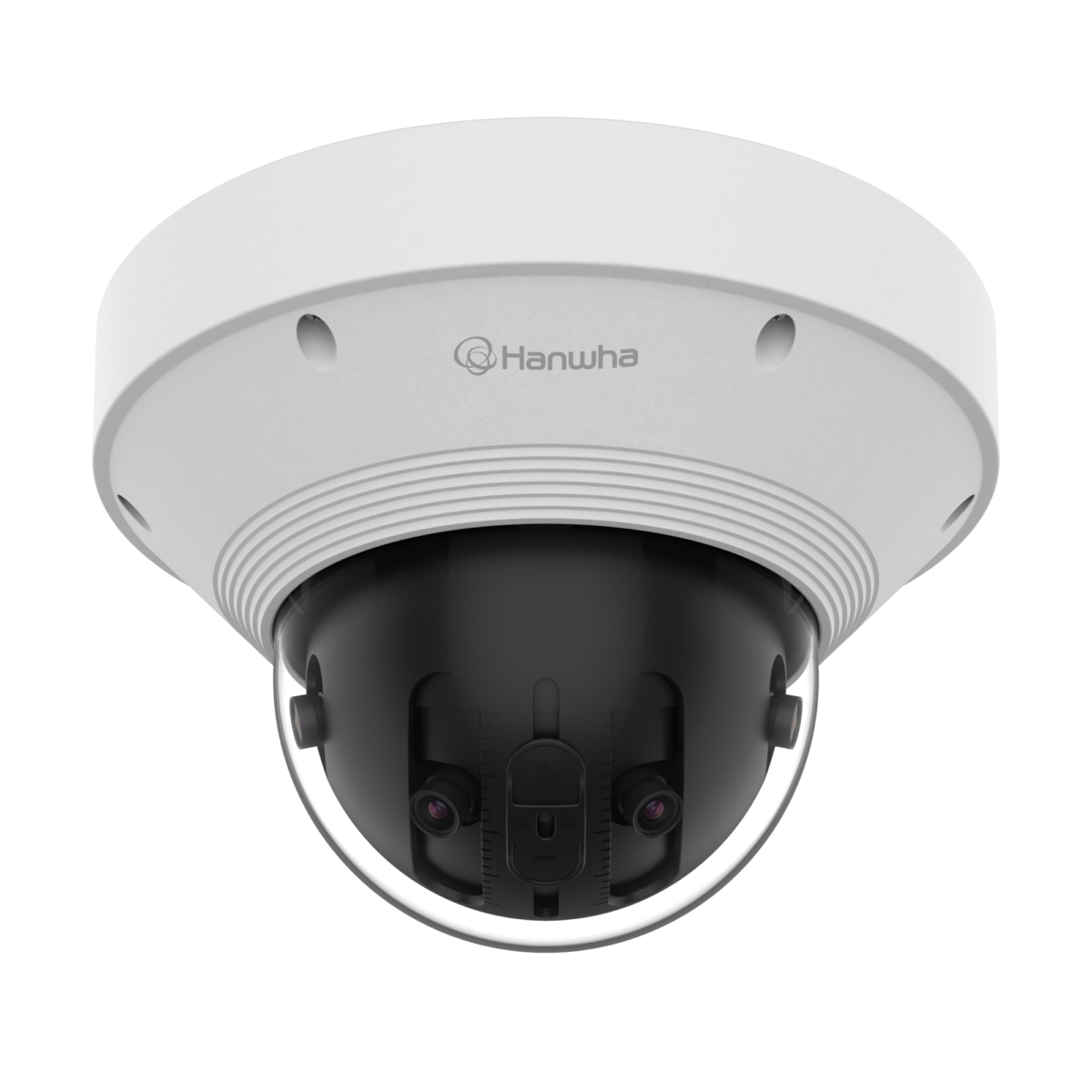

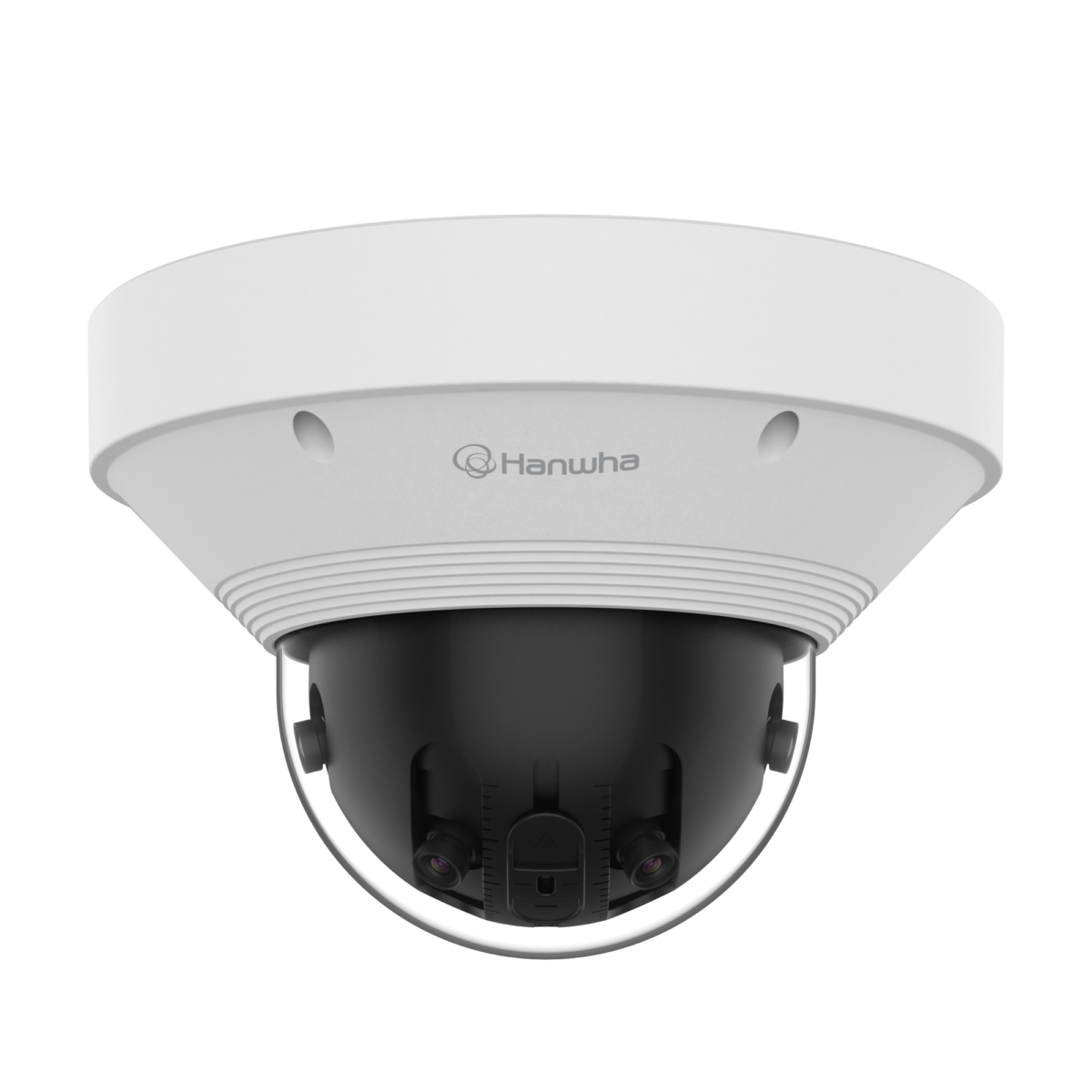

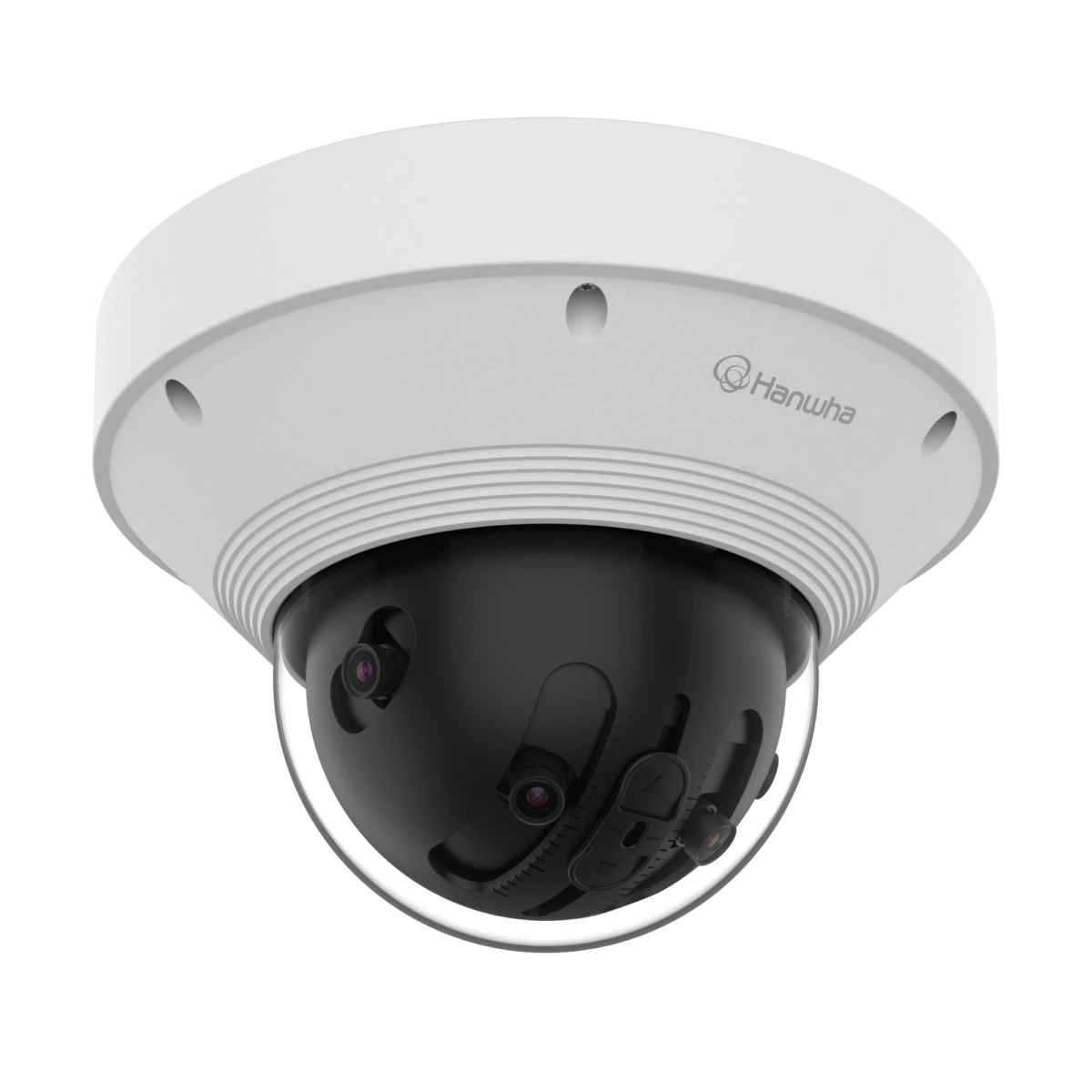

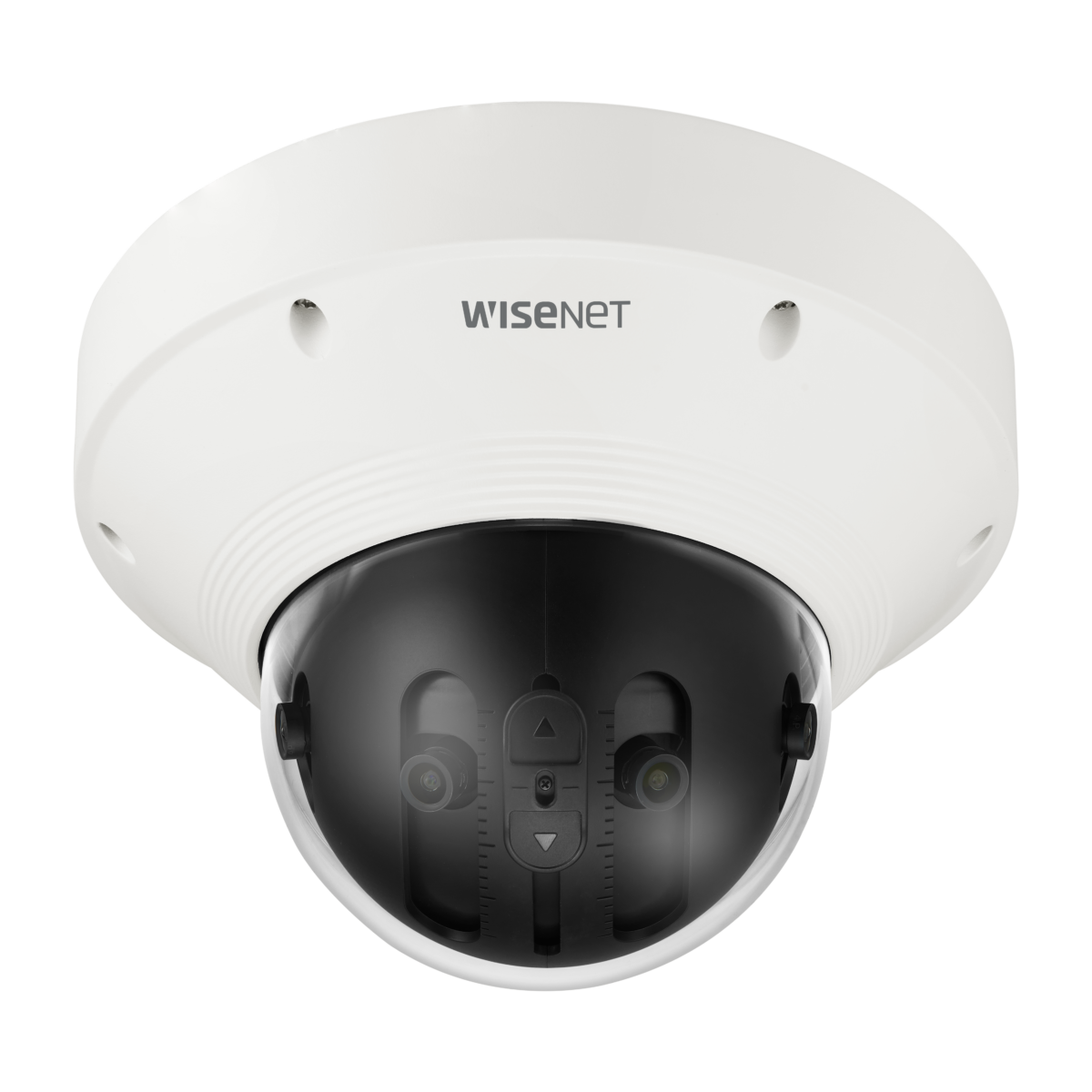

PNM-9022V
2MP Panoramic Camera
Key Features
• Max. 2MP x 4CH
• 209° Mode, 180° Mode support
• 2.8mm fixed focal lens x 4
• H.265/H.264 : Max. 30fps
• MJPEG : Max. 30fps
• extreme WDR (120dB)
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Digital PTZ Support (2CH)
• Tampering, Heatmap
• IP66, IK10, NEMA4X
• 209° Mode, 180° Mode support
• 2.8mm fixed focal lens x 4
• H.265/H.264 : Max. 30fps
• MJPEG : Max. 30fps
• extreme WDR (120dB)
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Digital PTZ Support (2CH)
• Tampering, Heatmap
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
PNM-9022V
2MP Panoramic Camera
Key Features
• Max. 2MP x 4CH
• 209° Mode, 180° Mode support
• 2.8mm fixed focal lens x 4
• H.265/H.264 : Max. 30fps
• MJPEG : Max. 30fps
• extreme WDR (120dB)
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Digital PTZ Support (2CH)
• Tampering, Heatmap
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
PNM-9022V
Covers wide area & supports 8.3MP stitching image
PNM-9022V provides panoramic image with 4 3MP multi-sensors. and up to 8.3MP stitching image. It offers both 180˚ and 209˚ mode, allowing users to monitor wide area with a single camera.
180˚ mode – Using wall mount for 180˚ monitoring
209˚ mode – Using pole/Corner mount for over 180 ˚ monitoring
Installation made easier again
PNM-9022V adopted same structure of PNM-9030V. Simply hang the camera body on the hinge first, then push it to the plate till the clip clicks and holds the camera body. Now your hands are free!
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device 1/2.8" CMOS x 4 Resolution [209º Mode]
4608X1800, 4032X1576, 3456X1352, 2864X1124,
2304X900, 1728X676, 1152X452, 560X224, 720x576
[180º Mode]
4096X1800, 3584X1576, 3072X1352, 2560X1124,
2048X900, 1536X676, 1024X452, 512X224, 720X576Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color : 0.1 Lux (F1.6,1/30sec)
B/W : 0.01 Lux (F1.6,1/30sec)Video Out USB : Micro USB Type B, 1280x720 for installation Lens Focal Length (Zoom Ratio) 2.8mm fixed focal x 4 Max. Aperture Ratio F1.6 Angular Field of View H: 209˚, V: 83.3˚ Min. Object Distance 1.5m Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0˚~355˚ / 0˚~60˚ / - Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range extreme WDR(120dB) Digital Noise Reduction SSNRⅤ Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection Business Intelligence Heatmap Alarm I/O Selectable 2 port Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggers
Alarm outputAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Network Ethernet Metal shielded RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GB X 2) Memory 4GB RAM, 512MB Flash Environmental & Electrical Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
Less than 95% RH(Non-condensing)Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66, IK10, NEMA4X Input Voltage PoE+(IEEE802.3at, Class4), 12VDC Power Consumption PoE+: Max 18W, Typical 10.4W
12VDC: Max 16W, Typical 9WMechanical Color / Material White / Aluminum RAL Code RAL9003 Product Dimensions / Weight Ø253x165mm(9.96"x6.5"), 3200g Compatible Conduit hole / Gangbox 3/4" Hanging Mount (Dome) SBP-276HMW -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
