Network Cameras

PNM-7000VD

Ngừng sản xuất

Copy a URL
Copy

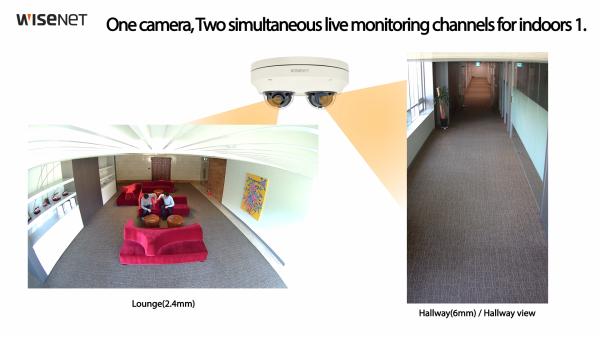

2MP x 2CH Multi-directional Camera

Key Features
• 2ea x 1920 x 1080 resolution
• Max. 60fps@2M (H.265 / H.264)
• H.265, H.264, MJPEG codec supported
• Day & Night, WDR (150dB)
• Loitering, Directional detection, Fog detection
• Motion detection, Tampering, WiseStreamII Support
• SD/SDHC/SDXC memory 2 slots (each camera)

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Nhấp Chuột lên hình để phóng to

Ngừng sản xuất

Copy a URL
Copy

Tải hình ảnh Tổng số hình ảnh tải xuống

PNM-7000VD

2MP x 2CH Multi-directional Camera

Key Features

• 2ea x 1920 x 1080 resolution
• Max. 60fps@2M (H.265 / H.264)
• H.265, H.264, MJPEG codec supported
• Day & Night, WDR (150dB)
• Loitering, Directional detection, Fog detection
• Motion detection, Tampering, WiseStreamII Support
• SD/SDHC/SDXC memory 2 slots (each camera)

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
PNM-7000VD
Datasheet
Contact Sales

Thông số sản phẩm

  • Video
  • Lens
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
    Lens
    Optional Lens SLA-2M2400D(2MP 2.4mm)
    SLA-2M2800D(2MP 2.8mm)
    SLA-2M3600D(2MP 3.6mm)
    SLA-2M6000D(2MP 6.0mm)
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(Electrical)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC recording at event triggers
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S
    SUNAPI(HTTP API)
    General
    Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
    Recommended Browser: Google Chrome
    Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Edge Storage Micro SD/SDHC/SDXC 2slot 256GB(Each CH)
    Memory 2GB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10
    Input Voltage PoE+(IEEE802.3af, Class3)
    Power Consumption Max 12.95W
    Mechanical
    Color / Material Ivory / Aluminum
    Product Dimensions / Weight Ø160mmx73mm, 840g

Compatible lenses

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Mechanical
  • Video SLA-2M3600D SLA-2M2400D SLA-2M2800D SLA-2M6000D
    Imaging Device 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS
    Effective Pixels 1945(H)x1109(V) 1945(H)x1109(V) 1945(H)x1109(V) 1945(H)x1109(V)
    Min. Illumination Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)    		 Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)    		 Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)    		 Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)
    Lens
    Focal Length (Zoom Ratio) 3.6mm fixed focal 2.4mm fixed focal 2.8mm fixed focal 6.0mm fixed focal
    Max. Aperture Ratio F2.0 F2.0 F2.0 F2.0
    Angular Field of View H:94.8°, V:49.3°, D:114.3° H:135.4°, V:71.2°, D:161.6° H:107.4°, V:62.2°, D:122.0° H:50.4°, V:28.8°, D:58.1°
    Focus Control Fixed Fixed Fixed Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range -176°~+176° / 0°~54° / -90°~+90° -176°~+176° / 0°~30° / -90°~+90° -176°~+176° / 0°~50° / -90°~+90° -176°~+176° / 0°~65° / -90°~+90°
    Mechanical
    Color / Material Black / Plastic Black / Plastic Black / Plastic Black / Plastic
    Product dimensions / weight Ø35.5x27.9mm, 27g Ø35.5x27.9mm, 30g Ø35.5x27.9mm, 27g Ø35.5x27.9mm, 27g
