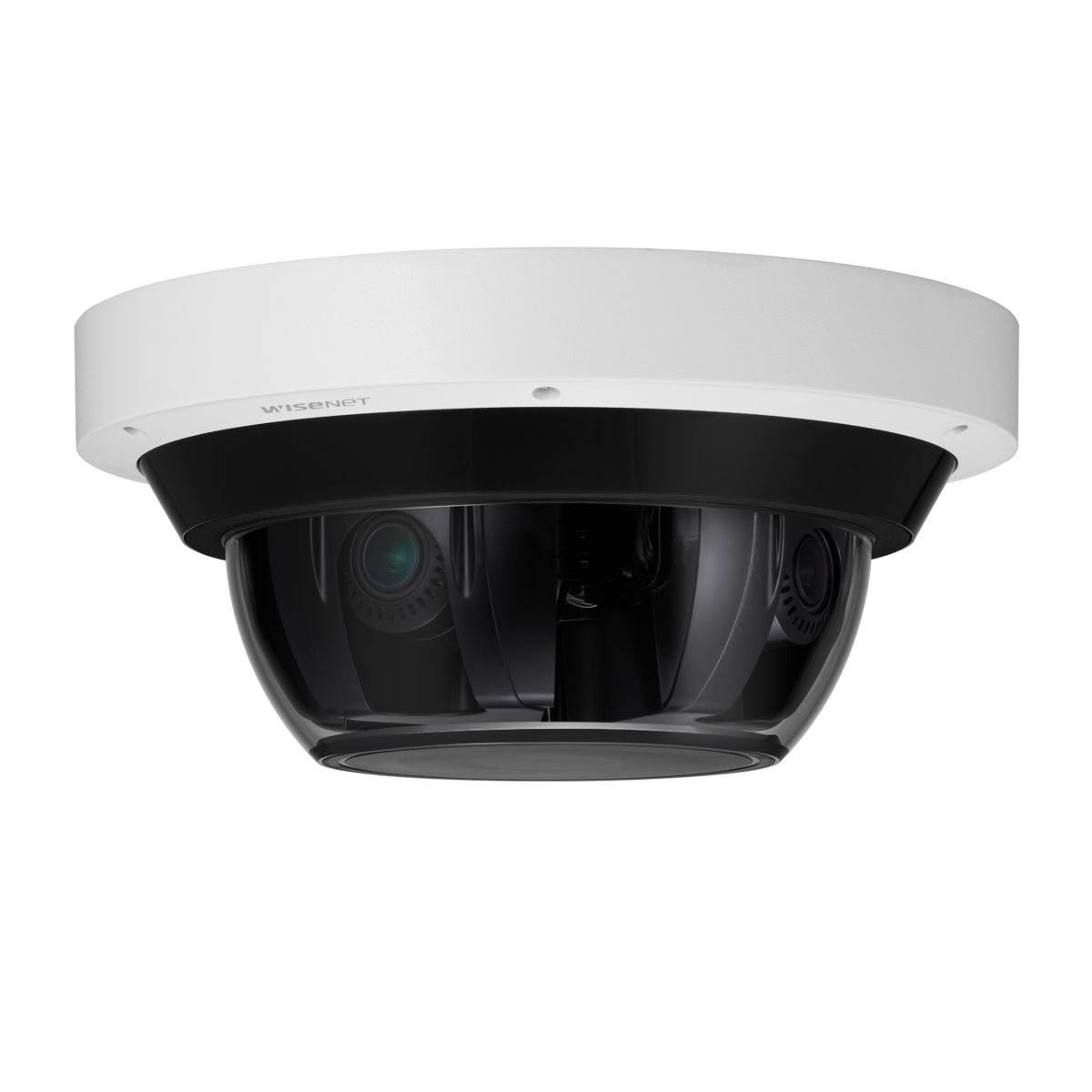

PNM-9084RQZ1
2MP x 4CH IR PTRZ Multi-directional Camera
Key Features
• Motorized PTRZ support
• Maximum 60fps@2MP(H.265, H.264)
• 3.2~10mm(3.1x) motorized varifocal lens
• IR viewable length : 30m(98.43ft)
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X
• Maximum 60fps@2MP(H.265, H.264)
• 3.2~10mm(3.1x) motorized varifocal lens
• IR viewable length : 30m(98.43ft)
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
PNM-9084RQZ1
2MP x 4CH IR PTRZ Multi-directional Camera
Key Features
• Motorized PTRZ support
• Maximum 60fps@2MP(H.265, H.264)
• 3.2~10mm(3.1x) motorized varifocal lens
• IR viewable length : 30m(98.43ft)
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
PNM-9084RQZ1
Remote motorized PTRZ control for easy installation
The PNM-9084QZ1 has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ1 and PNM-9085RQZ1 support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting.
Built-in IR sensor for monitoring in low light environment
The PNM-9084RQZ1/PNM-9085RQZ1 has built-in IR sensors to each of the four lenses. Each lens and its IR sensors move together when users control the lenses, producing clear images from up to 30 meters even in low-light environments.
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" CMOS x 4CH Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.05lux(F1.6,30 IRE)
BW: 0Lux(IR LED on)Lens Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal Max. Aperture Ratio F1.6(Wide)~F2.9(Tele) Angular Field of View H: 109.0°(Wide)~33.2°(Tele), V: 57.4°(Wide)~18.7°(Tele), D: 132.0°(Wide)~38.0°(Tele) Min. Object Distance 0.5m(1.64ft) Focus Control Simple focus Lens Type DC auto iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
0~360˚ / 30~80˚ / 0~90˚Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, 4point polygonal zones
- Color: Grey, Green, Red, Blue, Black, White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC at event triggers
Alarm output
HandoverAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms IR Viewable Length 30m(98.43ft) Network Ethernet Metal shielded RJ-45(10/100/1000BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(each CH) Memory 5GB RAM, 1280MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH Certification IP66, IK10, NEMA4X Input Voltage HPoE(IEEE802.3bt, Class6, Type3), 12VDC Power Consumption PoE: Max. 42 W, Typical 30 W
12VDC: Max. 38 W, Typical 28.2 WMechanical Color / Material White / Aluminum RAL Code RAL9003 Product Dimensions / Weight Ø315x145.9 mm(12.40"x5.74") / 5.2 kg(11.5lb) Compatible Conduit hole / Gangbox 3/4" Hanging Mount (Dome) SBP-317HMW DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 27.4m(89.9ft) / Tele: 128.8m(422.6ft) Observe (63PPM/ 19PPF) Wide: 62.5m(35.9)ft) / Tele: 51.5m(169.0ft) Recognize (125PPM/ 38PPF) Wide: 5.5m(18.0ft) / Tele: 25.8m(84.5ft) Identify (250PPM/ 76PPF) Wide: 2.7m(9.0)ft) / Tele: 12.9m(42.3ft)
-
