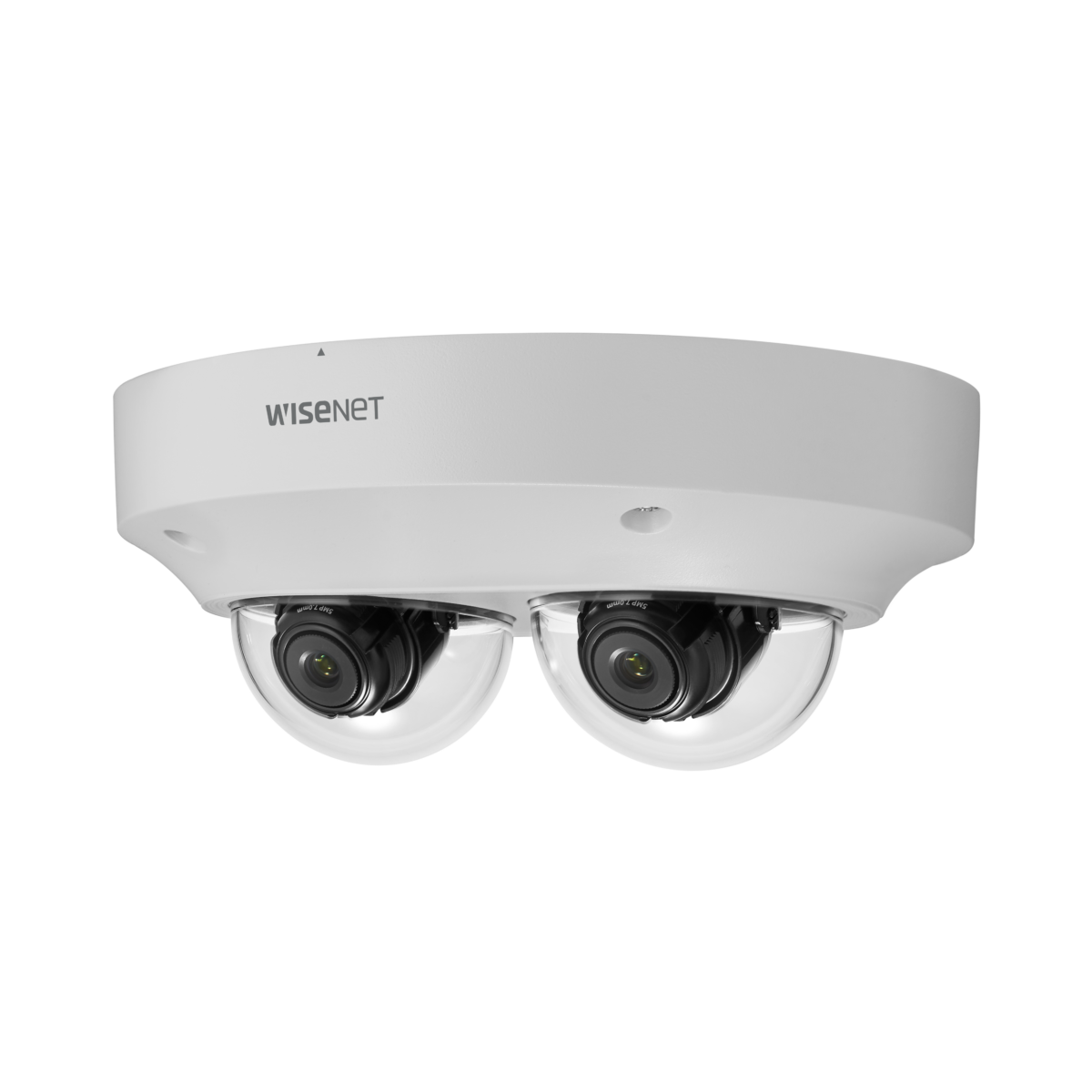

PNM-9000VD
5MP x 2CH Multi-directional Camera
Key Features
• Exchangeable 2 x 5MP lens modules (2 x 5MP resolution)
• Max. 30fps@all resolution (H.265 / H.264)
• WDR 120dB
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream II
• Micro SD / SDHC / SDXC memory 2 slots
• IP66, IK10, PoE
• Max. 30fps@all resolution (H.265 / H.264)
• WDR 120dB
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream II
• Micro SD / SDHC / SDXC memory 2 slots
• IP66, IK10, PoE
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
PNM-9000VD
5MP x 2CH Multi-directional Camera
Key Features
• Exchangeable 2 x 5MP lens modules (2 x 5MP resolution)
• Max. 30fps@all resolution (H.265 / H.264)
• WDR 120dB
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream II
• Micro SD / SDHC / SDXC memory 2 slots
• IP66, IK10, PoE
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
PNM-9000VD
5MP image quality with dual lens camera
PNM-9000VD delivers 5MP image quality and modular lens configuration and supports 30fps image capture and true WDR(120dB) without compromising frame rate for each of its 5MP sensors. It is able to simultaneously monitor angles instead of installing multiple cameras.
Selectable 5MP fixed lens (Optional)
According to the desired direction and viewing angle, user can select lenses 3.7mm, 4.6mm, 7.0mm.
Product Specification
- Video
- Lens
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Lens Optional Lens SLA-5M3700D(5MP 3.7mm)
SLA-5M4600D(5MP 4.6mm)
SLA-5M7000D(5MP 7.0mm)Operational Camera Title Displayed up to 85 characters Day & Night Auto(Electrical) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90˚/270˚) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line Alarm Triggers Analytics, Network disconnect Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
HandoverNetwork Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S
SUNAPI(HTTP API)General Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 2slot 256GB(Each CH) Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH Certification IP66, IK10 Input Voltage PoE(IEEE802.3af, Class3) Power Consumption PoE: 12.95W, typical 12.00W Mechanical Color / Material White / Aluminum RAL Code RAL9003 Product Dimensions / Weight Ø197.6x84mm(7.78x3.31"), 1250g(2.76 lb) Compatible Conduit hole / Gangbox 1/2" Hanging Mount (Dome) SBP-201HMW
-
Compatible lenses
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Mechanical
-
-
Video SLA-5M7000D SLA-5M4600D SLA-5M3700D Imaging Device 1/1.8" 5MP CMOS 1/1.8" 5MP CMOS 1/1.8" 5MP CMOS Effective Pixels 2616(H)x1976(V) 2616(H)x1976(V) 2616(H)x1976(V) Min. Illumination Color : 0.16Lux(F1.6, 1/30sec, 30IRE)
B/W : 0.16Lux(F1.6, 1/30sec, 30IRE)Color : 0.16Lux(F1.6, 1/30sec, 30IRE)
B/W : 0.16Lux(F1.6, 1/30sec, 30IRE)Color : 0.16Lux(F1.6, 1/30sec, 30IRE)
B/W : 0.16Lux(F1.6, 1/30sec, 30IRE)Lens Focal Length (Zoom Ratio) 7.0mm fixed focal 4.6mm fixed focal 3.7mm fixed focal Max. Aperture Ratio F1.6 F1.6 F1.6 Angular Field of View H: 50.7°, V: 37.8°, D: 63.8° H: 77.9°, V: 57.9°, D: 98.7° H:97.5°, V:71.9°, D:126.2° Lens Type Fixed focal Fixed focal Fixed focal Pan / Tilt / Rotate Pan / Tilt / Rotate Range -90°~+90° / +36~+73° / -180°~+180° -90°~+90° / +36~+73° / -180°~+180° -90°~+90° / +36~+73° / -180°~+180° Operational Day & Night Auto(Elctrical) Auto(Elctrical) Auto(Elctrical) Wide Dynamic Range 120dB 120dB 120dB Mechanical Color / Material Black / Plastic Black / Plastic Black / Plastic Product dimensions / weight Ø35.5x35.9mm(1.40x1.41") / 35g(0.08 lb) Ø35.5x35.9mm(1.40x1.41") / 35g(0.08 lb) Ø35.5x35.9mm(1.40x1.41") / 35g(0.08 lb)
-
