PNM-9000VQ
Discontinued
2MP/5MP x 4CH Multi-directional Camera
Key Features
• Exchangeable 4ea x 2MP / 5MP lens modules
• 8MP to 20MP resolution
(depend on the combination of lens modules)
• Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
• WDR 150dB with 2MP, 120dB with 5MP lens module
• 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream Ⅱ
• IP66, IK10, SD / SDHC / SDXC memory 4 slots
• 8MP to 20MP resolution
(depend on the combination of lens modules)
• Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
• WDR 150dB with 2MP, 120dB with 5MP lens module
• 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream Ⅱ
• IP66, IK10, SD / SDHC / SDXC memory 4 slots
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
Discontinued
PNM-9000VQ
2MP/5MP x 4CH Multi-directional Camera
Key Features
• Exchangeable 4ea x 2MP / 5MP lens modules
• 8MP to 20MP resolution
(depend on the combination of lens modules)
• Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
• WDR 150dB with 2MP, 120dB with 5MP lens module
• 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream Ⅱ
• IP66, IK10, SD / SDHC / SDXC memory 4 slots
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
PNM-9000VQ
Never Miss a thing
Wisenet Premium
Multi-directional cameras
Multi-directional cameras
 |
 |
 |
| PNM-9000VQ | PNM-9080VQ | PNM-9081VQ |
| Max. 20MP (5M/2M x 4ea) with selectable lens |
8MP (2M x 4ea) | 20MP (5M x 4ea) |

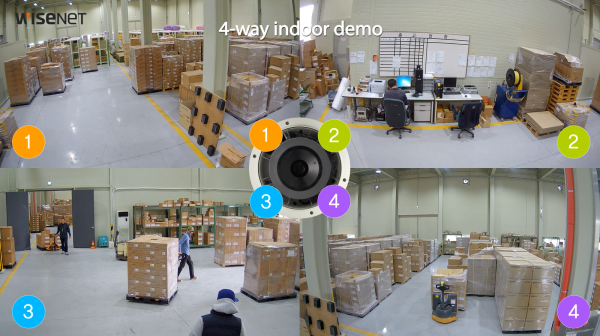

Four cameras in one
Multi-directional cameras have four sensors in one camera. When using the cameras you can monitor multiple directions simultaneously without blind spots making them ideal for wide areas such as shopping mall entrances, lobbies and airports.
Multiple view modes
The four sensors in the multi-directional camera move independently of one another. In addition, one of the sensors can easily be removed and attached in the center of the camera, allowing for flexible set-up.
Four cameras in one
Multi-directional cameras have four sensors in one camera. When using the cameras you can monitor multiple directions simultaneously without blind spots making them ideal for wide areas such as shopping mall entrances, lobbies and airports.
Optimized for Indoor and Outdoor
Wisenet P series multi-directional cameras are suitable to monitor even the smallest details in a wide area. They are ideal for applications such as warehouse, shopping mall entrances, train stations, parking lots, and more supporting IP66, IK10.
Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.
True WDR(150dB with 2MP and 120dB with 5MP)
Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.
Hallway View
In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.
A comprehensive range of intelligent video analytics
Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
* Supported video analytics may vary depending on the camera.
Selectable and changeable multiple lens (PNM-9000VQ only)
Users can choose a wide variety of lenses from 2M 2.4mm to 5M 7.0mm for PNM-9000VQ to create the most optimal field of view for their desired monitoring areas. Choose the 4 lenses of your choice and create a combination of lens module up to 20MP resolution.
1/2.8” 2M CMOS
 |
 |
 |
 |
|
| Lens | SLA-2M2400Q | SLA-2M2800Q | SLA-2M3600Q | SLA-2M600Q |
| Focal Length (Zoom Ratio) |
2.4mm | 2.8mm | 3.6mm | 6mm |
| Angular Field of View | H : 135.4˚ V : 71.2˚ D : 161.6˚ |
H : 107.4˚ V : 62.2˚ D : 122.0˚ |
H : 94.8˚ V : 49.3˚ D : 114.3˚ |
H : 50.4˚ V : 28.8˚ D : 58.1˚ |
|
|
|
| Lens | SLA-2M2400Q | SLA-2M2800Q |
| Focal Length (Zoom Ratio) |
2.4mm | 2.8mm |
| Angular Field of View | H : 135.4˚ V : 71.2˚ D : 161.6˚ |
H : 107.4˚ V : 62.2˚ D : 122.0˚ |
|
|
|
| Lens | SLA-2M3600Q | SLA-2M600Q |
| Focal Length (Zoom Ratio) |
3.6mm | 6mm |
| Angular Field of View | H : 94.8˚ V : 49.3˚ D : 114.3˚ |
H : 50.4˚ V : 28.8˚ D : 58.1˚ |
1/1.8” 5M CMOS
 |
 |
 |
||
| Lens | SLA-5M3700Q | SLA-5M4600Q | SLA-5M7000Q | |
| Focal Length (Zoom Ratio) |
3.7mm | 4.6mm | 7.0mm | |
| Angular Field of View | H : 97.5˚ V : 71.9˚ D : 126.2˚ |
H : 77.9˚ V : 57.9˚ D : 98.7˚ |
H : 50.7˚ V : 37.8˚ D : 63.8˚ |
|
|
|
| Lens | SLA-5M3700Q | SLA-5M4600Q |
| Focal Length (Zoom Ratio) |
3.7mm | 4.6mm |
| Angular Field of View | H : 97.5˚ V : 71.9˚ D : 126.2˚ |
H : 77.9˚ V : 57.9˚ D : 98.7˚ |
|
||
| Lens | SLA-5M7000Q | |
| Focal Length (Zoom Ratio) |
7.0mm | |
| Angular Field of View | H : 50.7˚ V : 37.8˚ D : 63.8˚ |
Product Specification
- Video
- Lens
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Resolution [5MP]
2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240
[2MP]
1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240Max. Framerate H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz), 5MP Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation Lens Optional Lens SLA-2M2400Q(2MP 2.4mm)
SLA-2M2800Q(2MP 2.8mm)
SLA-2M3600Q(2MP 3.6mm)
SLA-2M6000Q(2MP 6.0mm)
SLA-5M3700Q(5MP 3.7mm)
SLA-5M4600Q(5MP 4.6mm)
SLA-5M7000Q(5MP 7.0mm)Operational Camera Title Displayed up to 85 characters Day & Night Auto(Electrical) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 2MP 150dB, 5MP 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggersNetwork Ethernet RJ-45(10/100/1000BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S
SUNAPI(HTTP API)General Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(Each CH) Memory 5GB RAM, 1280MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66, IK10 Input Voltage PoE+(IEEE802.3at, Class4) Power Consumption Max 25.5W Mechanical Color / Material Ivory / Aluminum Product Dimensions / Weight Ø253mmx130mm, 3000g -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
