PNM-9320VQP

Discontinued

Copy a URL
Copy

10M to 22M Multi-directional + PTZ Camera

Key Features
• Exchangeable 4ea x 2M / 5M lens modules
• 8M to 20M resolution (depend on the combination of lens modules)
• Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
• WDR 150dB with 2M, 120dB with 5M lens module
• 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2M module)
• 3.7mm, 4.6mm, 7mm fixed lens (5M module)
• H.265, H.264, MJPEG codec,WiseStreamⅡ
• IP66, IK10, SD / SDHC / SDXC memory 5 slots
• 4.44~142.6mm(Optical 32x) lens, Day & Night (ICR)

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Discontinued

Copy a URL
Copy

Image Download Total Image Download

PNM-9320VQP

10M to 22M Multi-directional + PTZ Camera

Key Features

• Exchangeable 4ea x 2M / 5M lens modules
• 8M to 20M resolution (depend on the combination of lens modules)
• Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
• WDR 150dB with 2M, 120dB with 5M lens module
• 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2M module)
• 3.7mm, 4.6mm, 7mm fixed lens (5M module)
• H.265, H.264, MJPEG codec,WiseStreamⅡ
• IP66, IK10, SD / SDHC / SDXC memory 5 slots
• 4.44~142.6mm(Optical 32x) lens, Day & Night (ICR)

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
PNM-9320VQP
Datasheet
Contact Sales

Never Miss a thing

Wisenet Multi-directional plus
PTZ camera
PNM-9320VQP

4 + 1 cameras in one
Multi-directional plus PTZ camera has five sensors in one camera. When using the camera you can monitor a 360° wide area simultaneously with multi-directional camera while the PTZ camera zooms into the desired area for closer inspection. The four sensors in the multi-directional camera move independently of one another.

Advance handover to PTZ

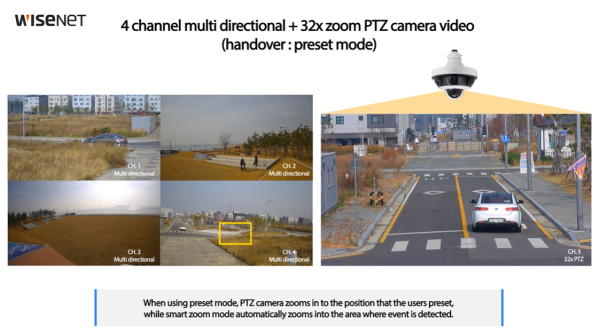

When the multi-directional camera detects an event, it automatically links to PTZ camera which carries out zoom-in and track functions. When using preset mode, PTZ camera zooms in to the position that the users preset, while smart zoom mode automatically zooms into the area where event is detected.

Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.

True WDR(150dB with 2MP and 120dB with 5MP)
Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.

Hallway View
In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

A comprehensive range of intelligent video analytics
Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
* Supported video analytics may vary depending on the camera.

Selectable and changeable multiple lens (PNM-9320VQP only)
Users can choose a wide variety of lenses from 2M 2.4mm to 5M 7.0mm for PNM-9320VQP to create the most optimal field of view for their desired monitoring areas. Choose the 4 lenses of your choice and create a combination of lens module up to 20MP resolution for multi-directional camera.

1/2.8” 2M CMOS
Lens SLA-2M2400P SLA-2M2800P SLA-2M3600P
Focal Length
(Zoom Ratio)		 2.4mm 2.8mm 3.6mm
Angular Field of View H : 135.4˚
V : 71.2˚
D : 161.6˚		 H : 107.4˚
V : 62.2˚
D : 122.0˚		 H : 94.8˚
V : 49.3˚
D : 114.3˚
Lens SLA-2M6000P SLA-2M1200P
Focal Length
(Zoom Ratio)		 6mm 12mm
Angular Field of View H : 50.4˚
V : 28.8˚
D : 58.1˚		 H : 26.3˚
V : 14.9˚
D : 30.0˚
Lens SLA-2M2400P SLA-2M2800P
Focal Length
(Zoom Ratio)		 2.4mm 2.8mm
Angular Field of View H : 135.4˚
V : 71.2˚
D : 161.6˚		 H : 107.4˚
V : 62.2˚
D : 122.0˚
Lens SLA-2M3600P SLA-2M6000P
Focal Length
(Zoom Ratio)		 3.6mm 6mm
Angular Field of View H : 94.8˚
V : 49.3˚
D : 114.3˚		 H : 50.4˚
V : 28.8˚
D : 58.1˚
Lens SLA-2M1200P
Focal Length
(Zoom Ratio)		 12mm
Angular Field of View H : 26.3˚
V : 14.9˚
D : 30.0˚
1/1.8” 5M CMOS
Lens SLA-5M3700P SLA-5M4600P SLA-5M7000P
Focal Length
(Zoom Ratio)		 3.7mm 4.6mm 7.0mm
Angular Field of View H : 97.5˚
V : 71.9˚
D : 126.2˚		 H : 77.9˚
V : 57.9˚
D : 98.7˚		 H : 50.7˚
V : 37.8˚
D : 63.8˚
Lens SLA-5M3700P SLA-5M4600P
Focal Length
(Zoom Ratio)		 3.7mm 4.6mm
Angular Field of View H : 97.5˚
V : 71.9˚
D : 126.2˚		 H : 77.9˚
V : 57.9˚
D : 98.7˚
Lens SLA-5M7000P
Focal Length
(Zoom Ratio)		 7.0mm
Angular Field of View H : 50.7˚
V : 37.8˚
D : 63.8˚

Product Specification

  • Video
  • Lens
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Resolution [5MP]
    2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240
    [2MP]
    1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz), 5MP Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
    Lens
    Optional Lens SLA-2M2400P(2MP 2.4mm)
    SLA-2M2800P(2MP 2.8mm)
    SLA-2M3600P(2MP 3.6mm)
    SLA-2M6000P(2MP 6.0mm)
    SLA-2M1200P(2MP 12mm)
    SLA-5M3700P(5MP 3.7mm)
    SLA-5M4600P(5MP 4.6mm)
    SLA-5M7000P(5MP 7.0mm)
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(Electrical)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 2MP 150dB, 5MP 120dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC recording at event triggers
    Network
    Ethernet RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S
    SUNAPI(HTTP API)
    General
    Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
    Recommended Browser: Google Chrome
    Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(Each CH)
    Memory 5GB RAM, 1280MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -35°C ~ +55°C (-31°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10
    Input Voltage HPoE(IEEE802.3bt)
    Power Consumption HPoE: Max 65W
    Mechanical
    Color / Material Ivory / Aluminum
    Product Dimensions / Weight Ø367.8x381.5mm (Ø144.49"x150.20"), 7.05kg (16.1 lb)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.

Compatible lenses

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Mechanical
  • Video SLA-2M2800P SLA-2M2400P SLA-2M3600P SLA-2M1200P SLA-5M3700P SLA-5M4600P SLA-5M7000P SLA-2M6000P
    Imaging Device 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 5MP CMOS 1/2.8" 5MP CMOS 1/2.8" 5MP CMOS 1/2.8" 2MP CMOS
    Effective Pixels 1945(H)x1109(V) 1945(H)x1109(V) 1945(H)x1109(V) 1945(H)x1109(V) 2616(H) x 1976(V) 2616(H) x 1976(V) 2616(H) x 1976(V) 1945(H)x1109(V)
    Min. Illumination Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)    		 Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)    		 Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)    		 Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)    		 Color: 0.16Lux(F2.0, 1/30sec)
    B/W: 0.16Lux(F2.0, 1/30sec)    		 Color: 0.16Lux(F2.0, 1/30sec)
    B/W: 0.16Lux(F2.0, 1/30sec)    		 Color: 0.16Lux(F2.0, 1/30sec)
    B/W: 0.16Lux(F2.0, 1/30sec)    		 Color: 0.055Lux(F2.0, 1/30sec)
    B/W: 0.055Lux(F2.0, 1/30sec)
    Lens
    Focal Length (Zoom Ratio) 2.8mm fixed focal 2.4mm fixed focal 3.6mm fixed focal 12.0mm fixed focal 3.7mm fixed focal 4.6mm fixed focal 7.0mm fixed focal 6.0mm fixed focal
    Max. Aperture Ratio F2.0 F2.0 F2.0 F2.0 F1.6 F1.6 F1.6 F2.0
    Angular Field of View H:107.4°, V:62.2°, D:122.0° H:135.4°, V:71.2°, D:161.6° H:94.8°, V:49.3°, D:114.3° H: 26.3° V: 14.9° D: 30.0° H: 97.5˚, V: 71.9˚, D: 126.2˚ H: 77.9˚, V: 57.9˚, D: 98.7˚ H: 50.7˚, V: 37.8˚, D: 63.8˚ H:50.4°, V:28.8°, D:58.1°
    Focus Control Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range -90°~+90° / +26~+80° / -180°~+180° -90°~+90° / +52~+56° / -180°~+180° -90°~+90° / +22~+84° / -180°~+180° -90°~+90° / +10~+97° / -180°~+180° -90˚~+90˚ / +36˚~+73˚ / -180˚~+180˚ -90˚~+90˚ / +21˚~+85˚ / -180˚~+180˚ -90˚~+90˚ / +12˚~+93˚ / -180˚~+180˚ -90°~+90° / +10~+95° / -180°~+180°
    Mechanical
    Color / Material Black / Plastic Black / Plastic Black / Plastic Black / Plastic Black / Plastic Black / Plastic Black / Plastic Black / Plastic
    Product dimensions / weight Ø35.5x35.9mm, 30g Ø35.5x35.9mm, 30g Ø35.5x35.9mm, 30g Ø35.5x35.9mm, 30g Ø35.5x35.9mm, 30g Ø35.5x35.9mm, 30g Ø35.5x35.9mm, 30g Ø35.5x35.9mm, 30g

Download

Datasheet Manuals CAD Certification Brochures A&E Document Quick Guide BIM/Revit OpenSourceLicense Firmware
Category File Name Last Updated
Download
