Multi-sensor

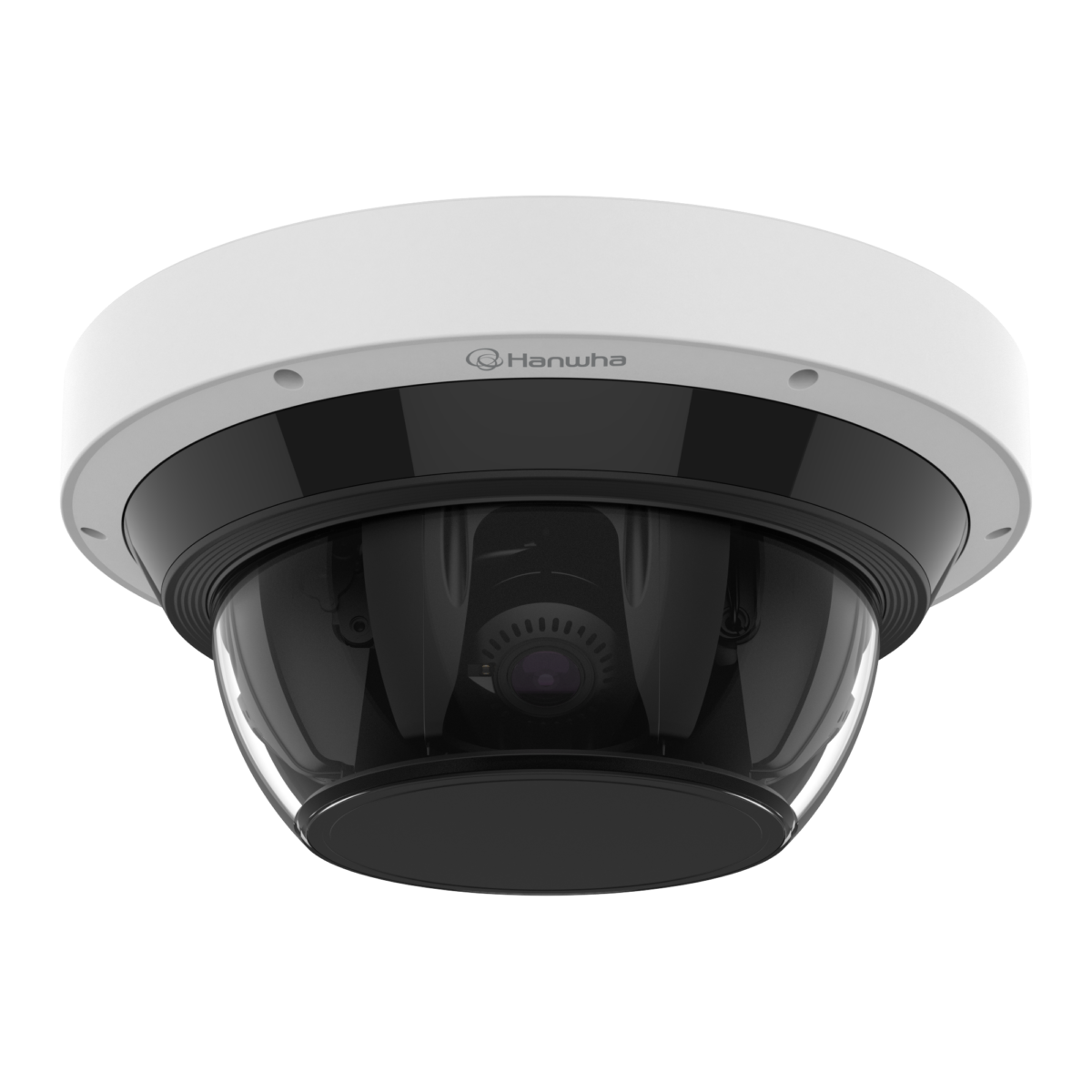

PNM-9084RQZ1

2MP x 4CH IR PTRZ Multi-directional Camera

Key Features

• Motorized PTRZ support
• Maximum 60fps@2MP(H.265, H.264)
• 3.2~10mm(3.1x) motorized varifocal lens
• IR viewable length : 30m(98.43ft)
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X

Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Remote motorized PTRZ control for easy installation
The PNM-9084QZ1 has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ1 and PNM-9085RQZ1 support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting.
Built-in IR sensor for monitoring in low light environment
The PNM-9084RQZ1/PNM-9085RQZ1 has built-in IR sensors to each of the four lenses. Each lens and its IR sensors move together when users control the lenses, producing clear images from up to 30 meters even in low-light environments.



Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution320x240, 1280x720, 1280x1024, 720x480, 1280x960, 800x448, 800x600, 720x576, 640x360, 640x480, 1024x768, 1920x1080
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.05
BW(1/30sec, 30IRE)0.005
Lens
Focal Length (mm)3.2~10
Zoom RatioOptical3.1x
Max Aperture Ratio (F number)Wide1.6
Tele2.9
Angular Field of ViewHorizontal109°~33°
Vertical58°~18°
Diagonal132°~38°
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeDC auto iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~360°
Tilt30°~80°
Rotate 0°~90°
OthersRemote adjustment(Max. 200cycles)
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, SSDR, WDR, HLC
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionBlue, Gray, Mosaic, White, Black, Green, Red
Gain ControlMiddle, Low, High
White BalanceManual, Outdoor, ATW, AWC, Indoor
LDCSupport
Electronic ShutterModeMaximum, Minimum, Anti flicker
Speed Range2~1/12,000sec
Video RotationMirror, Flip
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, Recording: SD/SDHC/SDXC or NAS recording at event triggers
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR30m(98.43ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalVirtual line(Crossing, Direction) , Fog detection, Tampering, Defocus detection, Motion detection, Face detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear)
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.726(ADPCM) 8KHz, G.711 8KHz, G.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolHTTP, RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, UPnP, LLDP, RTSP, ICMP, UDP/IP
Application Programming InterfaceONVIFS, T
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Direct Cloud ConnectionOptional (needs gateway)
Security
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationHTTPS
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM5GB
Flash1280MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 4slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
EPA(Effective Projected Area)0.036㎡
Input VoltageHPoE(IEEE802.3bt type4, Class8), 12VDC
Power ConsumptionPoEMax. 42W, Typical 30W
12VDCMax. 38W, Typical 28.2W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø315x145.9mm(12.40x5.74")
Product Weight5,200g(11.5lb)
Compatible Conduit Hole19.1mm(3/4")(M25)
Compatible Gang BoxSquare, Double, Single, 4" Octagon
Certifications & Standards
EnvironmentIEC 62262 IK10, IEC 60529 IP66, NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide27.4m(89.9ft)
Tele128.8m(422.6ft)
Observe (63PPM/ 19PPF)Wide62.5m(35.9ft)
Tele51.5m(169.0ft)
Recognize (125PPM/ 38PPF)Wide5.5m(18.0ft)
Tele25.8m(84.5ft)
Identify (250PPM/ 76PPF)Wide2.7m(9.0ft)
Tele12.9m(42.3ft)
