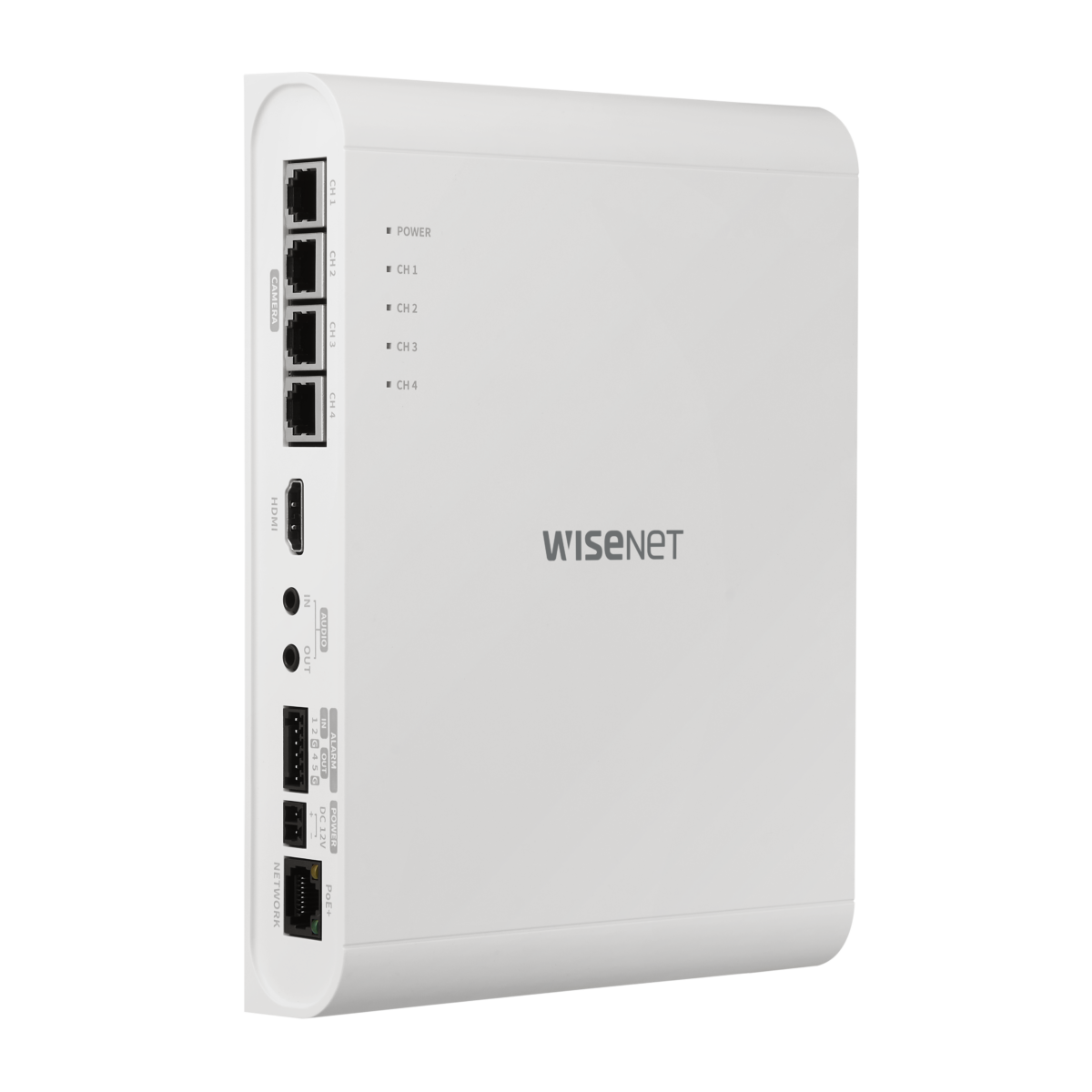

PNM-9000QB

Copy a URL
Copy

2MP x 4CH Remote Head Camera

Key Features
• 2MP x 4CH
• HDMI - Single/Quad view support
• WDR 120dB, WiseStreamII
• Defocus detection, directional detection, motion detection etc
• Max 30fps@2MP
• H.265, H.264, MJPEG

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Copy a URL
Copy

Image Download Total Image Download

PNM-9000QB

2MP x 4CH Remote Head Camera

Key Features

• 2MP x 4CH
• HDMI - Single/Quad view support
• WDR 120dB, WiseStreamII
• Defocus detection, directional detection, motion detection etc
• Max 30fps@2MP
• H.265, H.264, MJPEG

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
PNM-9000QB
Datasheet
Contact Sales
The best cost-effective solution for shops, stores, offices and banks.
Multi-head solution is cost effective compared to typical network cameras. Users can integrate 4CH remote head lens modules on a single body and monitor up to 4 different areas.

Product Specification

  • Video
  • Lens
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Video Out HDMI(1920x1080, Single/Quad view)
    Lens
    Optional Lens SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(Electrical)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, 4point quadrangle zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror
    Analytics Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line
    Alarm I/O Input 2ea / Output 2ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC at event triggers
    Alarm output
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 12 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP,
    FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Application Programming Interface ONVIF Profile S/T
    SUNAPI(HTTP API)
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
    Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GB X 2)
    Memory 4GB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C ~ +45°C(14°F ~ +113°F) / Less than 95% RH(Non condensing)
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
    Power Consumption PoE : Max 22.00W, Typical 16.70W
    DC : Max 19.00W, Typical : 14.00W
    Mechanical
    Color / Material White / Plastic
    RAL Code RAL9003
    Product Dimensions / Weight 200(W)x37(H)x146(D)mm / 715g

Compatible lenses

  • Video
  • Lens
  • Mechanical
  • Video SLA-T4680VA SLA-T2480A SLA-T4680A SLA-T2480VA SLA-T1080FA
    Imaging Device 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS
    Min. Illumination Color: 0.06Lux(F2.5, 1/30sec) Color: 0.045Lux(F2.0, 1/30sec) Color: 0.06Lux(F2.5, 1/30sec) Color: 0.045Lux(F2.0, 1/30sec) Color: 0.03Lux(F1.6, 1/30sec)
    Lens
    Focal Length (Zoom Ratio) 4.6mm fixed focal 2.4mm fixed focal 4.6mm fixed focal 2.4mm fixed focal 1.6mm fixed focal
    Max. Aperture Ratio F2.5 F2.0 F2.5 F2.0 F1.6
    Angular Field of View H: 73°, V: 39°, D: 85° H: 138°, V: 73°, D: 165° H: 73°, V: 39°, D: 85° H: 138°, V: 73°, D: 165° H: 187°, V: 113.9°
    Mount Type RJ12 connected with main unit RJ12 connected with main unit RJ12 connected with main unit RJ12 connected with main unit RJ12 connected with main unit
    Focus Control fixed fixed fixed fixed fixed
    Mechanical
    Color / Material Black / Plastic, Metal Black / Plastic Black / Plastic Black / Plastic, Metal Black / Metal
    Product dimensions / weight W30xH27.9xD45mm, 321g Ø24xL49.8mm, 318g Ø24xL49.8mm, 310g W30xH27.9xD45mm, 328g Ø35xL68.9mm, 430g
