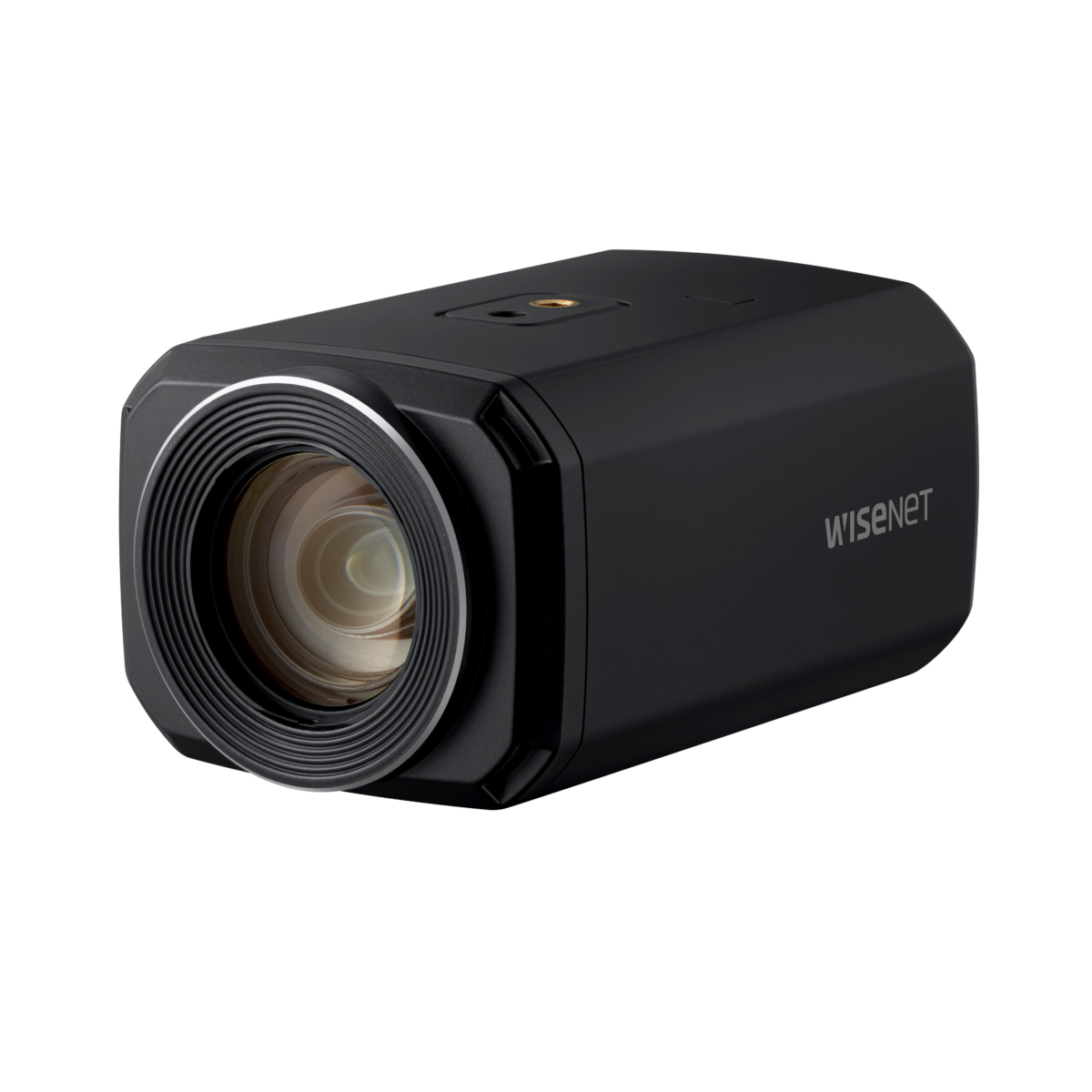

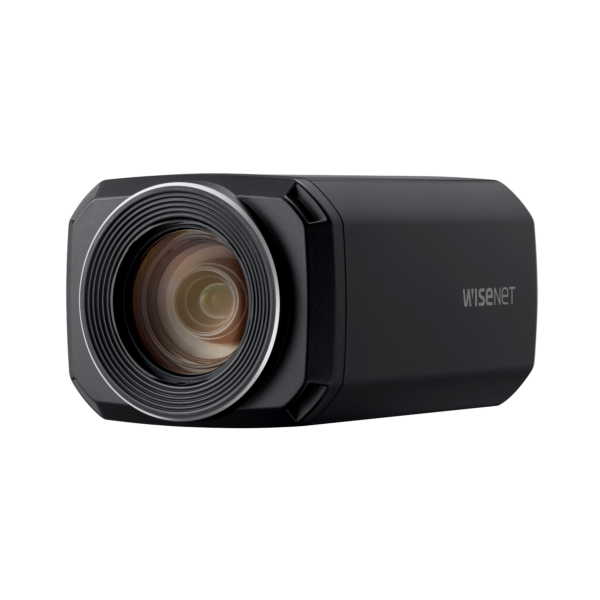

XNZ-6320A
2MP H.265 32x Zoom Camera
Key Features
• Maximum 2MP (1920 x 1080) resolution
• 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
• Maximum 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG Codec, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Video & Audio Analytics
• PoE, 12VDC, Micro SD/SDHC/SDXC 2 slot 512GB
• 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
• Maximum 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG Codec, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Video & Audio Analytics
• PoE, 12VDC, Micro SD/SDHC/SDXC 2 slot 512GB
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
XNZ-6320A
2MP H.265 32x Zoom Camera
Key Features
• Maximum 2MP (1920 x 1080) resolution
• 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
• Maximum 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG Codec, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Video & Audio Analytics
• PoE, 12VDC, Micro SD/SDHC/SDXC 2 slot 512GB
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" 2MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.05Lux (1/30sec, F1.6)
B/W: 0.005Lux (1/30sec, F1.6)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32X) (digital 32x, total 1024x zoom) Max. Aperture Ratio F1.6(Wide) ~ F4.4(Tele) Angular Field of View H: 64.66˚(Wide)~2.29˚(Tele) / V: 38.08˚(Wide)~1.30˚(Tele) Min. Object Distance Wide 1.5m(4.92ft) ,Tele 2m(6.56ft) Focus Control Auto, One shot AF Lens Type DC auto iris Operational Camera Title Displayed up to 85 characters Direction Indicator Support Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control OFF/ LOW/ MID/ HIGH White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection Serial Interface RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) Alarm I/O Input 1ea / Output 2ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at Event Triggers
Alarm output
Handover(PTZ Preset)Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Network Ethernet RJ-45(10/100BASE-T), SFP(100BASE-FX) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device certificate(Hanwha Techwin Root CA)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 2 slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -10°C ~ +60C°(+14°F ~ +140°F)(MAX)
Less than 95% RH(Non-condensing)Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH(Non-condensing) Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE: Max 7.5W, Typical 4.5W
12VDC: Max 7.0W, Typical 4.0WMechanical Color / Material Dark grey / Aluminum Product Dimensions / Weight 96 x 76 x 143.5mm(3.78x2.99x5.65"), 578g (1.27 lb) DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft) Observe (63PPM/ 19PPF) Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft) Recognize (125PPM/ 38PPF) Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft) Identify (250PPM/ 76PPF) Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft)
-
