Network Cameras

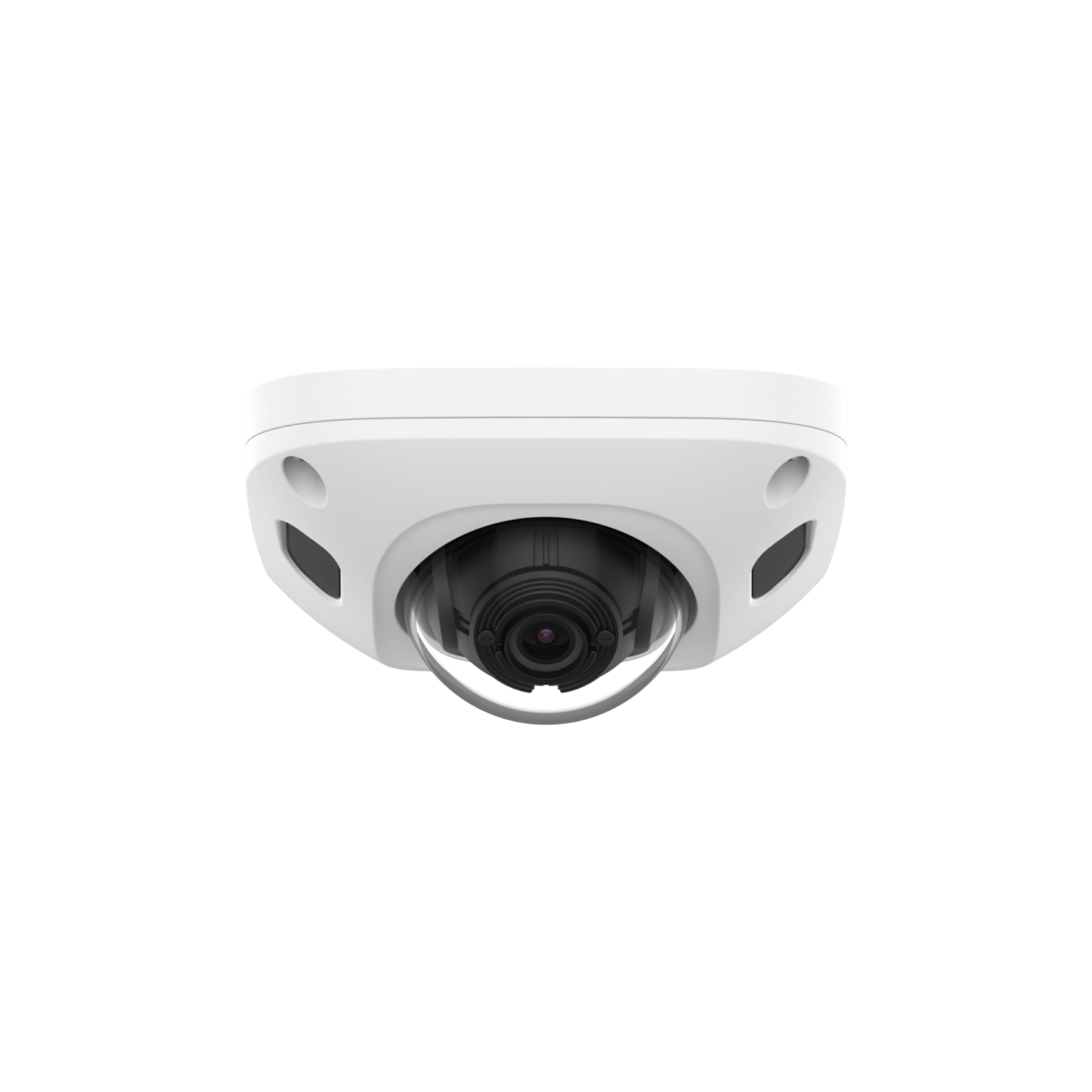

TNV-C8014RM

T AI 5MP IR Mobile Camera

Key Features

• Max. 5MP resolution
• 3.0 mm fixed lens
• Color: 0.03Lux(F1.6, 1/30sec), BW: 0.003Lux(F1.6, 1/30sec, 30IRE)
• Maximum 30fps@5MP (H.265/H.264)
• IR viewable length 30m (98.42ft)
• Hard-coated dome bubble,
• EIS, Shock detection, Heater, Built-in Mic
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU)
• EN50155 compliance
• IP66, IK10
• PoE: Max 7.2W, M12 connector

Contact Sales Datasheet

["camera","network"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Flat Camera

The smaller form factor minimizes visual obstructions, ensuring a clear field of view. It is specifically designed for non-instructive and efficient installation in vehicles, even in confined spaces or areas within limited headroom.

T Series AI Mobile Cameras Fixed Lens Expansion

Conventional Q/X series come in 4mm lens only. The new T series AI Mobile cameras offer a wider range of lens options, including 3mm and 6mm. This flexibility allows for greater customization, catering to diverse installation needs and ensuring optimal performance in various environments.

Quick Automatic Exposure Adjustments

When objects are positioned close to the camera, images are more likely to become saturated or unclear due to excessive light exposure. However, with the T series AI mobile cameras, the automatic IR (Infrared) feature ensures optimal performance in low light conditions. When IR is activated, the camera’s advanced AE(Automative Exposure) control system quickly adjusts the gain, preventing image saturation and maintaining clarity, even in challenging lighting environments.

IR Anti-Reflection Solution

In environments with low ceilings, such as buses or trains, debris can easily accumulate on the dome-bubble of the camera. This buildup can lead to IR reflection when the IR features is activated, resulting in distorted or unclear images. To prevent this issue and ensure high-quality image capture, the T series AI mobile cameras are equipped with the TNV IR positioned outside the dome-bubble. This innovated design eliminates the risk of IR reflection, providing a clearer, more accurate image in confined spaces.

Certificate

EMC, Environment

TNV-C8014RM/C8034RM meet multiple certifications for the railway environment. Certifications include EN50155, IEC/EN61373, EN45545 as well as Railway/Vehicle Application EN50121-4, EN50121-3-2, JIS E 5006, IEC62236-3-2, IEC62236-4, JIS E 4031, EN50498.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps(@5MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.03
BW(1/30sec, 30IRE)0.003
Video OutUSB: Micro USB Type B
Lens
Focal Length (mm)3.0
Max Aperture Ratio (F number)Wide1.6
Angular Field of ViewHorizontal100°
Vertical73°
Diagonal129°
Min. Object Distance0.5m(1.64ft)
Focus ControlFixed
Lens TypeFixed iris
Mount TypeM12
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan±5°
Tilt0°~67°
Rotate±90°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR, ClearHDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Green, Red, Blue, Black, White
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range1/5~1/25,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm TriggersAnalytics, Network disconnect, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSelectable(mic in/line in), Built-in mic
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR30m(98.42ft)
IR Wavelength850nm
Analytics
Classified Object TypePerson, Vehicle
AttributesPersonUpper/Lower clothes color
VehicleType(car, bus, truck, motorcycle, bicycle), Color
ThumbnailBestShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
NormalDefocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear)
Business IntelligenceBased on AI EnginePeople counting, Queue management, Heatmap, Vehicle counting
Network
EthernetM12
Video CompressionH.265/H.264: Main/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart CodecManual, WiseStreamⅢ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 5 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming InterfaceONVIFS, G, T, M
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM2GB
Flash1GB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~100% RH(condensing)
OthersStart up should be done at above -30°C, Humidity control with AIR vent
Storage ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~95% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 7.2W, typical 4.2W
Mechanical
ColorWhite
MaterialAluminum, Hard-coated dome
RAL CodeRAL9003
Product Dimensions106x105x55mm(4.17x.4.13x2.17")
Product Weight466g(1.03 Ib)
Certifications & Standards
EMCEN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, EN 50121-3-2
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, EN 50155, IEC 62236-4, EN 50121-4, JIS E 4031, EN 50498, IEC/EN 61373, EN 45545, JIS E 5006, IEC 62236-3-2
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide43.5m(142.71ft)
Observe (63PPM/ 19PPF)Wide17.5m(57.09ft)
Recognize (125PPM/ 38PPF)Wide8.7m(28.54ft)
Identify (250PPM/ 76PPF)Wide4.3m(14.27ft)
