TNS-7000M
3MP Mono BCR Camera
3MP
Image Resolution
Modular
Structure
50fps
Max. Framerate
IP67, IP66, IK10
Rated
Key Features
- Barcode recognition, WiseBCR based on AI engine
- 1D Code, 2D Code are available
※ Lenses, LED modules, front cover, Ethernet/Power cables and brackets are sold separately as accessories
※ Product availability may vary by region, please contact your regional representative.

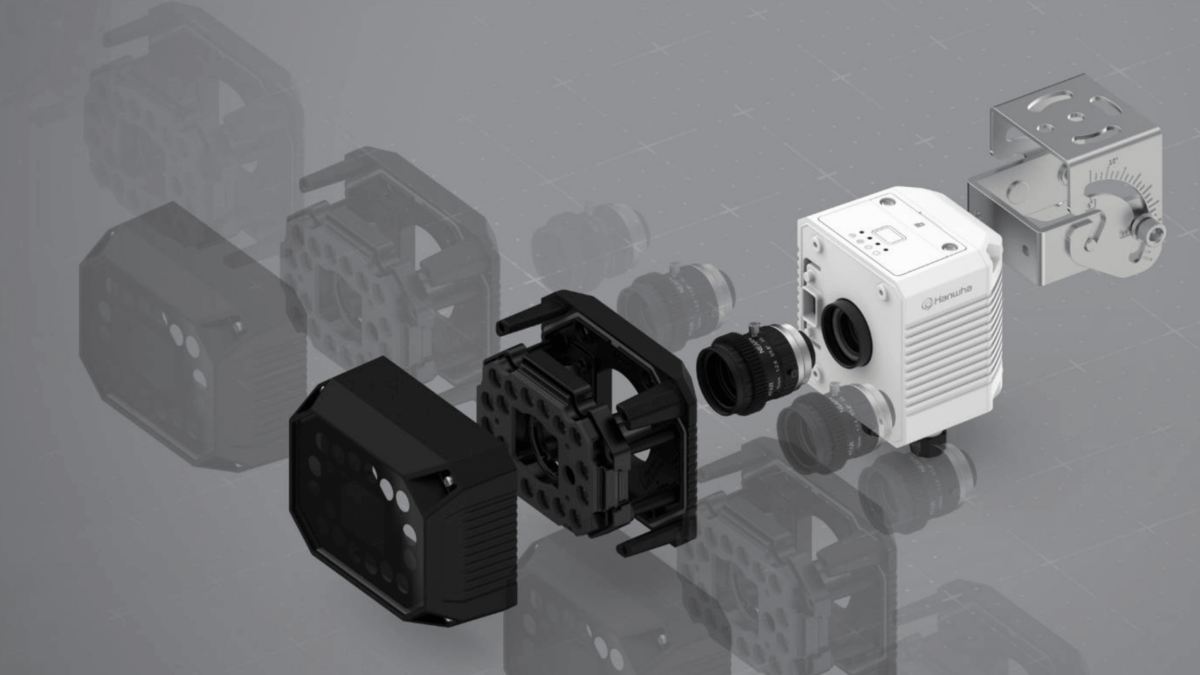

Flexible Modular Design
The 3MP mono BCR camera features a modular design for flexible combinations of lenses (6mm–25mm), LEDs, and covers. This allows for a tailored solution optimized for various viewing angles and installation environments.

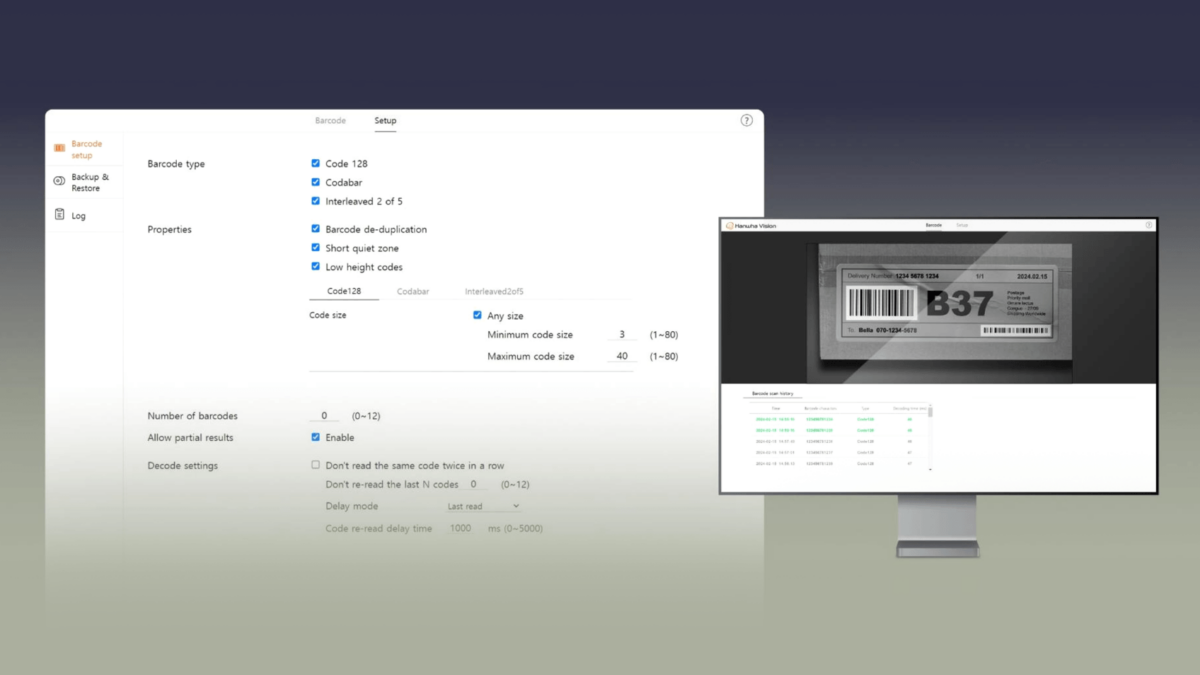

Streamlined Barcode Management
Pre-installed WiseBCR enables real-time barcode tracking and history review directly on the camera. This open-platform edge solution eliminates additional PC software, ensuring fast and cost-effective logistics management.

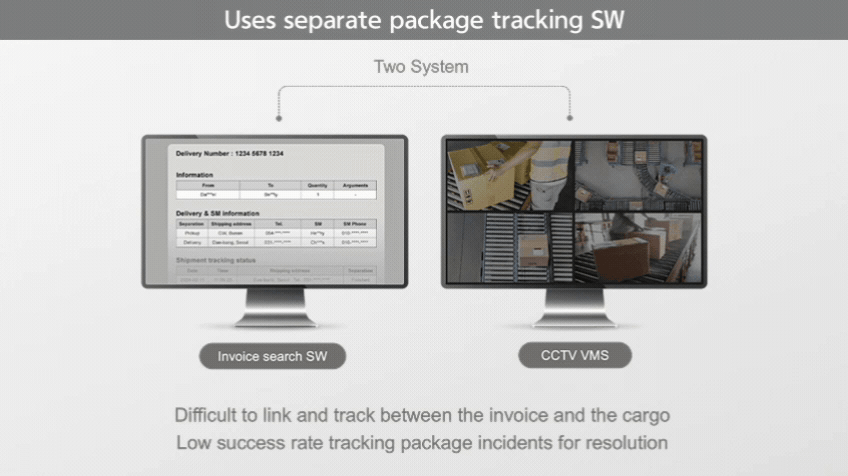

Single Source of Truth for Claims
This system automatically matches CCTV footage with barcode data, providing a single source of verifiable evidence. It enables quick searching and real-time tracking of lost or damaged parcels, significantly boosting service efficiency.
Specifications
Downloads
View Selection
Accessories
SBO-BPM0
BCR Camera Bracket
SLM-5M06
BCR Camera 6mm Lens
SLM-5M08
BCR Camera 8mm Lens
SLM-5M12
BCR Camera 12mm Lens
SLM-5M16
BCR Camera 16mm Lens
SLM-5M25
BCR Camera 25mm Lens
SPF-BCB0
BCR Camera Clear Fiter Cover
SPF-BDB0
BCR Camera Diffusion Filter Cover
SPF-BPB0
BCR Camera Polarized Filter Cover
SPI-BWN0
BCR Camera LED module
SPI-BWM0
BCR Camera LED module
SPI-BWM1
BCR Camera LED module
SPI-BWW0
BCR Camera LED module
SPI-BBN0
BCR Camera LED module
SPI-BBM0
BCR Camera LED module
SPI-BBM1
BCR Camera LED module
SPI-BBW0
BCR Camera LED module
SPI-BRM0
BCR Camera LED module
SPI-BRM1
BCR Camera LED module
SPI-BRN0
BCR Camera LED module
SPI-BRW0
BCR Camera LED module
SPP-C08020E
M12-RJ45 Ethernet cable 2M (6.6ft)
SPP-C08050E
M12-RJ45 Ethernet cable 5M (16.4ft)
SPP-C08100E
M12-RJ45 Ethernet cable 10M (32.8ft)
SPP-C12020P
M12 Power cable 2M (6.6ft)
SPP-C12050P
M12 Power cable 5M (16.4ft)
SPP-C12100P
M12 Power cable 10M (32.8ft)
