Bullet

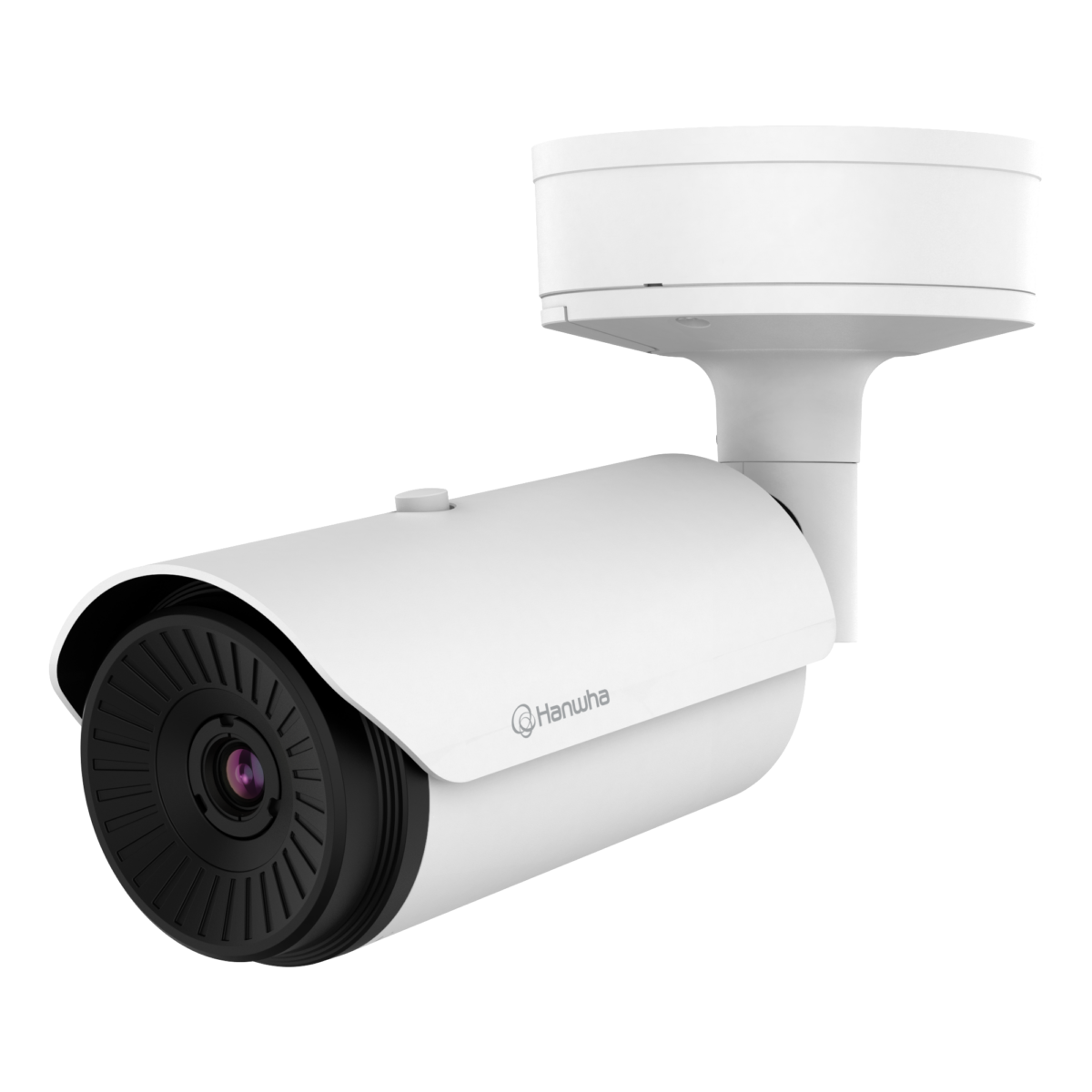

TNO-L3030T

QVGA Thermal Camera

Key Features

• Maximum 320 x 240 resolution support
• Built-in 13.7mm fixed lens
• H.265, H.264, MJPEG codec
• Maximum 8fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Temperature detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10

Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Detect people and objects 24/7 with
thermal cameras

In challenging weather conditions such as fog, smoke, or rain, or in low-light conditions, it can be difficult to distinguish people or objects using a visible camera or the human eye. TNO-L3030T employs advanced thermal imaging technology to provide high contrast images based on temperature differences between the object and its surroundings. This enables users to clearly detect objects 24/7 with ease.

Multiple color palettes

TNO-L3040T cameras provide seven different color palette for optimal image selection in diverse environments. Each palette has a specific set of colors which changes according to the temperature range of the scene.

Product Specification

Video
Imaging DeviceTypeUncooled micro bolometer (320x240)
Resolution320x240
Max. FramerateH.265/H.2648fps
MJPEG8fps
Spectral Range8~14㎛
NETD<60mK
Pixel Size12㎛
Video OutUSB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focal Length (mm)13.7
Max Aperture Ratio (F number)Wide1.0
Angular Field of ViewHorizontal16°
Vertical12°
Diagonal20°
iFoV0.87 mRad
Min. Object Distance8m(26.25ft)
Focus ControlFixed
Operational
Digital Image StabilizationSupport(built-in gyro sensor)
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionBlack, Red, Mosaic, Green, Blue, Gray, White
Video RotationMirror, Flip, Hallway view(90°/270°) - Each channel separately
Alarm InterfaceIn/OutInput 1ea, Output 2ea
Alarm TriggersAlarm input, Network disconnect, Analytics
Alarm Events When Alarm Trigger OccurredHandover: PTZ preset, Alarm output, Notification: e-mail, File upload(image): e-mail/FTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers
Audio InSelectable(mic in/line in)
Audio OutLine out
Color PallettesRed, Sepia, Custom, Rainbow, Blackhot, Rainbow2, Iron, Whitehot
Analytics
Analytics EventsNormalSound classification, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Motion detection, Shock detection, Temperature change detection, Virtual line(Crossing, Direction) , Audio detection
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolSNMPv1/v2c/v3(MIB-2), RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationSRTP, WSS(WebSocket Secure), HTTPS
Access ControlIP-based access control
Data ProtectEncryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-40°C~+60°C(-40°F~+140°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC, 24VAC
Power ConsumptionPoEMax. 8.7W, typical 7.5W
12VDCMax. 7.8W, typical 6.7W
24VACMax. 9.2W, typical 8.0W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø147.51x375.3mm(5.81x14.78")
Product Weight2512g(5.538lb)
Certifications & Standards
EnvironmentIEC 62262 IK10, IEC 60529 IP66, NEMA 250 type 4X
