Analog Cameras Discontinued

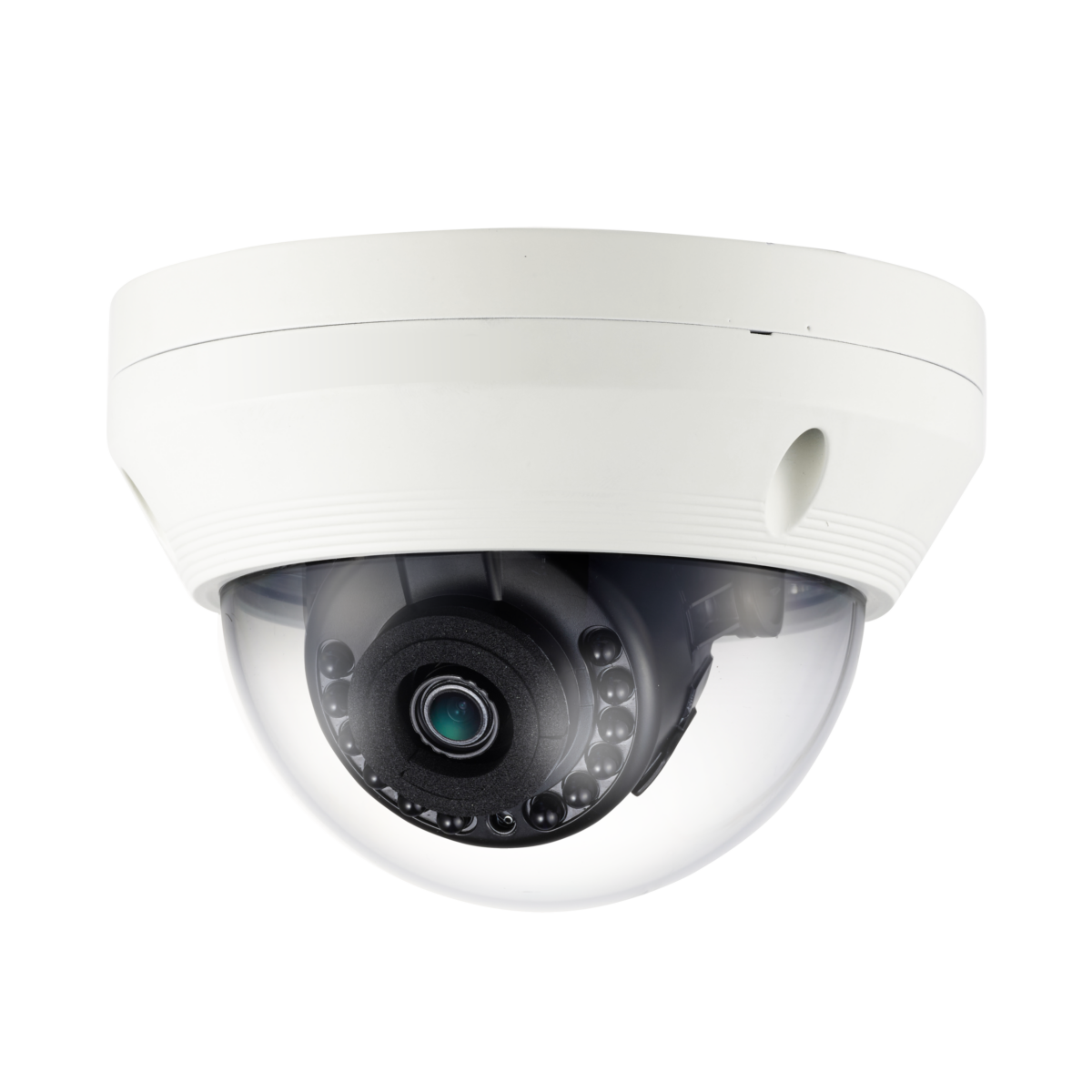

SCV-6023R

1080p IR Vandal Camera

Key Features
• Full HD (1,920 x 1,080 30fps) resolution
• 0.25Lux@F2.1 (Color), 0Lux@F2.1 (B/W : IR LED on)
• Built-in 4mm fixed lens
• Day & Night (ICR), DWDR, SSNRIV, Motion detection
• IR viewable length 20m, IP66, IK10
• Transmission distance max. 500m
• Easy installation (Plug & play)
  • Product availability may vary by region.
    Please contact your regional representative.
  • Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/3" 2MP CMOS
Resolution 1920x1080
Max. Framerate 30fps
Min. Illumination Color: 0.25Lux(F2.1)
BW: 0.0Lux(IR LED on)
Video Out BNC(AHD / CVBS selectable)
Video Transmission Distance 500m(75-5 coaxial cable)
Lens
Focal Length (Zoom Ratio) 4mm fixed focal
Max. Aperture Ratio F2.1
Angular Field of View H: 80.7° / V: 43.5° / D: 95.8°
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 4ea, rectangular zones
Gain Control Low / Midel / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-Rev / V-Rev
Analytics Motion detection
IR Viewable Length 20m(65.62ft)
Coaxial Protocol ACP(AHD Coax Protocol)
CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -10°C (+14°F)
Certification IP66, IK10, Safety(UL), EMC(FCC, CE)
Input Voltage 12VDC
Power Consumption Max 4.2W
Mechanical
Color / Material Ivory / Aluminum
