SCD-6023R

Discontinued

Copy a URL
Copy

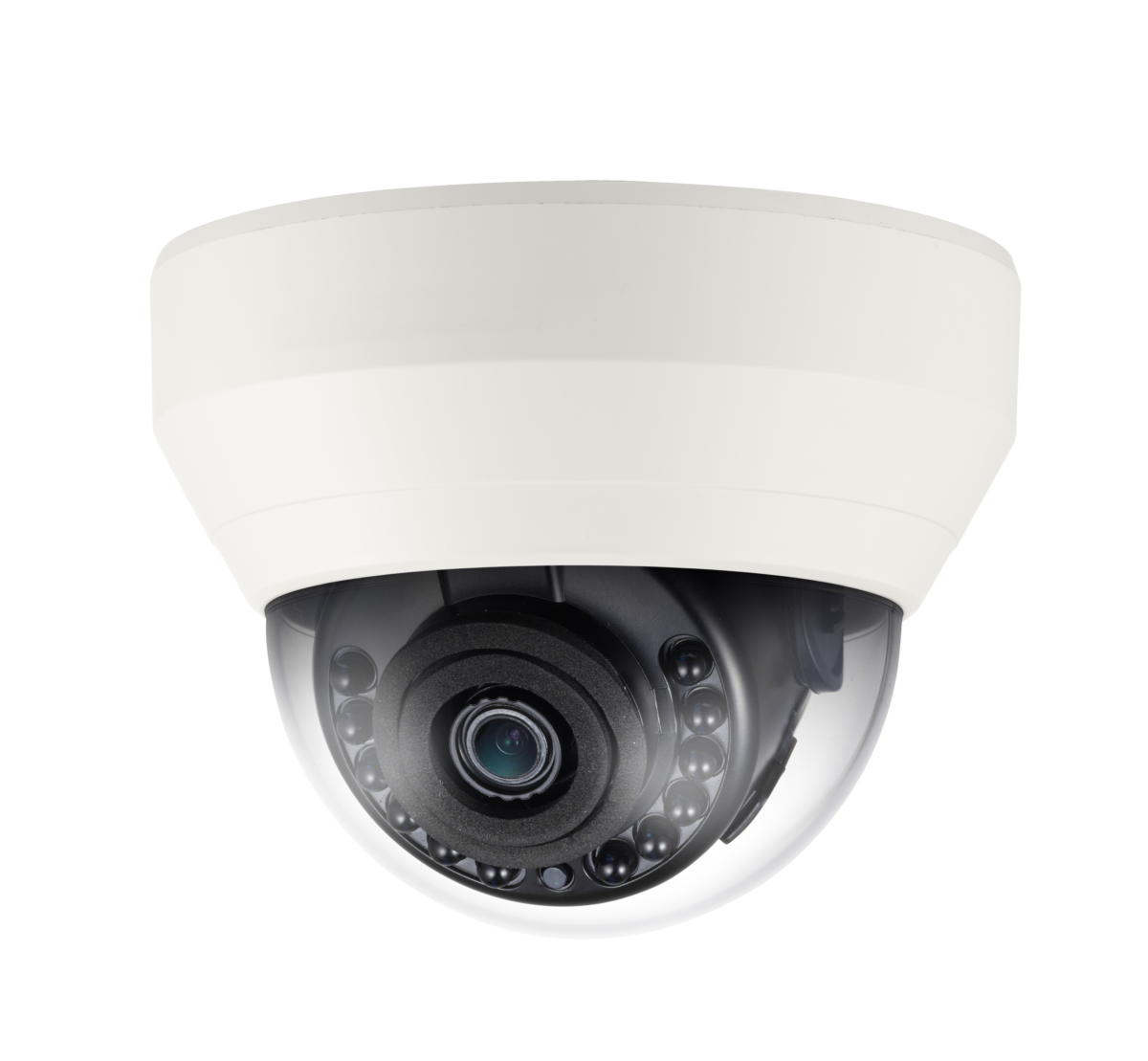

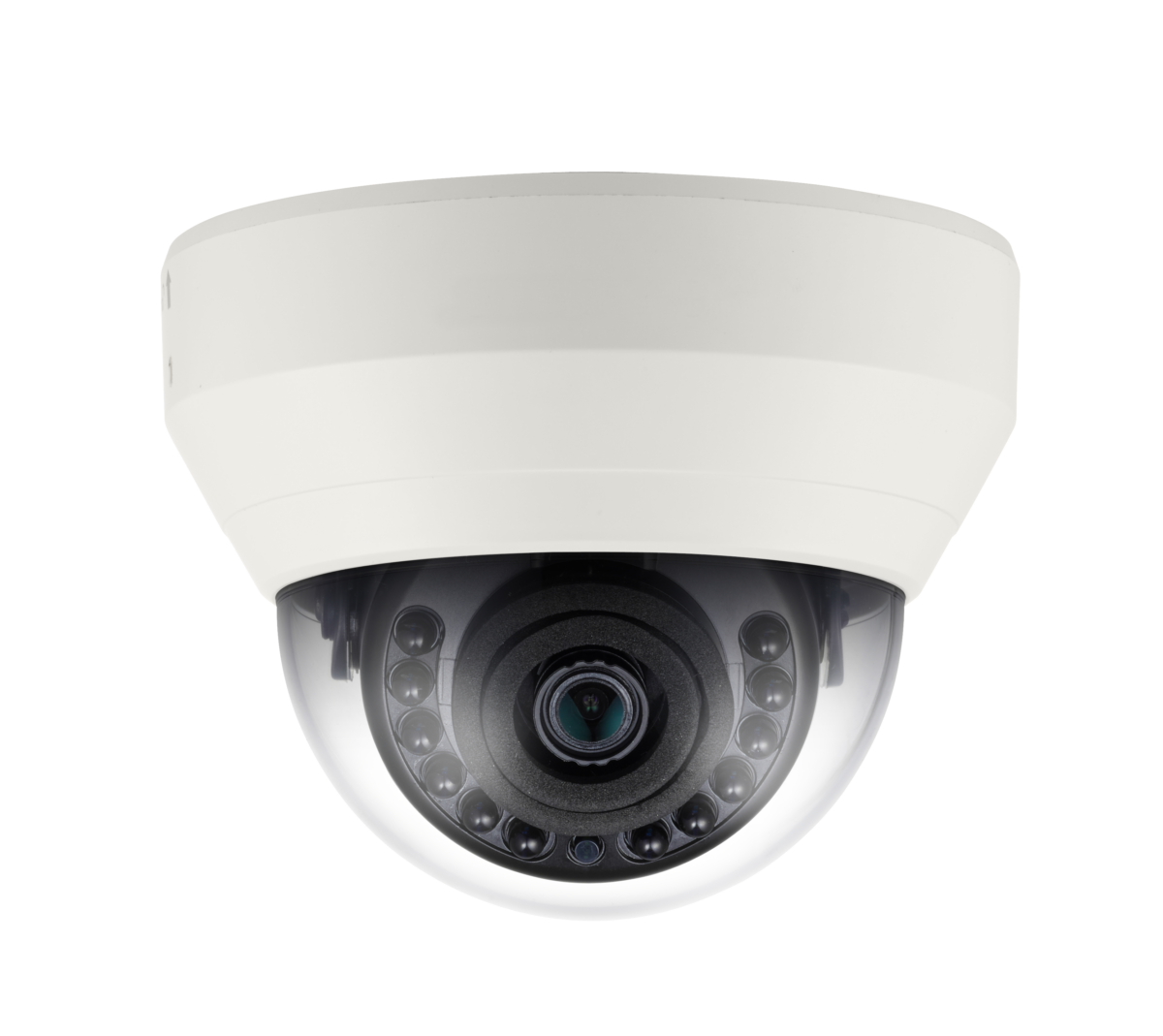

1080p Analog HD IR Dome Camera

Key Features
• Full HD (1,920 x 1,080 30fps) resolution
• 0.25Lux@F2.1 (Color), 0Lux@F2.1 (B/W : IR LED on)
• Built-in 4mm fixed lens
• Day & Night (ICR), DWDR, SSNRIV, Motion detection
• IR viewable length 20m
• Transmission distance max. 500m
• Easy installation (Plug & play)

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Mouse over image to zoom

Discontinued

Copy a URL
Copy

SCD-6023R

1080p Analog HD IR Dome Camera

Key Features

• Full HD (1,920 x 1,080 30fps) resolution
• 0.25Lux@F2.1 (Color), 0Lux@F2.1 (B/W : IR LED on)
• Built-in 4mm fixed lens
• Day & Night (ICR), DWDR, SSNRIV, Motion detection
• IR viewable length 20m
• Transmission distance max. 500m
• Easy installation (Plug & play)

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Environmental & Electrical
  • Mechanical
  • Video
    Imaging Device 1/3" 2MP CMOS
    Resolution 1920x1080
    Max. Framerate 30fps
    Min. Illumination Color: 0.25Lux(F2.1)
    BW: 0.0Lux(IR LED on)
    Video Out BNC(AHD / CVBS selectable)
    Video Transmission Distance 500m(75-5 coaxial cable)
    Lens
    Focal Length (Zoom Ratio) 4mm fixed focal
    Max. Aperture Ratio F2.1
    Angular Field of View H: 80.7° / V: 43.5° / D: 95.8°
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Manual
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
    Operational
    Camera Title Displayed up to 15 characters
    Day & Night Auto(ICR)
    Backlight Compensation UserBLC, HLC, DWDR
    Digital Noise Reduction SSNRⅣ
    Defog Support
    Motion Detection 4ea
    Privacy Masking 4ea, rectangular zones
    Gain Control Low / Midel / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    Electronic Shutter Speed 1 ~ 1/12,000sec
    Video Rotation H-Rev / V-Rev
    Analytics Motion detection
    IR Viewable Length 20m(65.62ft)
    Coaxial Protocol ACP(AHD Coax Protocol)
    CVBS: Pelco-C(Coaxitron)
    Environmental & Electrical
    Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
    *Start up should be done at above -10°C (+14°F)
    Certification Safety(UL), EMC(FCC, CE)
    Input Voltage 12VDC
    Power Consumption Max 4.2W
    Mechanical
    Color / Material Ivory / Plastic
