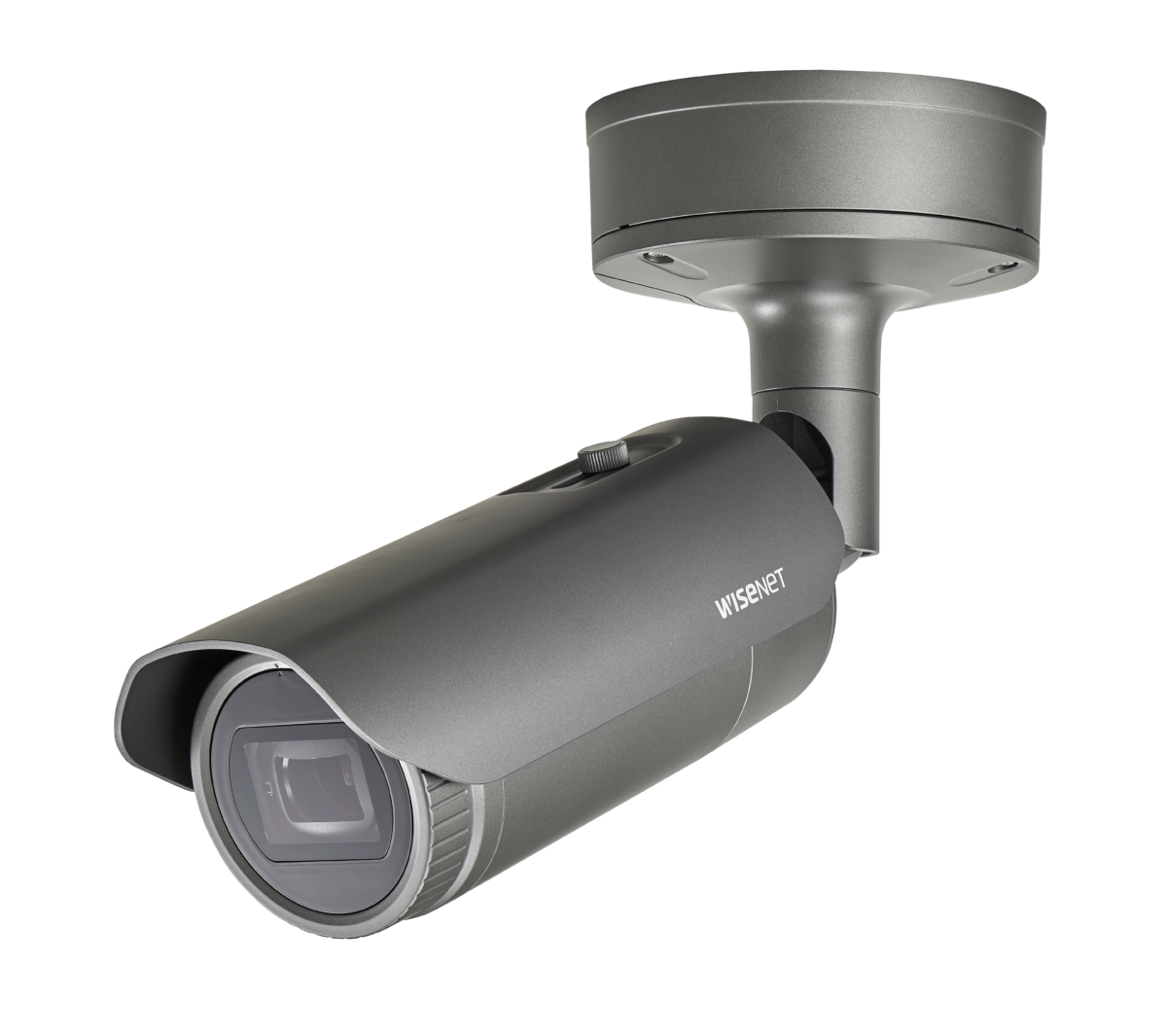

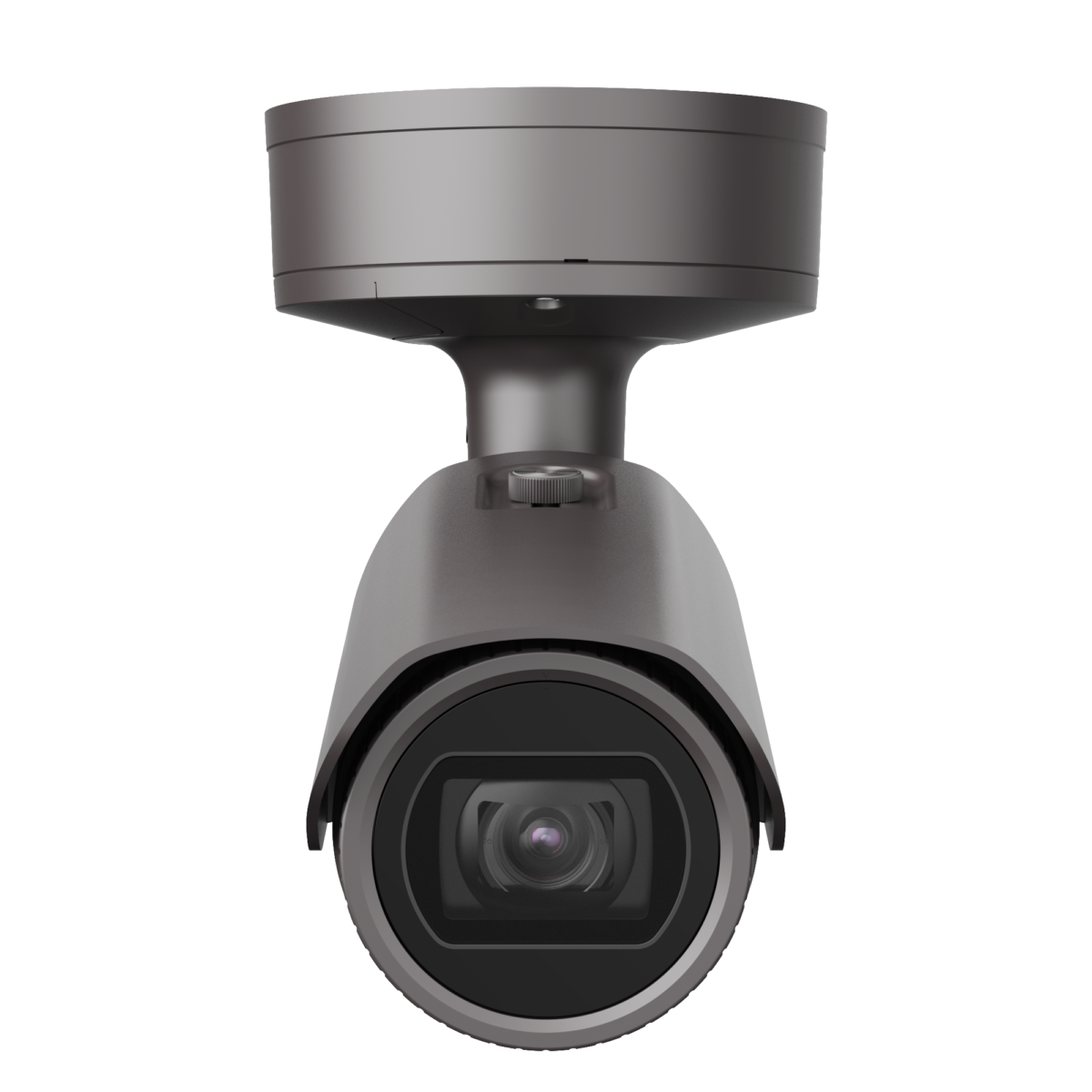

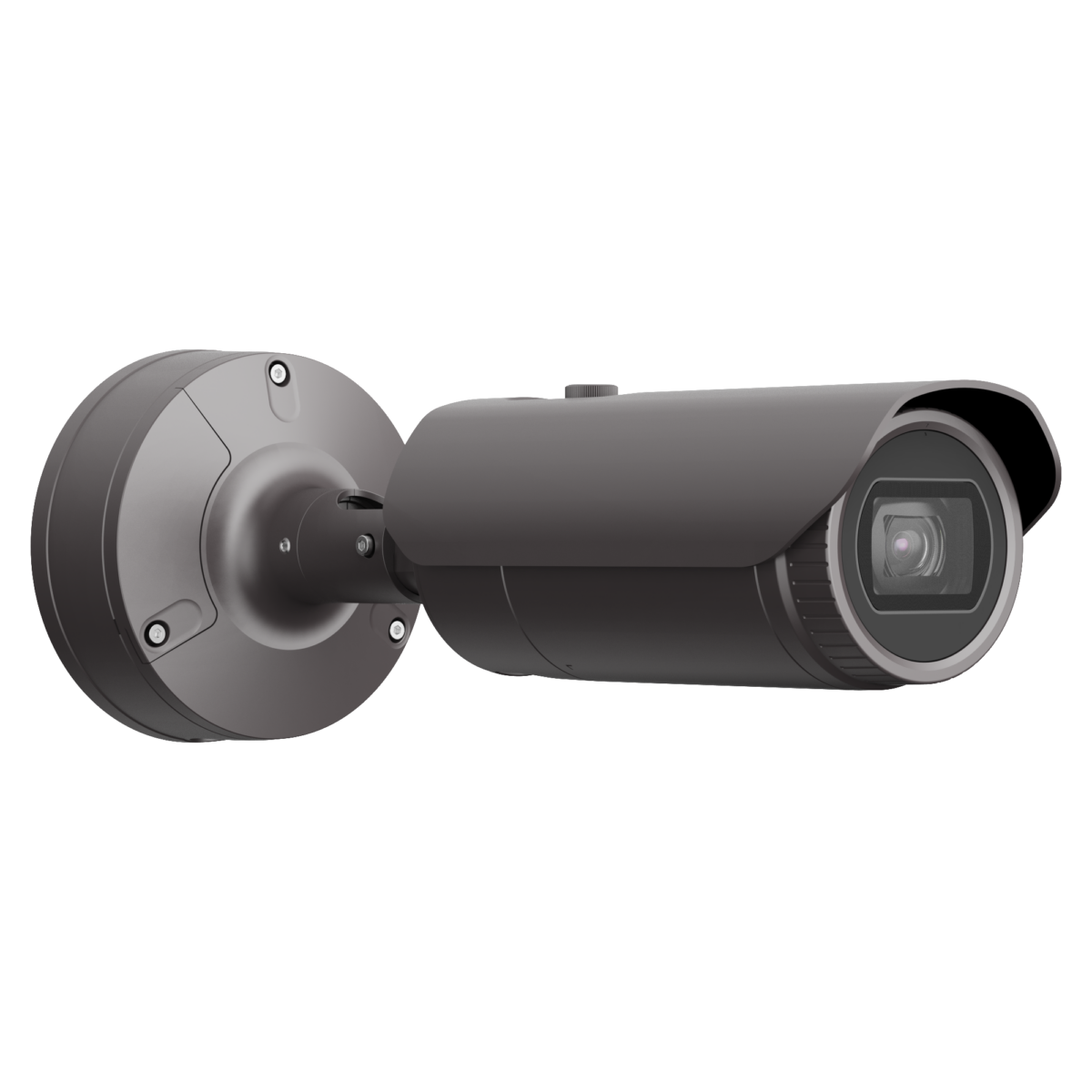

XNO-6085R

2M H.265 IR Camera (extraLUX)

Key Features

• 4.1 ~ 16.4mm (4x) motorized varifocal lens
• 0.004 Lux@F0.94 (Color), 0.0004 Lux@F0.94 (B/W)
• Day & Night (ICR), WDR (150dB), Defog
• Digital image stabilization with built-in Gyro sensor
• Loitering, Directional, Fog detection, Audio detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, Handover
• Memory slot (Max. 512GB), Hallway view, WiseStreamII
• IR distance 70m, IP67/IP66, NEMA 4X, IK10, LDC, PoE , 24V AC

Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Thông số sản phẩm

Video
Imaging DeviceSize1/2"
TypeCMOS
Resolution320x240, 1280x1024, 720x480, 1280x960, 720x576, 1920x1080, 640x360, 640x480, 1024x768, 800x448, 800x600, 1280x720
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.004
BW(1/30sec, 30IRE)0.0004
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
Lens
Focal Length (mm)4.1~16.4
Zoom RatioOptical4x
Max Aperture Ratio (F number)Wide0.94
Tele2.4
Angular Field of ViewHorizontal100.0°~26.2°
Vertical54°~14.8°
Diagonal116.0°~30.0°
Min. Object Distance0.7m(2.30ft)
Focus ControlManual, Simple focus
Lens TypeDC auto iris
Operational
Day & NightAuto(ICR)
Backlight CompensationWDR, HLC, SSDR, BLC
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionGray, Mosaic, Black, White, Green, Red, Blue
Gain ControlHigh, Low, Middle
White BalanceIndoor, ATW, Manual, AWC, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range2~1/12,000sec
Digital PTZSupport
Video RotationMirror, Flip, Hallway view(90°/270°)
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Alarm input, Network disconnect
Alarm Events When Alarm Trigger OccurredNotification: e-mail, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, File upload(image): e-mail/FTP, Alarm output, Recording: SD/SDHC/SDXC or NAS recording at event triggers
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR70m(229.66ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalSound classification, Tampering, Motion detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Digital auto tracking, Virtual line(Crossing, Direction) , Fog detection, Face detection, Audio detection
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionAAC-LC: 48Kbps at 16KHz, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolARP, DHCP, RTCP, IPv6, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast), PIM-SM, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP)
Application Programming InterfaceONVIFT, S, G
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectSecure boot, Encrypted firmware, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~90% RH(non-condensing)
OthersStart up should be done at above -35°C
Storage ConditionTemperature-40°C~+60°C(-40°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage24VAC, PoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax. 12.95W
12VDCMax. 11.5W
24VACMax. 14.5W
Mechanical
ColorDark grey
MaterialAluminum
Product Dimensionsø91x388.6mm(3.85x15.3")
Product Weight2,350g(5.18lb)
Certifications & Standards
EnvironmentIEC 60529 IP66, NEMA 250 type 4X, IEC 60529 IP67, IEC 62262 IK10
