QND-8021

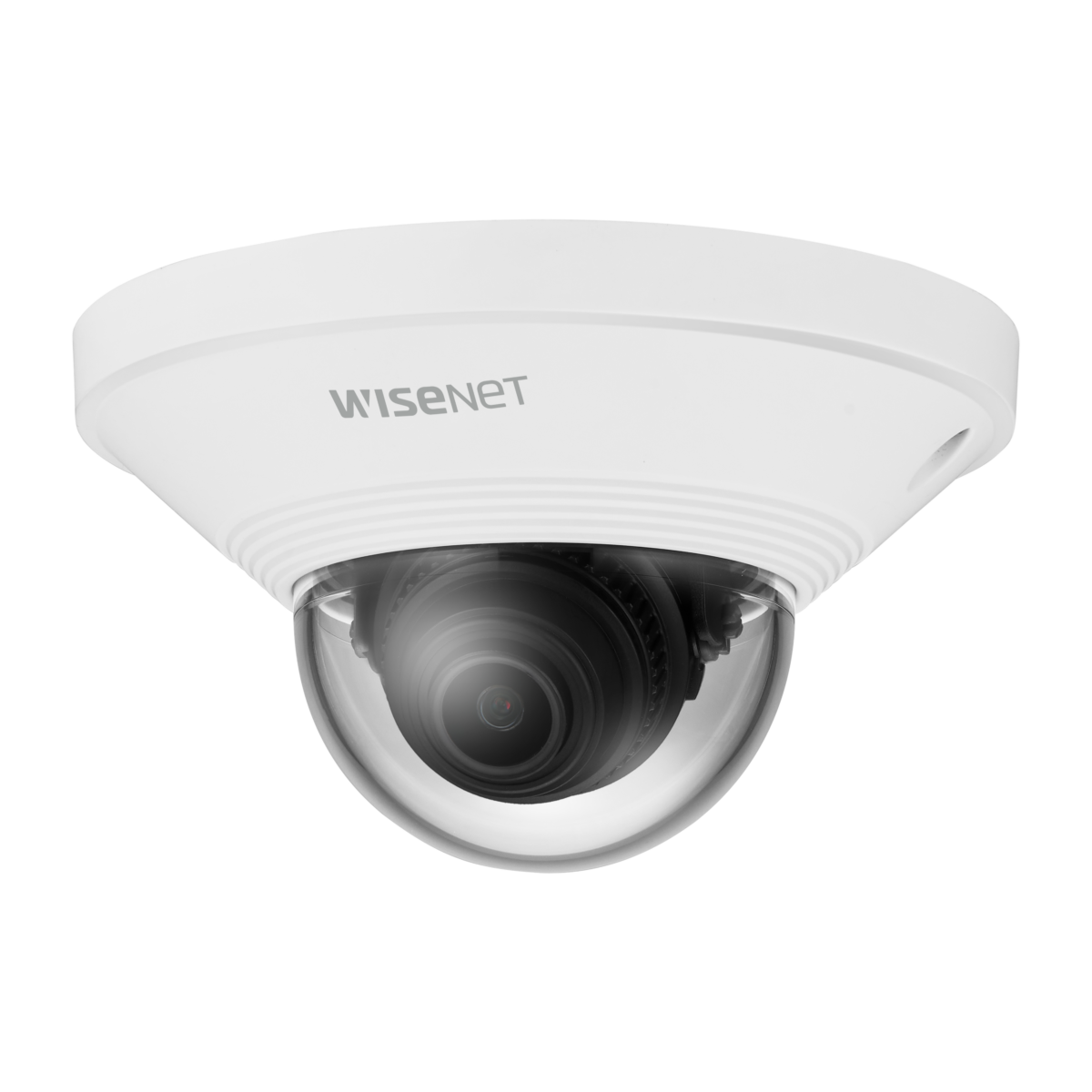

5M H.265 Dome Camera(Q mini)
Key Features
• Max. 5Megapixel (2592 x 1944) resolution
• 4mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE
• 4mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
QND-8021
5M H.265 Dome Camera(Q mini)
Key Features
• Max. 5Megapixel (2592 x 1944) resolution
• 4mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
QND-8021
Super-compact design fits everywhere
Wisenet Q mini line-up is designed as 99mm(3.9in) super-compact sized, about 40% smaller than its predecessor. Thanks to this feature, Wisenet Q mini series perfectly blends into any environment while facilitating an effortless installation anywhere.
Business intelligence for smarter retail
Q mini cameras have a business intelligence feature such as people counting that offers retailers to help them run their stores more effectively. By integrating the cameras with ‘Retail Insight’ software, users can analyze data collected from multiple stores and gain insight for successful store operation and resource investment.
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- Security
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" CMOS Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(@5MP Max. 2fps)Min. Illumination Color: 0.15Lux(F1.6, 1/30sec, 30IRE)
BW: 0.15Lux(F1.6, 1/30sec, 30IRE)Video Out micro HDMI: 1080p@30/25fps(60/50Hz) Lens Focal Length (Zoom Ratio) 4.0mm fixed focal Max. Aperture Ratio F1.6 Angular Field of View H: 81°/ V: 58°/ D: 106° Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~69˚ / 0˚~355˚ Operational Camera Title Displayed up to 85 characters Day & Night Auto(Electrical) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Motion detection, Tampering Business Intelligence People counting Alarm Triggers Analytics, Network disconnect Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Handover: PTZ presetNetwork Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Smart Codec WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformSecurity OS / Firmware Protect Firmware encryption User authentication Digest Authentication, Prevent brute-force attack Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication HTTPS, SRTP, WSS(Websocket secure) Access Control Access control based on IP address Data Protect Authentication information encryption, ZIP compression encryption Audit User Access/System/Event log management Device ID Device Certificate(Hanwha Private Root CA) Secure Storage SDcard partition encrypt General Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Memory 512MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -10°C~+40°C(+14°F~+104°F) / 0~90% RH(non-condensing) Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~90% RH Certification IP42, IK08 Input Voltage PoE(IEEE802.3af, Class2) Power Consumption PoE: Max 5.00W, typical 4.00W Mechanical Color / Material White / Plastic RAL Code RAL9003 Product Dimensions / Weight ø99.0x56.0mm(ø3.9x2.2"), 165g(0.36 lb) Hanging Mount (Dome) SBP-099HMW DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) 61.7m(202.31ft) Observe (63PPM/ 19PPF) 24.7m(80.92ft) Recognize (125PPM/ 38PPF) 12.3m(40.46ft) Identify (250PPM/ 76PPF) 6.2m(20.23ft) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
