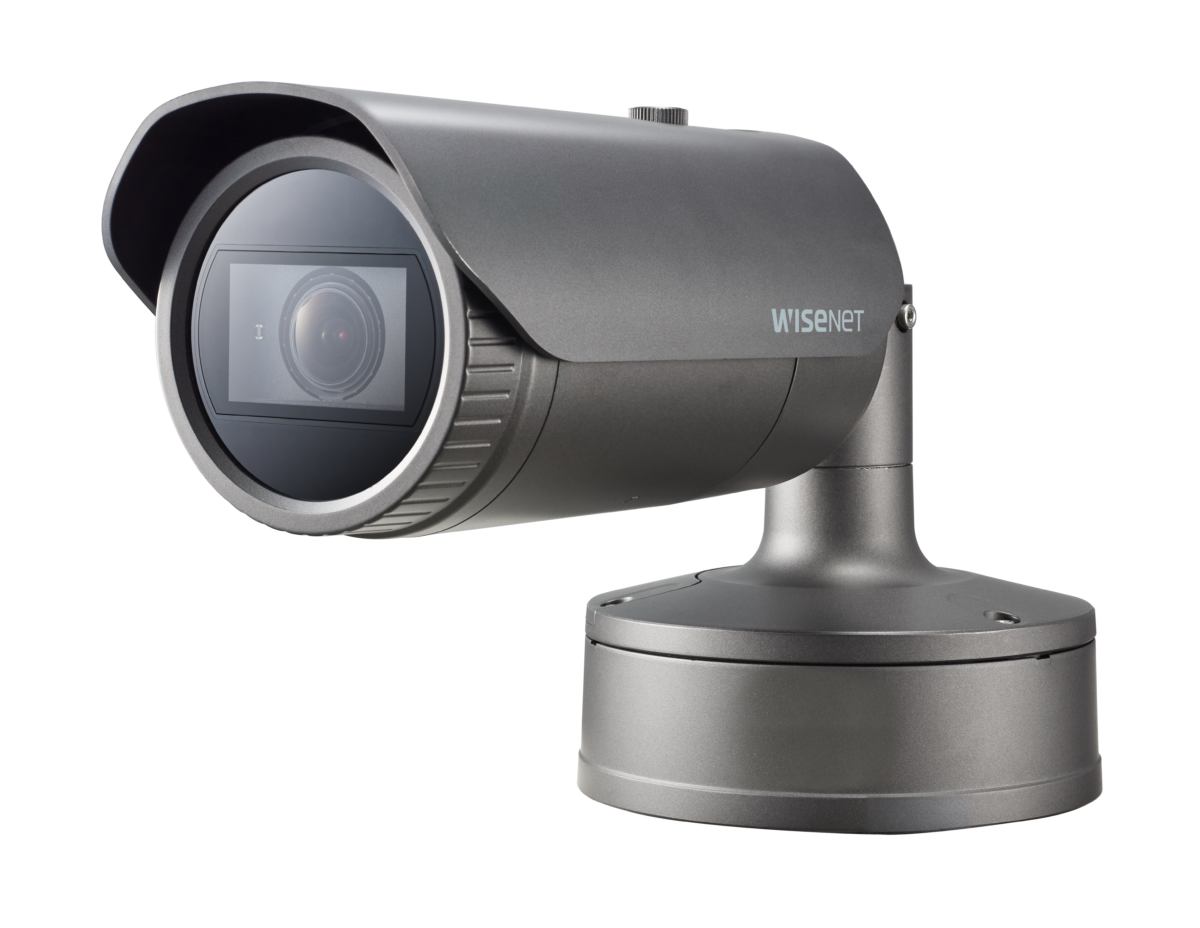

XNO-9082R

4K IR Bullet Camera

Key Features
• 4K resolution
• 2.8~8.4mm(3x) motorized varifocal
• 0.05Lux@F1.2 (Color), 0Lux (B/W, IR LED on)
• Max.30fps@4K (H.265/H.264)
• IR viewable length 40m
• Day & Night (ICR), extreme WDR (120dB)
• DIS with built-in Gyro sensor
• Video Analytics(Defocus, Directional detection, Audio detection, Shock detection, Face/Upper body detection)
• Dual SD slots (Max. 1TB)
• PoE support
• IP66/IP67, IK10, NEMA4X
Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview











Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps(@8MP Max. 5fps)
Min. Illumination Color: 0.05Lux(F1.2, 1/30sec, 30IRE)
BW: 0.005Lux(F1.2, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~8.4mm(3x) motorized varifocal
Max. Aperture Ratio F1.2(Wide)~F2.8(Tele)
Angular Field of View H: 114°(Wide)~40°(Tele)
V: 62°(Wide)~22°(Tele)
D: 133°(Wide)~46°(Tele)
Min. Object Distance 0.7m(2.23ft)
Focus Control Simple focus
Lens Type DC Auto Iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / 0°~100° / 0°~360°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
Gain Control Off / Max gain / Manual
White Balance ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDC Support(Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker(2~1/12,000sec)
Prefer shutter control
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Analytics events
- Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP/SFTP
- File upload(video clip): FTP/SFTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
IR Viewable Length WiseIR 40m(131.23ft)
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Hanwha Vision open platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage HTPM(Hanwha trusted platform module), SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
Edge Storage(OnCloud) Micro SD/SDHC/SDXC 2slot Max. 2TB(1TBx2)
* Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~95% RH(non-condensing)
* Start up should be done at above -30°C
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Certification IP66/IP67, NEMA4X, IK10
Input Voltage PoE(IEEE802.3af, class3), 12VDC, 24VAC
Power Consumption PoE: Max 12.95W, typical 10.5W
12VDC: Max 12.5W, typical 9.4W
24VAC: Max 14.5W, typical 11.2W
Power redundancy failover
Mechanical
Color / Material Dark grey / Aluminum
Hard-coated window
Product Dimensions / Weight ø91x368.6mm(ø3.85x14.51"), 2200g(4.85 lb)
Compatible Conduit hole / Gangbox 19.1mm(3/4")(M25)
single, double, 4" octagon, 4" square
Backbox Included
Pole Mount SBP-302PM
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 60950-1, CAN/CSA C22.2 NO. 60950-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 49.9m(163.63ft) / Tele: 211.0m(692.28ft)
Observe (63PPM/ 19PPF) Wide: 19.9m(65.45ft) / Tele: 84.4m(276.91ft)
Recognize (125PPM/ 38PPF) Wide: 10.0m(32.73ft) / Tele: 42.2m(138.46ft)
Identify (250PPM/ 76PPF) Wide: 5.0m(16.36ft) / Tele: 21.1m(69.23ft)
