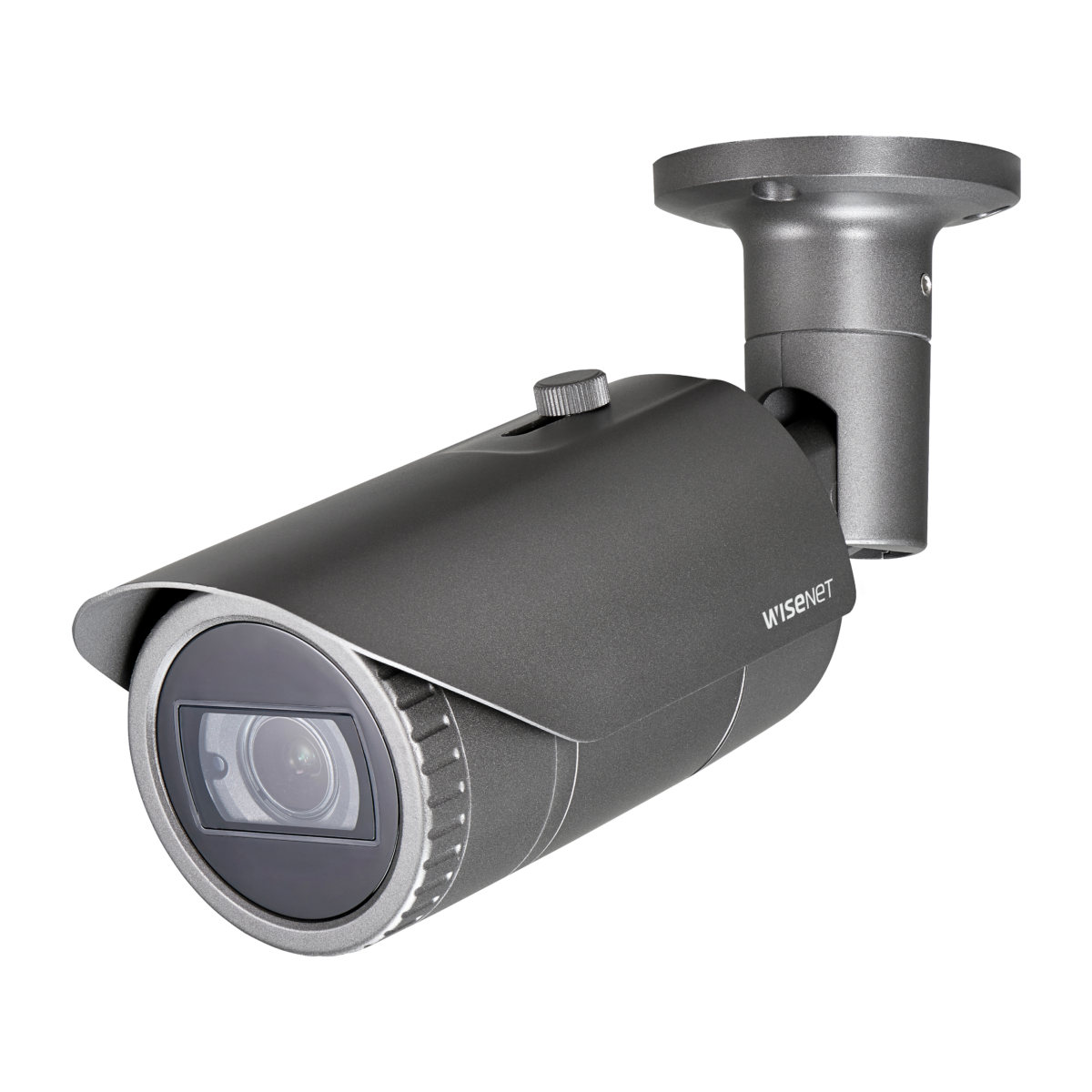

QNO-6082R
2M H.265 IR Bullet Camera
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 30m
• IP66, IK10, PoE/12VDC
• 0.03lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 30m
• IP66, IK10, PoE/12VDC
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
QNO-6082R
2M H.265 IR Bullet Camera
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 30m
• IP66, IK10, PoE/12VDC
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- Security
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" CMOS Resolution 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps (@2MP Max. 4fps)Min. Illumination Color: 0.03Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Lens Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal Max. Aperture Ratio F1.6(Wide)~F2.9(Tele) Angular Field of View H: 109°(Wide)~33°(Tele) / V: 58°(Wide)~18°(Tele) / D: 132°(Wide)~38°(Tele) Min. Object Distance 0.5m (1.64ft) Focus Control Simple focus Lens Type DC auto iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~360° / 0°~100° / 0°~360° Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90˚/270˚) Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover(PTZ preset)Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmLight Type IR LED (850nm) Light Viewable Length 30m(98.42ft) Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40KbpsSmart Codec WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformSecurity OS / Firmware Protect Firmware encryption User authentication Digest Authentication, Prevent brute-force attack Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication HTTPS, SRTP, WSS(Websocket secure) Access Control Access control based on IP address Data Protect Authentication information encryption, ZIP compression encryption Audit User Access/System/Event log management Device ID Device Certificate(Hanwha Private Root CA) Secure Storage SDcard partition encrypt General Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Memory 512MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C~+55°C(-22°F ~ +131°F) / 0~90% RH
* Start up should be done at above -20°CStorage Temperature / Humidity -30°C~+60°C(-22°F ~ +140°F) / 0~90% RH Certification IP66, IK10 Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE: Max 7.40W, typical 5.40W
12VDC: Max 6.50W, typical 4.80WMechanical Color / Material Dark grey / Aluminum Product Dimensions / Weight ø78.0x259.8mm(ø3.07x10.23"), 900g(1.98 lb) DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft) Observe (63PPM/ 19PPF) Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft) Recognize (125PPM/ 38PPF) Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft) Identify (250PPM/ 76PPF) Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
