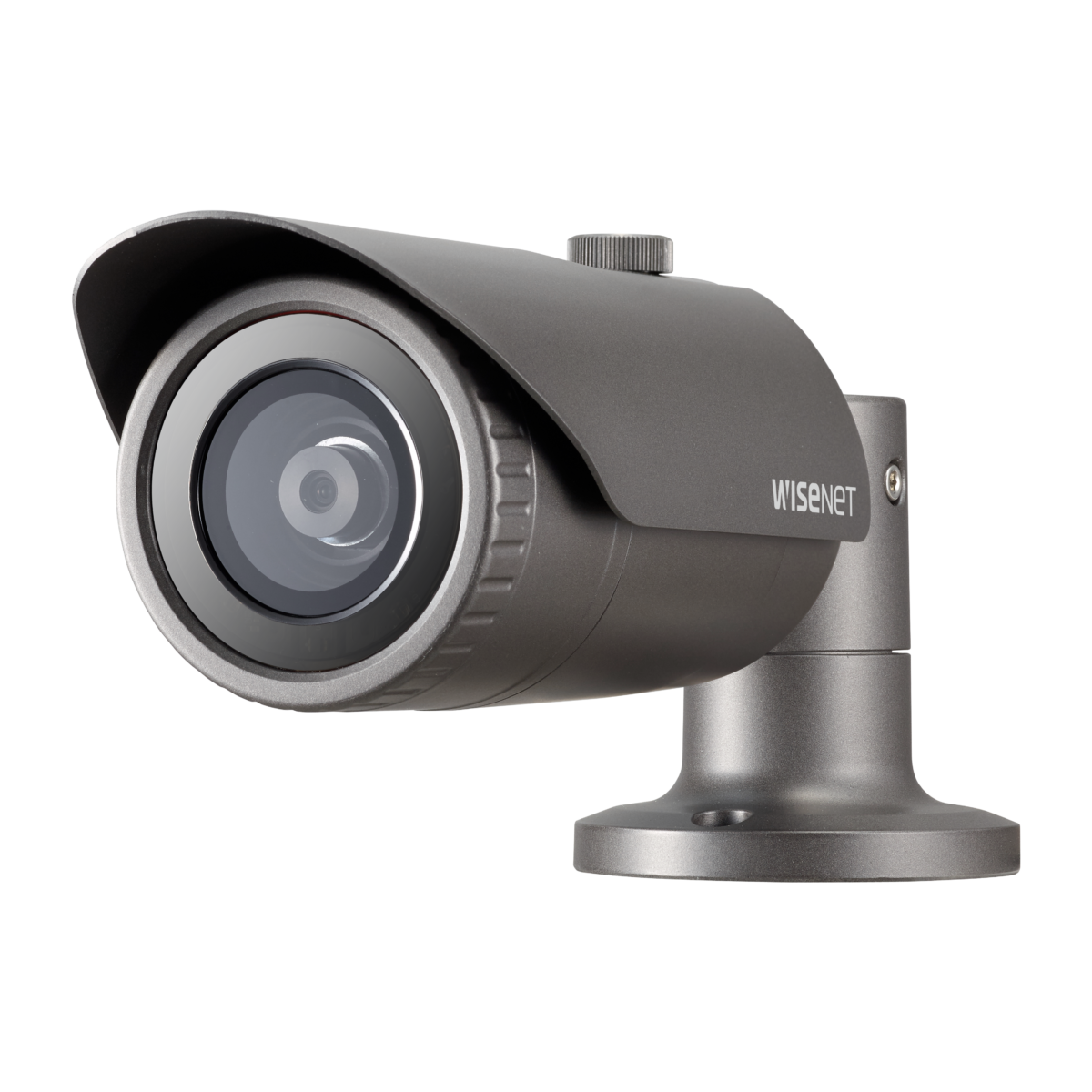

QNO-8020R
5M H.265 IR Bullet Camera
Key Features
• Max. 5Megapixel (2592 x 1944) resolution
• 4mm fixed lens
• 0.15Lux (Color), 0Lux (B/W, IR LED on)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day&Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• IR Viewable length 25m (82.02ft)
• IP66, IK10, PoE
• 4mm fixed lens
• 0.15Lux (Color), 0Lux (B/W, IR LED on)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day&Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• IR Viewable length 25m (82.02ft)
• IP66, IK10, PoE
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
QNO-8020R
5M H.265 IR Bullet Camera
Key Features
• Max. 5Megapixel (2592 x 1944) resolution
• 4mm fixed lens
• 0.15Lux (Color), 0Lux (B/W, IR LED on)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day&Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• IR Viewable length 25m (82.02ft)
• IP66, IK10, PoE
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
QNO-8020R
High quality cameras offering cost effective solutions
The Q series cameras are affordable products that offer essential features in creating a safe and secure environment.
5MP and 2MP resolutions
The Q series offers two resolutions options to give you the freedom to choose the camera that best fits your security needs. The 5MP cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance, providing crisp and vivid monitoring.
Enhanced video analytics
The Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility.
Hallway view for monitoring vertical shaped areas
In a vertical shaped environment, such as a store aisle, traditional horizontal shaped cameras waste bandwidth and storage on unnecessary edges. The Hallway view creates 3 : 4 and 9 : 16 ratio video which is vertically oriented and maximizes image quality in a narrow environment.
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- Security
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" CMOS Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(@5MP Max. 2fps)Min. Illumination Color: 0.15Lux(F1.6, 1/30sec, 30IRE)
BW: 0.015Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Lens Focal Length (Zoom Ratio) 4.0mm fixed focal Max. Aperture Ratio F1.6 Angular Field of View H: 80°/ V: 59°/ D: 106° Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~360° / 0°~100° / 0°~360° Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ presetLight Type IR LED (850nm) Light Viewable Length 25m(82.02ft) Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Smart Codec WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformSecurity OS / Firmware Protect Firmware encryption User authentication Digest Authentication, Prevent brute-force attack Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication HTTPS, SRTP, WSS(Websocket secure) Access Control Access control based on IP address Data Protect Authentication information encryption, ZIP compression encryption Audit User Access/System/Event log management Device ID Device Certificate(Hanwha Private Root CA) Secure Storage SDcard partition encrypt General Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Memory 512MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C~+55°C(-22°F~+131°F) / 0~90% RH(non-condensing)
* Start up should be done at above -20°CStorage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~90% RH Certification IP66, IK10 Input Voltage PoE(IEEE802.3af, Class3) Power Consumption PoE: Max 7.50W, typical 6.10W Mechanical Color / Material Dark grey / Aluminum Product Dimensions / Weight ø70.0x246.0mm(ø2.76x9.69"), 680g(1.50 lb) Backbox SBO-100B1 DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) 62.0m(203.39ft) Observe (63PPM/ 19PPF) 24.8m(81.36ft) Recognize (125PPM/ 38PPF) 12.4m(40.68ft) Identify (250PPM/ 76PPF) 6.2m(20.34ft)
-
