Analog Cameras Discontinued

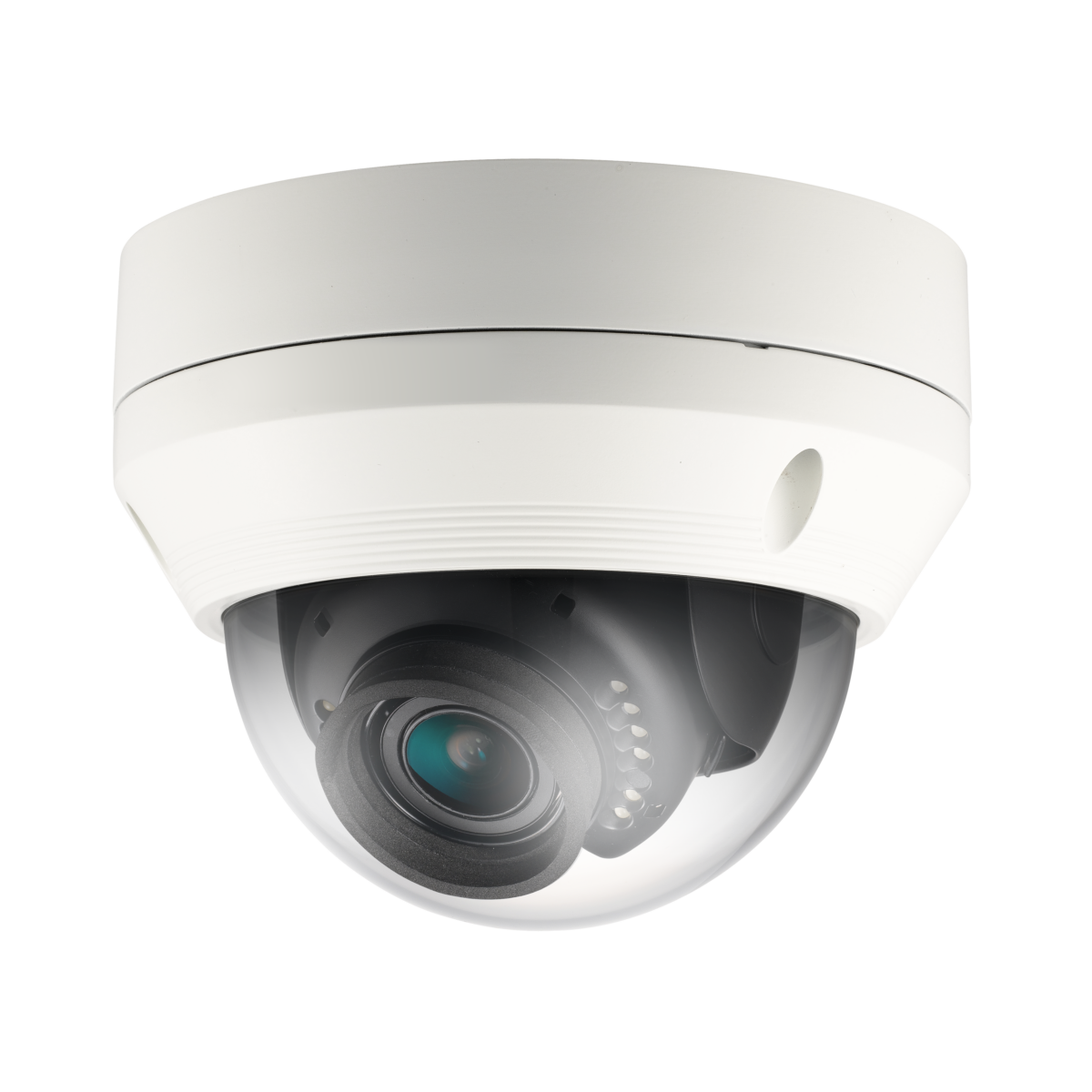

SCV-5083R

1000TVL (1280H) WDR Vandal-Resistant

Key Features
• High resolution of 1000TV lines (Color), 1000TV lines (B/W)
• Min. Illumination 0Lux (IR LED on), IR distance 30m
• 3.3x varifocal lens (3 ~ 10mm)
• 120dB WDR, Day & Night (ICR)
• SSDR, SSNRIV, Defog, Intelligent video analytics
• IP66, IK10, Coax : Pelco-C (Coaxitron), RS-485, Dual power
  • Product availability may vary by region.
    Please contact your regional representative.
  • Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/3" 1.3M CMOS
NETD Progressive
Pixel Size Color : 1000 TVL, B/W : 1000 TVL
Min. Illumination 0.05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE), 0.02Lux (F1.4, 30IRE), 0.0006Lux (1sec, F1.4, 30IRE)
Video Out CVBS : 1.0 Vp-p / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3 ~ 10mm
Max. Aperture Ratio F1.4
Angular Field of View H : 82.0°(Wide) ~ 26.5°(Tele) / V : 59.7°(Wide) ~ 19.9°(Tele)
Min. Object Distance 0.5m (1.64ft)
Lens Type DC Auto iris
Mount Type Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~+354°
Tilt Range 0°~+67°
Operational
Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Privacy Masking Pelco-C (Coaxitron)
Gain Control Fence, (Dis)Appear, Counting (Off / On)
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F)
Storage Temperature / Humidity Less than 90% RH
Input Voltage Dual (24V AC & 12V DC ±10%)
Mechanical
Color / Material Ivory
RAL Code Aluminum
