Analog Cameras Discontinued

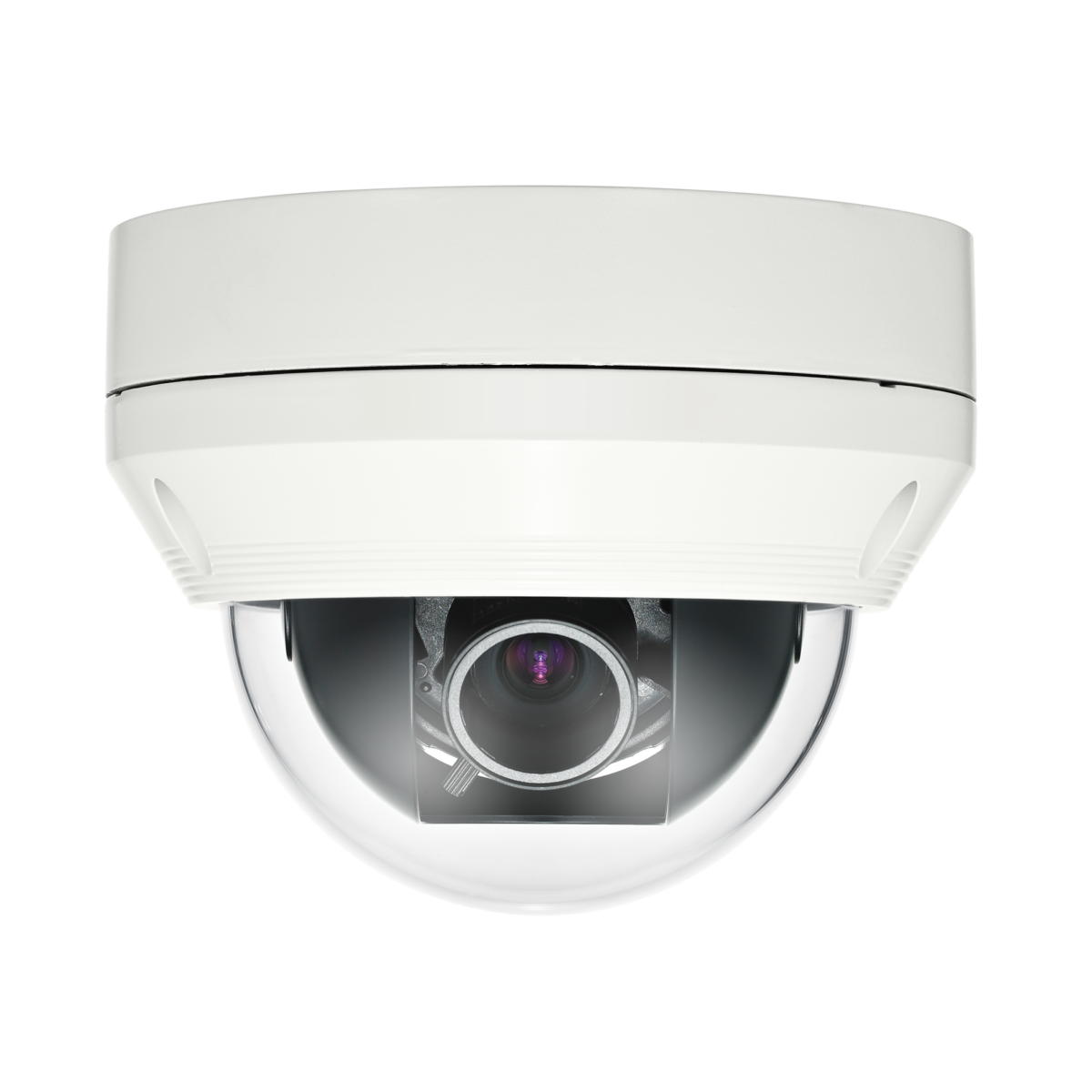

1000TVL (1280H) Vandal-Resistant Dome Camera

Key Features
• High resolution of 1000TV lines (Color), 1000TV lines (B/W)
• 0.05Lux@F1.4, 50IRE (Color), 0.005Lux@F1.4 50IRE (B/W)
• 0.02Lux@F1.4, 30IRE (Color), 0.002Lux@F1.4 30IRE (B/W)
• 3.3x varifocal lens (3 ~ 10mm)
• Day & Night (ICR), SSDR, SSNRIV, Defog
• IP66, IK10, Coax : Pelco-C (Coaxitron), Dual power
  • Product availability may vary by region.
    Please contact your regional representative.
  • Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Imaging Device 1/3" 1.3M CMOS
NETD Progressive
Pixel Size Color : 1000 TVL, B/W : 1000 TVL
Min. Illumination 0.05Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE)
Video Out CVBS : 1.0 Vp-p / 75Ω composite
Focal Length (Zoom Ratio) 3 ~ 10mm
Max. Aperture Ratio F1.4
Angular Field of View H: 82.0°(Wide) ~ 26.5°(Tele), V: 59.7°(Wide) ~ 19.9°(Tele)
Min. Object Distance 0.5m (1.64ft)
Lens Type DC Auto Iris
Mount Type Board type
Privacy Masking Pelco-C (Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F)
Storage Temperature / Humidity Less than 90% RH
Input Voltage Dual (24V AC & 12V DC ±10%)
Color / Material Ivory
RAL Code Aluminum
