Analog Cameras Discontinued

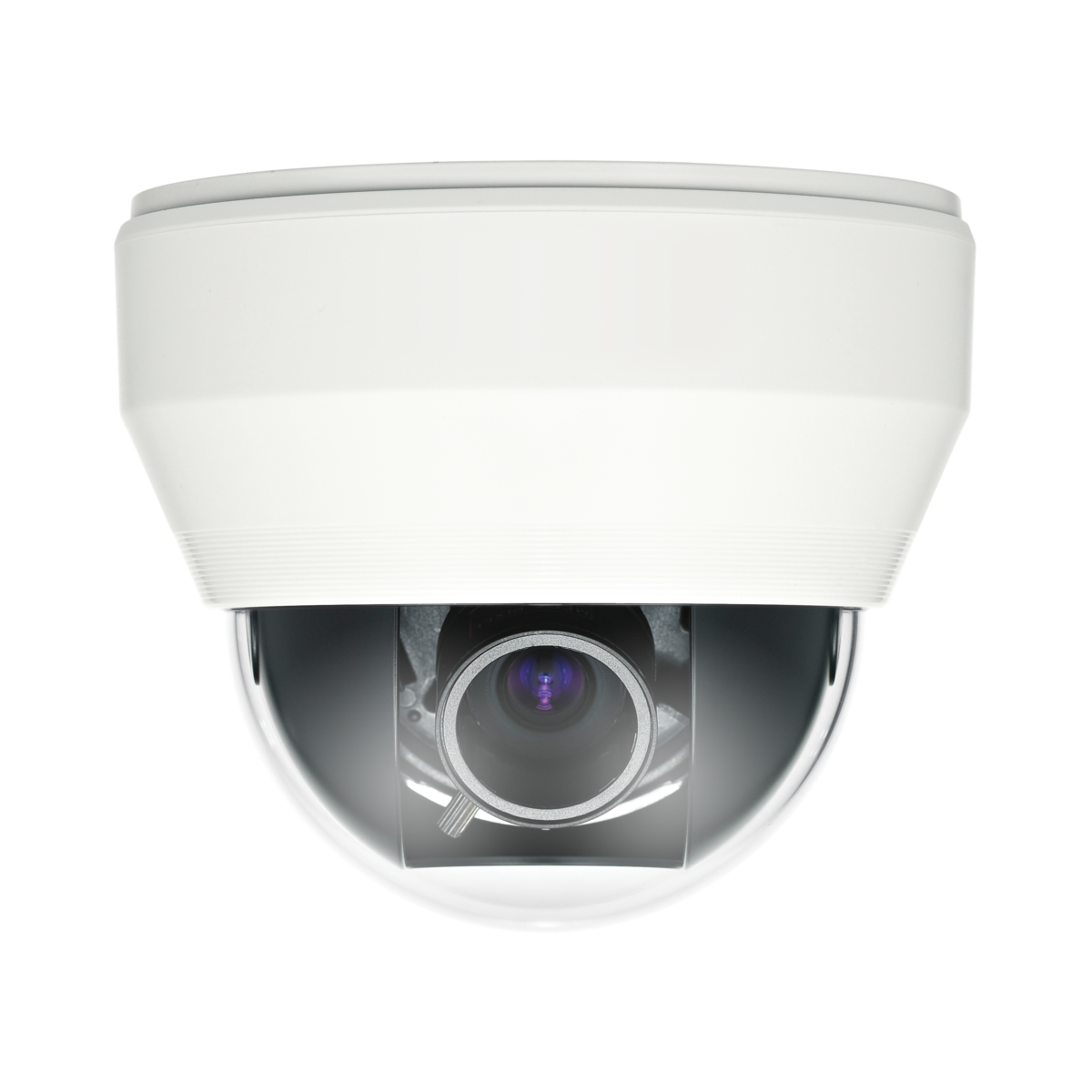

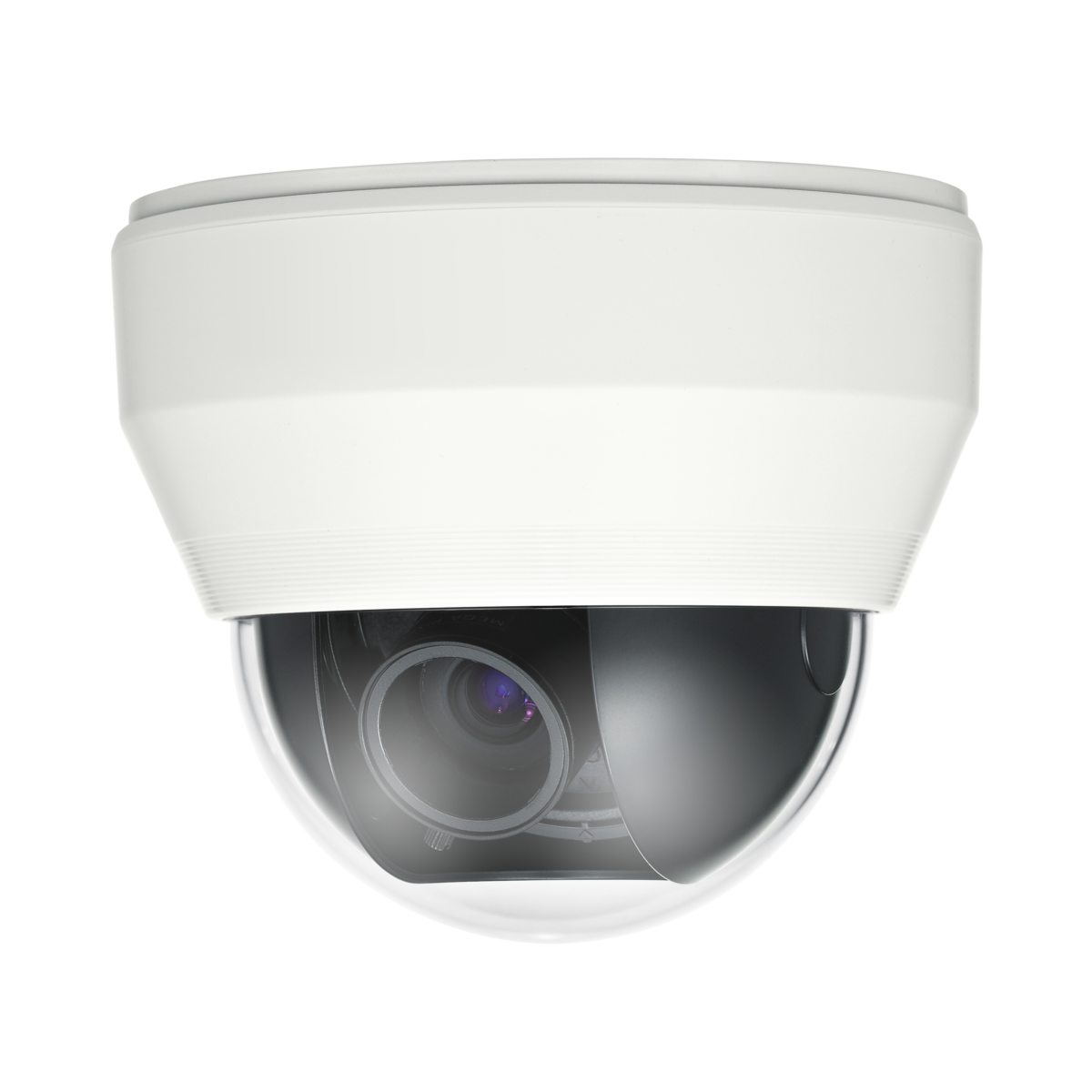

1280H Varifocal Dome Camera

Key Features
• High resolution of 1000TV lines (Color),1000TV lines (B/W)
• Min. illumination 0.05Lux@F1.4, 50IRE,0.02Lux@F1.4, 30IRE
• 3.3x varifocal lens (3 ~ 10mm)
• Coax : Pelco-C (Coaxitron), Dual power


Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Imaging Device 1/3" 1.3M CMOS
NETD Progressive
Pixel Size Color : 1000 TVL, B/W : 1000 TVL
Min. Illumination 0.05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE)
Video Out CVBS : 1.0 Vp-p / 75Ω composite
Focal Length (Zoom Ratio) 3~10 mm
Max. Aperture Ratio F1.4
Angular Field of View H: 82.0°(Wide)~26.5°(Tele), V: 59.7°(Wide)~19.9°(Tele)
Min. Object Distance 0.5m
Lens Type DC Auto Iris
Mount Type Board-in type
Privacy Masking Pelco-C (Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F)
Storage Temperature / Humidity Less than 90% RH
Input Voltage Dual (24V AC & 12V DC ±10%)
Color / Material Ivory
RAL Code Aluminum, Plastic
