Analog Cameras Discontinued

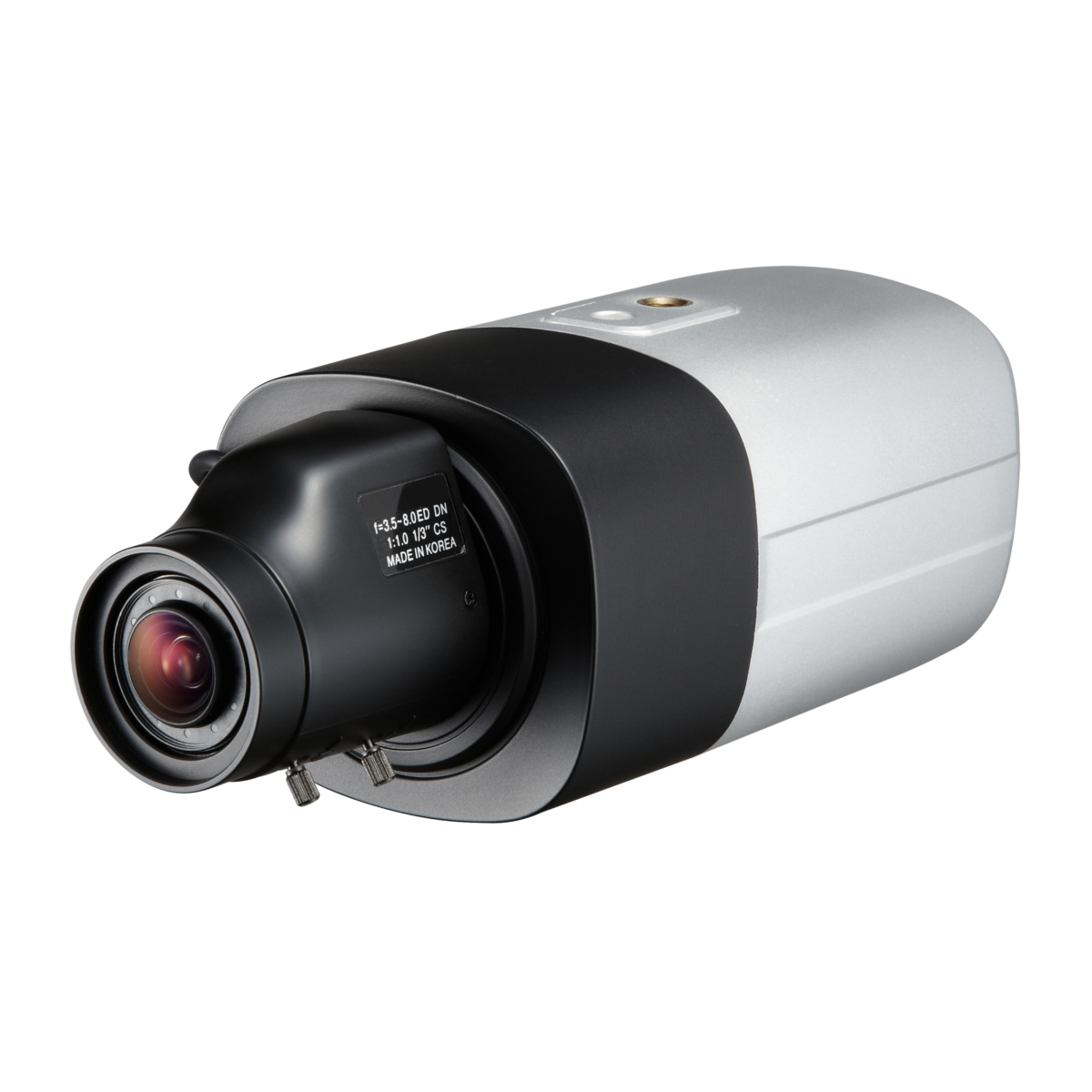

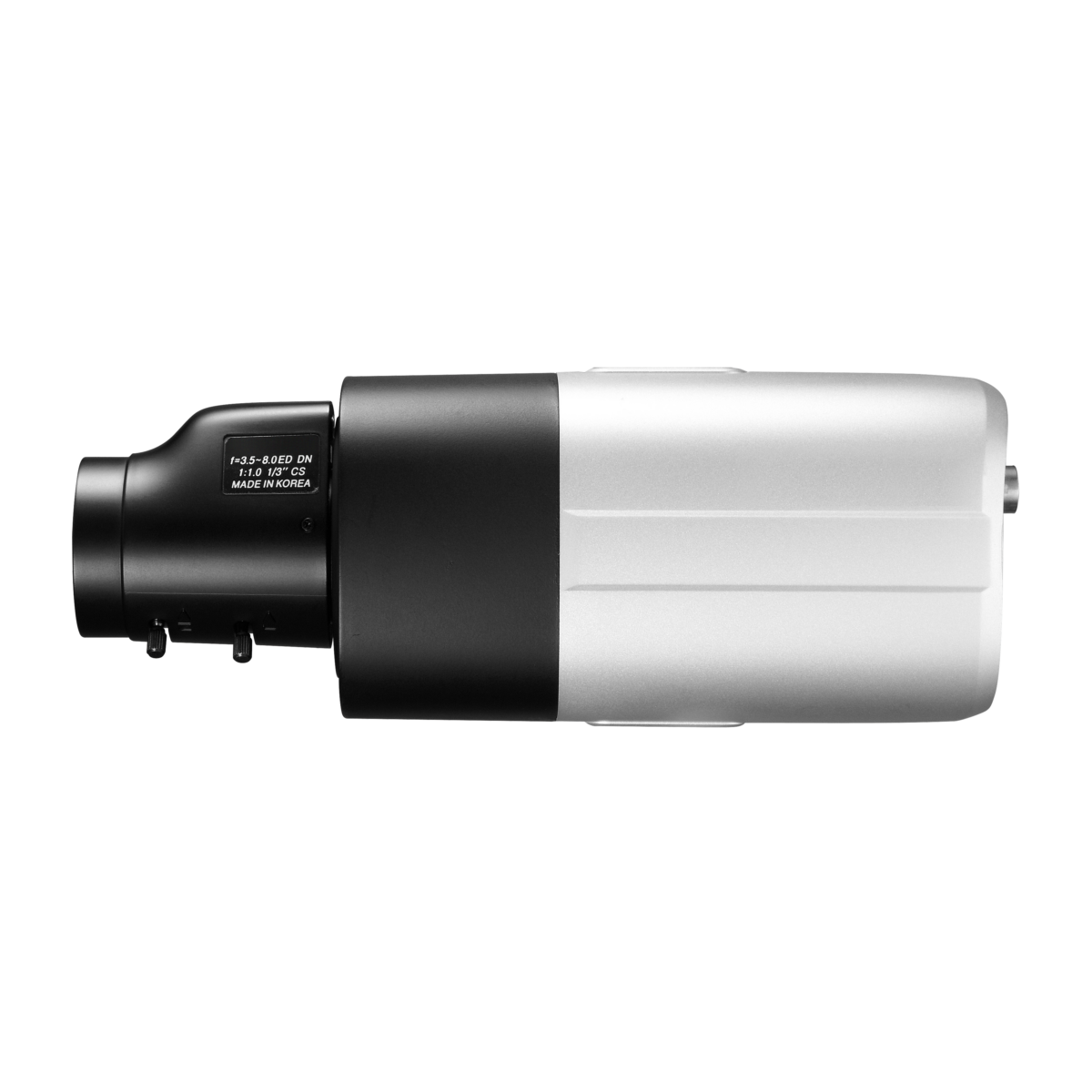

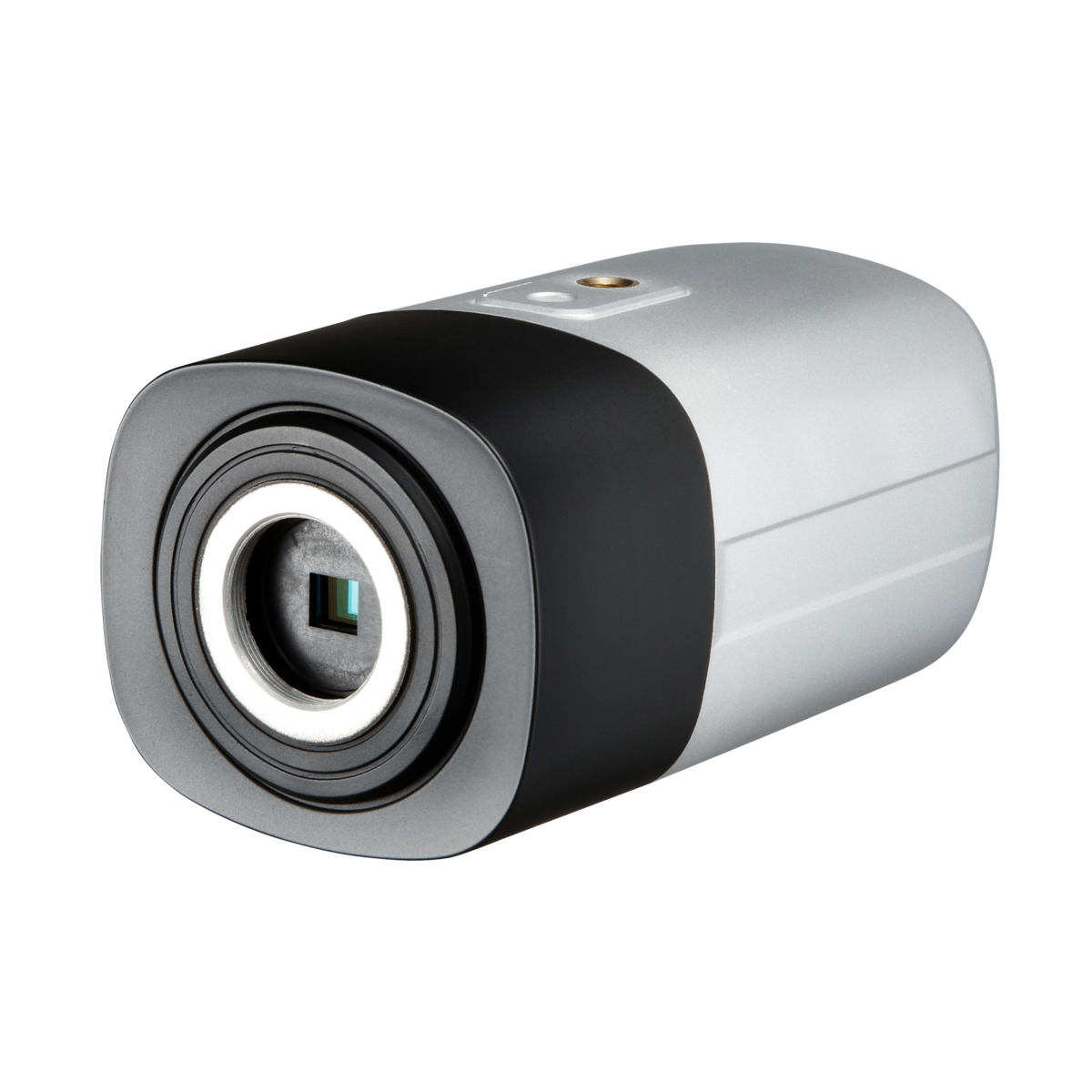

1000TVL (1280H) WDR Camera

Key Features
• 0.03Lux@F1.2, 50IRE (Color),
0.003Lux@F1.2 50IRE (B/W) 0.01Lux@F1.2,
30IRE (Color),0.001Lux@F1.2 30IRE (B/W)
• 120dB WDR, Day & Night (ICR), Simple focus, P-Iris
• SSDR, SSNRIV, Defog, Intelligent video analytics
• Coax : Pelco-C (Coaxitron), RS-485, Dual power


Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Imaging Device 1/3" 1.3M CMOS
NETD Progressive
Pixel Size Color : 1000 TVL, B/W : 1000 TVL
Min. Illumination 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE), 0.01Lux (F1.2, 30IRE), 0.0003Lux (1sec, F1.2, 30IRE)
Video Out CVBS : 1.0 Vp-p / 75Ω composite
Lens Type Manual / DC auto iris / P-iris
Mount Type C / CS
Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Privacy Masking Pelco-C (Coaxitron)
Gain Control Fence, (Dis)Appear, Counting (Off / On)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F)
Storage Temperature / Humidity Less than 90% RH
Input Voltage Dual (24V AC & 12V DC ±10%)
Color / Material Black, Silver
RAL Code Aluminum, Plastic
