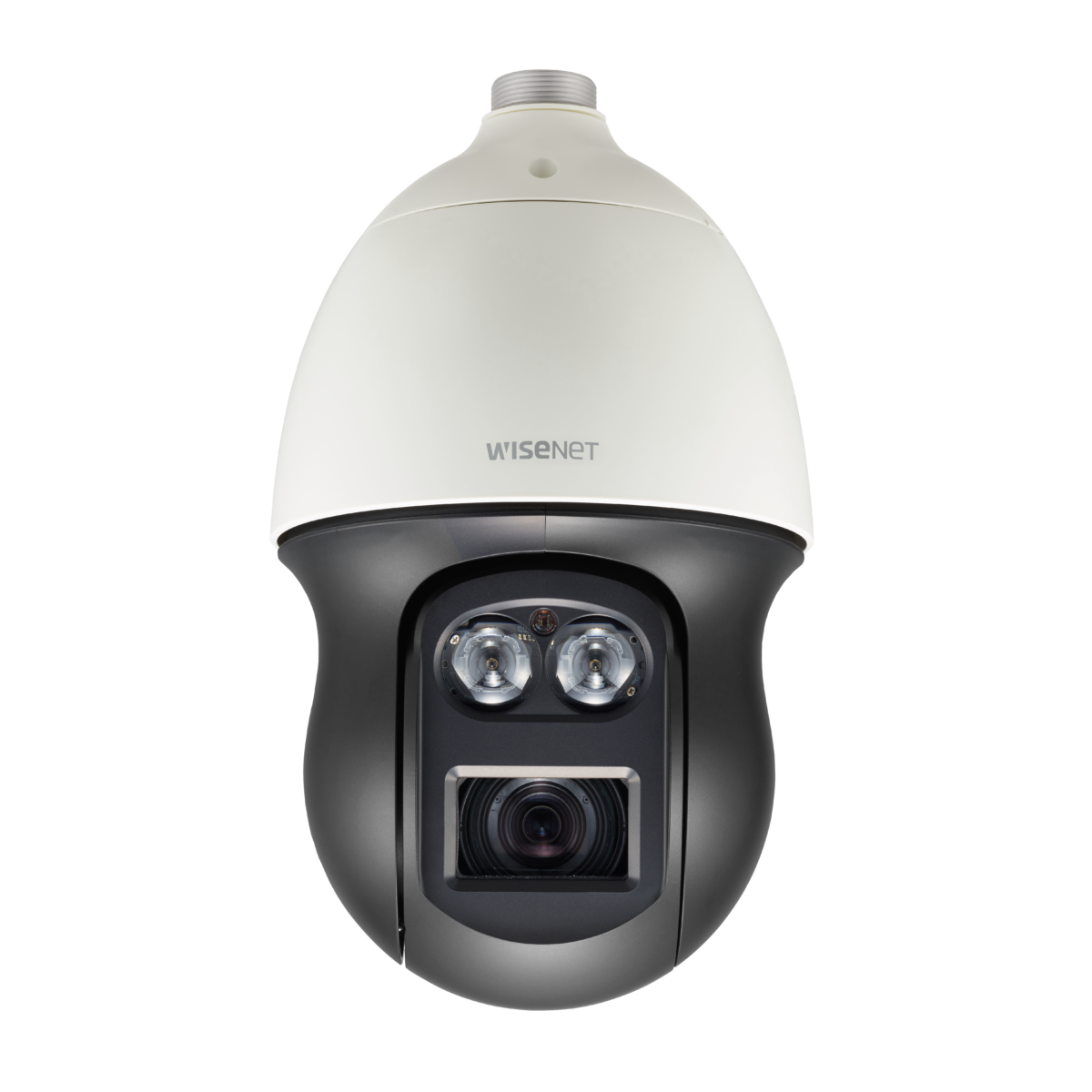

XNP-6550RH

Copy a URL
Copy

2M H.265 55x IR PTZ Camera

Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 4.75 ~ 261.4mm (Optical 55x) lens
• Day & Night (ICR), WDR (120dB)
• DIS with built-in gyro sensor
• Max. IR viewable length : 500m
• H.265, H.264, MJPEG codec support
• Multiple streaming, WiseStream II support
• Intelligent Video / Audio Analytics, Defog (Optical)
• microSD/SDHC/SDXC memory 2 slots (Up to 512 GB)
• IP66, IK10

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Copy a URL
Copy

Image Download Total Image Download

XNP-6550RH

2M H.265 55x IR PTZ Camera

Key Features

• Max. 2Megapixel (1920 x 1080) resolution
• 4.75 ~ 261.4mm (Optical 55x) lens
• Day & Night (ICR), WDR (120dB)
• DIS with built-in gyro sensor
• Max. IR viewable length : 500m
• H.265, H.264, MJPEG codec support
• Multiple streaming, WiseStream II support
• Intelligent Video / Audio Analytics, Defog (Optical)
• microSD/SDHC/SDXC memory 2 slots (Up to 512 GB)
• IP66, IK10

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
XNP-6550RH
Datasheet
Contact Sales

Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/2.8" 2MP CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.02Lux(F1.6, 1/30sec)
    BW: 0.002 lux (1/30sec,F1.6), 0Lux(IR LED On)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    Lens
    Focal Length (Zoom Ratio) 4.75~261.4mm(55x) zoom
    Max. Aperture Ratio F1.6 (Wide) ~ F6.5 (Tele)
    Angular Field of View H : 58.6˚(Wide)~1.23˚(Tele) / V : 34.8˚(Wide)~0.71˚(Tele)
    Min. Object Distance 5m
    Focus Control AF / One-Shot AF / Manual
    Lens Type DC auto iris
    Pan / Tilt / Rotate
    Pan Range 360° Endless
    Pan Speed Preset: 400°/sec, Manual: 0.024°/sec~250°/sec
    Tilt Range 95°(-5°~90°)
    Tilt Speed Preset: 250°/sec, Manual: 0.024°/sec~250°/sec
    Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
    Preset Accuracy ±0.2°
    Operational
    Camera Title Displayed up to 85 characters
    Direction Indicator Support
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support(built-in gyro sensor)
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, rectangular Support
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
    Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
    Alarm I/O Input 4ea / Output 2ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    PTZ Preset
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length 500m(1,640.42ft)
    Auto Tracking Support
    Network
    Ethernet RJ-45(10/100BASE-T), SFP(Optional)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity 24VAC : -50°C~+55°C (-58°F ~ +131°F), Less than 95% RH-Non-Condensing
    HPoE : -40°C~+55°C (-40°F ~ +131°F) /Less than 95% RH-Non-Condensing
    * Start up should be done at above -35°C FAN/Heater included
    Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
    Certification IP66, IK10
    Input Voltage 24VAC, HPoE(IEEE802.3bt, Class7)
    Power Consumption 24VAC: Max. 92W (typical : 30W) HPoE : Max. 60W (typical : 30W)
    Mechanical
    Color / Material Body: Ivory / Aluminum+Plastic, Head: Black / Aluminum+Plastic
    Product Dimensions / Weight ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 68.4m(224.5ft) / Tele: 3577.4m(11736.7ft)
    Observe (63PPM/ 19PPF) Wide: 27.4m(89.8ft) / Tele: 1430.9m(4694.7ft)
    Recognize (125PPM/ 38PPF) Wide: 13.7m(44.9ft) / Tele: 715.5m(2347.3ft)
    Identify (250PPM/ 76PPF) Wide: 6.8m(22.5ft) / Tele: 357.7m(1173.7ft)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
