Analog Cameras

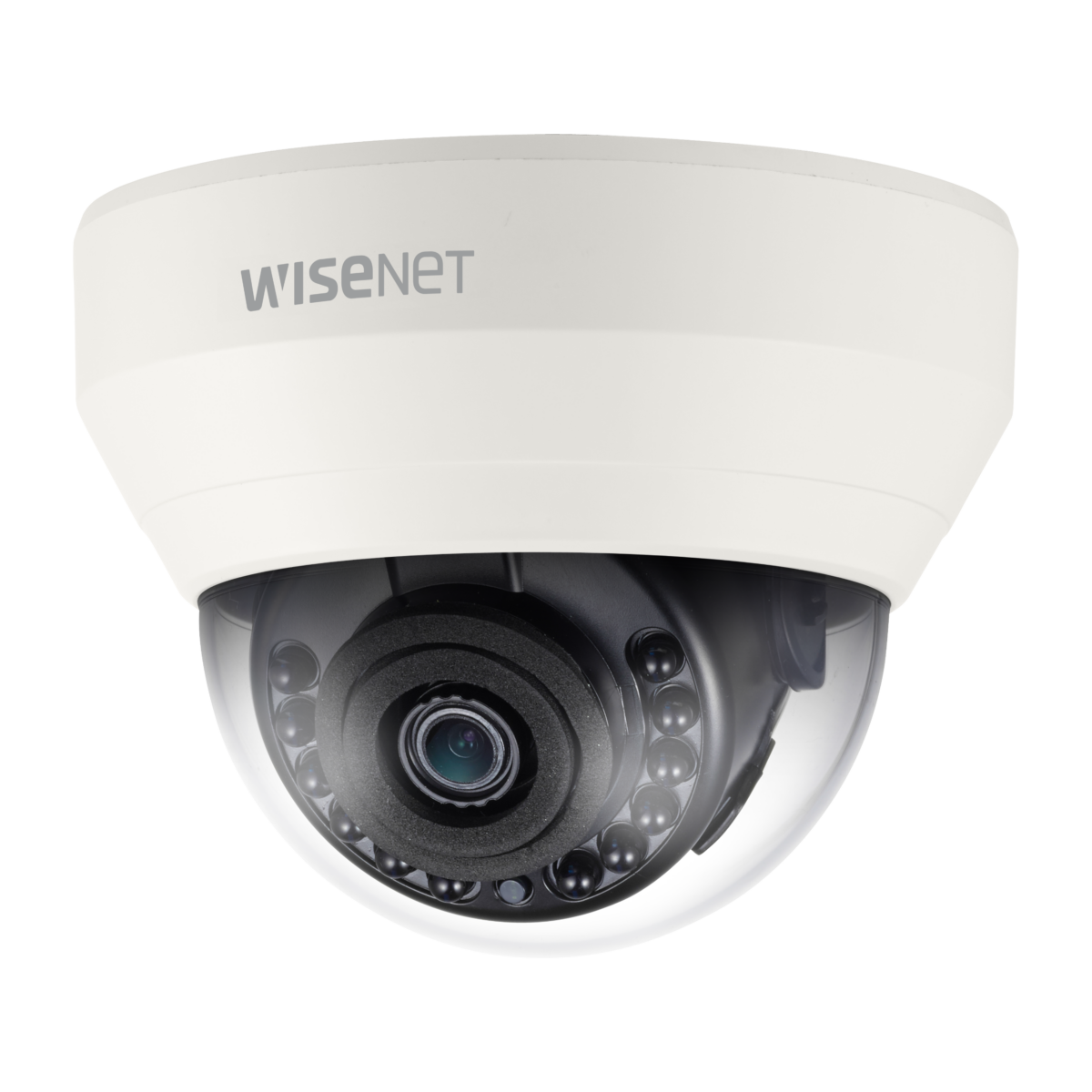

SCD-6025R

2MP Analog IR Dome Camera

Key Features
• Full HD (1,920 x 1,080) Resolution
• 0.17Lux@F1.6 (Color), 0Lux (B/W : IR LED on)
• Built-in 4mm fixed lens
• Day & Night (ICR)
• SSNRⅣ, Motion detection
• IR viewable length 20m (65.62ft)
• Transmission distance max.500m

["camera","analog","analog-dome"]

  • Product availability may vary by region.
    Please contact your regional representative.
  • Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080
Max. Framerate 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.17Lux (F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out BNC(AHD 2MP,CVBS)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio) 4mm fixed
Max. Aperture Ratio F1.6
Angular Field of View H : 87.6°, V : 46.4°, D : 104.5°
Min. Object Distance 0.5m(1.64ft)
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, DWDR
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 8ea, rectangular zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-REV / V-REV / HV-REV
Analytics Motion detection
Alarm I/O Output 1ea
Alarm Triggers Analytics
Alarm Events Alarm output
IR Viewable Length 20m (65.62ft)
Coaxial Protocol ACP(AHD Coax Protocol)
CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) /
Less than 90% RH
Input Voltage DC 12V
Power Consumption DC 12V/0.45A (Max 5.4W)
Mechanical
Color / Material Ivory / Plastic
Product Dimensions / Weight Ø110 x 86mm(4.33 x 3.39"), 227g(0.50 lb)
Hanging Mount (Dome) SBP-300HM7
DORI
Detect (25PPM/ 8PPF) 40m(131.38ft)
Observe (63PPM/ 19PPF) 16m(52.55ft)
Recognize (125PPM/ 38PPF) 8.0m(26.28ft)
Identify (250PPM/ 76PPF) 4.0m(13.14ft)
