Multi-sensor

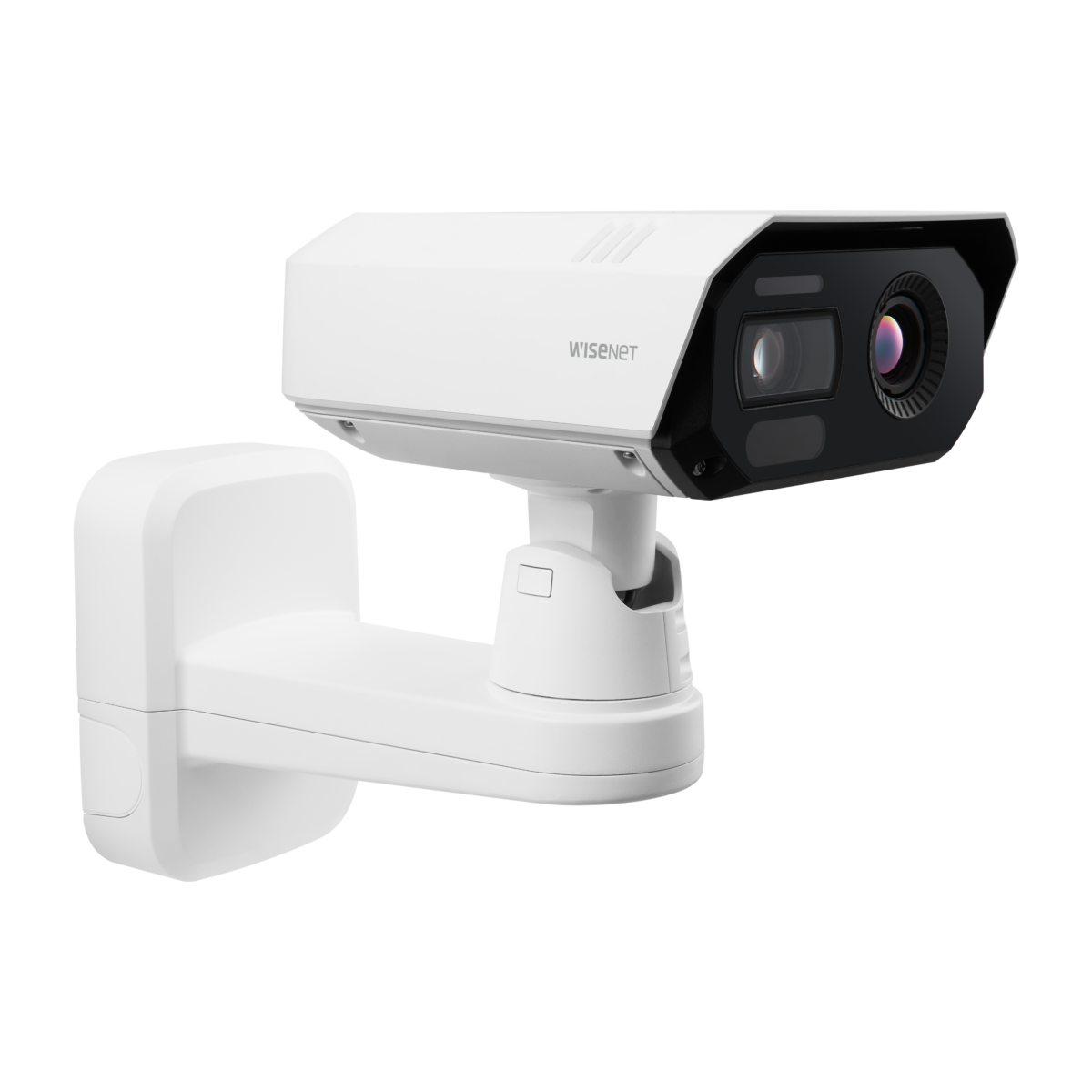

TNM-C4940TD

Bi-spectrum AI Thermal Camera

Key Features

• Bi-spectrum: VGA thermal & 8MP visible sensor
• Dual (thermal & visible) channel by one device, one IP
• Maximum 30fps @ all resolutions (H.265/H.264)
• Lens : 9.1mm fixed thermal & 4.4~9.3mm motorized varifocal visible
• Day & Night(ICR), WDR(120dB)
• Maximum IR viewable length : 30m
• Noise reduction : WiseNR II (Based on AI engine, visible only)
• Smart codec : WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
• Video Analytics based on AI
• IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
• PoE+(IEEE802.3at), 12VDC
• Wall & Pole mount all-in-one design

Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

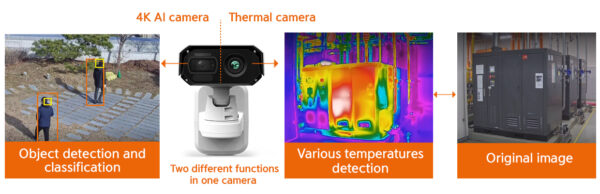

Object detection with 4K AI camera and temperature detection with thermal camera

AI based bi-spectrum camera detects each person individually with 4K resolution. Thermal video of bi-spectrum camera detects temperature change to prevent any possible accidents.
Specifically, it informs the viewer of dangerous places to touch by checking thermal images of hot places that cannot be clearly distinguished by the naked eye.

Enabling object detection from a long distance and unclear environment by thermal image

There are challenges to distinguish objects in long distance or dark environment. In order to overcome those challenges, thermal camera of bi-spectrum camera enables user to clearly monitor objects.

Thông số sản phẩm

VideoThermalVisible
Imaging DeviceSize1/1.8"
TypeUncooled micro bolometer (640x480)CMOS
Resolution1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x3603840x2160, 3072x1728, 2688x1520, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)30fps/25fps(60Hz/50Hz)
MJPEG3fps1fps
OthersMax. 15fps when both channel AI onMax. 15fps when both channel AI on
Spectral Range8~14㎛
NETD≤60mK
Pixel Size12㎛
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.06
BW(1/30sec, 30IRE)0.004
Video OutUSB: Micro USB Type B
LensThermalVisible
Focal Length (mm)9.14.4~9.3
Zoom RatioOptical2.2x
Max Aperture Ratio (F number)Wide1.01.3
Tele2.15
Angular Field of ViewHorizontal50°112°~48°
Vertical37°58°~27°
Diagonal64°138°~55°
iFoV1.319mRad
Min. Object Distance3.5m(11.48ft)1.75m(5.74ft)
Focus ControlFixedSimple focus
Pan / Tilt / RotateThermalVisible
Pan / Tilt / Rotate RangePan-170°~+170°
Tilt-40 ~50°
SequencePreset(255ea)
OperationalThermalVisible
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity6ea
ShapeRectangular zones
Color / OptionGray, Black, White
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range1/5~1/12,000sec
Alarm InterfaceIn/Out4 configurable I/O ports
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR30m(98.42ft)
IR Wavelength850nm
AnalyticsThermalVisible
Classified Object TypePerson, VehiclePerson, Face, Vehicle, License plate
ThumbnailBestShotBestShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jamObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jam
NormalMotion detection, Temperature change detectionDefocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Business IntelligenceNormalVehicle countingVehicle counting
NetworkThermalVisible
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 6 users
MulticastSupport
Multiple StreamingUp to 3 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFS, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
SecurityThermalVisible
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageHTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
Security CertificateTPM 2.0 with FIPS 140-2 level2
GeneralThermalVisible
MemoryRAM4GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 2slot(Total 512GB)
Environmental & ElectricalThermalVisible
Operating ConditionTemperature-40°C~+60°C(-40°F~+140°F)
Humidity0~95% RH(non-condensing)
OthersStart up should be done at above -30°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~95% RH(non-condensing)
Input VoltagePoE+(IEEE802.3at, Class4), 12VDC
Power ConsumptionPoEMax. 25.5W, Typ 16.0W
12VDCMax. 21.5W, Typ 14.0W
MechanicalThermalVisible
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensions353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53")
Product Weight4.53kg(9.99lb)
Certifications & StandardsThermalVisible
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
DORI (EN62676-4 standard)ThermalVisible
Detect (25PPM/ 8PPF)Wide51.7m(169.94ft)
Tele174.5m(572.64ft)
Observe (63PPM/ 19PPF)Wide20.7m(67.85ft)
Tele69.8m(229.06ft)
Recognize (125PPM/ 38PPF)Wide10.3m(33.93ft)
Tele34.9m(114.53ft)
Identify (250PPM/ 76PPF)Wide5.2m(16.96ft)
Tele17.5m(57.26m)
