Network Cameras

XND-6010

Copy a URL
Copy

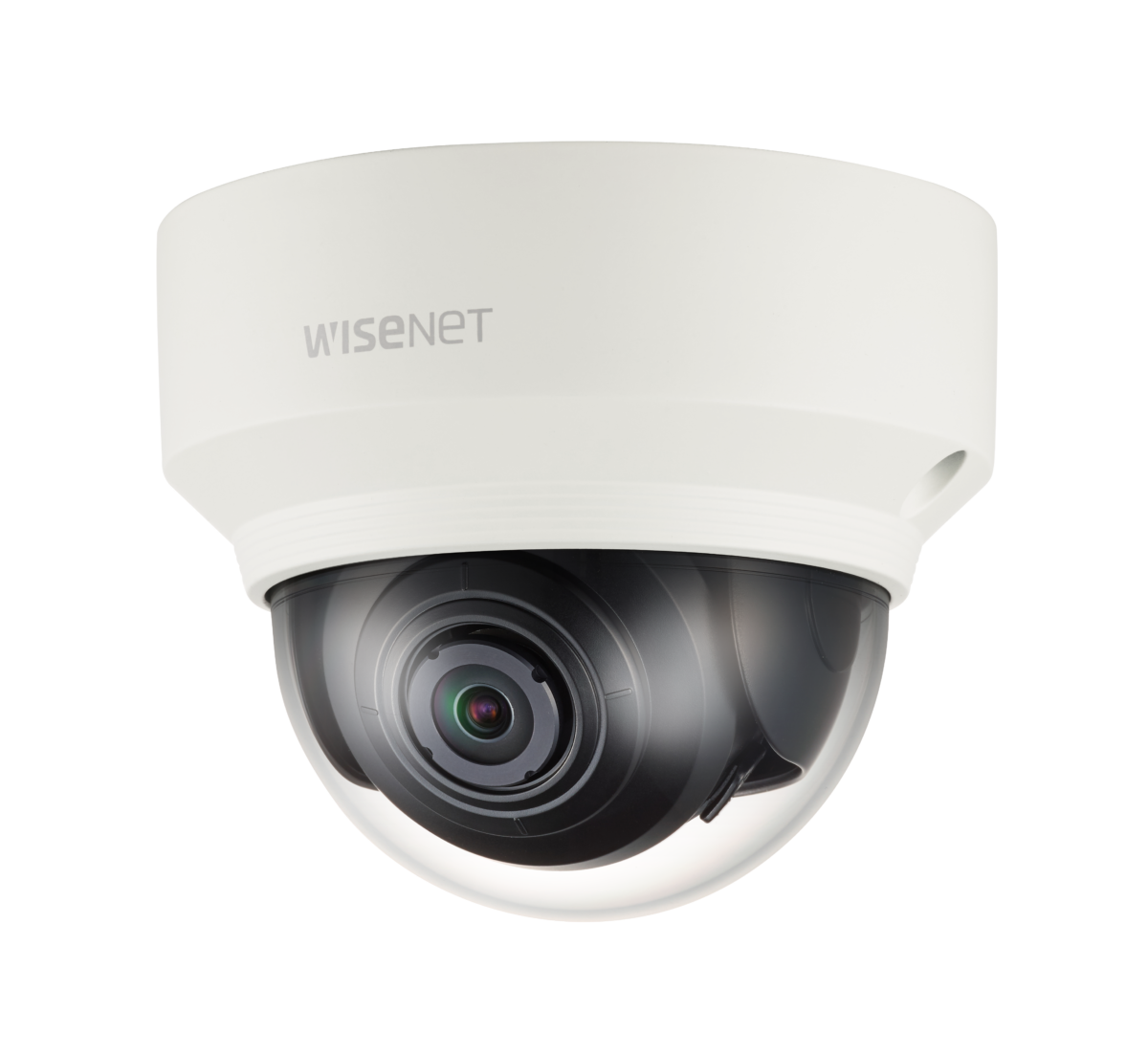

2M H.265 Dome Camera

Key Features
• Built-in 2.4mm fixed lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• Hallway view, WiseStream II support, IK08

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Nhấp Chuột lên hình để phóng to

Copy a URL
Copy

Tải hình ảnh Tổng số hình ảnh tải xuống

XND-6010

2M H.265 Dome Camera

Key Features

• Built-in 2.4mm fixed lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• Hallway view, WiseStream II support, IK08

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
XND-6010
Datasheet
Contact Sales

Thông số sản phẩm

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/2.8" 2MP CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.055 lux(F2.0, 1./30sec)
    B/W: 0.0055 Lux (F2.0, 1/30sec)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
    USB: Micro USB Type B, 1280x720, for installation
    Lens
    Focal Length (Zoom Ratio) 2.4mm Fixed
    Max. Aperture Ratio F2.0
    Angular Field of View H: 139°, V: 73°, T: 167°
    Min. Object Distance 0.4m(1.31ft)
    Focus Control Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0˚~354˚ / 0˚~67˚ / 0˚~355˚
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, 4point quadrangle zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
    Business Intelligence People counting, Queue management, Heatmap
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and E-Mail
    Notification via E-Mail
    SD/SDHC/SDXC or NAS recording at Event Triggers
    Alarm output
    Handover
    Audio In Selectable(Mic in/Line in, Built-in mic),
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC : 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming (Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access Log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IK08
    Input Voltage PoE(IEEE802.3af, Class3), 12VDC
    Power Consumption PoE : Max 6.5W
    12VDC : Max 6W
    Mechanical
    Color / Material Ivory / Plastic
    Product Dimensions / Weight Ø110.0x90.0mm / 625g
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) 14.4m(47.10ft)
    Observe (63PPM/ 19PPF) 5.7m(18.84ft)
    Recognize (125PPM/ 38PPF) 2.9m(9.42ft)
    Identify (250PPM/ 76PPF) 1.4m(4.7ft)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
