Bullet

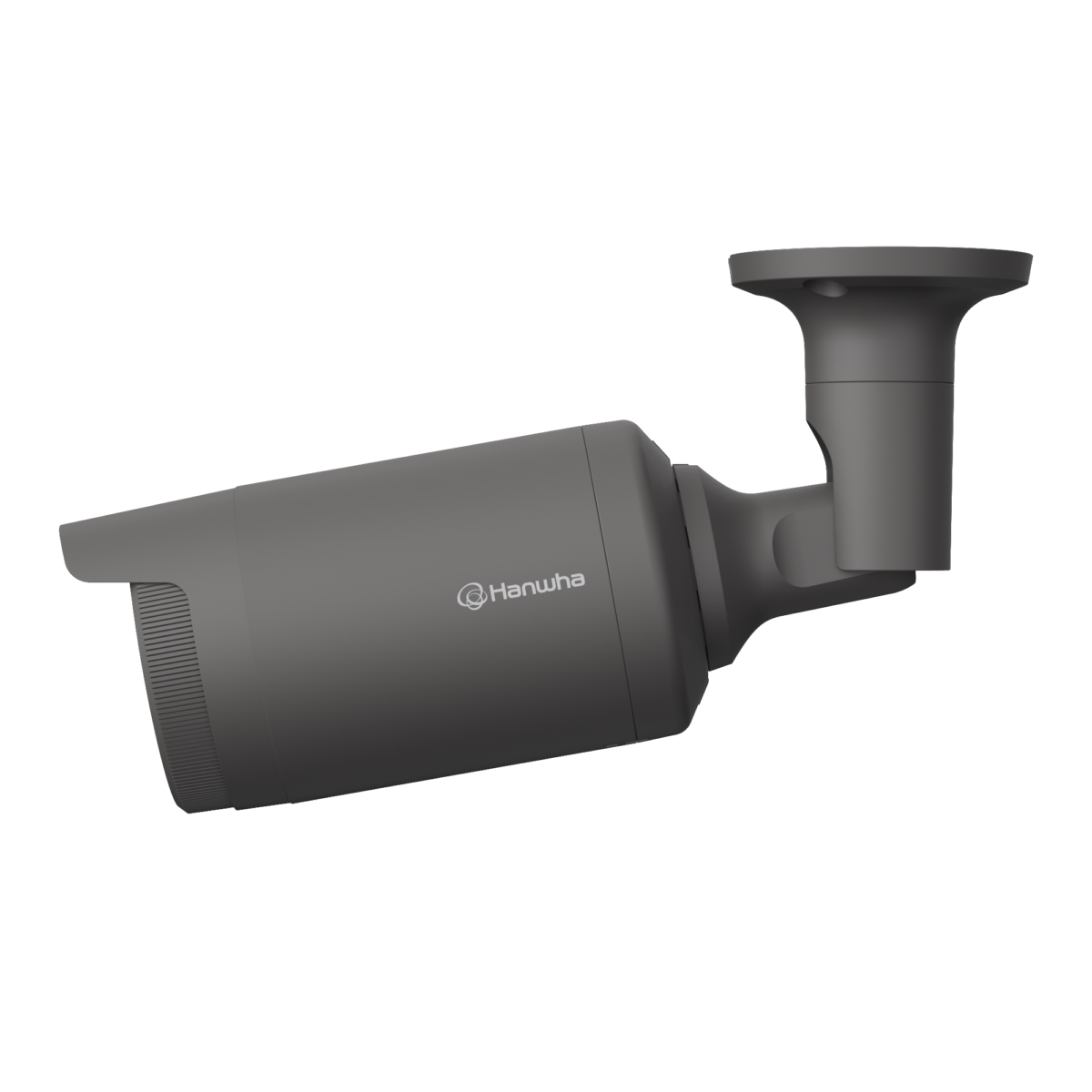

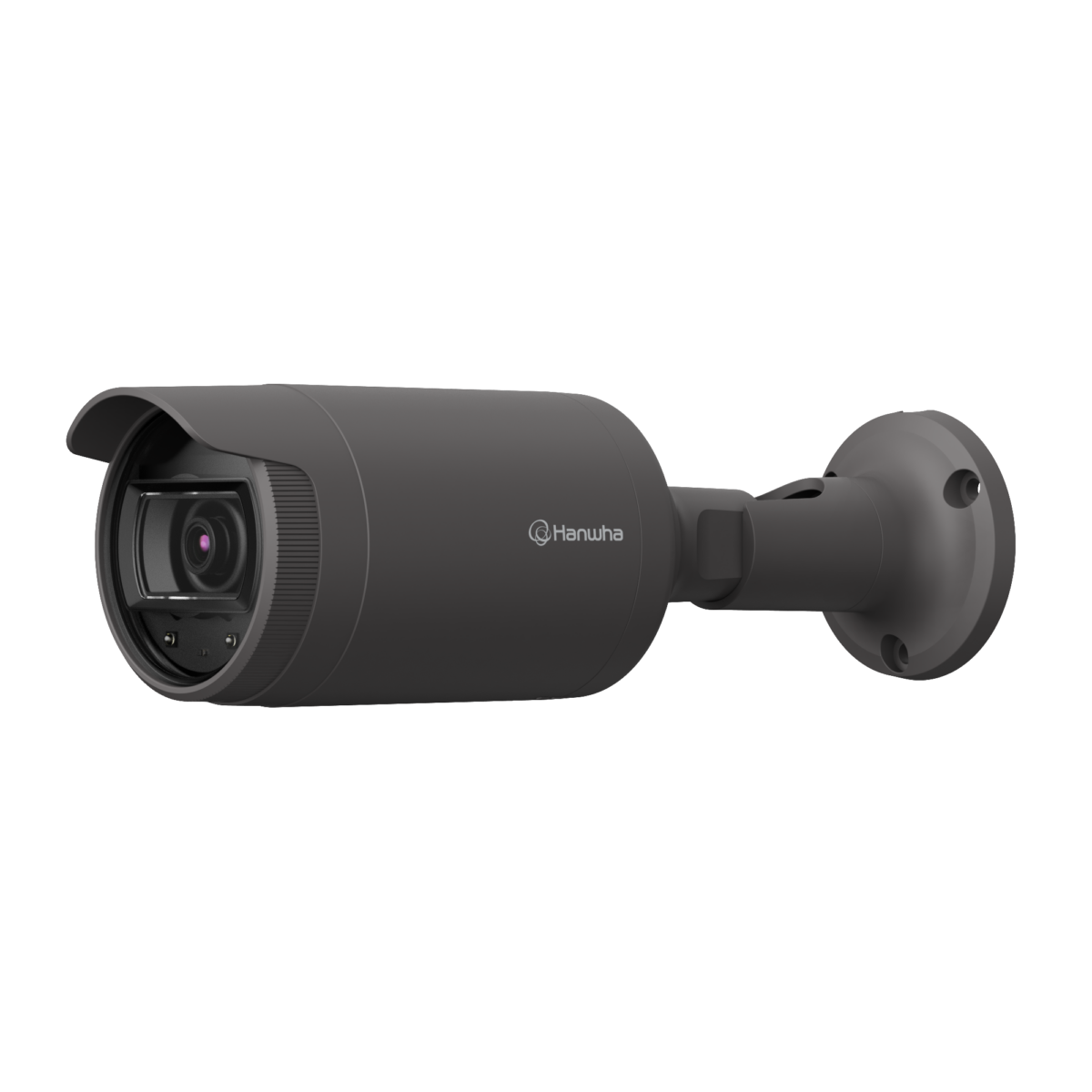

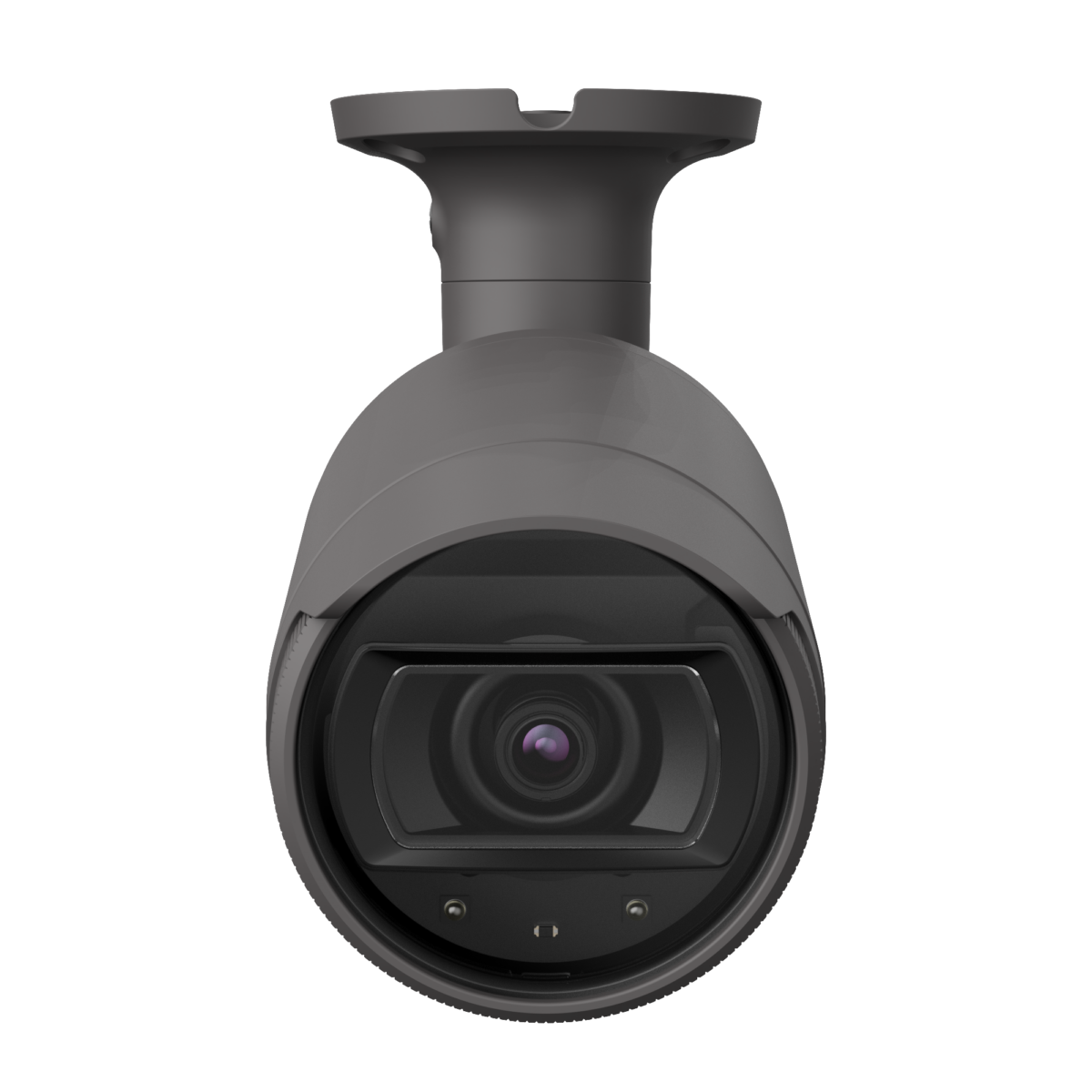

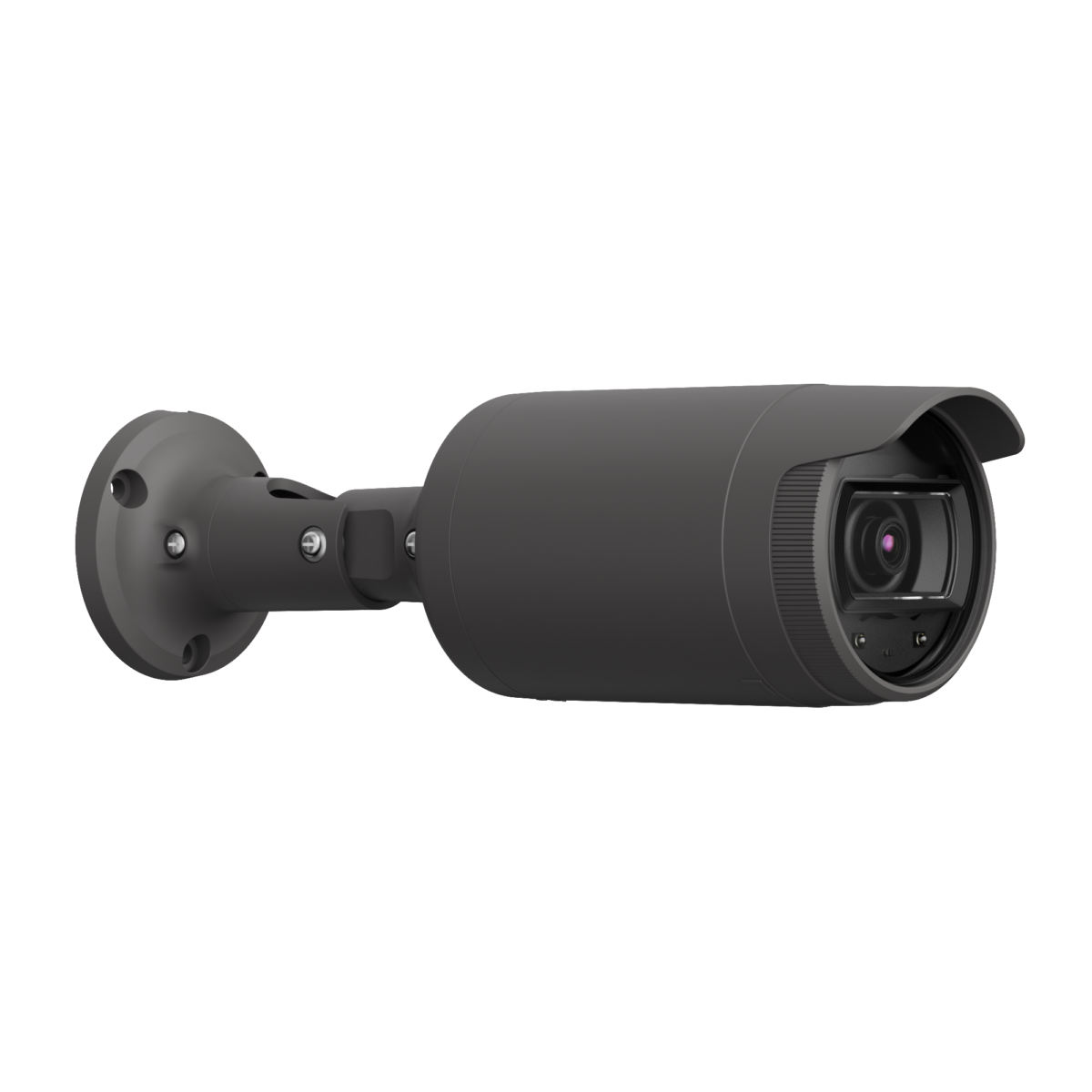

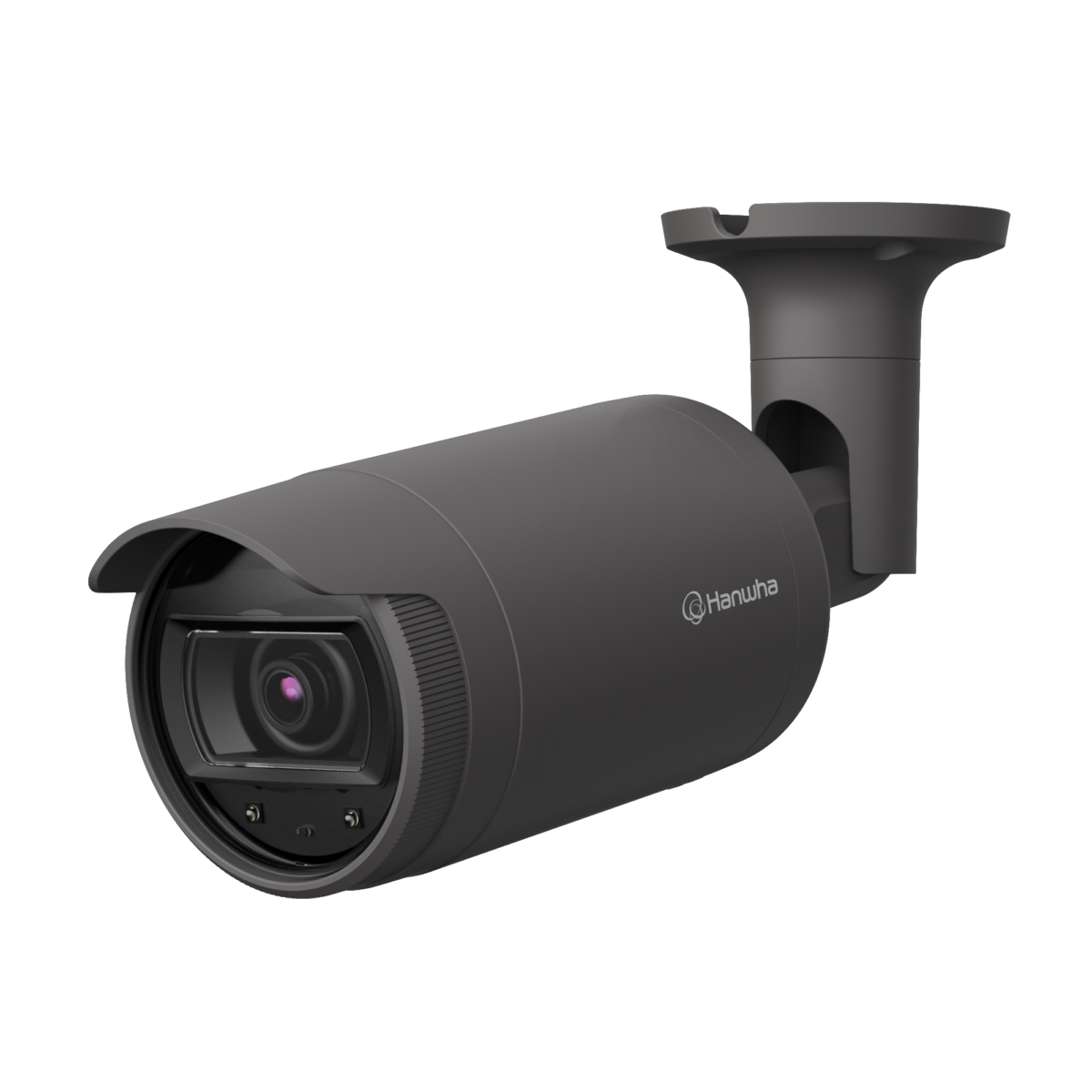

LNO-6022R
2MP IR Bullet Camera
Key Features
• Maximum 2MP resolution
• Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
• 4.0mm fixed focal
• Maximum 30fps@2MP all resolutions (H.264)
• H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection
• Micro SD/SDHC memory slot (32GB), PoE
• Hallway view (90°/270°), WiseStreamII support
• IR viewable length 30m(98.43ft)
• IP66 support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Thông số sản phẩm
| Video | ||
|---|---|---|
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1280x720, 720x480, 1280x960, 800x448, 800x600, 720x576, 640x360, 640x480, 1920x1080 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on) |
| MJPEG | 10fps(@2MP Max. 2fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
| BW(1/30sec, 30IRE) | 0.003 | |
| Lens | ||
| Focal Length (mm) | 4.0 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 85° |
| Vertical | 46° | |
| Diagonal | 99° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Fixed | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~100° | |
| Rotate | 0°~360° | |
| Operational | ||
| Day & Night | Auto(ICR) | |
| Backlight Compensation | WDR, SSDR, BLC | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | Rectangler zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, High, Middle | |
| White Balance | Manual, Indoor, AWC, ATW, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Anti flicker, Maximum |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Mirror, Flip, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(image): e-mail/FTP | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 30m(98.43ft) |
| IR Wavelength | 850nm | |
| Analytics | ||
| Analytics Events | Normal | Tampering, Motion detection |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | TCP/IP, ARP, HTTPS, DHCP, IPv4, RTCP, IPv6, SRTP(TCP, UDP Unicast), RTP(UDP), UDP/IP, Bonjour, ICMP, RTSP, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, FTP, NTP | |
| Application Programming Interface | ONVIF | G, S, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) | |
| Security | ||
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Prevent brute-force attack, Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | WSS(WebSocket Secure), HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) | |
| General | ||
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 32GB x 1slot |
| Environmental & Electrical | ||
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -20°C | |
| Storage Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max 6.4W, Typical 5.0W |
| Mechanical | ||
| Color | Dark grey | |
| Material | Plastic | |
| Product Dimensions | ø78.0x262.0mm(ø3.07x10.31”) | |
| Product Weight | 390g(0.86lb) | |
| Certifications & Standards | ||
| EMC | KS C 9832 Class A, KS C 9835, VCCI CISPR 32 Class A, ICES-3(A)/NMB-3(A), FCC 47 CFR 15 Subpart B Class A, RCM AS-NZS CISPR 32 Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 | |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66 | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide | 42.4m(139.17ft) |
| Observe (63PPM/ 19PPF) | Wide | 17.0m(55.67ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.5m(27.83ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.2m(13.92ft) |
