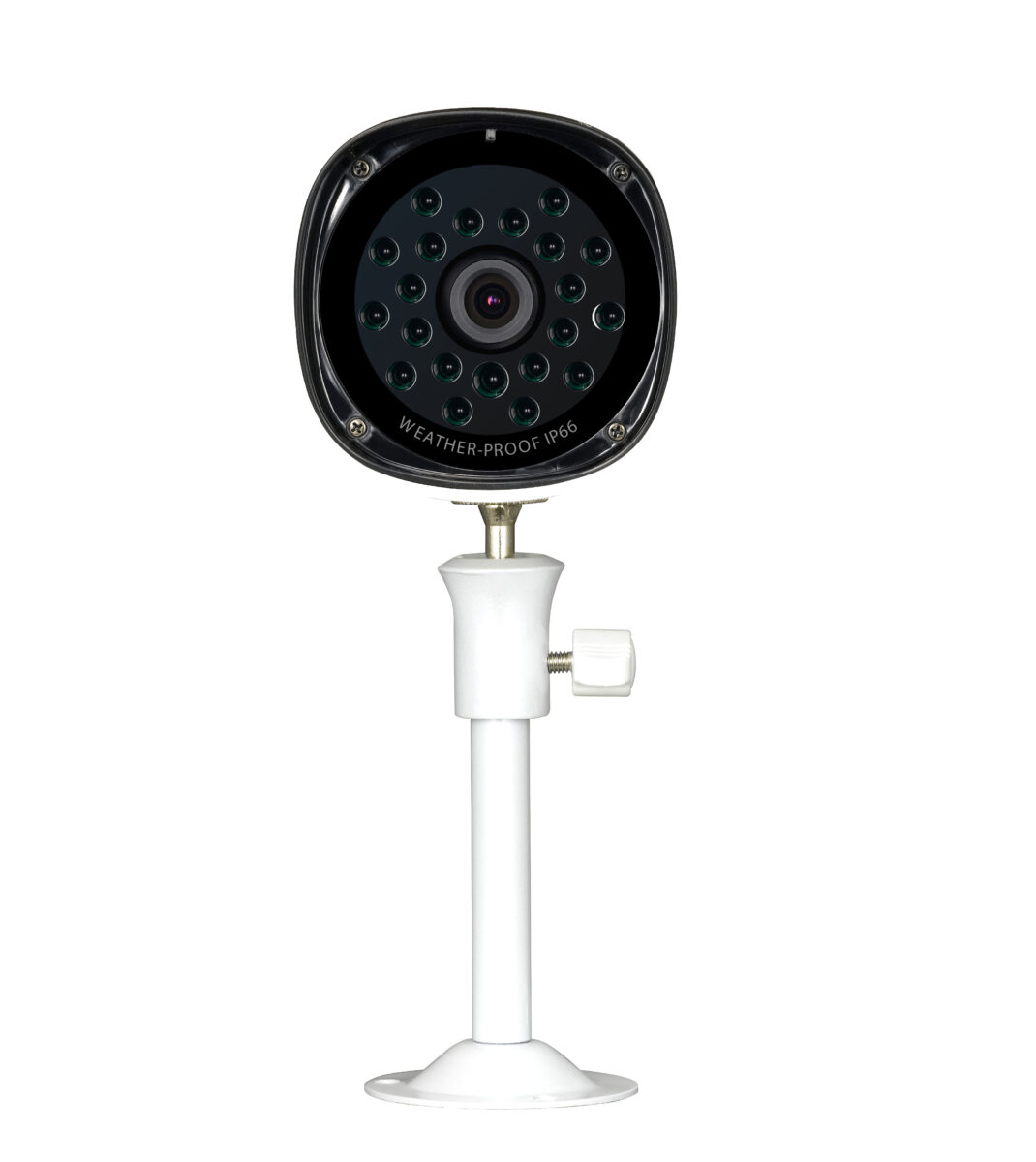

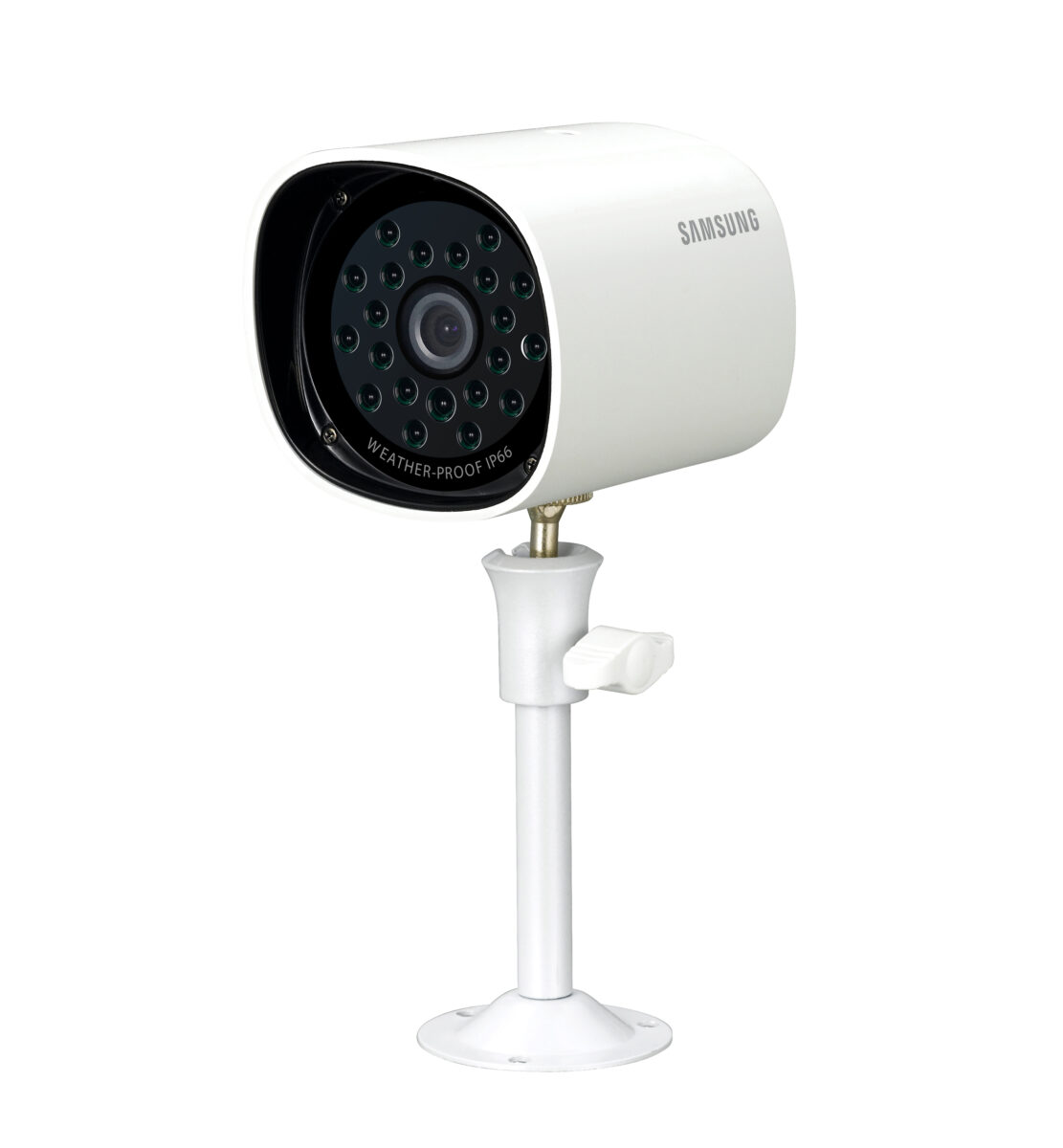

SCO-1020R
High Resolution Weatherproof IR Camera
Key Features
• High resolution of 520 TV lines
• Min. illumination 0Lux @F1.2 (IR LED on), IR distance 15m
• Built-in 3.6mm Fixed lens
• Compact design
• DNR, 12V DC, IP66
• Min. illumination 0Lux @F1.2 (IR LED on), IR distance 15m
• Built-in 3.6mm Fixed lens
• Compact design
• DNR, 12V DC, IP66
- ※Product availability may vary by region.
Please contact your regional representative. - ※Hanwha Vision is formerly known as Hanwha Techwin.
Thông số sản phẩm
Video | |
---|---|
Imaging Device | 1/4" CMOS |
NETD | 2 : 1 Interlace |
Pixel Size | Color : 520TV lines |
Video Out | CVBS : 1.0 Vp-p / 75Ω composite |
Lens | |
Focal Length (Zoom Ratio) | 3.6mm |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H : 56° / V : 42° |
Min. Object Distance | 0.2m (0.66ft) |
Lens Type | Fixed Iris |
Mount Type | Board-in type |
Environmental & Electrical | |
Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) |
Storage Temperature / Humidity | 20% ~ 80% RH |
Input Voltage | 12V DC ±10% |
Mechanical | |
Color / Material | White |
RAL Code | Plastic |
