8 Channels

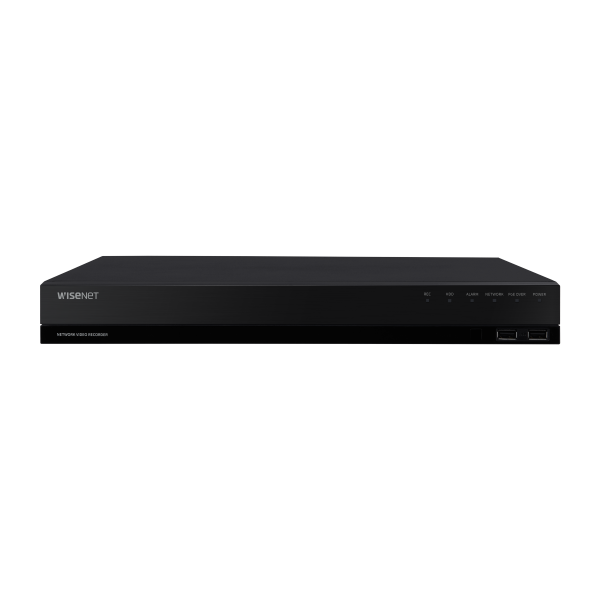

WRN-810S

8 Channel WAVE PoE+ NVR

Key Features

• Supported by WAVE client, mobile and Cloud Sync
• Supports AI metadata
• 80 Mbps of recording throughput
• Supports up to 12TB internal storage
• HDMI/VGA monitor outputs for configuration and basic monitoring
• 8 PoE/PoE+ ports, with a total power budget of 100W, 2 Gigabit uplink ports
• PoE port control & Alarm I/O supported
• ONVIF camera compliant
• 1U Rack-mountable
• Recommended maximum of 30 servers for a merged system
• Includes USB mouse and rack mount brackets

Contact Sales Datasheet

["video-recorder","nvr","ch8"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

For supported HDD information, please visit the HDD compatibility list.

COMPATIBILITY LIST

Product Specification

System
Recording BandwidthUp to 80Mbps
OS Drive BayseMMC 32GB
Data Drive BaysSATA 2ea
Data StorageUp to 12TB
Network InterfacePoE RJ-45(Lan, 10/100) 8EA, RJ-45 2EA(WAN, 1Gbps)
ProcessorDual core
Operating SystemUbuntu LInux 18.04 LTS
IPMINot Supported
Video Outputs1xHDMI, 1xVGA
USB Ports3EA (Front x1, Rear x2)
Other PortsAudio output, Alarm In(4)/Out(2)
Mechanical
Color / MaterialBlack / Metal & Plastic
Dimensions (HxWxD)14.57"(370mm) x 2.0"(50.7mm) x 12.60"(320mm)
Weight6.13 lbs (2.78kg)
Electrical
Power Input100 ~ 240V AC
Power Consumption37W
PoE Budget100W
Environmental
Operating Temperature32°F to 104°F(0°C-40°C)
Operating Humidity20% to 85% (non-condensing)
