SPS-A100M

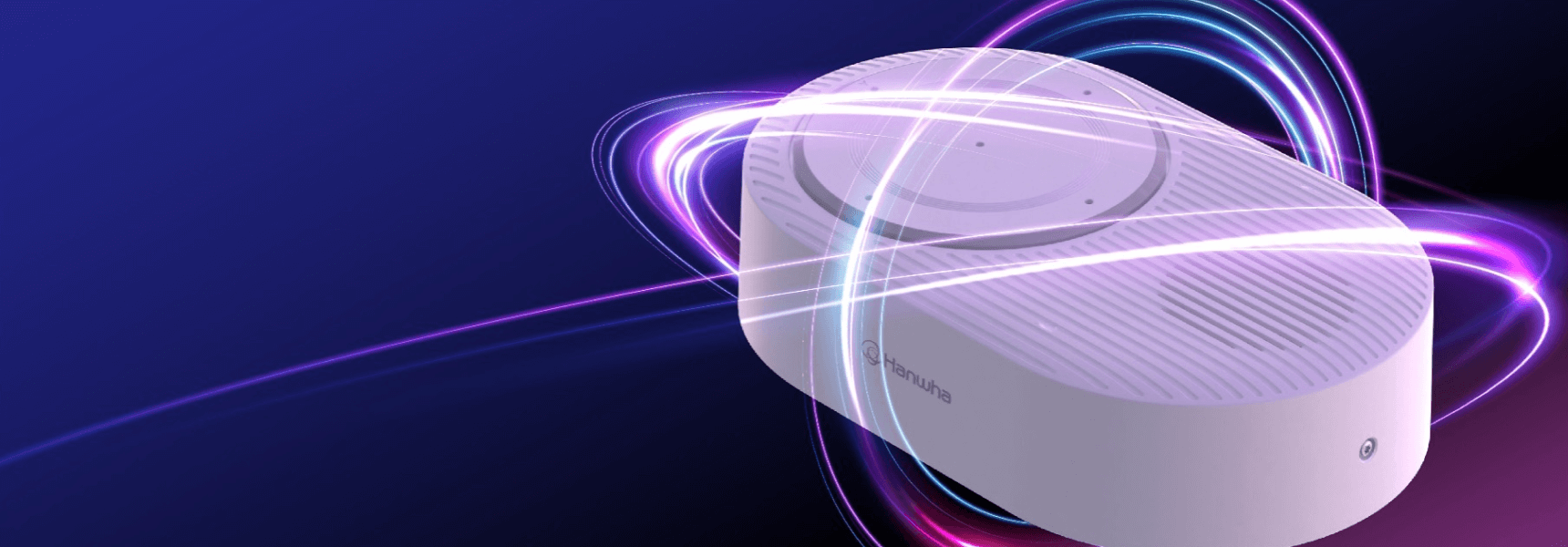

Audio Beacon

Key Features

• Full-duplex two-way audio support
• Five built-in MEMS microphones
• Built-in speaker(Max. Sound Pressure Level(PoE+) 90dB)
• Built-in LED ring indicator for clear status alerts
• AI-based sound classification included
• Best sound(audio file), Event metadata support
• Accurate sound origin detection with direction-finding algorithms
• Support for 3rd party VMS integration

Contact Sales Datasheet

["peripherals","audio-beacon"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

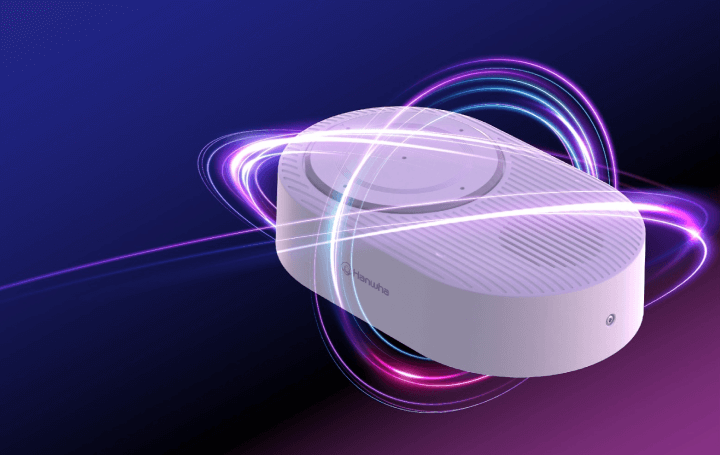

Enhanced Audio Performance

The Audio Beacon features a powerful 90dB speaker and five digital MEMS microphones for reliable, full-duplex two-way communication. High-volume alerts ensure critical messages are heard clearly, even in noisy or high-traffic environments. This audio clarity supports faster responses and improved situational awareness in real time.

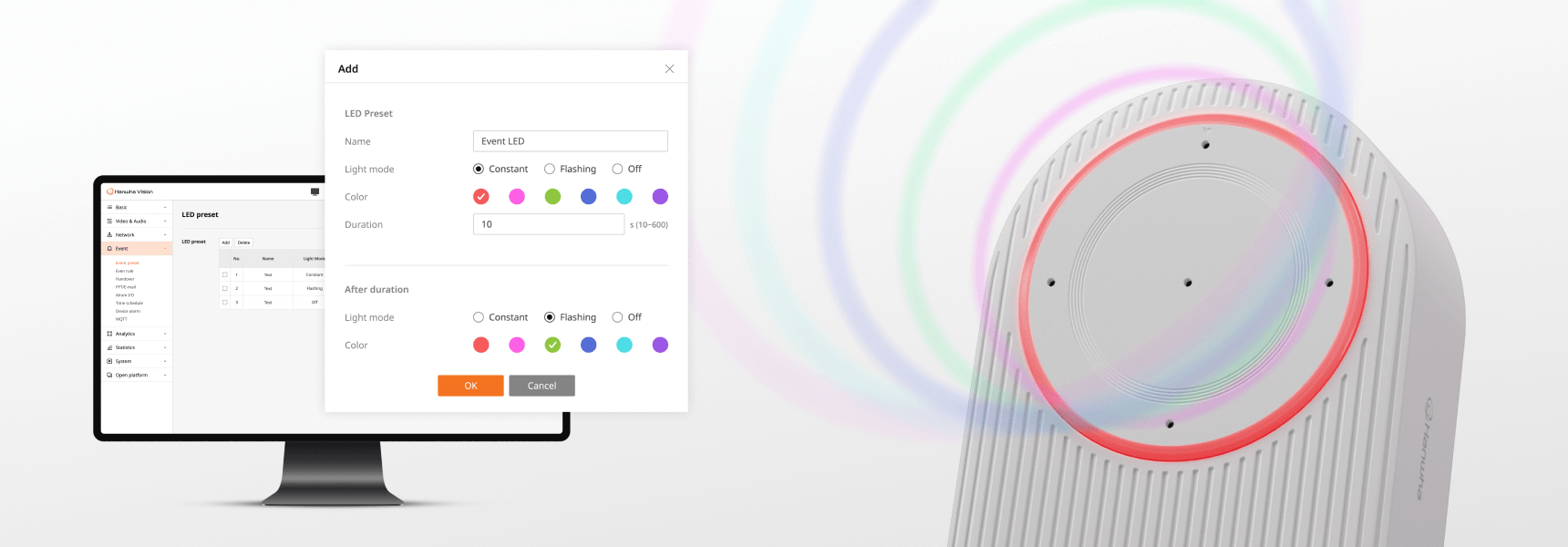

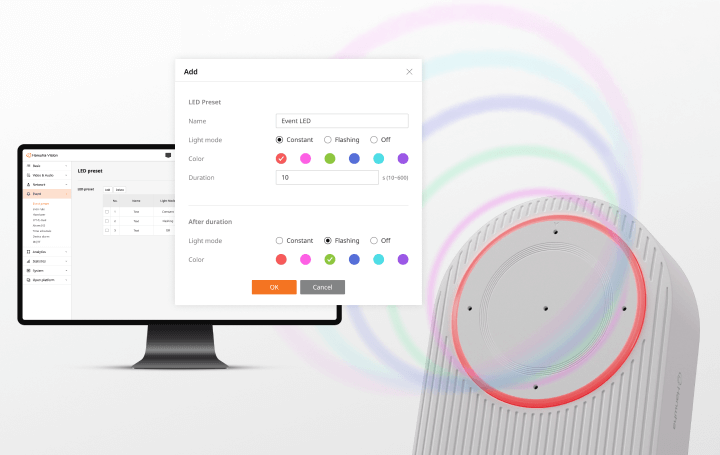

Visual Alerts with LED Ring

A built-in LED ring delivers clear, customizable visual signals that can indicate different types of events. These high-visibility alerts help notify personnel and deter intruders in a wide range of lighting conditions. The LED’s dynamic color and pattern options make it a versatile tool for both awareness and deterrence.

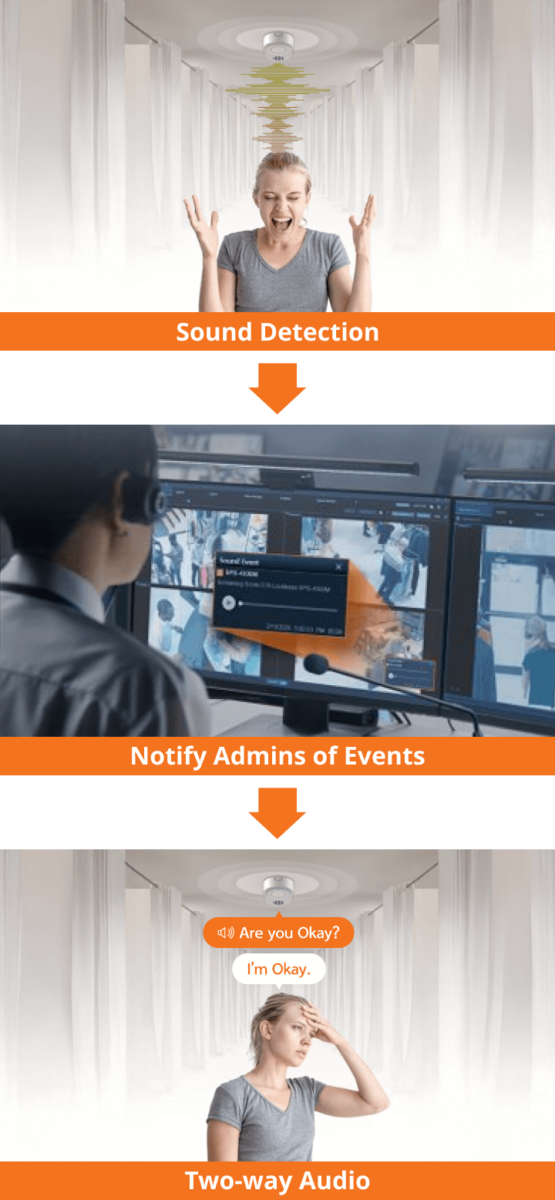

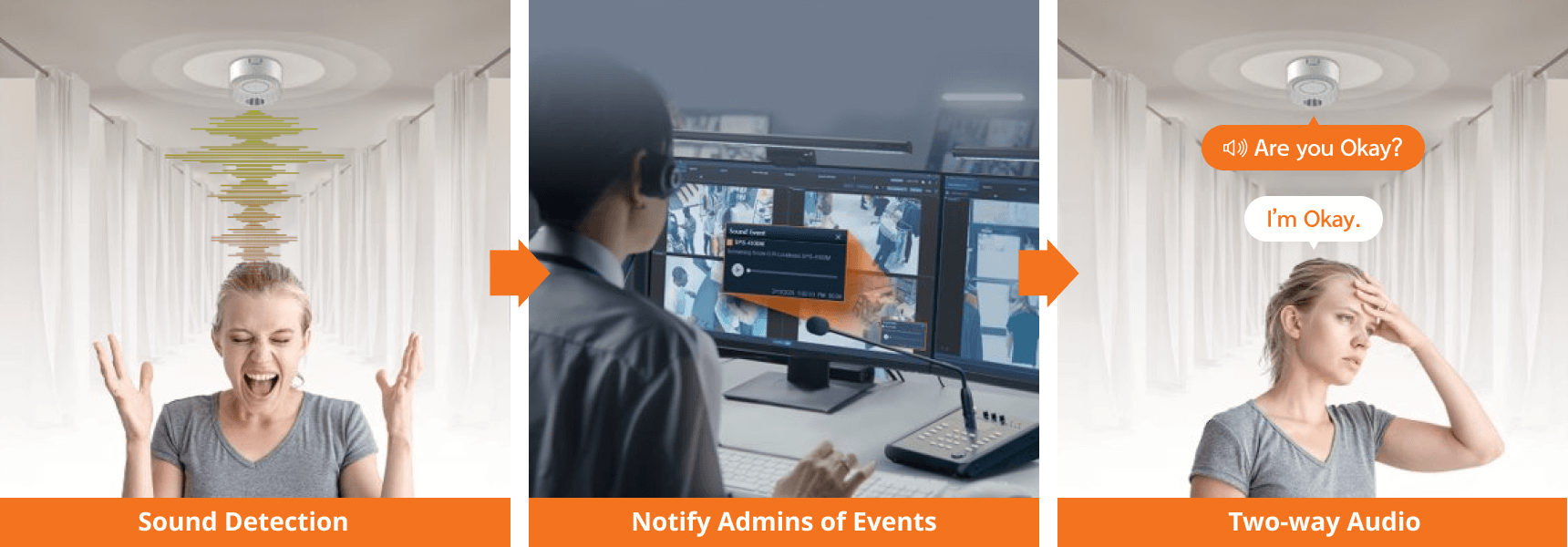

Two-way Audio & Speaker

This innovative new product integrates microphones, speaker, and an LED ring, making it an ideal choice for professional audio applications. It uses AI-powered sound classification technology to classify the sound type, sound direction, and volume of sound. It features a speaker and LED ring for notification, as well as full-duplex two-way communication.



Two-way Audio

The Audio Beacon is equipped with built-in microphones and speaker, facilitating seamless communications. This product supports full duplex two-way audio, with echo cancellation and noise reduction.

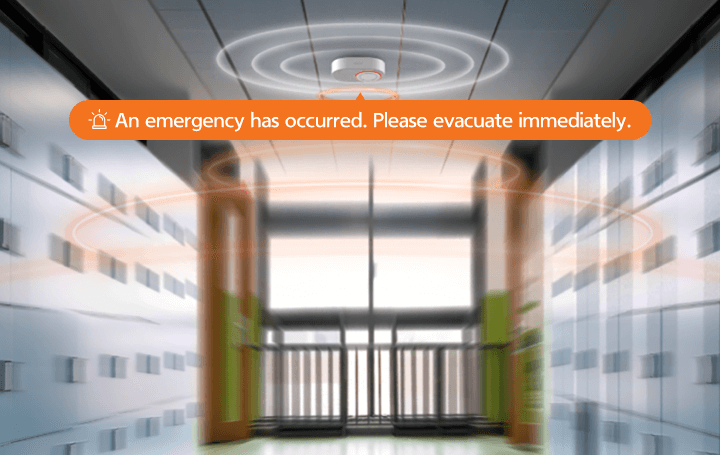

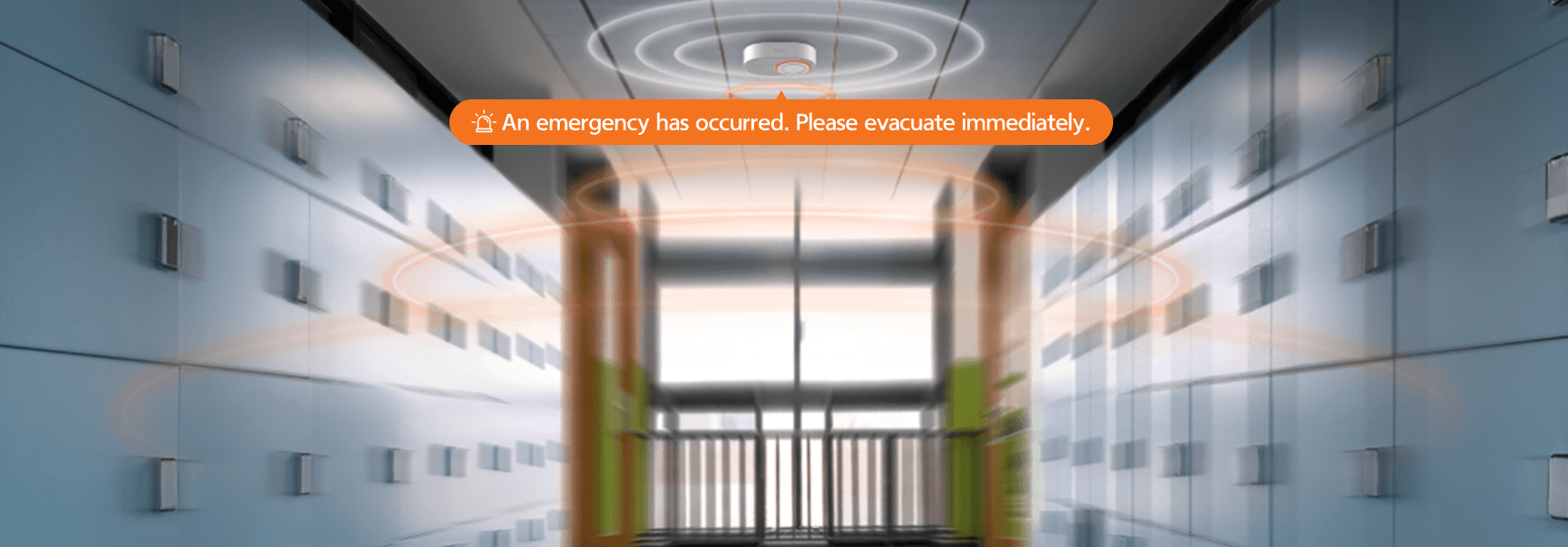

Audio File Playback Using Built-in Speaker

Provides an instant notification when a specific sound is detected. When an AI audio event is detected, Audio Beacon can play a previously saved audio file, and it can play different sound file for each AI audio event.

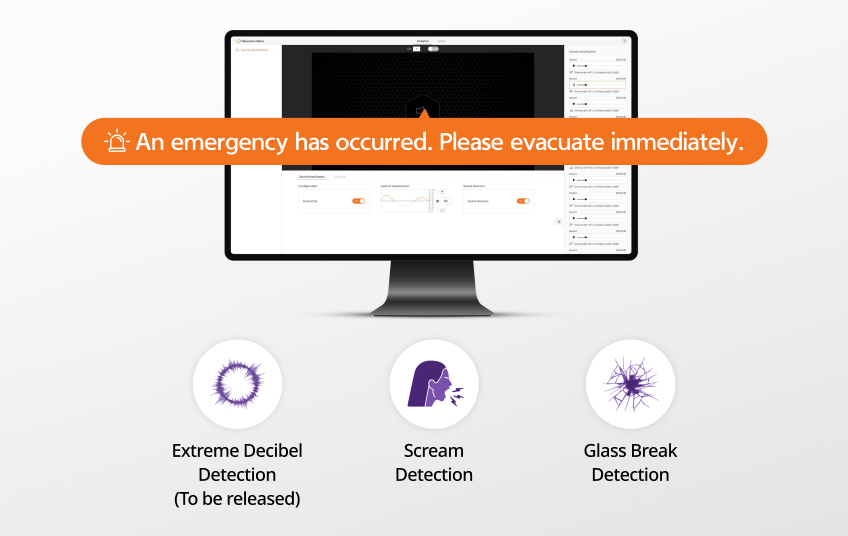

AI-Based Sound Classification

AI-powered sound analysis detects predefined audio events like screams, glass breaking, and extreme decibel levels. This intelligent classification provides an added layer of awareness, helping operators identify and verify incidents faster.

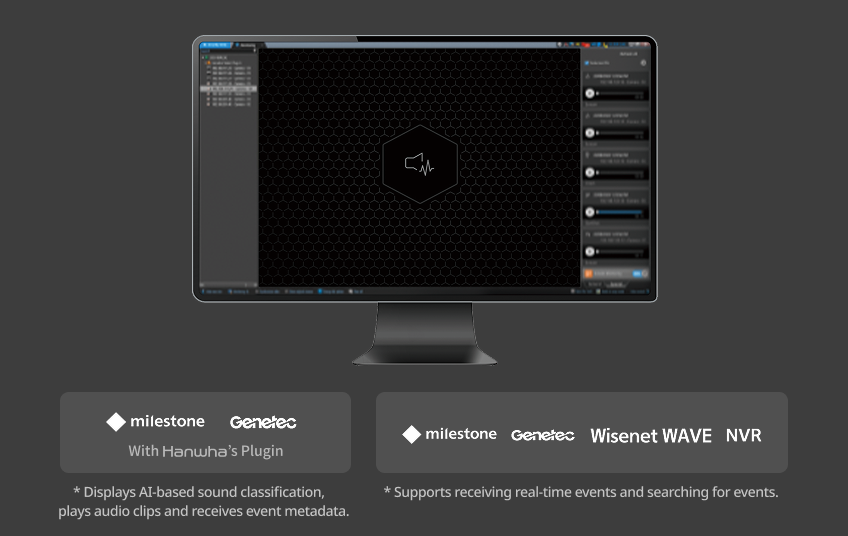

Seamless VMS Integration

The Audio Beacon seamlessly integrates with VMS platforms, including Milestone and Genetec using Hanwha’s plugin, as well as Wisenet WAVE.

Product Specification

Video
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate Static image video
H.265/H.264: Max. 10fps
MJPEG: Max. 5fps
Video Out USB: Micro USB Type C, setting true north point using Wisenet installation
Operational
Analytics AI Sound Classification
- Classified sound type: Crashing glass, Screaming, Vehicle horn, Tire screech
- Event metadata: Sound type, Sound direction, Confidence, Timestamp, Best sound(audio file), dB(±10dB)
- Sound direction(Celling mounting: ±15 degrees)
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event(Sound classification), Time schedule, MQTT subscription,
Case tampering
Audio Streaming Two-way/one-way selectable, Full duplex, Echo cancellation and noise reduction
Alarm Events When alarm trigger occurred
- File upload(audio): e-mail/FTP
- Notification: e-mail
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback(6MB, WAV)
- MQTT: publication
- LED
- Speaker
Audio In Five built-in MEMS MICs
Audio Out Built-in speaker
- Max. Sound Pressure Level 90dB at 1m(3.28ft)
- Frequency Range: 144Hz~20kHz
Light Type LED Ring(Green, Blue, Red, Pink, Sky blue, Purple), for event action
Network
Ethernet RJ-45(10/100 BASE-T)
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 6 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT
SIP 2.0(RFC 3261 and companion RFCs)
Application Programming Interface ONVIF Profile S
SUNAPI(HTTP API)
Wisenet open platform
- AI Sound Classfication pack included
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication SRTP, HTTPS, WSS(WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage Secure element
Security Certificate ETSI EN 303 645, Secure element(FIPS 140-3 level3, CC EAL6+)
General
Webpage Language English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek.
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -20°C ~ +55°C (-4°F ~ +122°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE+: Max 18.5W, typical 8.2W
Mechanical
Color / Material White / Plastic, Aluminum
RAL Code RAL9003
Product Dimensions / Weight 215.1(W)x135.1(D)x52.8(H)mm(8.47"x5.32"x2.08") / 973g(2.15 lb)
Compatible Conduit hole / Gangbox None / single, double, 4" octagon, 4" square
Sold separately conduit hole accessory: SBP-060BA

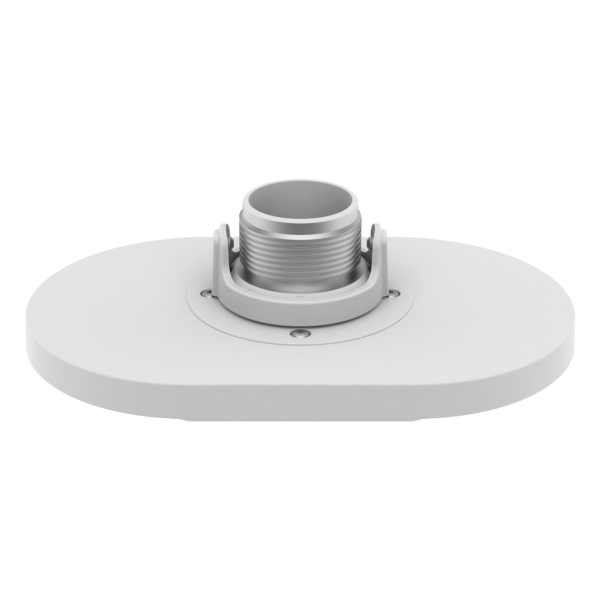

Hanging Mount (Dome) SBP-215HMWB
Conduit Adaptor SBP-060BA
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
