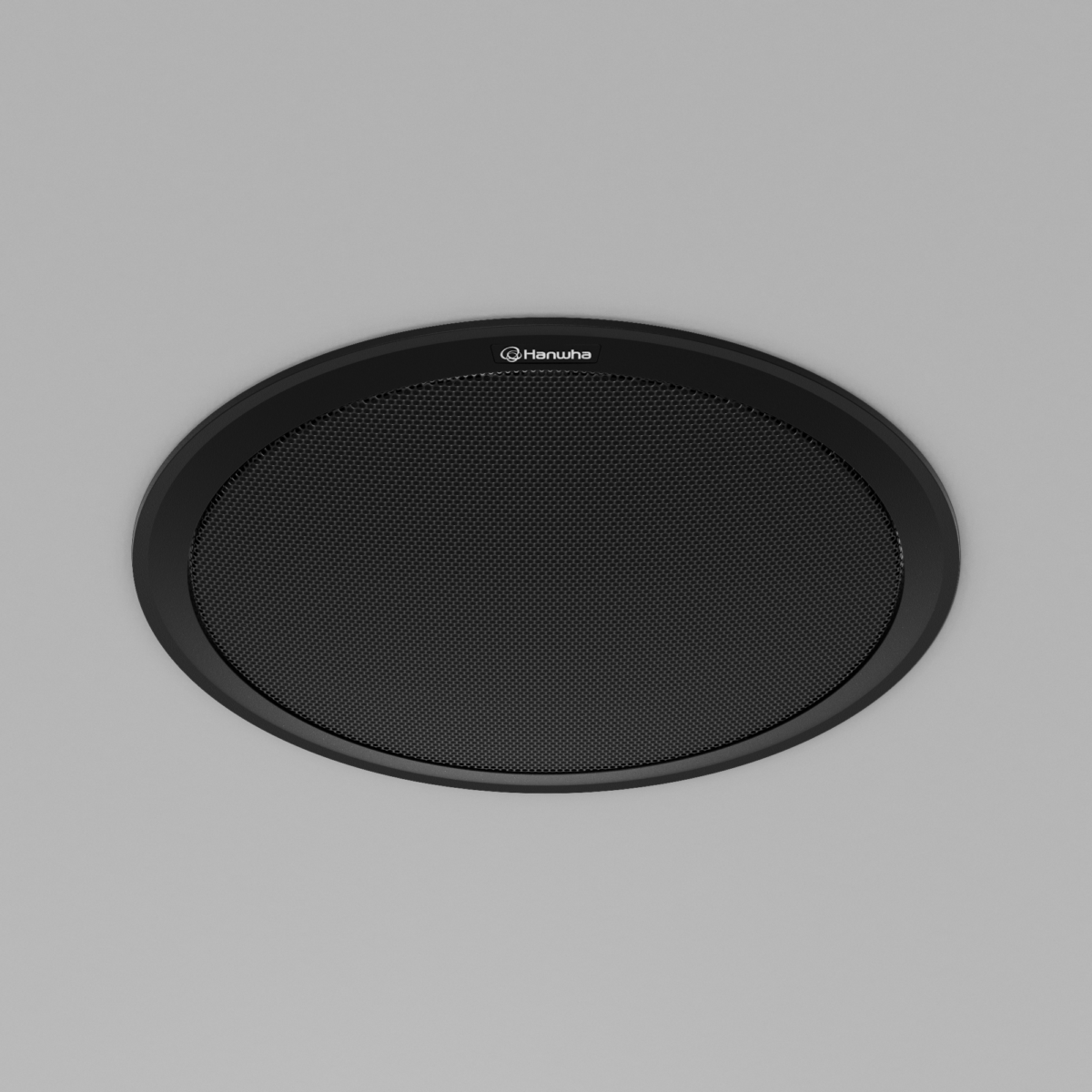

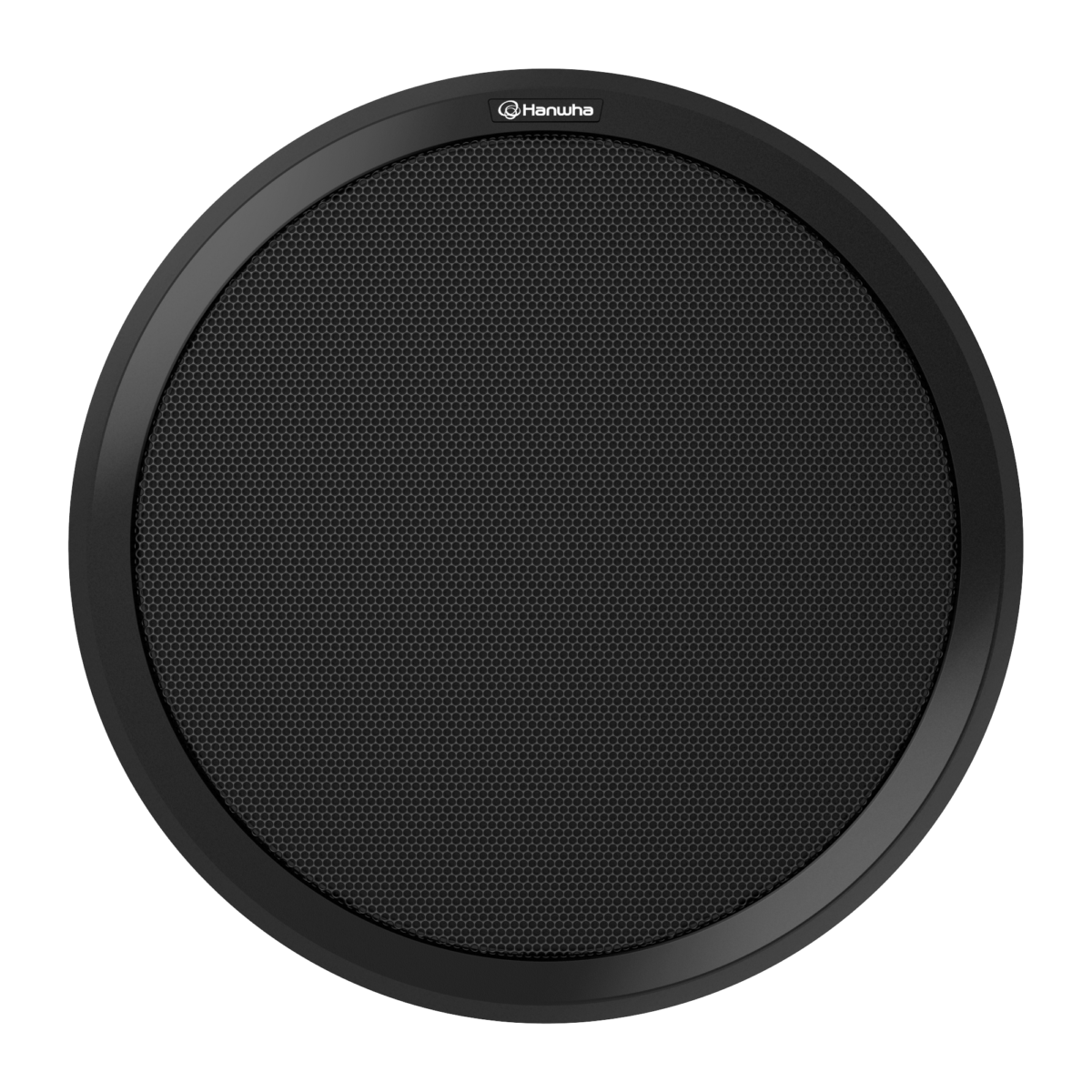

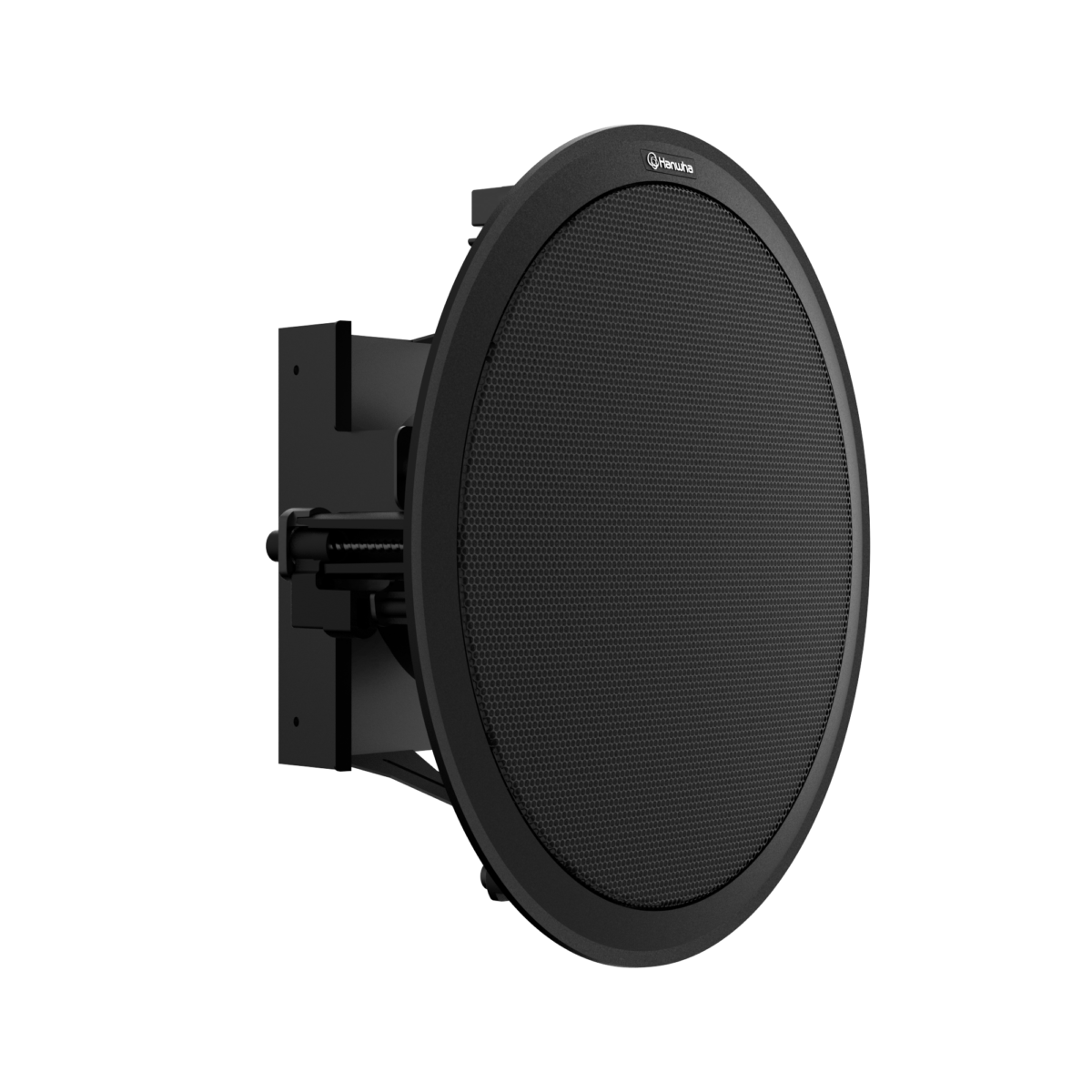

SPA-C100B
IP Ceiling Speaker
• Frequency Response: 20Hz ~ 20kHz
• Amplifier: Built in 10W Class D
• Power: PoE (IEEE 802.3 af type 1 Class 3), PoE+ (IEEE 802.3 at type 2 Class 4)
• Internal Memory: 1 GBytes
• Max. Sound Pressure Level: 99dB
• Frequency Range (-10dB): 120Hz~20kHz
• Sensitivity (1Watt): 90dB
• Supported Protocol: IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP
• TTS: English(US, UK), German, French, Spanish, Russian
• Audio Mornitoring: Speaker, Connection test
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
SPA-C100B
IP Ceiling Speaker
• Output Level: +6dBV ± 3dB
• Frequency Response: 20Hz ~ 20kHz
• Amplifier: Built in 10W Class D
• Power: PoE (IEEE 802.3 af type 1 Class 3), PoE+ (IEEE 802.3 at type 2 Class 4)
• Internal Memory: 1 GBytes
• Max. Sound Pressure Level: 99dB
• Frequency Range (-10dB): 120Hz~20kHz
• Sensitivity (1Watt): 90dB
• Supported Protocol: IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP
• TTS: English(US, UK), German, French, Spanish, Russian
• Audio Mornitoring: Speaker, Connection test
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Product
- Line Output
- Amplifier
- Network
- Memory
- Contact
- General
- Power
- Embedded MIC
- Audio
- Speaker
- Network Protocol
- System Integration
-
-
Product Type IP Ceiling Speaker Line Output Output Level +6dBV ± 3dB Frequency Response 20Hz ~ 20kHz THD + N Ratio (AES17 LPF) Less than 0.1% S/N Ratio (20kHz LPF, A-WTD) Greater than 91dB Amplifier Description Built in 10W Class D Network Ethernet 10/100 Base-T Memory Internal Memory 1 GBytes External Memory (Micro SD) SDHC upto 32GB (SANDISK) Contact Contact Input. Dry contact One channel Contact Output. Dry contact (NO) One channel General Operating Temperature -20 ~ +50℃ (-4°F ~ +122°F) Operating Humidity 10~85% RH (Non-Condensing) Weight 1.8Kg Size Φ269*142.5(H)mm Color Black/White Certificate EMC : KS C 9832/9835, EN 55032/55035
Safety : KC 62368-1Power PoE PoE (IEEE 802.3 af type 1 Class 3) PoE+ PoE+(IEEE 802.3 at type 2 Class 4) Embedded MIC Input Sensitivity Sound Level Meter Frequency Response Sound Level Meter Audio Supported Audio Format WAV, MP3 in mono/stereo from 64 kbps to 320 kbps.
Sampling rate from 16 kHz up to 48 kHzSpeaker Speaker Component 2Way 8" LF Driver & 2" HF Driver. Passive type Max. Sound Pressure Level (PoE) 96dB Max. Sound Pressure Level (PoE+) 100dB Frequency Range (-10dB) 120Hz~20kHz Sensitivity (1Watt) 90dB Coverage Pattern (HxV) : 90°(1kHz) / 60°(4kHz) Network Protocol Security Password protection : admin,setup,user,guest
(sha-2, Digest authentication, User access log)
Digest authentication, User access logSupported Protocols IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP System Integration API (Application Programming Interface) SUNAPI Multi-source Dynamic PA control Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH)
Up to 256 Zone Control (Multicast)
Up to 20 Zone Control (Unicast)
Up to 255 GroupsVoIP Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk
Tested with SIP client such as Grandstream and PBX supplier such as Grandstream
Supported SIP features: DTMF (RFC2833)
Supported codecs: PCMU, PCMA, speex/8000, speex/16000TTS English(US, UK), German, French, Spanish, Russian Audio Monitoring Speaker test by graphic level meter (Built in test tool) Event & Preset Virtual Contact, Dry contact Functional Monitoring Connection verification, Built-in system logging
-
